Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#81121) — 342 parça

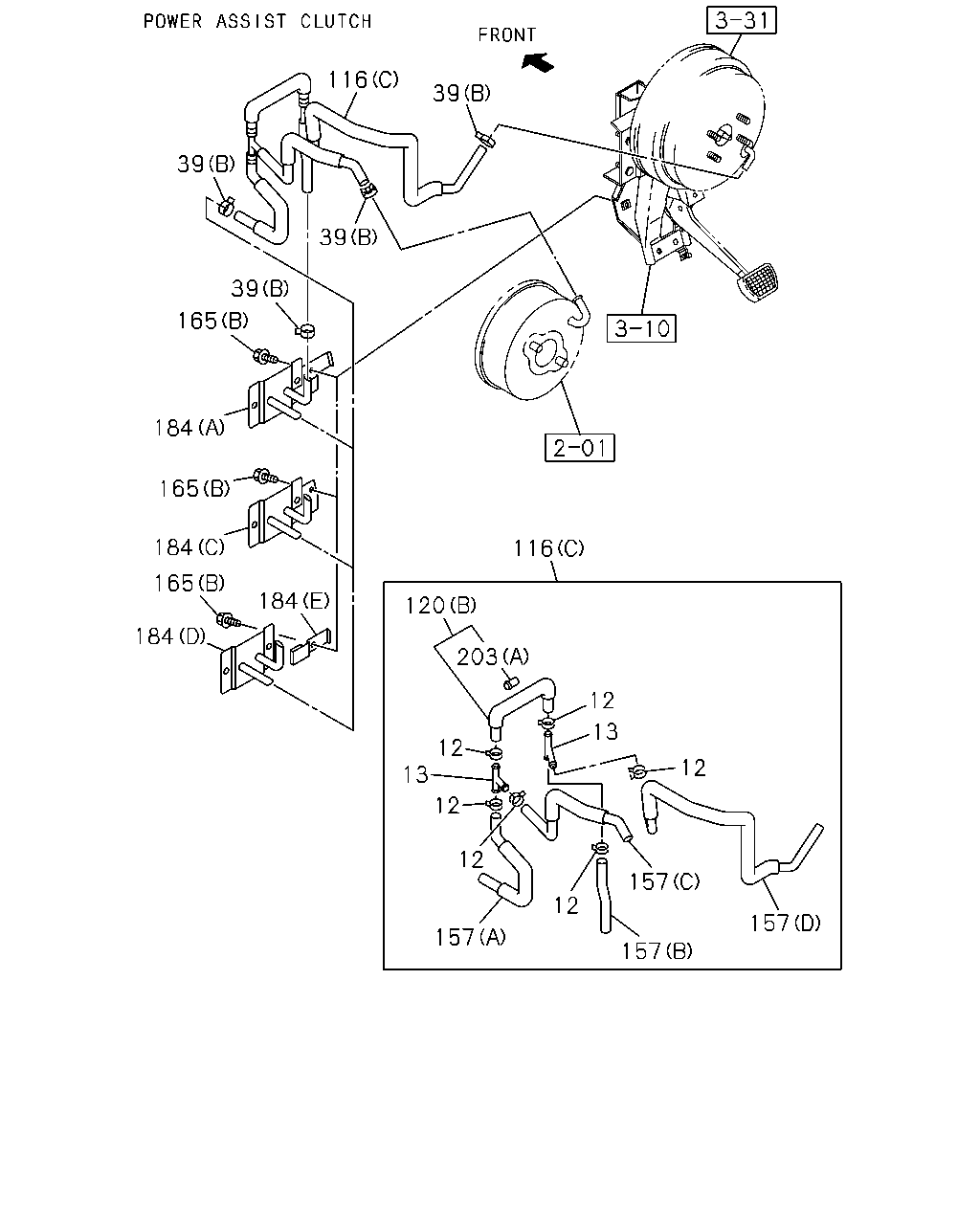

39 165 184 165 184 165 184 184 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-		●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-1001	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B) IDN	8-98017-628-1	01	1	0804-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●

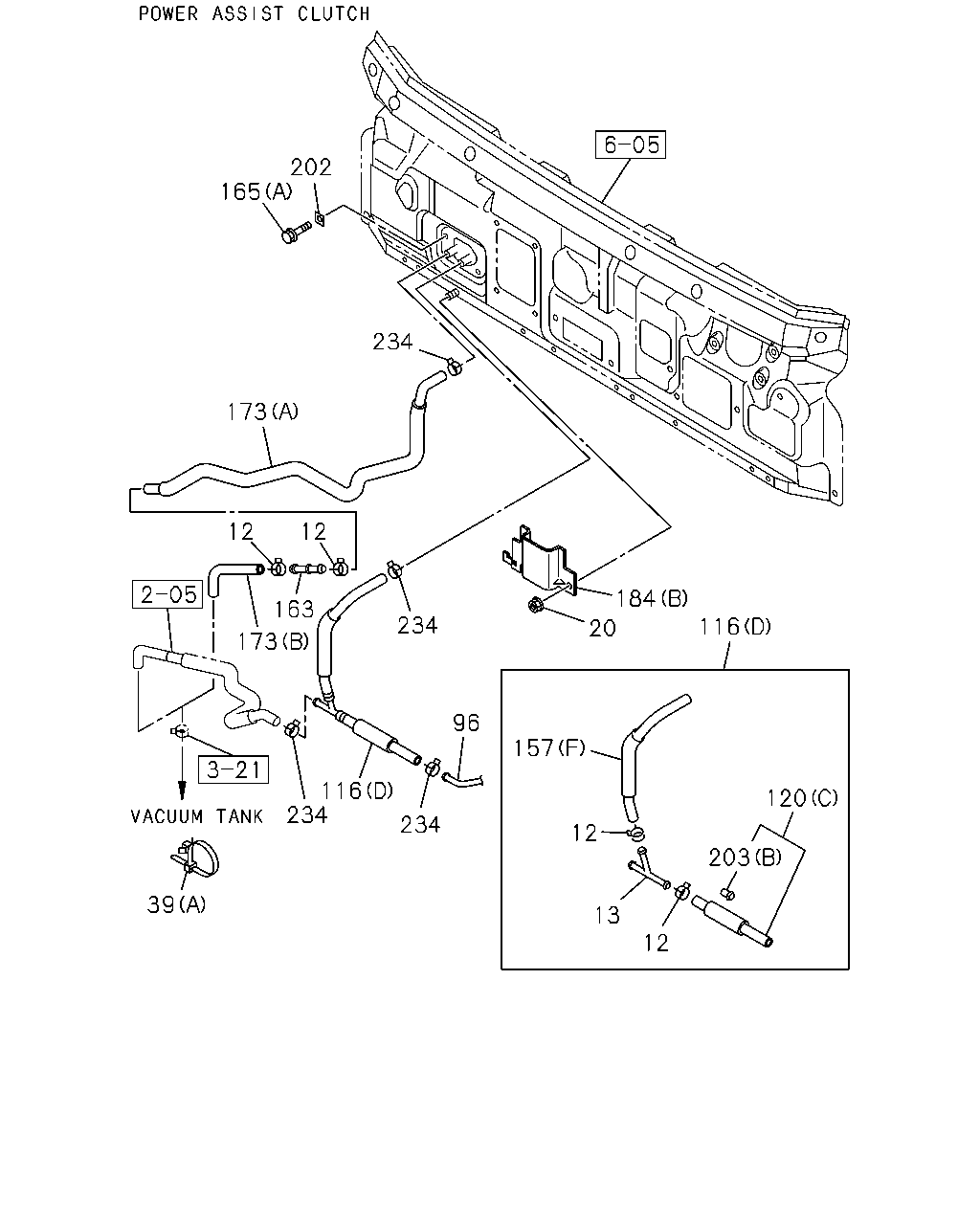

202 165 234 173 12 12 184 163 234 116 20 173 96 157 116 234 120 234 12 203 39 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0804-	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0804-	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-		●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	0804-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-		●
157	04.931 HOSE; JOINT (E)	8-98022-868-3	01	1	0804-	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-		●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0804-		●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-1001	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JB1-TC ENG(RDT) (C)	8-98107-558-0	01	1	0804-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE (C)	8-98107-558-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-		●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B) IDN	8-98017-628-1	01	1	0804-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	0804-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-		●
234	04.685 CLAMP; PIPE 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	04	1	0804-		●

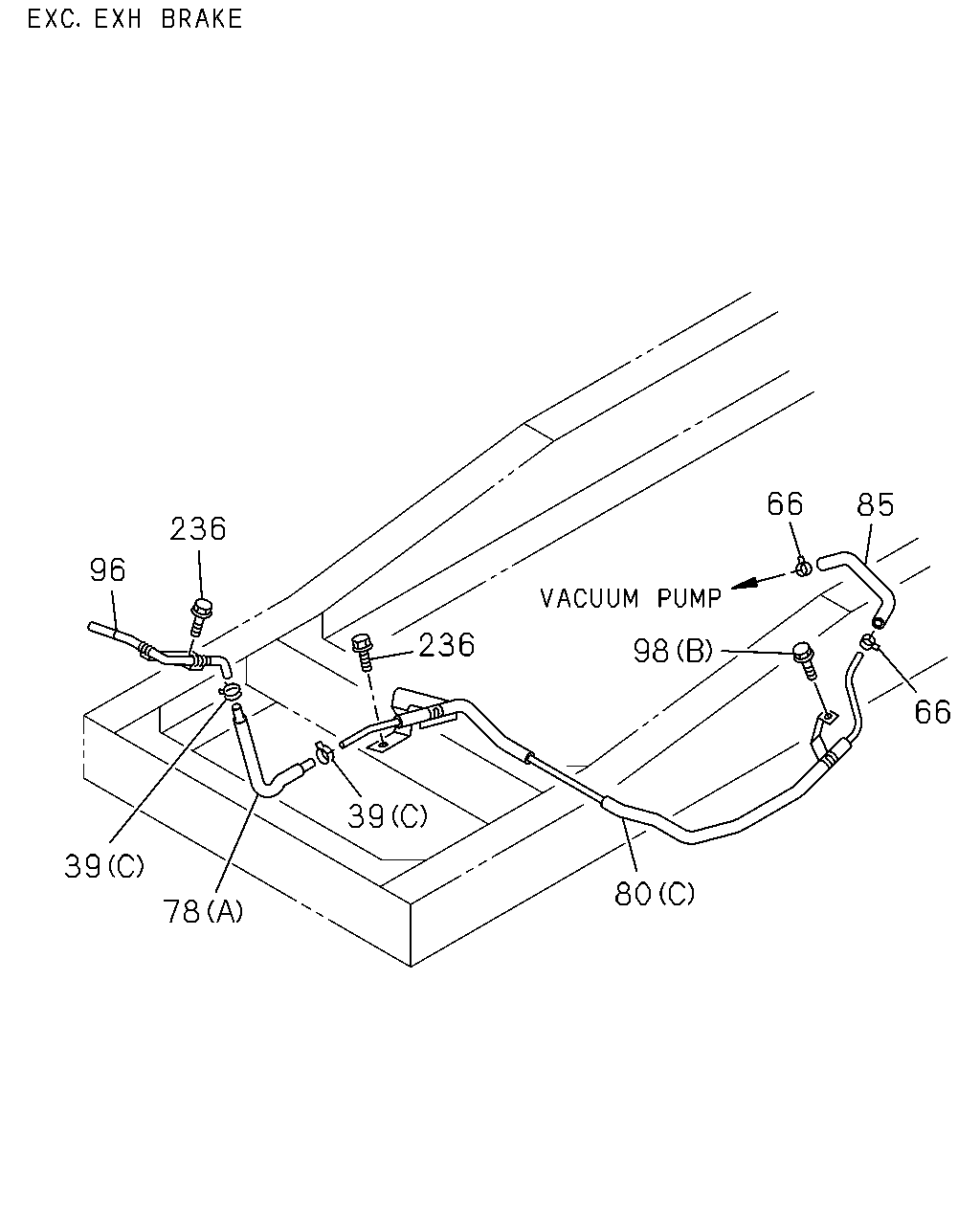

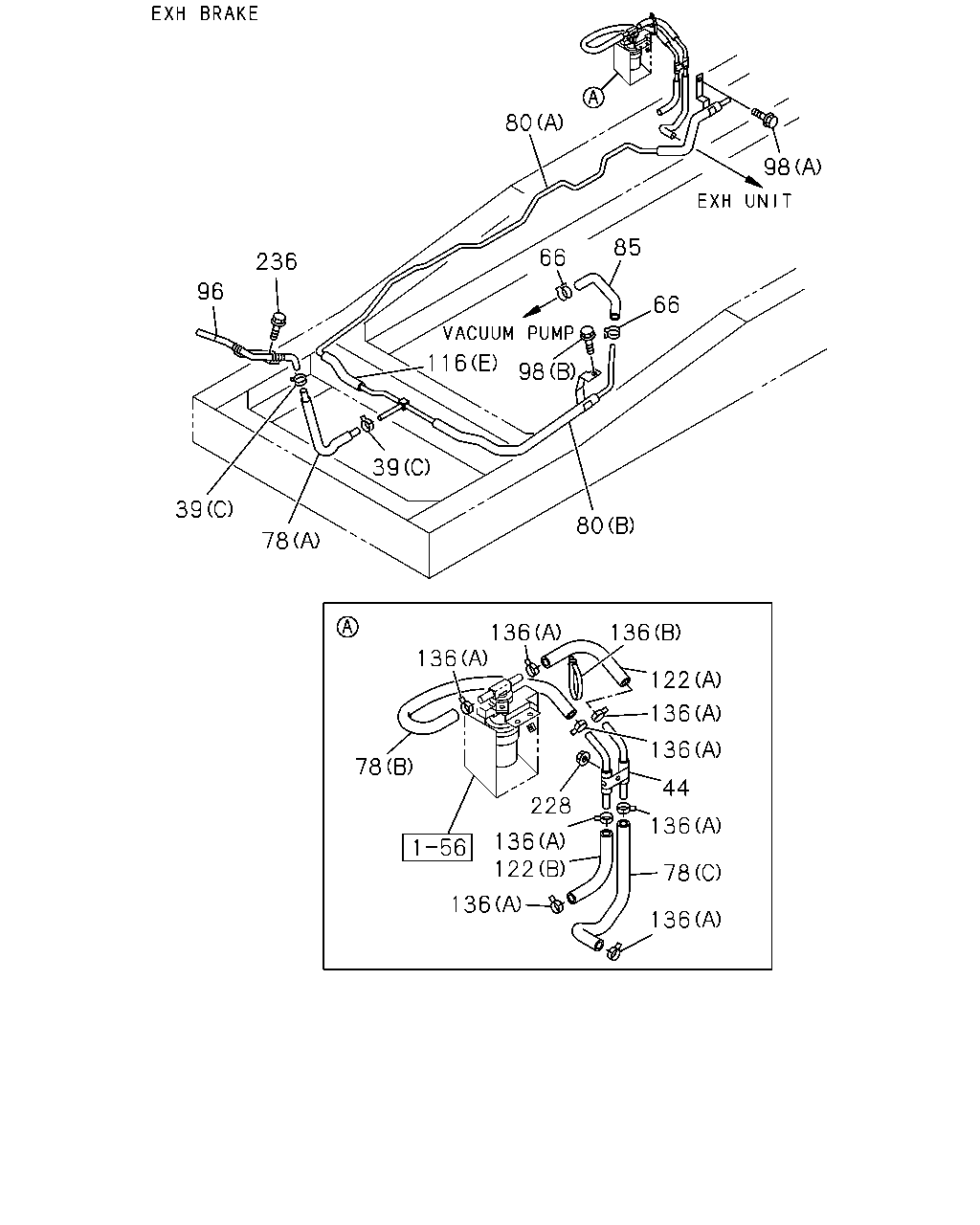

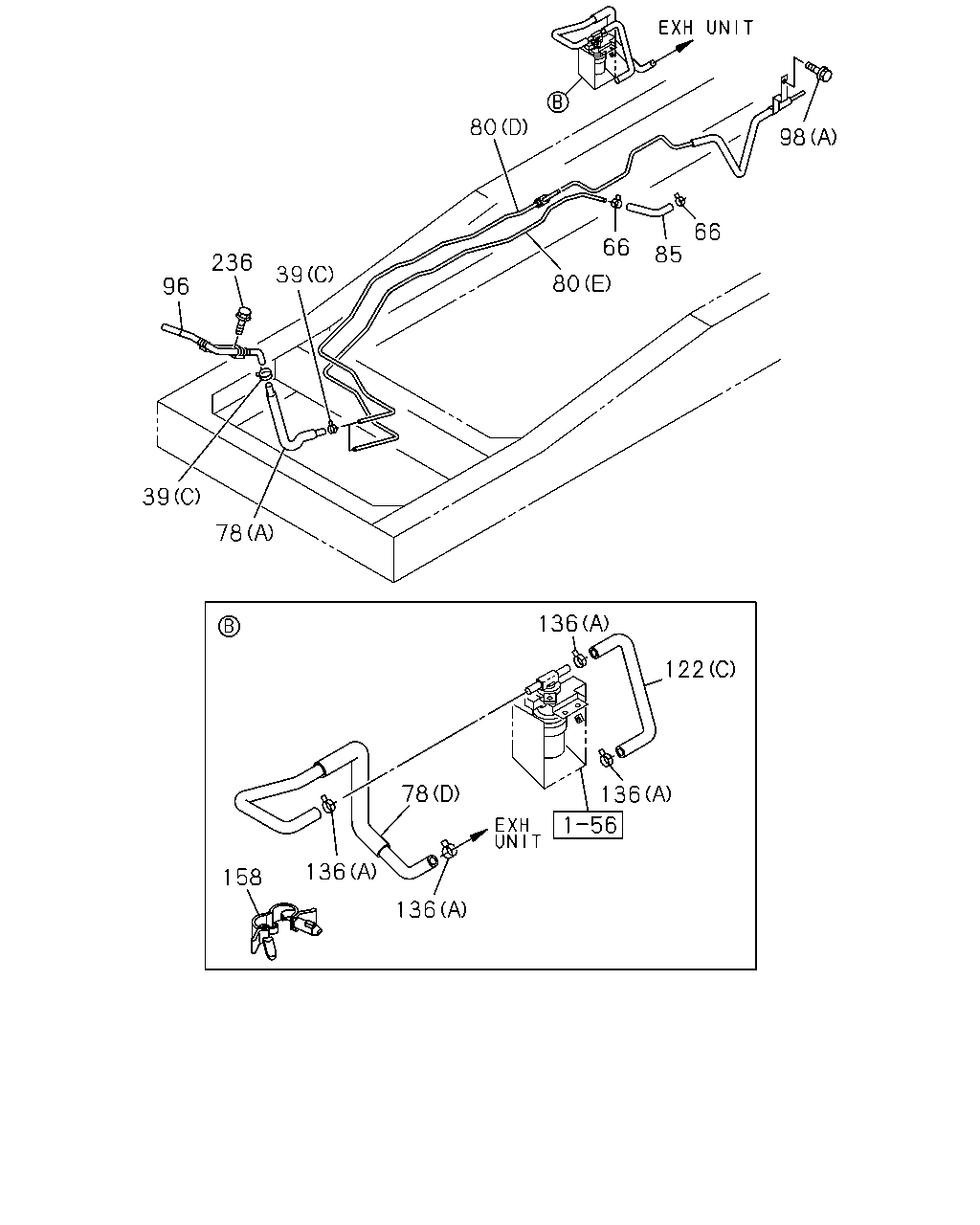

80 98 85 66 236 96 66 116 98 39 39 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8>	8-98042-654-0	01	1	0804-		●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98076-069-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98042-690-1	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98042-691-2	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98189-224-0	01	1	1105-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98113-754-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98255-707-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98289-413-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98113-755-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98255-706-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98271-927-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B)	8-98075-014-0	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (C)	8-98056-001-1	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98056-002-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EXHAUST BRAKE<NF8> (C)	8-98061-466-1	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE	8-98113-809-0	01	1	0804-1311	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98113-809-0	01	1	0804-1311		●
85	04.931 HOSE; VAC,ENG SIDE	8-98255-708-0	01	1	1312-	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1312-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98076-068-1	01	1	0804-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98042-689-2	01	1	0804-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98089-657-0	01	1	0804-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98189-226-0	01	1	1105-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0804-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
228	04.930 NUT; PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●

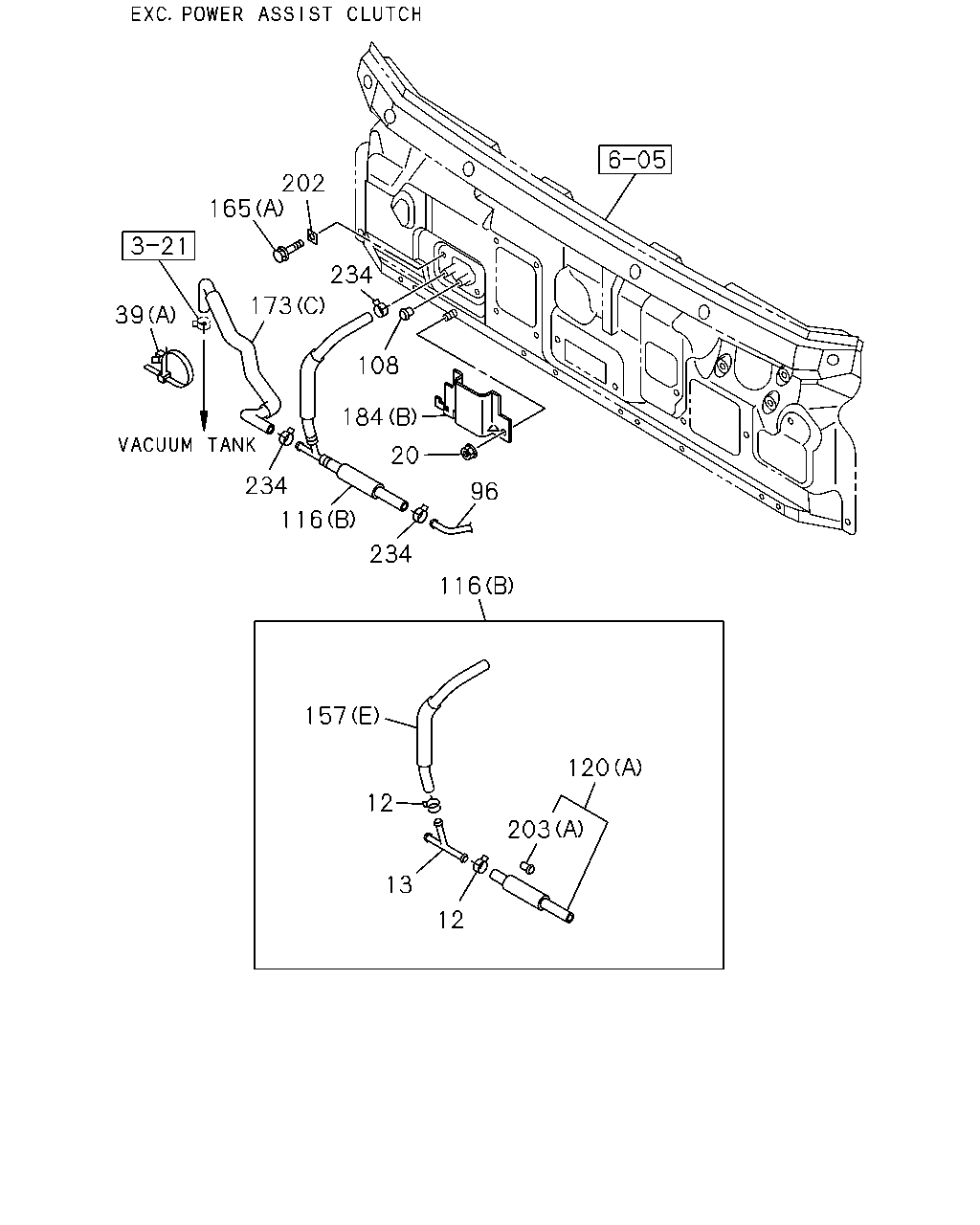

157 157 157 12 12 13 12 13 12 12 157 12 116 120 203 184 165 184 184 165 184 165 39 39 39 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0804-	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0804-	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	0804-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-		●
157	04.931 HOSE; JOINT (E)	8-98022-868-3	01	1	0804-	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-		●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-1001	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B) IDN	8-98017-628-1	01	1	0804-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-		●

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0804-	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	0804-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	0804-		●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0804-	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0804-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0804-		●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●
108	04.931 GROMMET; PIPE IDN	9-09956-353-0	01	1	0804-	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) IDN	9-09956-353-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (B)	8-97389-690-3	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC (A)	8-98094-547-0	01	1	0804-	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0804-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE (A)	8-97389-696-2	01	1	0804-	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0804-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0804-		●
157	04.931 HOSE; JOINT (E)	8-98022-868-3	01	1	0804-	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0804-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0804-		●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0804-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0804-1001	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JJ1-TCC ENG(RDU) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JB1-TC ENG(RDT) (C)	8-98107-558-0	01	1	0804-1012	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4JB1-TC ENG(RDT) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE (C)	8-98107-558-0	01	1	1101-	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0804-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-		●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B) IDN	8-98017-628-1	01	1	0804-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	0804-1001	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-97389-686-1	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1104-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98155-345-0	01	1	1002-1103	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1104-	●	●
202	04.686 SEAL 08.845 IDN	8-97856-616-0	02	1	0804-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0804-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0804-		●
234	04.685 CLAMP; PIPE 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	03	1	0804-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16 IDN	8-94238-568-0	04	1	0804-		●

80 98 66 66 85 236 39 80 96 39 78 136 122 78 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98076-069-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98042-690-1	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98042-691-2	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98189-224-0	01	1	1105-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98113-754-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98255-707-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98289-413-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98113-755-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98255-706-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98271-927-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B)	8-98075-014-0	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (C)	8-98056-001-1	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98056-002-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EXHAUST BRAKE<NF8> (C)	8-98061-466-1	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE	8-98113-809-0	01	1	0804-1311	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98113-809-0	01	1	0804-1311		●
85	04.931 HOSE; VAC,ENG SIDE	8-98255-708-0	01	1	1312-	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1312-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)	8-98076-068-1	01	1	0804-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98042-689-2	01	1	0804-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98189-222-0	01	1	1105-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98089-657-0	01	1	0804-1104		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98189-226-0	01	1	1105-		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (B) L=140 IDN	5-09707-031-1	01	1	0804-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	04	1	0804-0911	●	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 04.930 (A) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
136	04.681 CLIP; VAC HOSE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●
158	04.681 CLIP; HOSE ID=18-24 L=14.5	1-09709-298-0	01	1	0804-	●
158	04.681 CLIP; HOSE 4JB1-TC ENG(RDT) ID=18-24 L=14.5	1-09709-298-0	01	1	0804-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●

66 85 236 96 236 98 66 39 39 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0804-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	04	1	0804-		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0912-		●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16 IDN	8-94238-568-0	02	1	0804-0911	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98076-069-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	0804-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98042-690-1	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98189-223-0	01	1	1105-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C)	8-98042-691-2	01	1	0804-1104		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)	8-98189-224-0	01	1	1105-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98113-754-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98255-707-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (D)	8-98289-413-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98113-755-0	01	1	0804-1311	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98255-706-0	01	1	1312-1408	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E)	8-98271-927-0	01	1	1409-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (B)	8-98075-014-0	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (C)	8-98056-001-1	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (A)	8-98056-002-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	0804-		●
80	04.930 PIPE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EXHAUST BRAKE<NF8> (C)	8-98061-466-1	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE	8-98113-809-0	01	1	0804-1311	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98113-809-0	01	1	0804-1311		●
85	04.931 HOSE; VAC,ENG SIDE	8-98255-708-0	01	1	1312-	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT)	8-98255-708-0	01	1	1312-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	0804-		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98092-071-0	01	1	0804-0810		●
85	04.931 HOSE; VAC,ENG SIDE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	0811-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0804-	●	●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX 4JJ1-TCC ENG(RDU) EXC. EXHAUST BRAKE<NF8> 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
