◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#81120) — 59 parça
çizim 121189
19 67 68 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●
4 04.686 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0804- ● ●
19 04.686 BRACKET; OIL PIPE 8-98009-117-2 01 1 0804-1006 ● ●
19 04.686 BRACKET; OIL PIPE 8-98162-759-0 01 1 1007- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0804- ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 0804- ● ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT) (C) 		8-98090-213-1 01 1 0804-1009 ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98090-213-1 01 1 0804-1009 ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT) (D) 		8-98178-046-0 01 1 1010- ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) 		8-98178-046-0 01 1 1010- ●

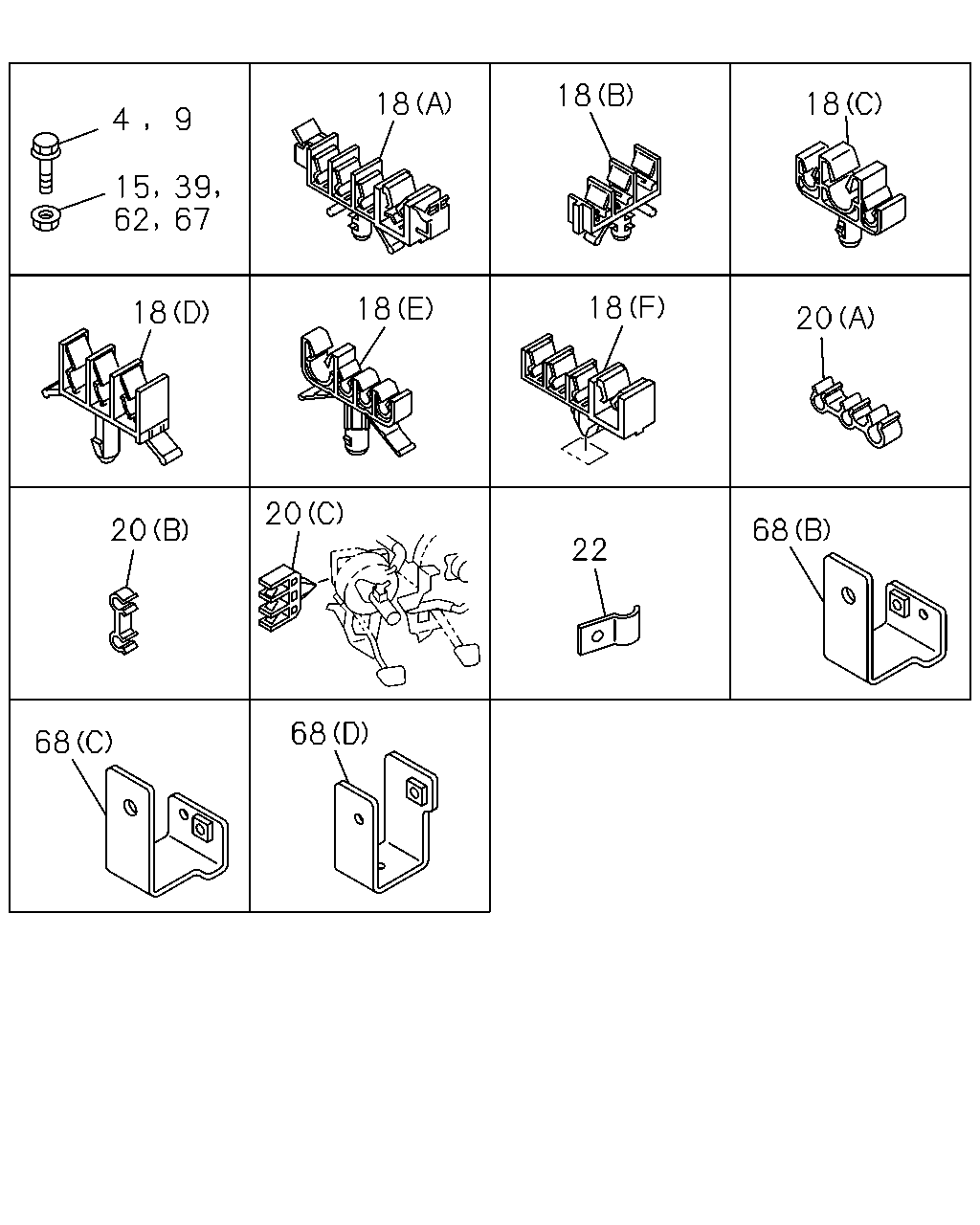

çizim 121712
18 18 18 9 4 15 62 39 67 18 18 18 20 20 20 68 22 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●
4 04.686 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●
4 04.686 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 0804- ● ●
9 04.686 BOLT; BRKT
00.029 M10X25 FLANGE IDN 		0-28651-025-0 01 1 0804- ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 03 1 0804- ●
18 04.686 CLIP; BRK PIPE
EXHAUST BRAKE<NF8> 03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0907- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 01 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 07 1 0907- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97168-820-0 01 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
(A) ID=10 & 4.76X3 		8-97326-158-1 02 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=6.5 & 4.8X2 IDN 		8-94131-710-2 01 1 0804- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 02 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
EXHAUST BRAKE<NF8> 03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0907-0907 ● ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) 03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0907- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 03.162 (B) ID=10 & 6.4 & 4.8 IDN 		8-97064-484-1 01 1 0907- ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 07 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=10 & 4.76X3 		8-97168-819-0 01 1 0907- ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 0907-1005 ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 1006- ●
18 04.686 CLIP; BRK PIPE
4JB1-TC ENG(RDT) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 1006- ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 05 1 0804-0906 ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0907- ● ●
18 04.686 CLIP; BRK PIPE
4JJ1-TCC ENG(RDU) (C) ID=12 & 6.35 & 4.76 		8-97305-169-1 04 1 1006- ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0804- ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0804- ● ●
20 04.686 CLIP; BRK PIPE
(B) 		8-94338-104-0 01 1 0804- ● ●
22 04.686 CLIP; PIPE TO FRAME
00.785 B=14 L=16 		9-09916-996-0 02 1 0804- ● ●
39 04.686 NUT; BRKT FIX
03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
62 04.686 NUT
EXHAUST BRAKE<NF8> 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ● ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ● ●
68 04.686 BRACKET; CLIP
(A) 		8-98039-558-2 01 1 0804- ● ●
68 04.686 BRACKET; CLIP
(B) 		8-98060-870-2 01 1 0804- ● ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT) (C) 		8-98090-213-1 01 1 0804-1009 ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (C) 		8-98090-213-1 01 1 0804-1009 ●
68 04.686 BRACKET; CLIP
4JB1-TC ENG(RDT) (D) 		8-98178-046-0 01 1 1010- ● ●
68 04.686 BRACKET; CLIP
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (D) 		8-98178-046-0 01 1 1010- ●
