1-40 — FUEL TANK (#8112) — 186 parça

282 283 279 457 281 275 511 285 468 72 285 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
72	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0211-0602		●	●
72	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-		●	●
275	HOSE; FLEX,FUEL TANK	1-09364-951-1	02	1	0005-0210	●
275	HOSE; FLEX,FUEL TANK FTS ALL(FT****)	1-09365-230-1	02	1	0211-		●
275	HOSE; FLEX,FUEL TANK FSS ALL(FS****)	1-09365-269-0	02	1	0211-			●
279	UNION; FUEL PIPE M16 L=74	9-09233-310-1	02	1	0005-0210	●
279	UNION; FUEL PIPE M16 L=74	9-09233-310-1	02	1	0211-0607		●	●
279	UNION; FUEL PIPE M16 L=74	0-92123-310-0	02	1	0608-		●	●
281	BRACKET; FLEX HOSE	1-47477-641-0	01	1	0005-0210	●
281	BRACKET; FLEX HOSE	1-47478-981-0	01	1	0211-		●	●
282	NUT; FLEX HOSE,FUEL TANK M16	9-99111-416-0	01	1	0005-0210	●
283	WASHER; LK,FLEX HOSE,FUEL TANK ID=16.2	9-09150-516-0	01	1	0005-0210	●
285	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●
285	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
285	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512		●	●
285	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-		●	●
457	BRACKET; UNION,FUEL PIPE	1-47475-400-2	01	1	0005-0210	●
457	BRACKET; UNION,FUEL PIPE	1-47475-400-2	01	1	0211-		●	●
468	NUT M16	9-99111-416-0	02	1	0005-0210	●
468	NUT M16	9-99111-416-0	02	1	0211-0512		●	●
468	NUT M16	0-91111-516-0	02	1	0601-		●	●
511	WASHER ID=16.2	9-09150-516-0	02	1	0005-0210	●
511	WASHER ID=16.2	9-09150-516-0	02	1	0211-0603		●	●
511	WASHER ID=16.2	0-91510-516-0	02	1	0604-		●	●

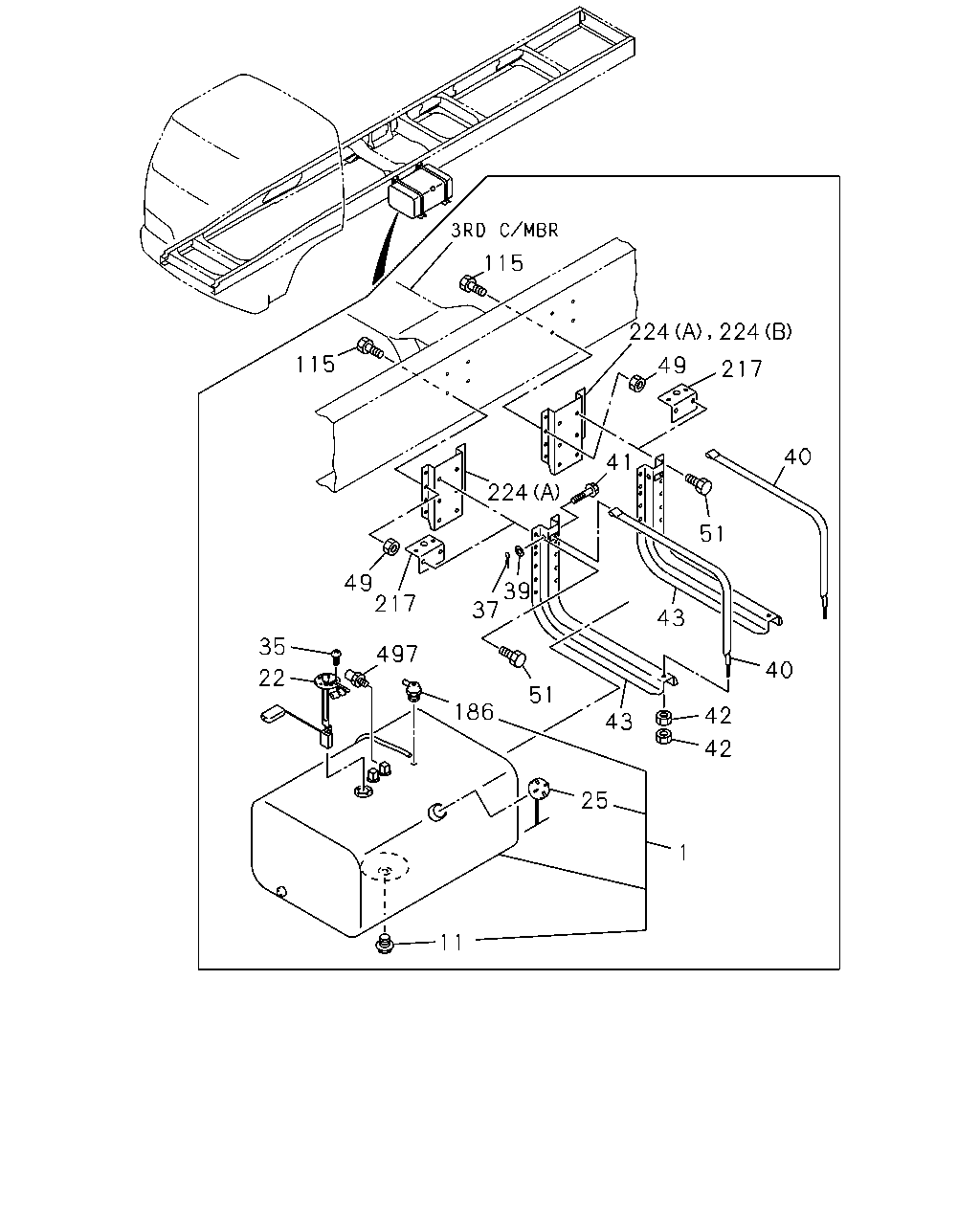

115 224 115 49 217 40 41 224 51 39 37 49 217 43 35 497 40 22 51 186 42 43 42 25 1 11 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 864X597X413 200L	1-22400-975-0	01	1	0005-0105	●
1	TANK; FUEL 864X597X413 200L	1-22401-176-0	01	1	0106-0210	●
1	TANK; FUEL 864X597X413 200L	1-22401-176-0	01	1	0211-0502		●	●
1	TANK; FUEL 864X597X413 200L	8-98012-165-0	01	1	0503-		●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-082-0	01	1	0005-0105	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0106-0210	●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0211-		●	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0005-0210	●
22	UNIT; FUEL TANK	1-83141-121-0	01	1	0211-0502		●	●
22	UNIT; FUEL TANK	1-83141-149-0	01	1	0503-		●	●
25	CAP; FILLER,FUEL TANK	1-22440-050-0	01	1	0005-0105	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0106-0210	●
25	CAP; FILLER,FUEL TANK	8-97233-810-0	01	1	0211-		●	●
35	SCREW; FUEL TANK UNIT	1-09187-007-0	05	1	0005-0105	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0106-0210	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	9-03910-510-0	05	1	0211-0604		●	●
35	SCREW; FUEL TANK UNIT M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-		●	●
37	PIN; SPLIT,SUPPORT BELT OD=3.7 L=28	9-08114-028-0	02	1	0005-0105	●
39	WASHER; PL,SUPPORT BELT ID=17	9-09164-516-0	02	1	0005-0105	●
40	BELT; SUPPORT,FUEL TANK L=1035	1-22550-221-0	02	1	0005-0105	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0106-0210	●
40	BELT; SUPPORT,FUEL TANK L=925	1-22550-255-1	02	1	0211-		●	●
41	PIN; SUPPORT BELT OD=16 L=75	9-08224-675-0	02	1	0005-0105	●
42	NUT; SUPPORT BELT	1-09487-027-1	04	1	0005-0105	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0106-0210	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0211-0512		●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-		●	●
43	BRACKET; FUEL TANK FSS ALL(FS****)	1-53461-354-2	02	1	0005-0105	●
43	BRACKET; FUEL TANK FSS ALL(FS****)	1-53461-527-1	02	1	0106-0210	●
43	BRACKET; FUEL TANK FSS ALL(FS****)	1-53461-527-1	02	1	0211-			●
43	BRACKET; FUEL TANK FTS ALL(FT****)	1-53461-355-2	02	1	0005-0105	●
43	BRACKET; FUEL TANK FTS ALL(FT****)	1-53461-528-1	02	1	0106-0210	●
43	BRACKET; FUEL TANK FTS ALL(FT****)	1-53461-528-1	02	1	0211-		●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	16	1	0005-0210	●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91150-212-0	16	1	0211-0602			●
49	NUT; BRKT FSS ALL(FS****) M12 FLANGE	0-91180-212-0	16	1	0603-			●
49	NUT; BRKT FTS ALL(FT****) M12 FLANGE	0-91150-212-0	12	1	0005-0210	●
49	NUT; BRKT FTS ALL(FT****) M12 FLANGE	0-91150-212-0	12	1	0211-0602		●
49	NUT; BRKT FTS ALL(FT****) M12 FLANGE	0-91180-212-0	12	1	0603-		●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	16	1	0005-0210	●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28681-235-0	16	1	0211-0512			●
51	BOLT; BRKT TO FRAME FSS ALL(FS****) M12X35 FLANGE	0-28651-235-0	16	1	0601-			●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) M12X35 FLANGE	0-28681-235-0	12	1	0005-0210	●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) M12X35 FLANGE	0-28681-235-0	12	1	0211-0512		●
51	BOLT; BRKT TO FRAME FTS ALL(FT****) M12X35 FLANGE	0-28651-235-0	12	1	0601-		●
115	BOLT; BRKT FTS ALL(FT****) M12X35 FLANGE	0-28681-235-0	12	1	0005-0210	●
115	BOLT; BRKT FTS ALL(FT****) M12X40 FLANGE	0-28681-240-0	12	1	0211-0512		●
115	BOLT; BRKT FTS ALL(FT****) M12X40 FLANGE	0-28651-240-0	12	1	0601-		●
186	VALVE; GT,FUEL TANK	1-22453-005-0	01	1	0005-0105	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0106-0210	●
186	VALVE; GT,FUEL TANK	1-22453-003-0	01	1	0211-		●	●
217	BRACKET; FUEL TANK,LOW FSS ALL(FS****)	1-53461-432-1	02	1	0005-0210	●
217	BRACKET; FUEL TANK,LOW FSS ALL(FS****)	1-53461-432-1	02	1	0211-			●
224	BRACKET; FUEL TANK BRKT TO FRAME FTS STD CAB(FT*M) MLD6D M/T(X5Q) (A)	1-53461-359-0	02	1	0005-0210	●
224	BRACKET; FUEL TANK BRKT TO FRAME FTS DOUBLE CAB(FT*W) MLD7Q M/T(X5K),MLD6D M/T(X5Q) (A)	1-53461-359-0	02	1	0005-0210	●
224	BRACKET; FUEL TANK BRKT TO FRAME FTS STD CAB(FT*M) MLD7Q M/T(X5K) (A)	1-53461-359-0	01	1	0005-0210	●
224	BRACKET; FUEL TANK BRKT TO FRAME FTS ALL(FT****) (A)	1-53461-359-0	02	1	0211-		●
224	BRACKET; FUEL TANK BRKT TO FRAME FTS STD CAB(FT*M) MLD7Q M/T(X5K) (B)	1-53461-519-0	01	1	0005-0210	●
497	NIPPLE; FUEL PIPE M16 & NPTF3/8 STRAIGHT	1-09650-405-1	02	1	0005-0105	●

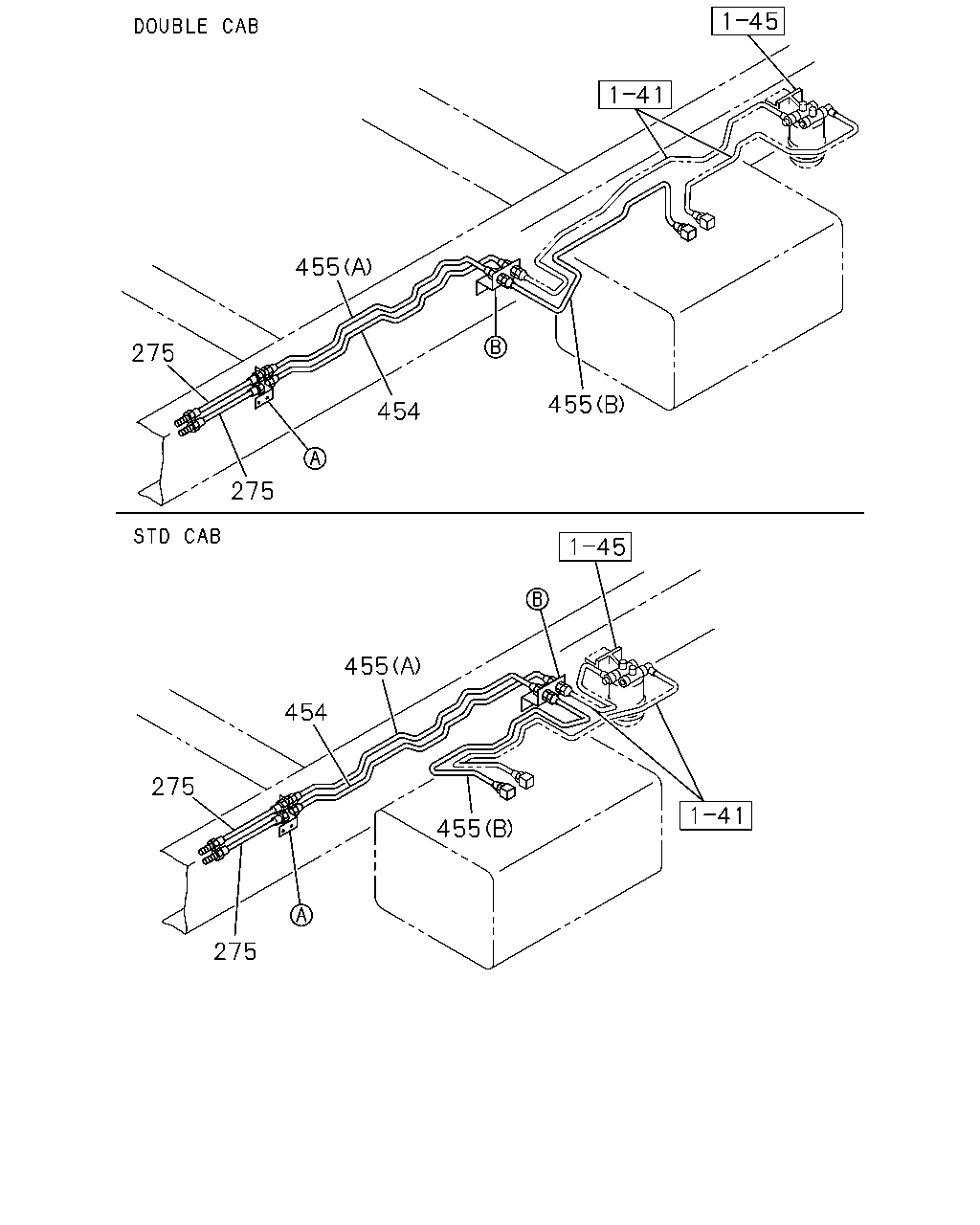

455 275 455 454 275 455 454 275 455 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
275	HOSE; FLEX,FUEL TANK	1-09364-951-1	02	1	0005-0210	●
275	HOSE; FLEX,FUEL TANK FTS ALL(FT****)	1-09365-230-1	02	1	0211-		●
275	HOSE; FLEX,FUEL TANK FSS ALL(FS****)	1-09365-269-0	02	1	0211-			●
454	PIPE; FUEL,DELIVERY FSS STD CAB(FS*M)	1-22511-796-2	01	1	0005-0210	●
454	PIPE; FUEL,DELIVERY FSS STD CAB(FS*M)	1-22511-901-0	01	1	0211-			●
454	PIPE; FUEL,DELIVERY FSS DOUBLE CAB(FS*W)	1-22511-797-1	01	1	0005-0210	●
454	PIPE; FUEL,DELIVERY FSS DOUBLE CAB(FS*W)	1-22511-902-0	01	1	0211-			●
454	PIPE; FUEL,DELIVERY FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y)	1-22511-810-1	01	1	0005-0210	●
454	PIPE; FUEL,DELIVERY FTS ALL(FT****) MLD7Q M/T(X5K)	1-22511-864-0	01	1	0005-0210	●
454	PIPE; FUEL,DELIVERY FTS ALL(FT****)	1-22511-897-0	01	1	0211-		●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) (A)	1-22511-802-2	01	1	0005-0210	●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) (A)	1-22511-903-0	01	1	0211-			●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) (B)	1-22511-856-0	01	1	0005-0105	●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) (B)	1-22511-875-0	01	1	0106-0210	●
455	PIPE; FUEL,RETURN FSS STD CAB(FS*M) (B)	1-22511-888-0	01	1	0211-			●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) (A)	1-22511-803-1	01	1	0005-0210	●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) (B)	1-22511-895-0	01	1	0211-			●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) (B)	1-22511-857-0	01	1	0005-0105	●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) (B)	1-22511-876-0	01	1	0106-0210	●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) (A)	1-22511-904-0	01	1	0211-			●
455	PIPE; FUEL,RETURN FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-22511-824-1	01	1	0005-0006	●
455	PIPE; FUEL,RETURN FTS DOUBLE CAB(FT*W) (B)	1-22511-824-1	01	1	0007-0105	●
455	PIPE; FUEL,RETURN FTS DOUBLE CAB(FT*W) (B)	1-22511-872-0	01	1	0106-0210	●
455	PIPE; FUEL,RETURN FTS DOUBLE CAB(FT*W) (B)	1-22511-872-0	01	1	0211-		●
455	PIPE; FUEL,RETURN FTS ALL(FT****) MLD6D M/T(X5Q),MBJ5J M/T(Y1Y) (A)	1-22511-813-1	01	1	0005-0210	●
455	PIPE; FUEL,RETURN FTS ALL(FT****) MLD7Q M/T(X5K) (A)	1-22511-865-0	01	1	0005-0210	●
455	PIPE; FUEL,RETURN FTS ALL(FT****) (A)	1-22511-898-0	01	1	0211-		●
455	PIPE; FUEL,RETURN FTS STD CAB(FT*M) (B)	1-22511-821-1	01	1	0005-0105	●
455	PIPE; FUEL,RETURN FTS STD CAB(FT*M) (B)	1-22511-871-0	01	1	0106-0210	●
455	PIPE; FUEL,RETURN FTS STD CAB(FT*M) (B)	1-22511-871-0	01	1	0211-		●

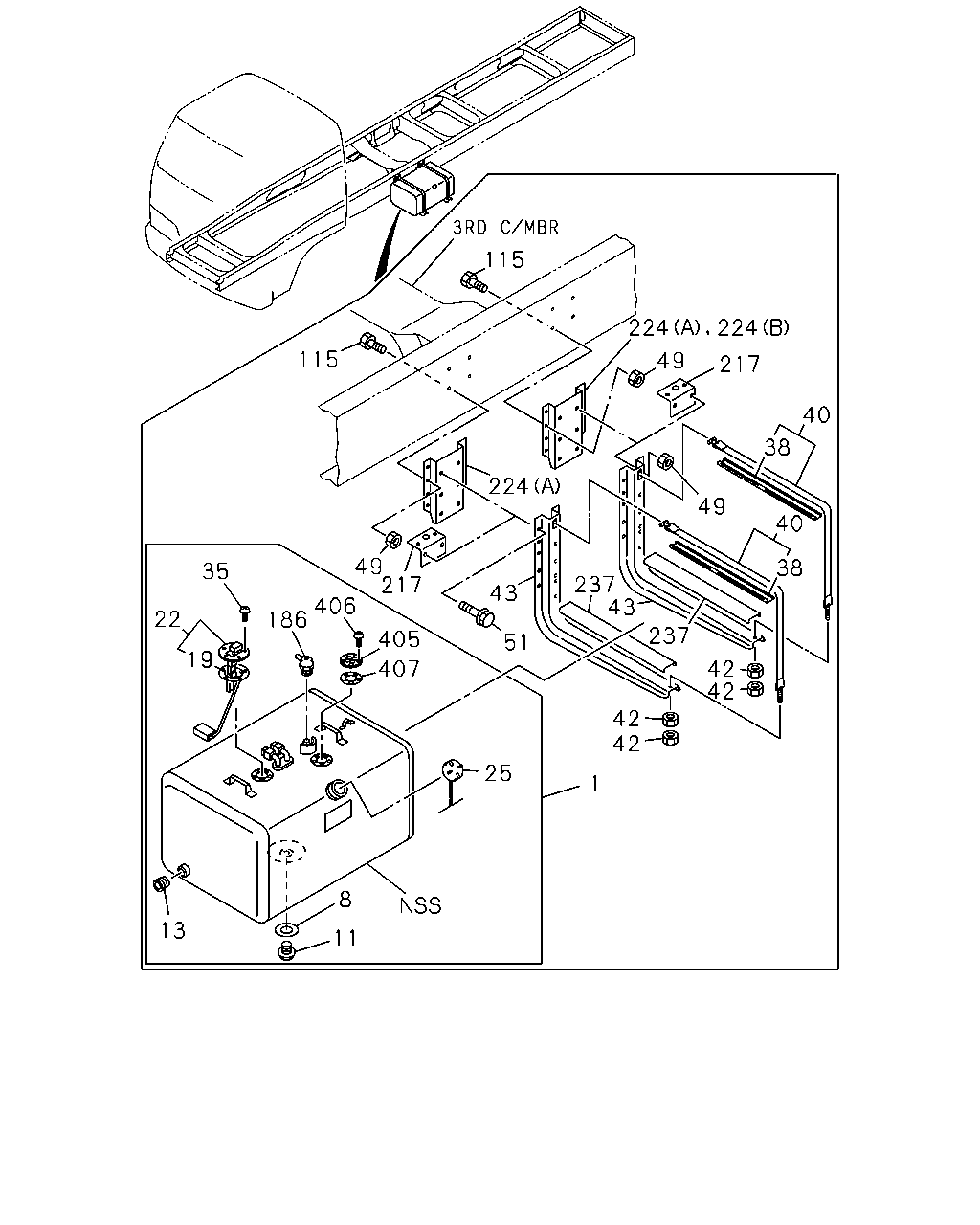

115 224 115 49 217 40 38 224 49 40 49 217 38 35 237 43 43 406 186 22 237 405 51 42 42 19 407 42 42 25 1 8 13 11 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL 864X597X413 200L	1-22400-975-0	01	1	0005-0105	●
1	TANK; FUEL 864X597X413 200L	1-22401-176-0	01	1	0106-0210	●
1	TANK; FUEL 864X597X413 200L	1-22401-176-0	01	1	0211-0502		●	●
1	TANK; FUEL 864X597X413 200L	8-98012-165-0	01	1	0503-		●	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0106-0210	●
