3-55 — BRAKE PIPING; OIL,REAR (#81119) — 14 parça

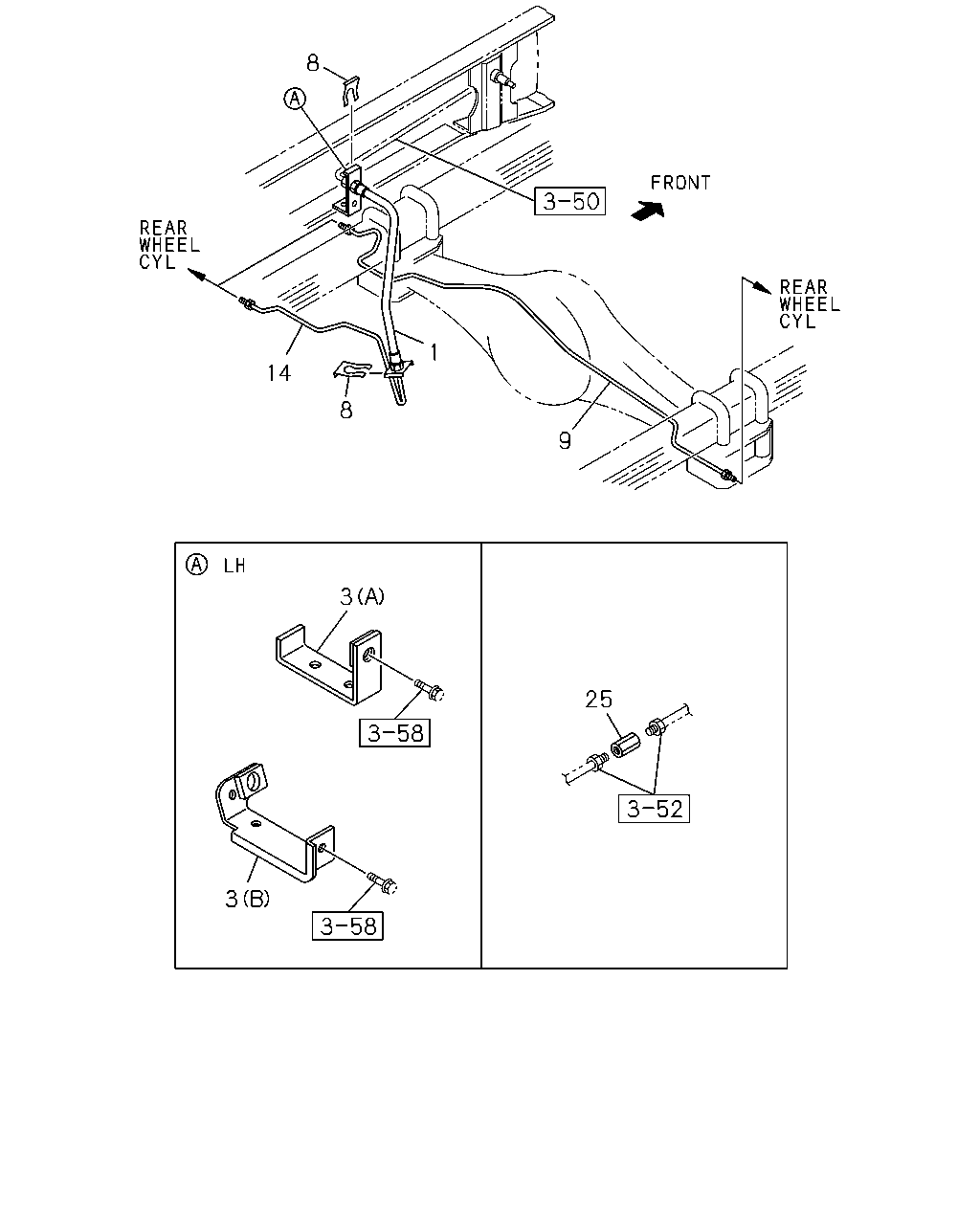

çizim 183484
8 1 14 8 9 3 25 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0804- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 0804- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97251-436-0 01 1 0804- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0804- ● ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-864-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE STANDARD 244MM(R39) 		8-97089-922-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-870-0 01 1 0804- ●
9 04.685 PIPE; BRK,RR AXLE
REAR AXLE HEAVY DUTY 320MM(6CP) IDN 		8-98021-873-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) IDN 		8-98021-860-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE STANDARD 244MM(R39) 		8-98039-608-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-98021-869-0 01 1 0804- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) IDN 		8-98021-872-0 01 1 0804- ●
25 04.686 CONNECTOR
M10 STRAIGHT IDN 		0-92107-005-0 01 1 0804- ● ●
25 04.686 CONNECTOR
M10 STRAIGHT IDN 		0-92107-005-0 01 1 0804- ●
