◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#81118) — 14 parça

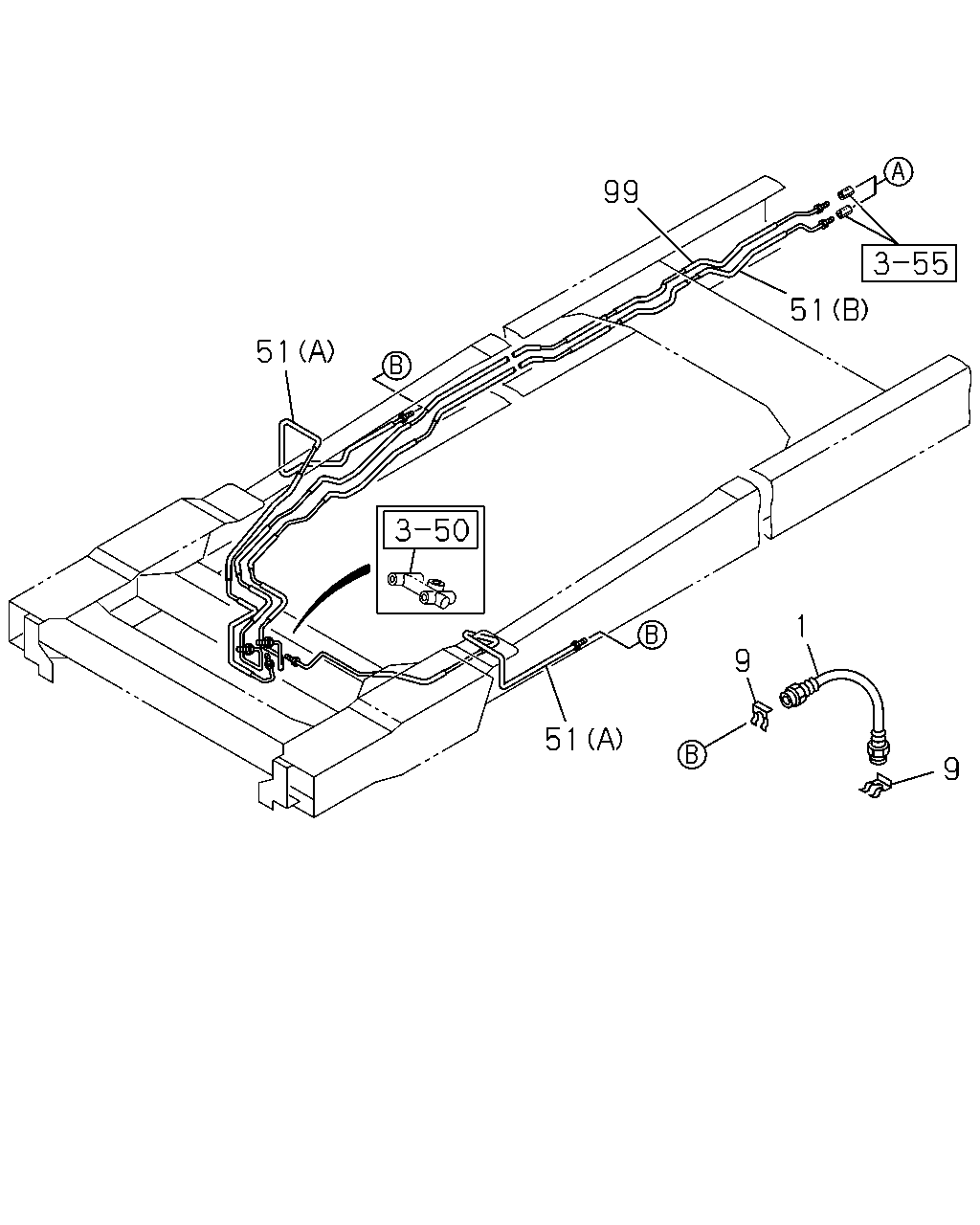

çizim 119914
99 51 51 1 9 51 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 0804- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0804- ● ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98051-511-1 01 1 0804-0901 ●
51 04.685 PIPE; BRK
(B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 0902- ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98054-530-0 01 1 0804- ● ●
51 04.685 PIPE; BRK
(A) 6WAY TO FRONT 		8-98054-531-1 01 1 0804- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY 8-98051-512-1 01 1 0804- ● ●

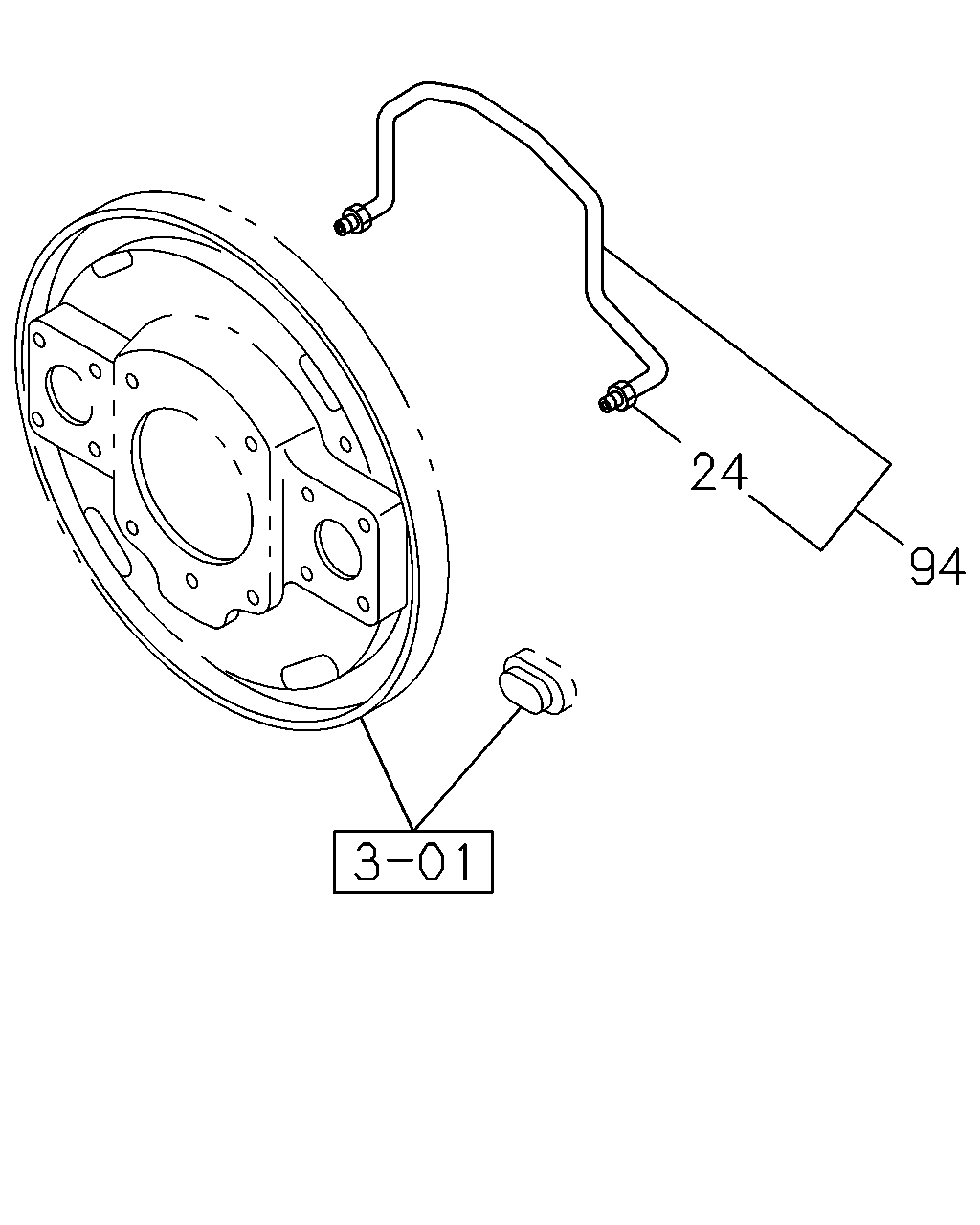

çizim 183487
24 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0804- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0804- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0804- ●

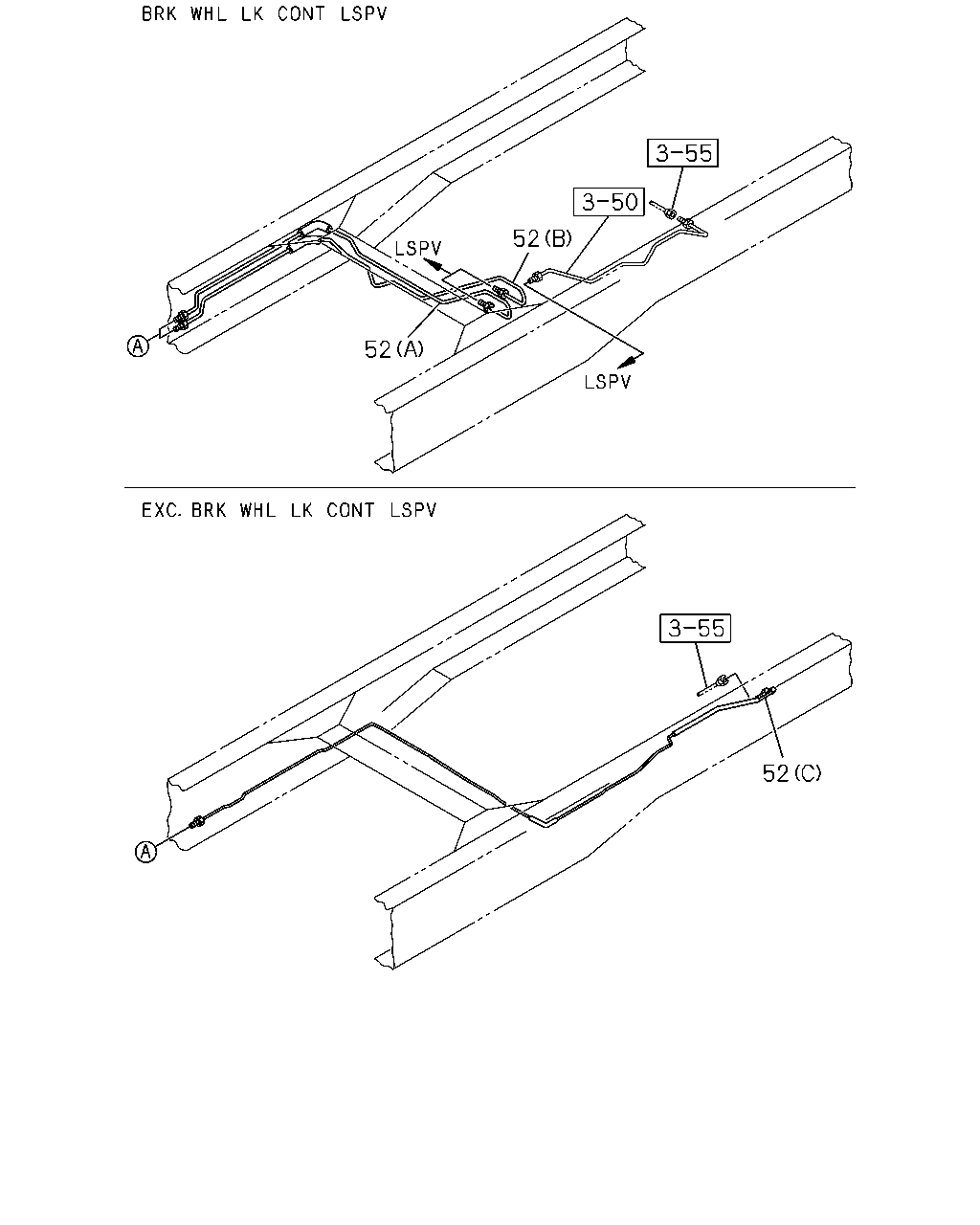

çizim 183494
52 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
(C) 2WAY TO REAR 		8-98054-696-0 01 1 0804- ●
52 04.685 PIPE; BRK
(B) 2WAY TO LSPV,FRONT 		8-98039-554-0 01 1 0804- ●
52 04.685 PIPE; BRK
(A) 2WAY TO LSPV,REAR 		8-98113-417-0 01 1 0804- ●
