◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#81117) — 44 parça

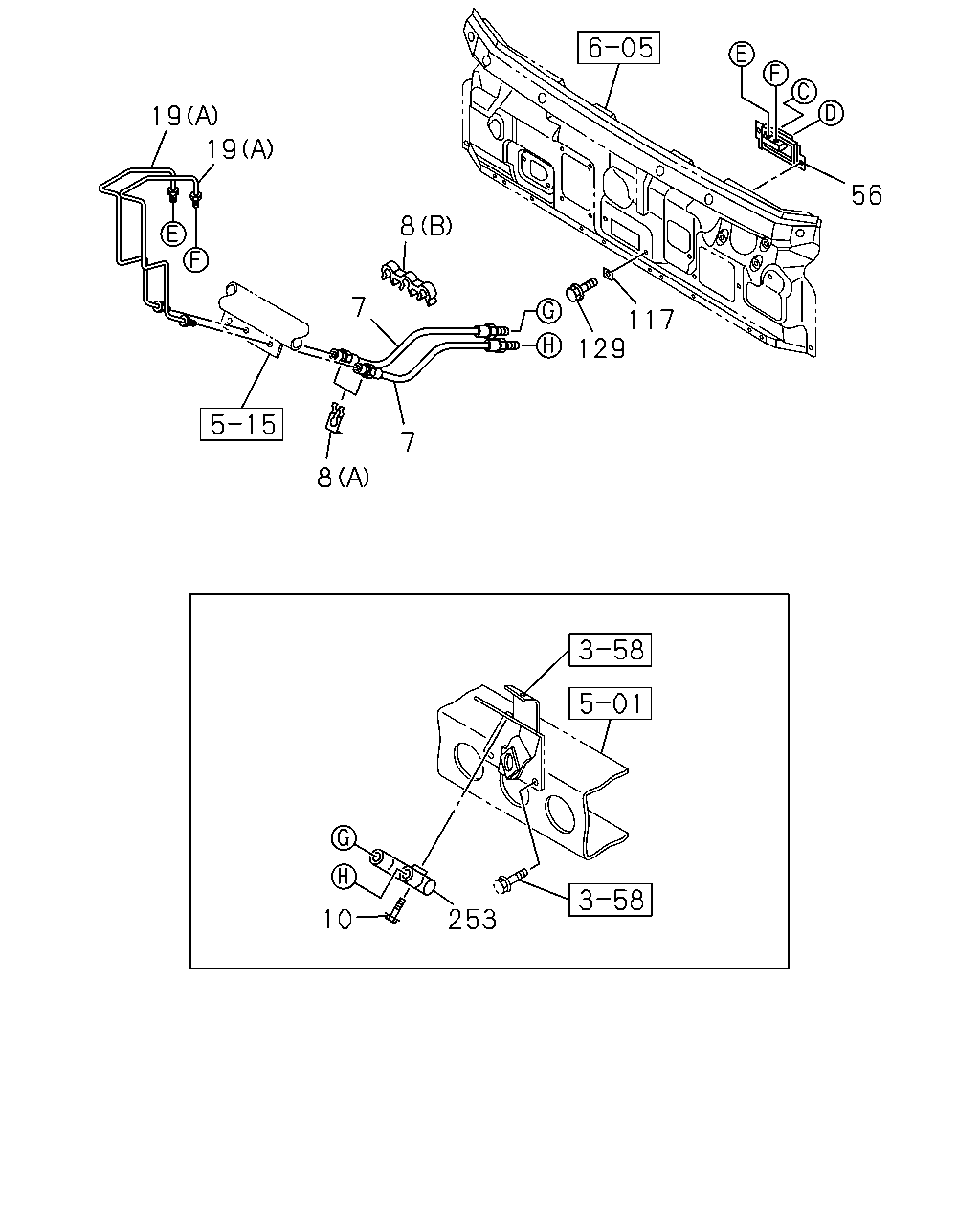

çizim 119843
19 19 56 8 7 117 129 7 8 10 253
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 0804- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0804- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 0804- ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0804- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) IDN 		8-98012-095-1 02 1 0804- ● ●
56 04.686 BRACKET; UNION,BRK 8-97389-281-1 01 1 0804-1005 ● ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1006- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 IDN 		8-97856-616-0 02 1 0804- ● ●
129 04.710 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0804-0809 ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0804- ● ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 0804- ●
253 04.840 JOINT
04.686 		8-97120-033-2 01 1 0804- ●
çizim 119946
11 35 164 13 263 260 262 261 261 11 104 26
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
04.730 		8-94368-455-2 01 1 0804- ●
13 04.686 BOLT; VLV TO BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0804- ●
26 04.730 BRACKET; PROPORTIONING VLV 8-98029-822-0 01 1 0804- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 0804- ●
104 04.730 BOLT; BRKT TO BODY
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0804- ●
164 04.730 SCREW; BLEEDER
04.685 		8-97093-663-0 01 1 0804- ●
260 04.685 SHACKLE; LSPV
04.710 		8-97173-366-0 01 1 0804- ●
261 04.685 BUSHING; LSPV
04.710 		8-97145-631-0 02 1 0804- ●
262 04.685 COLLAR; LSPV
04.710 		8-97139-186-0 01 1 0804- ●
263 04.685 CAP; BLEEDER 8-97093-662-0 01 1 0804- ●
çizim 183485
35 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 04.686 VALVE; BRK CONT
04.730 		8-94368-455-2 01 1 0804- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 0804- ●

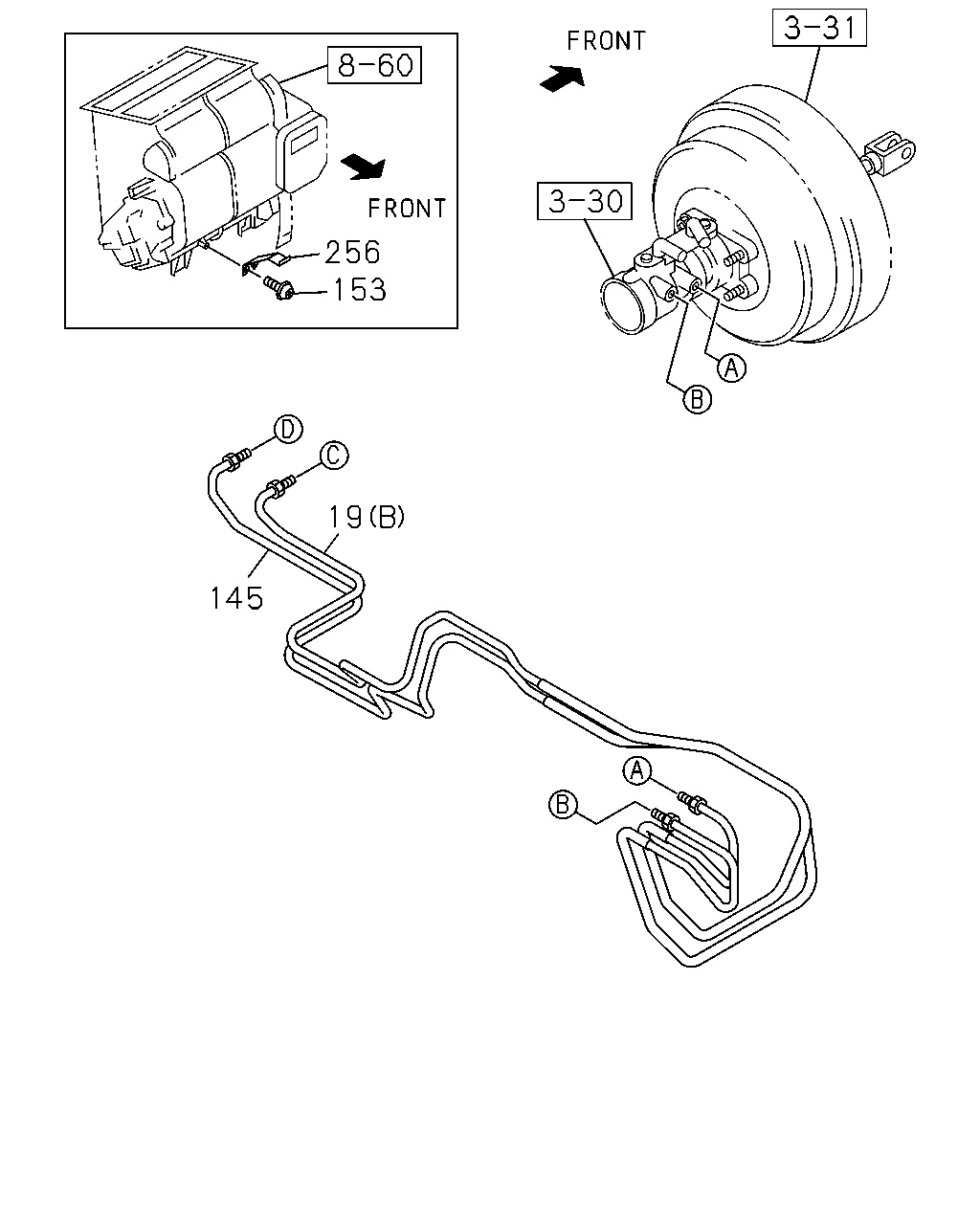

çizim 183486
256 153 19 145
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-97389-337-3 01 1 0804- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) IDN 		8-98012-095-1 02 1 0804- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97389-295-3 01 1 0804- ● ●
153 04.730 SCREW; BRKT FIX
04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0804-0808 ● ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0809-0809 ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0809-0809 ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0810-1001 ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 0810-1001 ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 1002- ●
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR IDN 		0-72180-512-0 01 1 1002- ●
256 04.840 BRACKET; BRK PIPE 8-98034-784-1 01 1 0804-0808 ● ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98034-784-1 01 1 0809-0809 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98034-784-1 01 1 0809-0809 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98034-784-1 01 1 0810-1001 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98034-784-1 01 1 0810-1001 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98034-784-1 01 1 1002-1005 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98034-784-1 01 1 1002-1005 ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006- ●
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006- ●
