◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#81112) — 74 parça
çizim 115400
236 324 225 236 225 324 235 91 225 235 237 241 85 237 235 85 225
BalonParca AdiParca NoAdetTipApplied Date A B
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 0804- ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (C) 		8-97036-332-1 01 1 0804- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (C) 		8-97036-332-1 01 1 0804- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 02 1 0804- ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) IDN 		8-98023-622-0 01 1 0804- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU) (B) 		8-98106-619-1 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MSB5M(RM5),M/T MSB5S(R45) (B) 		8-98106-619-1 01 1 0804-1212 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) (C) 		8-98232-255-0 01 1 1301-1311 ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (C) 		8-98255-956-0 01 1 1312- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (A) 		8-98034-352-0 01 1 0804- ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ● ●
237 04.785 NUT; BRKT TO FRAME
4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 0804- ● ●
237 04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ● ●
241 04.785 NUT; BRKT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU) (D) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (D) 		8-98106-757-1 01 1 0804-1212 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (D) 		8-98064-280-1 01 1 1301-1311 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (D) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
(B) 		8-98034-115-0 01 1 0804- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0804- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 0804- ●
çizim 115436
53 238 225 91 91 181 324 238 91 223 238 324 181
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU) 		8-98222-721-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98070-067-5 01 1 0804-1205 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98222-721-0 01 1 1206-1212 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98232-256-0 01 1 1301-1311 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 		8-98232-256-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98102-913-0 01 1 0804- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (C) 		8-97036-332-1 01 1 0804- ●
91 04.785 CLIP; PARKING BRK CABLE
4JB1-TC ENG(RDT) 04.047 (C) 		8-97036-332-1 01 1 0804- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 02 1 0804- ● ●
91 04.785 CLIP; PARKING BRK CABLE
(B) IDN 		8-98023-622-0 01 1 0804- ● ●
181 04.785 BOLT; BRKT
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
181 04.785 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 0804- ●
223 04.785 CLIP; PARKING BRK CABLE
04.047 		8-97036-333-1 01 1 0804- ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
225 04.785 NUT; CABLE CLIP
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ● ●
225 04.785 NUT; CABLE CLIP
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 0804- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0804- ●
238 04.785 BOLT; CLIP TO BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 04 1 0804- ●
238 04.785 BOLT; CLIP TO BRKT
4JJ1-TCC ENG(RDU) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 03 1 0804- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU) (D) 		8-98106-757-1 01 1 1312- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (D) 		8-98106-757-1 01 1 0804-1212 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (D) 		8-98064-280-1 01 1 1301-1311 ● ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (D) 		8-98064-280-1 01 1 1312- ●
324 04.785 BRACKET
(B) 		8-98034-115-0 01 1 0804- ● ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (A) 		8-98003-642-1 01 1 0804- ●
324 04.785 BRACKET
4JJ1-TCC ENG(RDU) (C) 		8-98026-099-2 01 1 0804- ●

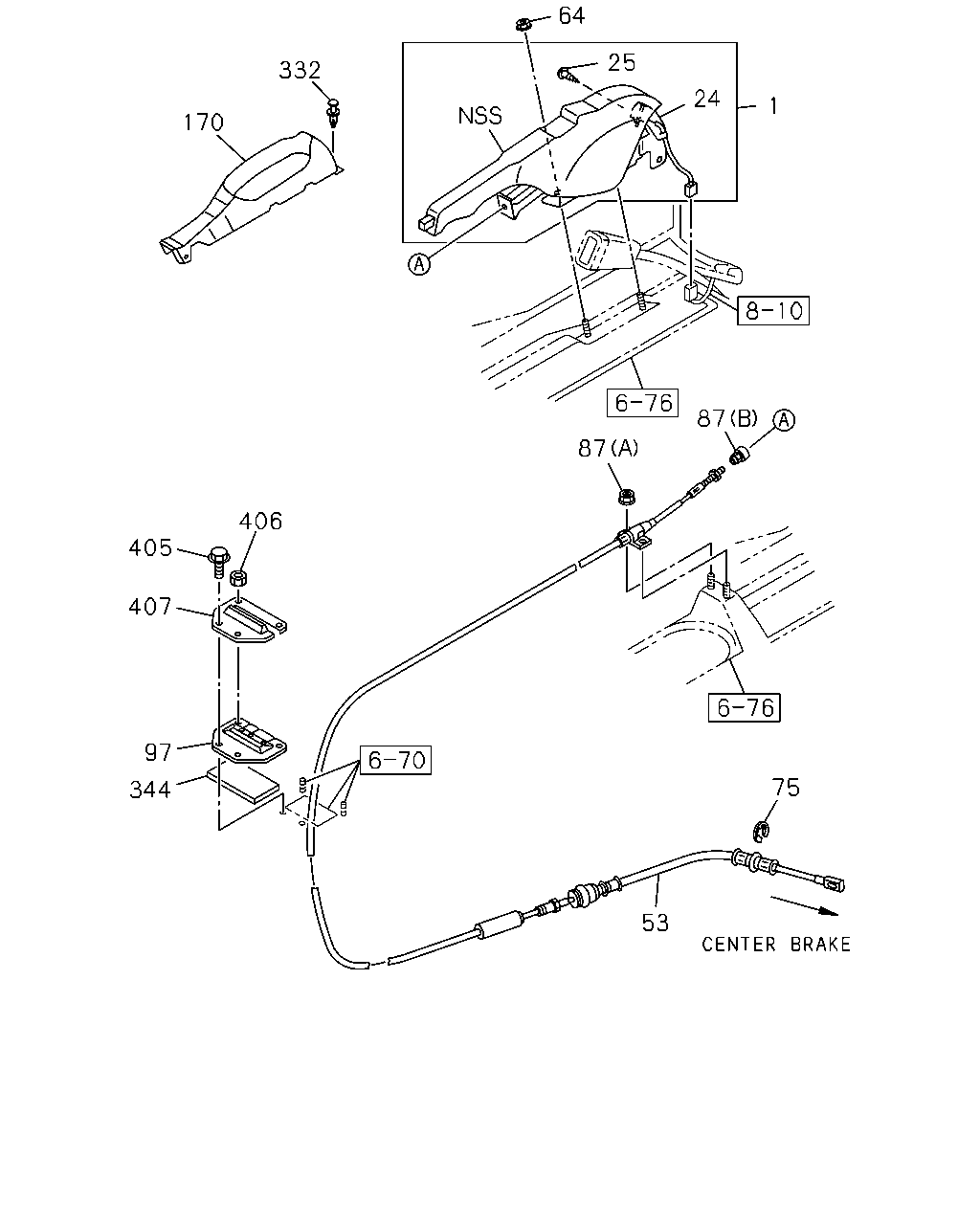

çizim 183481
64 25 332 24 1 170 87 87 406 405 407 97 75 344 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97405-353-0 01 1 0804-1303 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1304- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0804-1303 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0804- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) G.V.W. 5.5-6.0TON(RPU) 		8-98222-721-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98070-067-5 01 1 0804-1205 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98222-721-0 01 1 1206-1212 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MSB5M(RM5),M/T MSB5S(R45) 		8-98232-256-0 01 1 1301-1311 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 		8-98232-256-0 01 1 1312- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98102-913-0 01 1 0804- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0804- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0804- ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE IDN 		0-91180-108-0 02 1 0804- ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0804- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97065-212-1 01 1 0804- ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 0804- ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 0804- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0804- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0804- ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 0804- ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0804- ● ●
