3-05 — REAR WHEEL BRAKE (#81109) — 71 parça

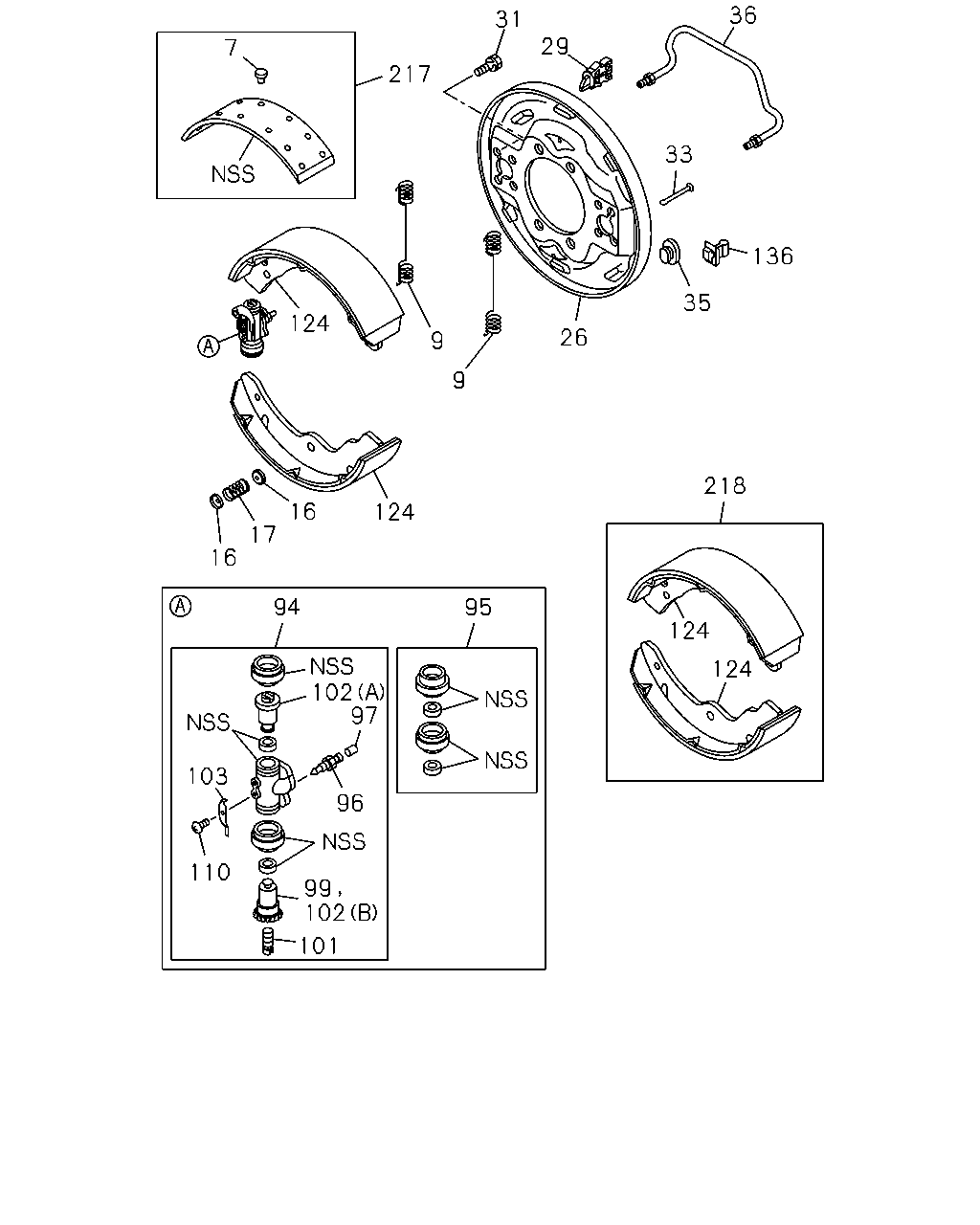

çizim 115297
36 31 29 7 217 33 136 35 124 26 9 9 218 16 124 17 16 94 95 124 102 97 124 103 96 110 99 102 101
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		1-09732-029-0 40 1 0804- ●
7 05.019 RIVET; LINING,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		1-09732-029-0 48 1 0804- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 0804- ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 292MM(G73) 		5-09583-118-0 04 1 0804- ●
9 05.026 SPRING; RETURN,BRK SHOE
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-087-0 04 1 0804- ●
16 05.043 CUP; SHOE HOLDING
IDN 		9-47162-033-0 08 1 0804- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0804- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 0804- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0804- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-934-0 01 1 0804- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-935-0 01 1 0804- ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97078-605-0 01 1 0804- ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97078-606-0 01 1 0804- ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97223-573-0 01 1 0804- ●
26 05.001 PLATE; BACK,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97223-574-0 01 1 0804- ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 0804- ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		8-94128-306-0 02 1 0804- ●
29 04.685 CLIP; PIPE,BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-086-0 02 1 0804- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 0804- ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		5-09030-016-1 16 1 0804- ●
31 04.665 BOLT; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97081-305-0 16 1 0804- ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 0804- ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 292MM(G73) 		5-47162-001-0 04 1 0804- ●
33 05.043 PIN; SHOE HOLD DOWN
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97022-089-0 04 1 0804- ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 0804- ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 292MM(G73) 		8-94171-287-0 02 1 0804- ●
35 05.002 GROMMET; CHECK HOLE
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97017-507-0 02 1 0804- ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 0804- ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		8-94154-916-0 02 1 0804- ●
36 04.685 PIPE; OIL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97192-215-0 02 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-840-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-841-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97139-842-0 02 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) FRONT 		8-97179-350-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) REAR 		8-97179-351-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97179-352-0 02 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) FRONT 		8-97139-822-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) REAR 		8-97139-824-0 01 1 0804- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97139-825-0 02 1 0804- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-621-0 01 1 0804- ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		5-87831-621-0 01 1 0804- ●
95 04.665 CUP SET; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		5-87831-598-0 02 1 0804- ●
96 04.666 SCREW; BLEEDER,RR BRK
IDN 		8-98050-476-0 01 1 0804- ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL
IDN 		8-98050-479-0 01 1 0804- ● ●
99 04.668 PISTON; RR WHEEL CYL 8-97078-698-0 03 1 0804- ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97078-622-0 03 1 0804- ●
99 04.668 PISTON; RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-94414-700-1 04 1 0804- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 0804- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) 05.110 		8-97078-623-0 04 1 0804- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-94414-702-0 04 1 0804- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97078-698-0 01 1 0804- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 0804- ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) (A) D=25.4 		8-94128-531-1 04 1 0804- ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 292MM(G73) (B) 		8-97078-622-0 01 1 0804- ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) (A) D=30.16 		8-94414-701-1 04 1 0804-0810 ●
102 04.668 PISTON; REAR WHEEL CYL
REAR AXLE HEAVY DUTY 320MM(6CP) (A) 		8-97078-045-0 04 1 0811- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0804- ● ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0804- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 0804- ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) 		8-97287-778-0 04 1 0804- ●
124 05.017 SHOE ASM; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97201-061-0 04 1 0804- ●
136 05.002 GROMMET 9-09956-640-0 04 1 0804- ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 292MM(G73) IDN 		9-09756-034-0 04 1 0804- ●
136 05.002 GROMMET
REAR AXLE HEAVY DUTY 320MM(6CP) 		8-97044-742-1 04 1 0804- ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) 		5-87831-801-0 01 1 0804- ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) 		5-87831-774-0 01 1 0804- ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 292MM(G73) BEST VALUE PARTS 		5-87610-121-0 01 1 0804- ●
217 05.018 LINING KIT; RR BRK
REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS 		5-87610-120-0 01 1 0804- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 0804- ●
218 05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 292MM(G73) 		5-87832-047-0 01 1 0804- ●
218 05.017 SHOE KIT; BRK,RR
REAR AXLE HEAVY DUTY 320MM(6CP) 		5-87831-775-0 01 1 0804- ●
