Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#81107) — 137 parça

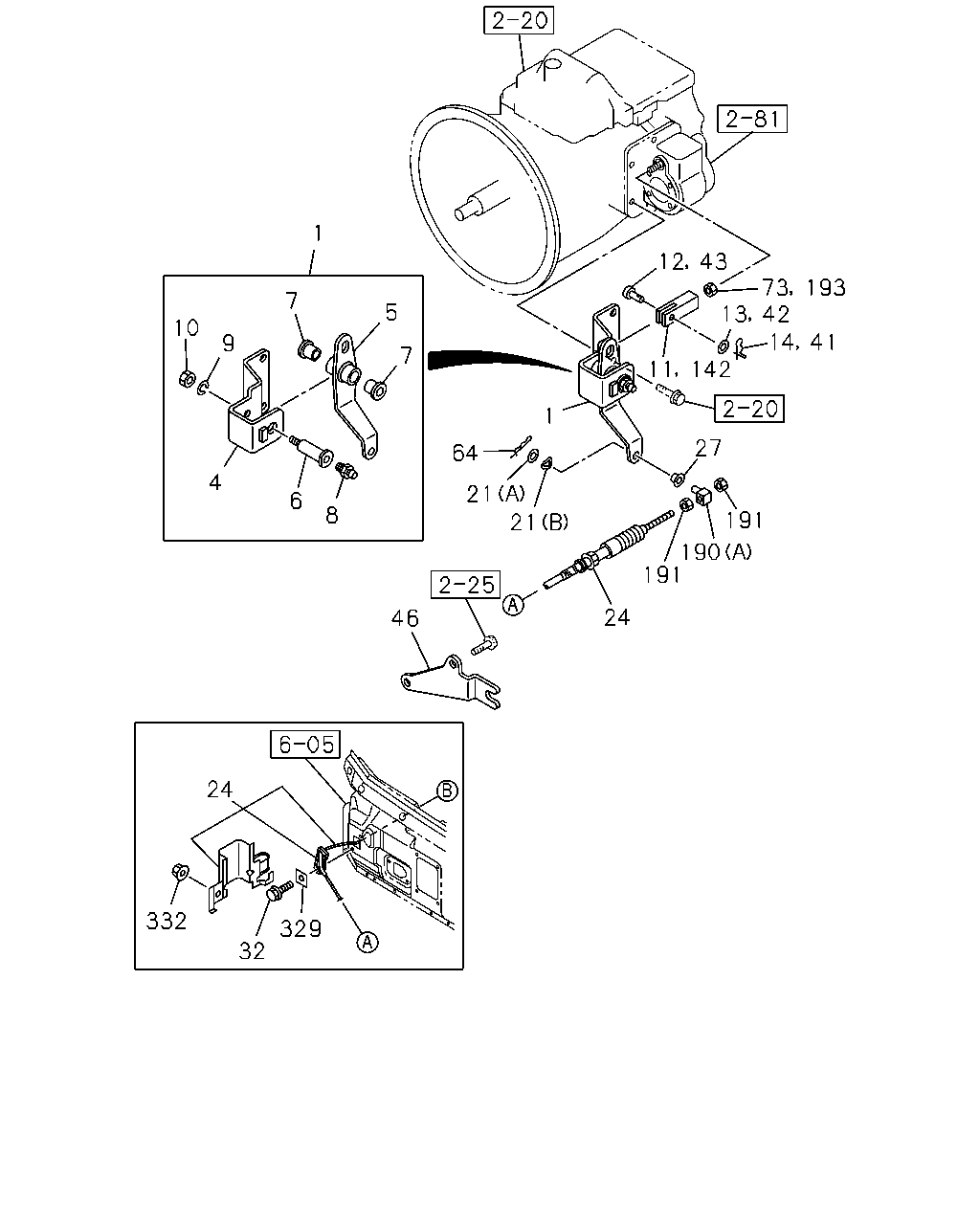

1 12 43 73 42 14 193 7 5 13 10 41 9 142 7 11 1 27 64 4 21 6 8 191 21 190 191 24 46 24 332 329 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98061-931-0	01	1	0804-1107	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-090-0	01	1	1108-1308	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-090-0	01	1	1309-	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0804-1107			●
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1308			●
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1309-			●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98061-933-0	01	1	0804-1107	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-100-0	01	1	1108-1308	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-100-0	01	1	1309-	●	●
4	04.439 BRACKET; PTO CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0804-1107			●
4	04.439 BRACKET; PTO CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1308			●
4	04.439 BRACKET; PTO CONT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1309-			●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0804-1308	●	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1309-	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0804-1107	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1308	●	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1309-	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0804-1308	●	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1309-	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	0804-1308	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M6 STRAIGHT IDN	0-90301-406-0	01	1	1309-	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0804-1308	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1309-	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8 IDN	0-91110-508-0	01	1	0804-1308	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.334 M8 IDN	0-91110-508-0	01	1	1309-	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0804-1308	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-	●	●
12	04.439 JOINT; PIN,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0804-1308			●
12	04.439 JOINT; PIN,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-			●
13	04.439 WASHER; PL,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	0804-1308			●
13	04.439 WASHER; PL,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	1309-			●
14	04.439 PIN; SPLIT,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0804-1308			●
14	04.439 PIN; SPLIT,YOKE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-			●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 02.277 (A) ID=8.4 OD=22 IDN	0-91614-708-0	01	1	0804-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0804-	●	●	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98086-185-1	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98117-145-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98071-362-2	01	1	0804-0902	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98140-353-0	01	1	0903-1207	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1208-	●	●
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.042	8-94367-367-0	01	1	0804-	●	●	●
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X16 FLANGE	0-28060-616-0	02	1	0804-	●	●	●
41	04.439 PIN; SPLIT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0804-1308	●	●
41	04.439 PIN; SPLIT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1309-	●	●
42	04.439 WASHER; PL,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	0804-1308	●	●
42	04.439 WASHER; PL,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22 IDN	0-91610-512-0	01	1	1309-	●	●
43	04.439 PIN; JOINT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0804-1308	●	●
43	04.439 PIN; JOINT,SHIFT ROD TO LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1309-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC)	8-98086-418-0	01	1	0804-	●	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC)	8-98032-829-2	01	1	0804-			●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) 00.833 L=27.7	8-94111-137-0	01	1	0804-	●	●	●
73	04.439 NUT; LEVER PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0804-1308	●	●
73	04.439 NUT; LEVER PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-	●	●
142	04.439 CLEVIS; CONT BOX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0804-1308			●
142	04.439 CLEVIS; CONT BOX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1309-			●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0804-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0804-	●	●	●
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	02	1	0804-	●	●	●
193	04.439 NUT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0804-1308			●
193	04.439 NUT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1309-			●
329	16.520 SEAL PTO MANUAL CONTROL(6WC) 08.845 IDN	8-97856-616-0	02	1	0804-	●	●	●
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●	●	●

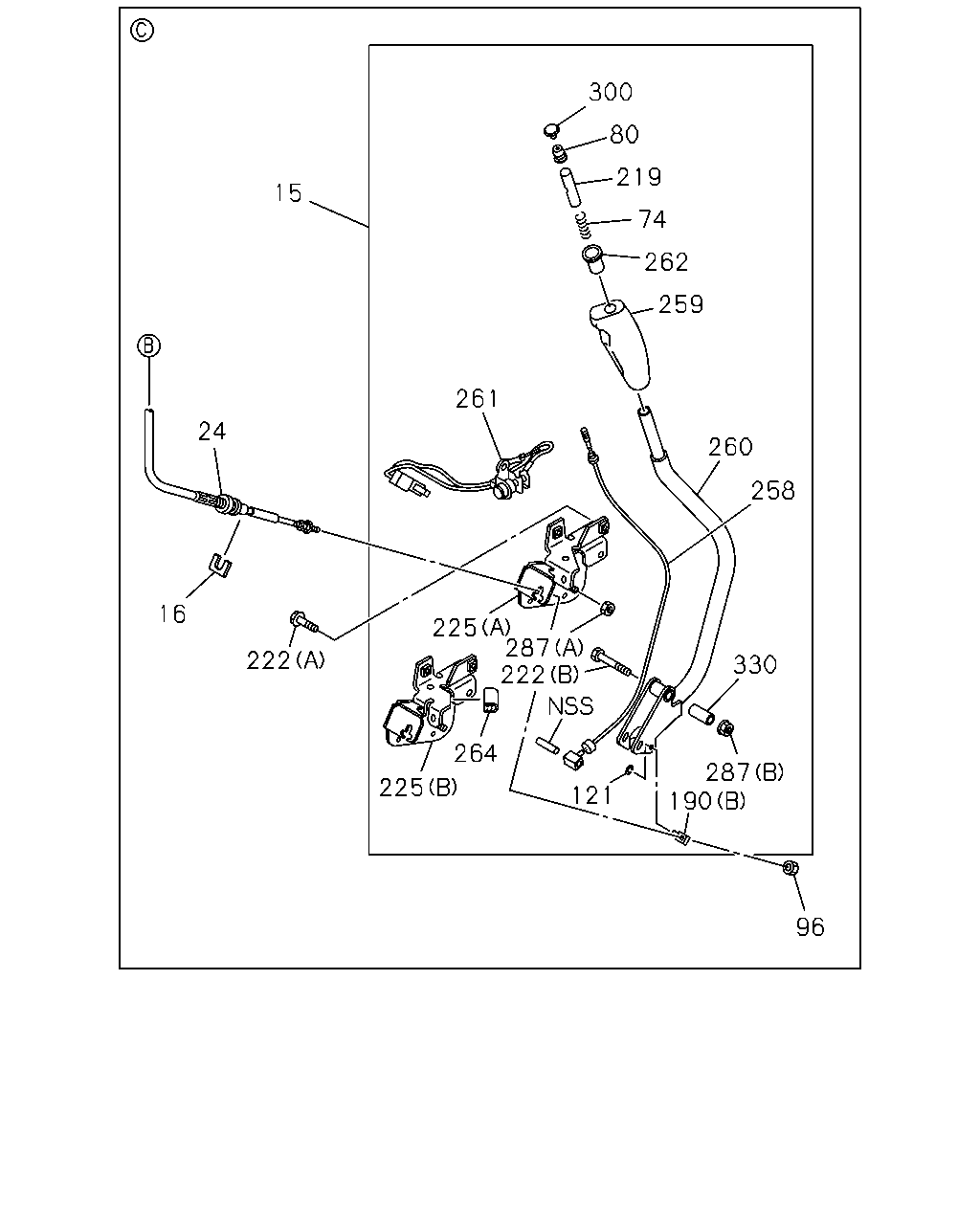

15 24 261 300 80 219 74 262 259 260 258 330 287 190 121 222 287 225 225 264 222 16 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98029-208-7	01	1	0804-1204	●	●	●
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98199-362-0	01	1	1205-	●	●	●
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0804-	●	●	●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98086-185-1	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98117-145-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98071-362-2	01	1	0804-0902	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98140-353-0	01	1	0903-1207	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1208-	●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0804-	●	●	●
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0804-	●	●	●
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0804-	●	●	●
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4 IDN	0-91805-504-0	01	1	0804-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) 04.307 (A)	8-94366-842-2	01	1	0804-	●	●	●
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0804-	●	●	●
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0804-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0804-	●	●	●
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE IDN	0-28650-820-0	03	1	0804-	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98029-873-3	01	1	0804-1204	●	●	●
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98152-960-1	01	1	1205-	●	●	●
258	04.439 CABLE; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98029-877-1	01	1	0804-	●	●	●
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0804-	●	●	●
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98030-057-2	01	1	0804-	●	●	●
261	04.439 SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-918-0	01	1	0804-	●	●	●
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0804-	●	●	●
264	04.439 PROTECTOR; EDGE PTO MANUAL CONTROL(6WC)	8-98211-652-0	01	1	1205-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 03.330 (A) M6	0-91110-506-0	01	1	0804-	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 (B) M8 FLANGE IDN	0-91180-208-0	01	1	0804-	●	●	●
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0804-	●	●	●
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0804-	●	●	●

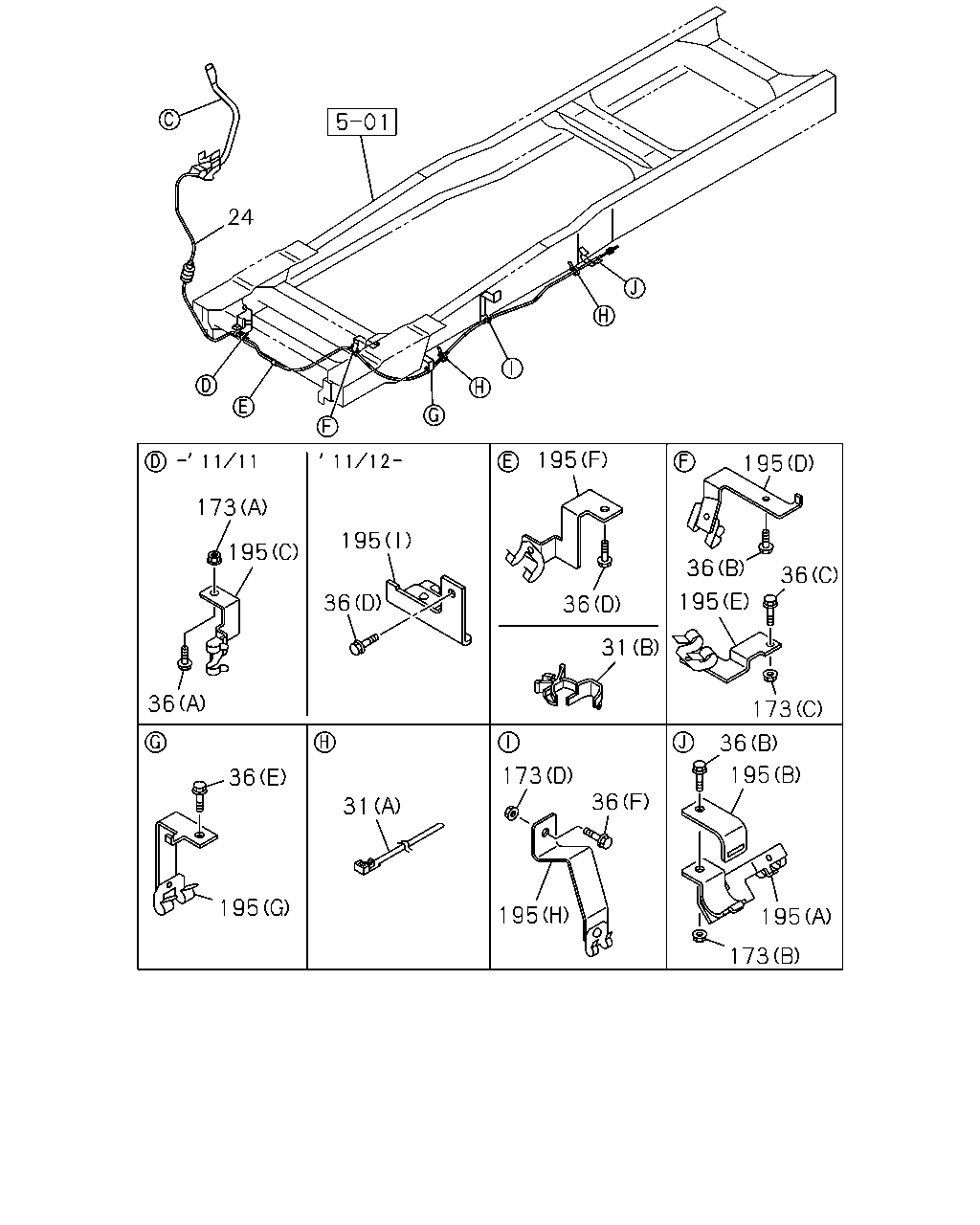

24 195 195 173 195 195 36 36 195 36 36 31 36 173 36 195 173 36 36 31 195 195 195 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98071-355-2	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98117-143-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) L=3377	8-98223-323-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98086-185-1	01	1	0804-0804			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98117-145-1	01	1	0804-1207			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) L=3372	8-98223-325-0	01	1	1208-			●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3362	8-98071-362-2	01	1	0804-0902	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98140-353-0	01	1	0903-1207	●	●
24	04.439 CABLE; PTO CONT PTO MANUAL CONTROL(6WC) L=3353	8-98223-338-0	01	1	1208-	●	●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250 IDN	5-09707-030-1	01	1	0804-0804	●	●	●
31	04.439 CLIP; BAND,CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 02.559 (B) ID=16	8-97040-812-0	01	1	0804-			●
31	04.439 CLIP; BAND,CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 02.559 (A) L=250 IDN	5-09707-030-1	01	1	0811-1003			●
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 (A) L=250 IDN	5-09707-030-1	01	1	1004-	●	●	●
36	04.439 BOLT; PTO BRKT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) 07.395 (E) M12X30 FLANGE	0-28651-230-0	01	1	0804-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE IDN	0-28651-020-0	01	1	0804-1111	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE IDN	0-28651-020-0	01	1	1112-1112	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE IDN	0-28651-020-0	01	1	1112-1112	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 02.343 (D) M10X20 FLANGE IDN	0-28651-020-0	02	1	1112-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (A) M14X30 FLANGE	0-28651-430-0	01	1	0804-1111	●	●	●
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) 03.162 (C) M6X20 FLANGE IDN	0-28650-620-0	01	1	0804-	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-0804	●	●	●
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●	●	●
36	04.439 BOLT; PTO BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-			●
36	04.439 BOLT; PTO BRKT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) 00.029 (F) M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●	●
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (A) M14 FLANGE IDN	0-91180-114-0	01	1	0804-1111	●	●	●
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) 01.062 (C) M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●	●	●
173	04.439 NUT; BRKT 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) 03.162 (D) M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●	●	●
173	04.439 NUT; BRKT 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	01	1	0804-			●
195	04.439 BRACKET; CONT CABLE 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (G)	8-98108-504-1	01	1	0804-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (C)	8-98086-262-0	01	1	0804-1111	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (I)	8-98152-321-0	01	1	1112-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (F)	8-98101-143-0	01	1	0804-	●	●	●
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) (D)	8-98086-264-0	01	1	0804-	●	●	●
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) PTO MANUAL CONTROL(6WC) (E)	8-98032-856-1	01	1	0804-	●	●	●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (A)	8-98117-131-0	01	1	0804-			●
195	04.439 BRACKET; CONT CABLE 4JJ1-TCC ENG(RDU) PTO MANUAL CONTROL(6WC) (B)	8-98117-132-0	01	1	0804-			●
195	04.439 BRACKET; CONT CABLE 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (H)	8-98118-253-1	01	1	0804-0905	●	●	●
195	04.439 BRACKET; CONT CABLE 4JB1-TC ENG(RDT) PTO MANUAL CONTROL(6WC) (H)	8-98142-565-0	01	1	0906-	●	●	●
