Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#81106) — 207 parça

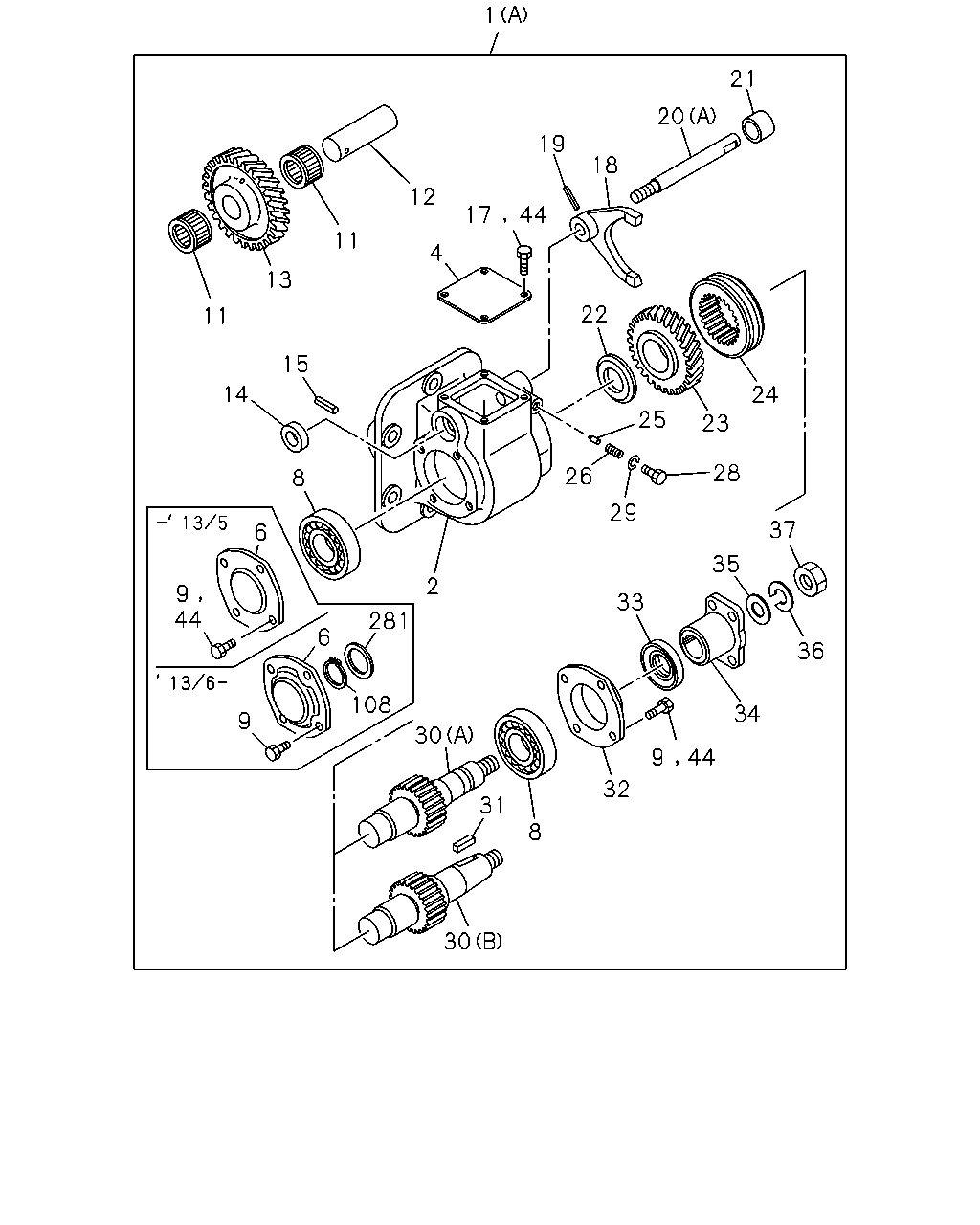

21 20 19 1 18 44 17 12 4 11 13 11 14 15 8 6 9 44 6 9 281 108 30 2 26 22 25 23 24 28 29 33 35 37 36 34 44 9 32 8 31 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-97313-682-4	01	1	0804-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-98233-782-0	01	1	1306-1308	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=B	8-98233-782-1	01	1	1309-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-97286-908-7	01	1	0804-1210			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-98233-783-0	01	1	1306-1308			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) IDENTIFICATION=YG	8-98233-783-1	01	1	1309-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-1	01	1	0804-1308	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97319-357-1	01	1	1309-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-380-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0804-1308			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1309-1409			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-			●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0804-1308	●	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1309-	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0804-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98233-778-0	01	1	1306-1308	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1309-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0804-1308	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1309-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	08	1	1211-1308	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.343 M8X16 FLANGE	0-28050-816-0	08	1	1309-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0804-1308			●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1309-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	0804-1308	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	9-00096-646-0	02	1	1309-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0804-1308			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1309-			●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0804-1308	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1309-	●	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0804-1308	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=34	9-38241-614-1	01	1	1309-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0804-1308			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1309-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0804-1308	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1309-	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0804-1308	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1309-	●	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1211-1308	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1309-	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0804-1308			●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1309-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0804-1308	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1309-	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0804-1308	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5	8-94135-771-0	01	1	1309-	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-622-0	01	1	0804-1308	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-622-0	01	1	1309-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B)	8-98046-623-0	01	1	0804-1308			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98046-623-0	01	1	1309-			●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-617-0	01	1	0804-1308	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-617-0	01	1	1309-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0804-1308	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1309-	●	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0804-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0806-1308	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=22	8-98120-612-0	01	1	1309-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0804-0805			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-1308			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1309-			●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0804-1308	●	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1309-	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0804-1308	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1309-	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0804-1308	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1309-	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0804-1308	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1309-	●	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0804-1308	●	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2	0-91510-808-0	01	1	1309-	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0804-1210	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-1308	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-777-0	01	1	1309-	●	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-1308	●	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1309-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-98046-610-0	01	1	0804-1308	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-610-0	01	1	1309-	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0804-1308			●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97305-794-0	01	1	1309-			●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0804-1308	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1309-	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0804-1210	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-1308	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1309-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0804-1308	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15	0-91610-514-0	01	1	1309-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0804-1308	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2	0-91510-814-0	01	1	1309-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0804-1308	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.515 M14	0-91111-514-0	01	1	1309-	●	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	12	1	0804-1210	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-1308	●	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 08.934 ID=23.2	9-09180-025-0	01	1	1309-	●	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-1308	●	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1309-	●	●	●

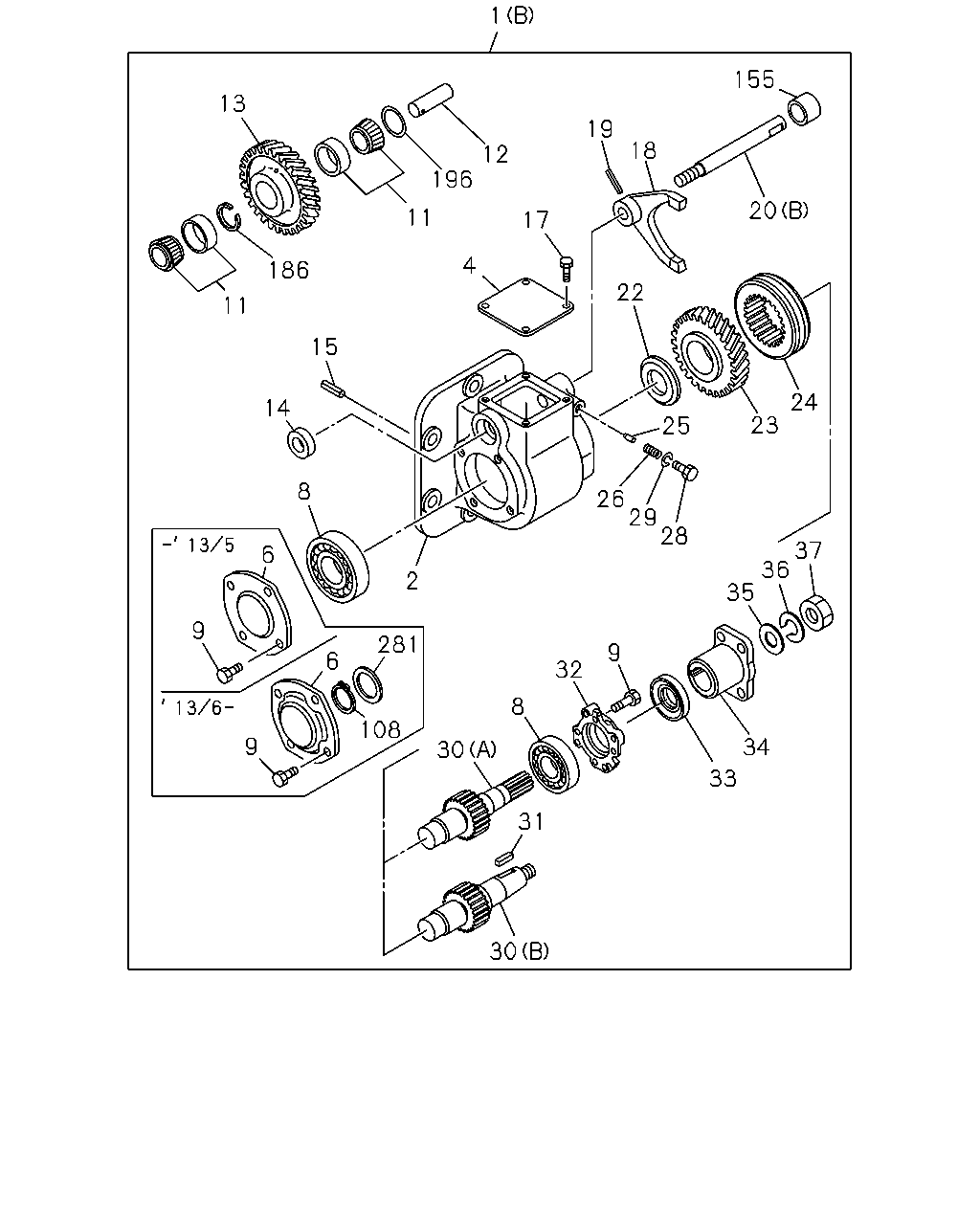

1 13 11 186 11 196 12 14 15 4 17 19 18 155 20 22 8 2 26 29 28 25 23 24 6 9 9 6 281 108 30 8 32 9 35 36 37 31 30 33 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-97313-682-4	01	1	0804-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-98223-525-0	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=B	8-98233-782-0	01	1	1306-1308	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=B	8-98233-782-1	01	1	1309-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-97286-908-7	01	1	0804-1210			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B) IDENTIFICATION=YG	8-98233-783-0	01	1	1306-1308			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B) IDENTIFICATION=YG	8-98233-783-1	01	1	1309-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97319-357-1	01	1	0804-1308	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97319-357-1	01	1	1309-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-380-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0804-1308			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1309-1409			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-			●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0804-1308	●	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1309-	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0804-1305	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98233-778-0	01	1	1306-1308	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98233-778-0	01	1	1309-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0804-1308	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1309-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	08	1	1211-1308	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.343 M8X16 FLANGE	0-28050-816-0	08	1	1309-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0804-1308			●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1309-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	0804-1308	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	9-00096-646-0	02	1	1309-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0804-1308			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1309-			●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0804-1308	●	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1309-	●	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	0804-1308	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=34	9-38241-614-1	01	1	1309-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0804-1308			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1309-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0804-1308	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1309-	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0804-1308	●	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1309-	●	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1211-1308	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1309-	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0804-1308			●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1309-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0804-1308	●	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1309-	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0804-1308	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5	8-94135-771-0	01	1	1309-	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-622-0	01	1	0804-1308	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-622-0	01	1	1309-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) (B)	8-98046-623-0	01	1	0804-1308			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98046-623-0	01	1	1309-			●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0804-1308	●	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1309-	●	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	0804-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	8-98120-612-0	01	1	0806-1308	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=22	8-98120-612-0	01	1	1309-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0804-0805			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-1308			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1309-			●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0804-1308	●	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1309-	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0804-1308	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1309-	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0804-1308	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1309-	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0804-1308	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1309-	●	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0804-1308	●	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2	0-91510-808-0	01	1	1309-	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0804-1210	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1305	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98233-777-0	01	1	1306-1308	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-777-0	01	1	1309-	●	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-1308	●	●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1309-	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-98046-610-0	01	1	0804-1308	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-610-0	01	1	1309-	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0804-1308			●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97305-794-0	01	1	1309-			●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0804-1308	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1309-	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0804-1210	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-1308	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1309-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0804-1308	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.634 ID=15	0-91610-514-0	01	1	1309-	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0804-1308	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.174 ID=14.2	0-91510-814-0	01	1	1309-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0804-1308	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 06.515 M14	0-91111-514-0	01	1	1309-	●	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-1308	●	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 08.934 ID=23.2	9-09180-025-0	01	1	1309-	●	●	●
155	04.439 PLUG; SHIFTER ROD 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0804-1308			●
155	04.439 PLUG; SHIFTER ROD 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98037-770-0	01	1	1309-			●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0804-1308			●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97106-730-0	01	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50	8-97106-724-0	02	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60	8-97106-725-0	02	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65	8-97106-726-0	02	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70	8-97106-727-0	02	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80	8-97106-728-0	02	1	1309-			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0804-1308			●
196	04.439 PIECE; THRUST 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	02	1	1309-			●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-1308	●	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1309-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
