Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#81102) — 241 parça

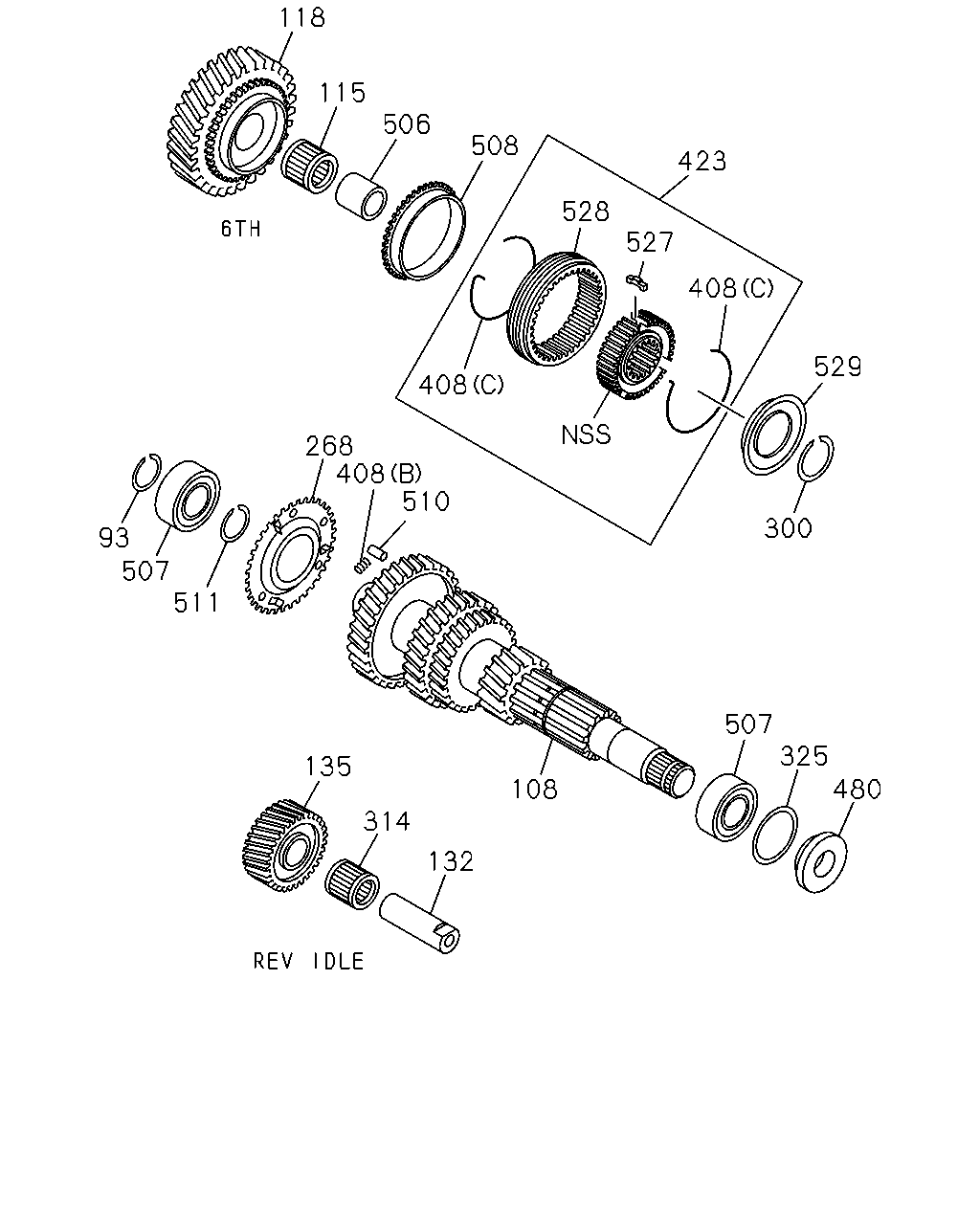

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCC ENG(RDU) ID=30.7 T=1.9	8-97254-734-0	01	1	0804-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCC ENG(RDU) ID=30.7 T=2.1	8-97254-740-0	01	1	0804-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4JJ1-TCC ENG(RDU) ID=30.7 T=2.3	8-97254-742-0	01	1	0804-	●
108	04.428 SHAFT; COUNTER 4JJ1-TCC ENG(RDU) Z=47-39-33-20	8-97380-627-1	01	1	0804-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4JJ1-TCC ENG(RDU) OD=49.8	8-98286-084-0	01	1	1411-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4JJ1-TCC ENG(RDU) OD=49.75	8-97253-113-0	01	1	0804-	●
118	04.421 GEAR; 6TH,COUNTER 4JJ1-TCC ENG(RDU) Z=50	8-97386-580-0	01	1	0804-	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0804-1209		●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	8-98189-378-0	01	1	1210-		●	●
132	04.433 SHAFT; REV 4JJ1-TCC ENG(RDU)	8-97252-655-0	01	1	0804-	●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0804-		●	●
135	04.430 GEAR; REV IDLER 4JJ1-TCC ENG(RDU) Z=25	8-98031-869-1	01	1	0804-	●
268	04.537 PLATE; ANTI LASH,COUNTER 4JJ1-TCC ENG(RDU)	8-97252-684-1	01	1	0804-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCC ENG(RDU) ID=30.7 T=1.7	8-97254-727-0	01	1	0804-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCC ENG(RDU) 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	0804-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCC ENG(RDU) ID=30.7 T=1.9	8-97254-734-0	01	1	0804-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4JJ1-TCC ENG(RDU) ID=30.7 T=1.6	8-97365-617-0	01	1	0804-	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0804-1209		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-98189-749-0	01	1	1210-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCC ENG(RDU) NSK	8-97253-114-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.29	8-97252-666-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.35	8-97252-667-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.41	8-97252-668-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.47	8-97252-669-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.53	8-97252-670-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.59	8-97252-671-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.65	8-97252-672-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.71	8-97252-673-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.77	8-97252-674-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.83	8-97252-675-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.89	8-97257-622-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.11	8-97306-188-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.17	8-97306-189-0	01	1	0804-	●
325	04.423 SHIM; COUNTER SHAFT BRG 4JJ1-TCC ENG(RDU) ID=62.7 T=2.23	8-97306-190-0	01	1	0804-	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-97081-577-0	01	1	0804-1209		●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-98189-347-0	01	1	1210-		●	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) 04.422 (B)	8-94148-196-0	03	1	0804-	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) (C)	8-97366-040-1	04	1	0804-	●
423	04.384 SLEEVE & HUB ASM; 6TH 4JJ1-TCC ENG(RDU)	8-97367-022-0	01	1	0804-	●
480	04.419 WASHER; THRUST,6TH 4JJ1-TCC ENG(RDU)	8-97253-123-1	01	1	0804-	●
506	04.419 COLLAR; 6TH,COUNTER 4JJ1-TCC ENG(RDU)	8-97253-121-1	01	1	0804-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4JJ1-TCC ENG(RDU)	8-97253-107-0	02	1	0804-	●
508	04.383 RING; BLOCK,6TH 4JJ1-TCC ENG(RDU) 04.395 Z=45	8-97309-532-0	01	1	0804-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 4JJ1-TCC ENG(RDU) 00.862	9-08160-825-0	03	1	0804-	●
511	04.416 RING; SNAP,ANTI LASH PLATE 4JJ1-TCC ENG(RDU)	8-97254-767-0	01	1	0804-	●
527	04.384 INSERT; 6TH 4JJ1-TCC ENG(RDU)	8-94448-202-2	03	1	0804-	●
528	04.384 SLEEVE; 6TH 4JJ1-TCC ENG(RDU) 04.535 Z=45	8-94421-871-1	01	1	0804-	●
529	04.384 PLATE; STOPPER,6TH 4JJ1-TCC ENG(RDU)	8-97248-952-0	01	1	0804-	●

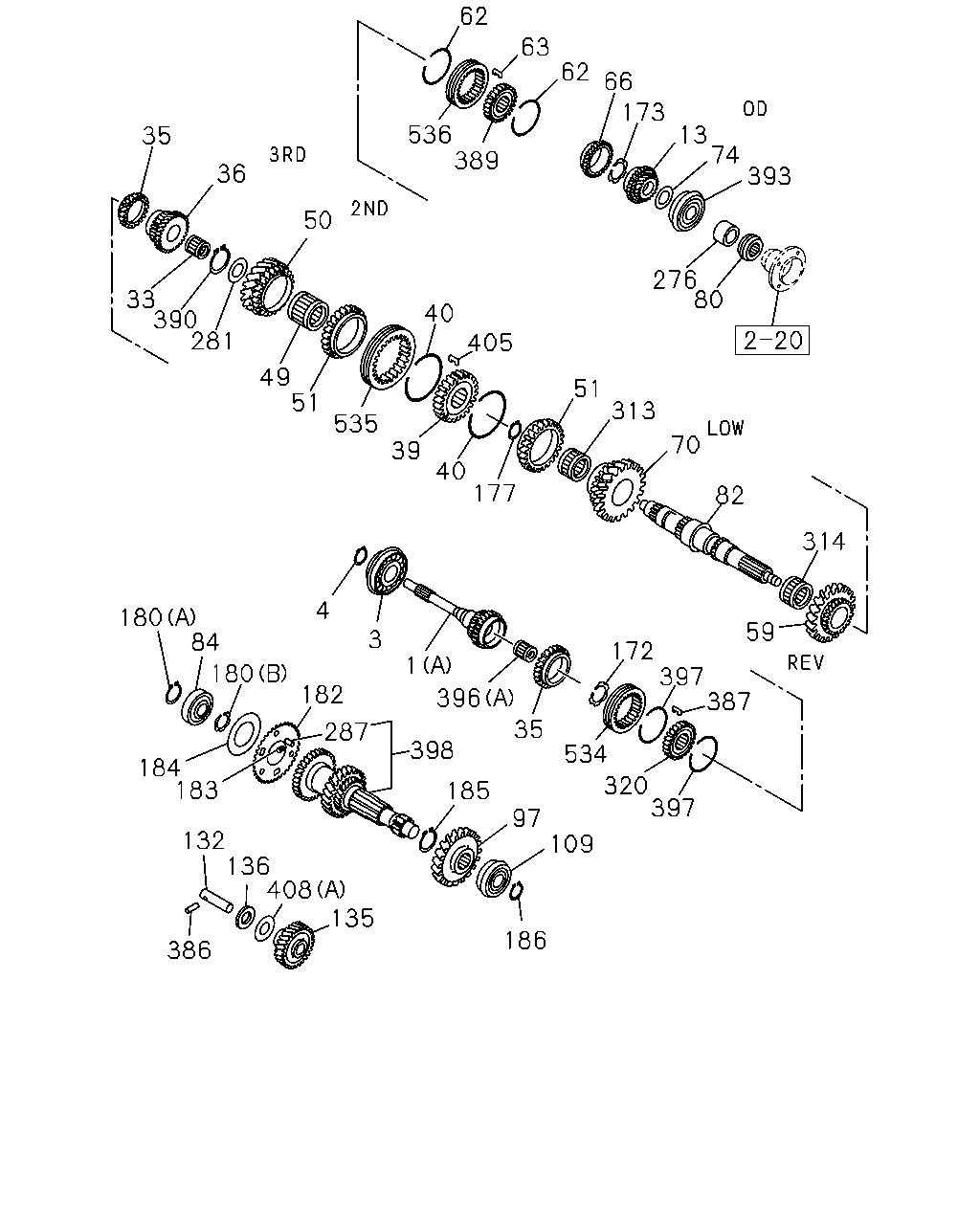

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 132 136 408 135 109 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCC ENG(RDU) (B) Z=26	8-98021-266-0	01	1	0804-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=28	8-97177-683-0	01	1	0804-1010			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=28	8-98179-968-1	01	1	1011-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=30	8-97177-684-0	01	1	0804-1010		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=30	8-98179-969-1	01	1	1011-		●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-2	01	1	0804-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) NSK	8-98189-742-0	01	1	1210-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0804-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCC ENG(RDU) NSK	8-97253-098-1	01	1	0804-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1-TC ENG(RDT) 08.934 ID=37.0	9-09180-040-0	01	1	0804-		●	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) Z=24	8-97373-008-0	01	1	0804-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1-TC ENG(RDT) Z=25	8-97373-011-0	01	1	0804-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT)	8-94317-158-0	01	1	0804-1209		●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JB1-TC ENG(RDT)	8-98189-746-0	01	1	1210-		●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	02	1	0804-1209		●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-98190-426-0	02	1	1210-		●	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=31	8-97174-923-0	01	1	0804-1010			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=33	8-97372-905-0	01	1	0804-1010		●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=34	8-97241-234-0	01	1	0804-	●
39	04.384 HUB; CLU,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97177-689-0	01	1	0804-		●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT)	8-97023-708-0	02	1	0804-1209		●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JB1-TC ENG(RDT)	8-98189-960-0	02	1	1210-		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) 04.419 NSK	5-09811-014-0	01	1	0804-1209		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JB1-TC ENG(RDT) NSK	8-98189-747-0	01	1	1210-		●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=34	8-97174-955-0	01	1	0804-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=36	8-97373-143-1	01	1	0804-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=38	8-97241-237-1	01	1	0804-	●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-97074-619-3	02	1	0804-1209		●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JB1-TC ENG(RDT) Z=42	8-98190-428-0	02	1	1210-		●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0804-1209		●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-98190-291-1	01	1	1210-		●	●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCC ENG(RDU) Z=41	8-97241-244-0	01	1	0804-	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0804-1209		●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JB1-TC ENG(RDT)	8-98189-962-0	02	1	1210-		●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT)	9-33263-613-0	03	1	0804-1209		●	●
63	04.384 INSERT; SYN,REV & 5TH 4JB1-TC ENG(RDT)	8-98190-418-0	03	1	1210-		●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) Z=36	8-94128-775-2	01	1	0804-1209		●	●
66	04.383 RING; BLOCK,SYN 4JB1-TC ENG(RDT) Z=36	8-98190-426-0	01	1	1210-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0804-1010		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43 IDN	8-98180-095-1	01	1	1011-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=43	8-97350-010-0	01	1	0804-	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT)	8-97207-176-0	01	1	0804-1209		●	●
74	04.419 WASHER; THRUST,REV GEAR 4JB1-TC ENG(RDT)	8-98188-569-0	01	1	1210-		●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0804-1209		●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-98190-429-0	01	1	1210-		●	●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCC ENG(RDU) Z=4	8-97253-556-0	01	1	0804-	●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0804-		●	●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCC ENG(RDU) Z=28-42-42-21	8-97253-116-3	01	1	0804-	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) NSK	5-09800-062-2	01	1	0804-1209		●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JB1-TC ENG(RDT) NSK	8-98189-745-0	01	1	1210-		●	●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT) Z=55	8-97372-900-0	01	1	0804-			●
97	04.415 GEAR; 5TH,COUNTER 4JB1-TC ENG(RDT) Z=53	8-97169-511-0	01	1	0804-		●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT)	8-97095-913-1	01	1	0804-1209		●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JB1-TC ENG(RDT)	8-98189-744-0	01	1	1210-		●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	9-33351-604-1	01	1	0804-1209		●	●
132	04.433 SHAFT; REV 4JB1-TC ENG(RDT)	8-98189-378-0	01	1	1210-		●	●
132	04.433 SHAFT; REV 4JJ1-TCC ENG(RDU)	8-97252-655-0	01	1	0804-	●
135	04.430 GEAR; REV IDLER 4JB1-TC ENG(RDT) Z=29	8-97169-508-0	01	1	0804-		●	●
135	04.430 GEAR; REV IDLER 4JJ1-TCC ENG(RDU) Z=25	8-98031-869-1	01	1	0804-	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT)	8-97081-579-2	01	1	0804-1209		●	●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JB1-TC ENG(RDT)	8-98188-533-0	01	1	1210-		●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94402-405-0	01	1	0804-		●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94402-406-0	01	1	0804-		●	●
172	04.412 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.85	8-94402-407-0	01	1	0804-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.85	8-94151-522-0	01	1	0804-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.90	8-94151-523-0	01	1	0804-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=1.95	8-94151-524-0	01	1	0804-		●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JB1-TC ENG(RDT) T=2.00	8-94157-747-0	01	1	0804-		●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.422 ID=44.5	5-09589-010-0	01	1	0804-1209		●	●
177	04.384 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) ID=44.5	8-98189-990-0	01	1	1210-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) (B) ID=38.5	8-94146-483-0	01	1	0804-1209		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) (B) ID=38.5	8-98189-991-0	01	1	1210-		●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0804-		●	●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94129-632-1	01	1	0804-1209			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98188-586-0	01	1	1210-			●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-97095-984-0	01	1	0804-1209		●
182	04.422 PLATE; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98188-585-0	01	1	1210-		●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94132-168-0	03	1	0804-1209		●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98189-380-0	03	1	1210-		●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-94128-790-1	01	1	0804-1209		●	●
184	04.422 SPRING; CLUSTER GEAR 4JB1-TC ENG(RDT)	8-98189-350-0	01	1	1210-		●	●
185	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=41.5	9-09180-045-0	01	1	0804-		●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4JB1-TC ENG(RDT) ID=29.6	9-09180-032-0	01	1	0804-		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT)	8-97207-175-0	01	1	0804-1209		●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JB1-TC ENG(RDT)	8-98188-906-0	01	1	1210-		●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT)	5-33271-007-0	01	1	0804-1209		●	●
281	04.419 WASHER; THRUST,MAINSHAFT 4JB1-TC ENG(RDT)	8-98188-466-0	01	1	1210-		●	●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-94402-462-0	01	1	0804-1405		●	●
287	04.422 PIN; COUNTER GEAR 4JB1-TC ENG(RDT)	8-98190-445-0	03	1	1406-		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) NSK	8-94317-161-0	01	1	0804-1209		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT)	8-98189-748-0	01	1	1210-		●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JB1-TC ENG(RDT) JTEKT	8-97010-547-0	01	1	0804-1209		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-97207-174-0	01	1	0804-1209		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JB1-TC ENG(RDT) NSK	8-98189-749-0	01	1	1210-		●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JJ1-TCC ENG(RDU) NSK	8-97253-114-0	01	1	0804-	●
320	04.384 HUB; CLU,4TH & 3RD 4JB1-TC ENG(RDT) Z=36	8-97177-690-0	01	1	0804-		●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT)	8-94128-794-0	01	1	0804-1209		●	●
386	04.435 PIN; REV SHAFT 4JB1-TC ENG(RDT)	8-98190-093-0	01	1	1210-		●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0804-1209		●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JB1-TC ENG(RDT)	8-98189-965-0	03	1	1210-		●	●
389	04.384 HUB; CLU,REV & 5TH 4JB1-TC ENG(RDT) Z=36	8-97373-144-0	01	1	0804-		●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.75	8-94151-520-0	01	1	0804-		●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.384 T=1.80	8-94151-521-0	01	1	0804-		●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.85	8-94151-522-0	01	1	0804-		●	●
390	04.383 RING; SNAP,CLU HUB 4JB1-TC ENG(RDT) 04.416 T=1.90	8-94151-523-0	01	1	0804-		●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-1	01	1	0804-1209		●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-98189-743-0	01	1	1210-		●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCC ENG(RDU)	8-97253-105-1	01	1	0804-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (A)	8-97161-658-0	01	1	0804-1209		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (A)	8-98189-970-0	01	1	1210-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCC ENG(RDU) (C)	8-97253-102-1	01	1	0804-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCC ENG(RDU) (B)	8-97253-110-0	04	1	0804-	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT)	8-97023-710-0	02	1	0804-1209		●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JB1-TC ENG(RDT)	8-98189-962-0	02	1	1210-		●	●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) Z=51-34-22-14	8-97204-104-0	01	1	0804-			●
398	04.421 GEAR; COUNTER 4JB1-TC ENG(RDT) Z=49-34-22-14	8-97381-658-0	01	1	0804-		●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT)	5-33263-001-0	03	1	0804-1209		●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JB1-TC ENG(RDT)	8-98189-965-0	03	1	1210-		●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-97081-577-0	01	1	0804-1209		●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-98189-347-0	01	1	1210-		●	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) 04.422 (B)	8-94148-196-0	03	1	0804-	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) (C)	8-97366-040-1	04	1	0804-	●
534	04.395 SLEEVE; HUB,4TH-3RD 4JB1-TC ENG(RDT) Z=36	8-97177-134-0	01	1	0804-		●	●
535	04.395 SLEEVE; HUB,LOW-2ND 4JB1-TC ENG(RDT) Z=42	8-97177-133-0	01	1	0804-		●	●
536	04.395 SLEEVE; HUB,REV-5TH 4JB1-TC ENG(RDT) Z=36	8-97177-135-0	01	1	0804-		●	●

77 169 342 517 24 516 288 393 335 531 59 80 120 515 396 298 260 505 396 82 501 500 70 504 41 503 120 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 266 3 273 1 30

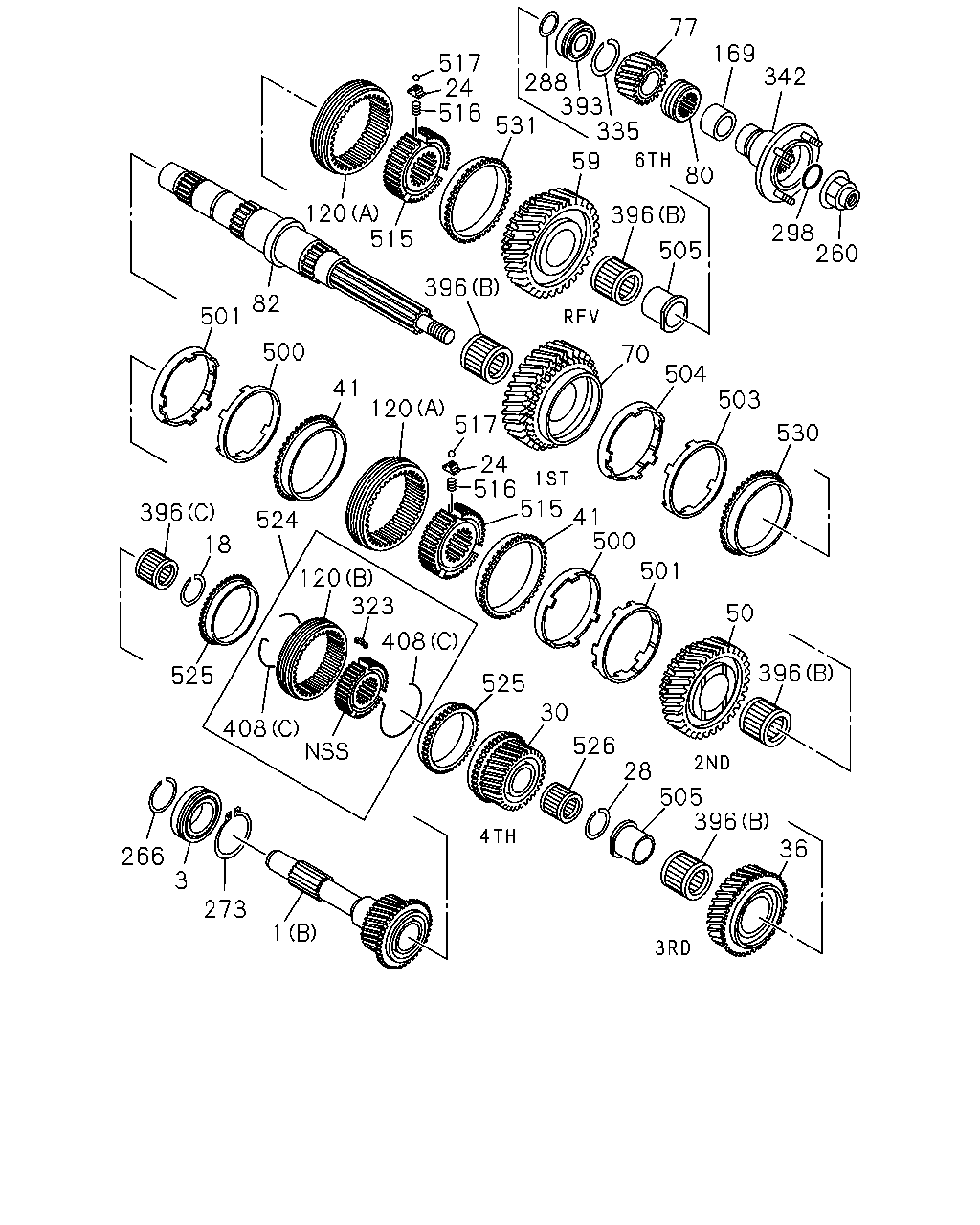

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JJ1-TCC ENG(RDU) (B) Z=26	8-98021-266-0	01	1	0804-	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=28	8-97177-683-0	01	1	0804-1010			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=28	8-98179-968-1	01	1	1011-			●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=30	8-97177-684-0	01	1	0804-1010		●
1	04.351 SHAFT; TOP GEAR,TRANS 4JB1-TC ENG(RDT) (A) Z=30	8-98179-969-1	01	1	1011-		●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.408 NSK	8-94178-732-2	01	1	0804-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) NSK	8-98189-742-0	01	1	1210-		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JB1-TC ENG(RDT) 04.352 JTEKT	8-94462-615-0	01	1	0804-1209		●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JJ1-TCC ENG(RDU) NSK	8-97253-098-1	01	1	0804-	●
18	04.384 RING; SNAP,CLU HUB 4JJ1-TCC ENG(RDU) ID=30.7 T=1.8	8-97254-728-0	01	1	0804-	●
24	04.383 BLOCK; INDEX,SYN 4JJ1-TCC ENG(RDU)	8-97241-313-1	06	1	0804-	●
28	04.416 RING; SNAP,3RD GEAR 4JJ1-TCC ENG(RDU) ID=46.5 T=1.8	8-97254-743-0	01	1	0804-	●
30	04.415 GEAR; 4TH,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=28	8-97241-230-0	01	1	0804-	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=31	8-97174-923-0	01	1	0804-1010			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1-TC ENG(RDT) Z=33	8-97372-905-0	01	1	0804-1010		●
36	04.415 GEAR; 3RD,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=34	8-97241-234-0	01	1	0804-	●
41	04.383 RING; BLOCK,2ND & 3RD 4JJ1-TCC ENG(RDU) Z=45	8-97241-306-1	02	1	0804-	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=34	8-97174-955-0	01	1	0804-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1-TC ENG(RDT) Z=36	8-97373-143-1	01	1	0804-		●
50	04.395 GEAR; 2ND,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=38	8-97241-237-1	01	1	0804-	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-97206-006-0	01	1	0804-1209		●	●
59	04.417 GEAR; REV MAINSHAFT 4JB1-TC ENG(RDT) Z=41	8-98190-291-1	01	1	1210-		●	●
59	04.417 GEAR; REV MAINSHAFT 4JJ1-TCC ENG(RDU) Z=41	8-97241-244-0	01	1	0804-	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43	8-97204-109-0	01	1	0804-1010		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JB1-TC ENG(RDT) Z=43 IDN	8-98180-095-1	01	1	1011-		●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=43	8-97350-010-0	01	1	0804-	●
77	04.421 GEAR; 6TH,MAINSHAFT 4JJ1-TCC ENG(RDU) Z=21	8-97386-582-0	01	1	0804-	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-97207-146-0	01	1	0804-1209		●	●
80	04.343 GEAR; SPD DRIVE 4JB1-TC ENG(RDT) Z=4	8-98190-429-0	01	1	1210-		●	●
80	04.343 GEAR; SPD DRIVE 4JJ1-TCC ENG(RDU) Z=4	8-97253-556-0	01	1	0804-	●
82	04.403 SHAFT; MAIN,TRANS 4JB1-TC ENG(RDT) Z=27-40-37-27	8-97368-837-0	01	1	0804-		●	●
82	04.403 SHAFT; MAIN,TRANS 4JJ1-TCC ENG(RDU) Z=28-42-42-21	8-97253-116-3	01	1	0804-	●
120	04.383 SLEEVE 4JJ1-TCC ENG(RDU) 04.535 (B) Z=45	8-94421-871-1	01	1	0804-	●
120	04.383 SLEEVE 4JJ1-TCC ENG(RDU) (A) Z=45	8-97241-296-1	02	1	0804-1311	●
120	04.383 SLEEVE 4JJ1-TCC ENG(RDU) (A) Z=45	8-98258-279-0	02	1	1312-	●
169	04.419 COLLAR; MAINSHAFT 4JJ1-TCC ENG(RDU)	8-97252-937-1	01	1	0804-	●
260	04.412 NUT; MAINSHAFT END 4JJ1-TCC ENG(RDU) 04.525 M27 H=25	8-97360-410-0	01	1	0804-	●
266	04.525 RING; SNAP,BRG INNER 4JJ1-TCC ENG(RDU)	8-97286-916-0	01	1	0804-	●
273	04.525 RING; SNAP,BRG OUTER 4JJ1-TCC ENG(RDU)	8-97254-610-0	01	1	0804-	●
288	04.399 SPACER; BRG,MAINSHAFT 4JJ1-TCC ENG(RDU)	8-97252-942-0	01	1	0804-	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) ID=30.6 T=5.7	8-98028-226-0	01	1	0804-	●
323	04.384 INSERT 4JJ1-TCC ENG(RDU)	8-94448-202-2	03	1	0804-	●
335	04.383 RING; SNAP,BEARING 4JJ1-TCC ENG(RDU)	8-97254-722-0	01	1	0804-	●
342	05.545 FLANGE; OUTPUT 4JJ1-TCC ENG(RDU)	8-98031-640-0	01	1	0804-	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-97207-512-1	01	1	0804-1209		●	●
393	04.352 BEARING; MAINSHAFT END 4JB1-TC ENG(RDT)	8-98189-743-0	01	1	1210-		●	●
393	04.352 BEARING; MAINSHAFT END 4JJ1-TCC ENG(RDU)	8-97253-105-1	01	1	0804-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (A)	8-97161-658-0	01	1	0804-1209		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1-TC ENG(RDT) (A)	8-98189-970-0	01	1	1210-		●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCC ENG(RDU) (C)	8-97253-102-1	01	1	0804-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JJ1-TCC ENG(RDU) (B)	8-97253-110-0	04	1	0804-	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-97081-577-0	01	1	0804-1209		●	●
408	04.384 SPRING 4JB1-TC ENG(RDT) (A)	8-98189-347-0	01	1	1210-		●	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) 04.422 (B)	8-94148-196-0	03	1	0804-	●
408	04.384 SPRING 4JJ1-TCC ENG(RDU) (C)	8-97366-040-1	04	1	0804-	●
500	04.383 RING; OUTSIDE,3RD & 2ND 4JJ1-TCC ENG(RDU)	8-97241-309-1	02	1	0804-	●
501	04.383 RING; INSIDE,3RD & 2ND 4JJ1-TCC ENG(RDU)	8-97241-312-1	02	1	0804-	●
503	04.383 RING; OUTSIDE,LOW & REV 4JJ1-TCC ENG(RDU)	8-97241-309-1	01	1	0804-	●
504	04.383 RING; INSIDE,LOW & REV 4JJ1-TCC ENG(RDU)	8-97241-312-1	01	1	0804-	●
505	04.419 COLLAR; 3RD & REV 4JJ1-TCC ENG(RDU)	8-97253-119-2	02	1	0804-	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4JJ1-TCC ENG(RDU)	8-97241-298-3	02	1	0804-	●
516	04.384 SPRING; SYNCHRO,INDEX 4JJ1-TCC ENG(RDU)	8-97254-835-0	06	1	0804-	●
517	04.384 BALL; SYNCHRO,INDEX 4JJ1-TCC ENG(RDU)	8-97252-935-0	06	1	0804-	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4JJ1-TCC ENG(RDU)	8-97366-526-0	01	1	0804-	●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4JJ1-TCC ENG(RDU) Z=45	8-97309-532-0	02	1	0804-	●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4JJ1-TCC ENG(RDU)	8-97253-112-0	01	1	0804-	●
530	04.383 RING; BLOCK,LOW 4JJ1-TCC ENG(RDU) Z=45	8-97241-306-1	01	1	0804-	●
531	04.383 RING; BLOCK,REV 4JJ1-TCC ENG(RDU) Z=45	8-97368-343-0	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
