Sayfa 2-20 - Isuzu EPC

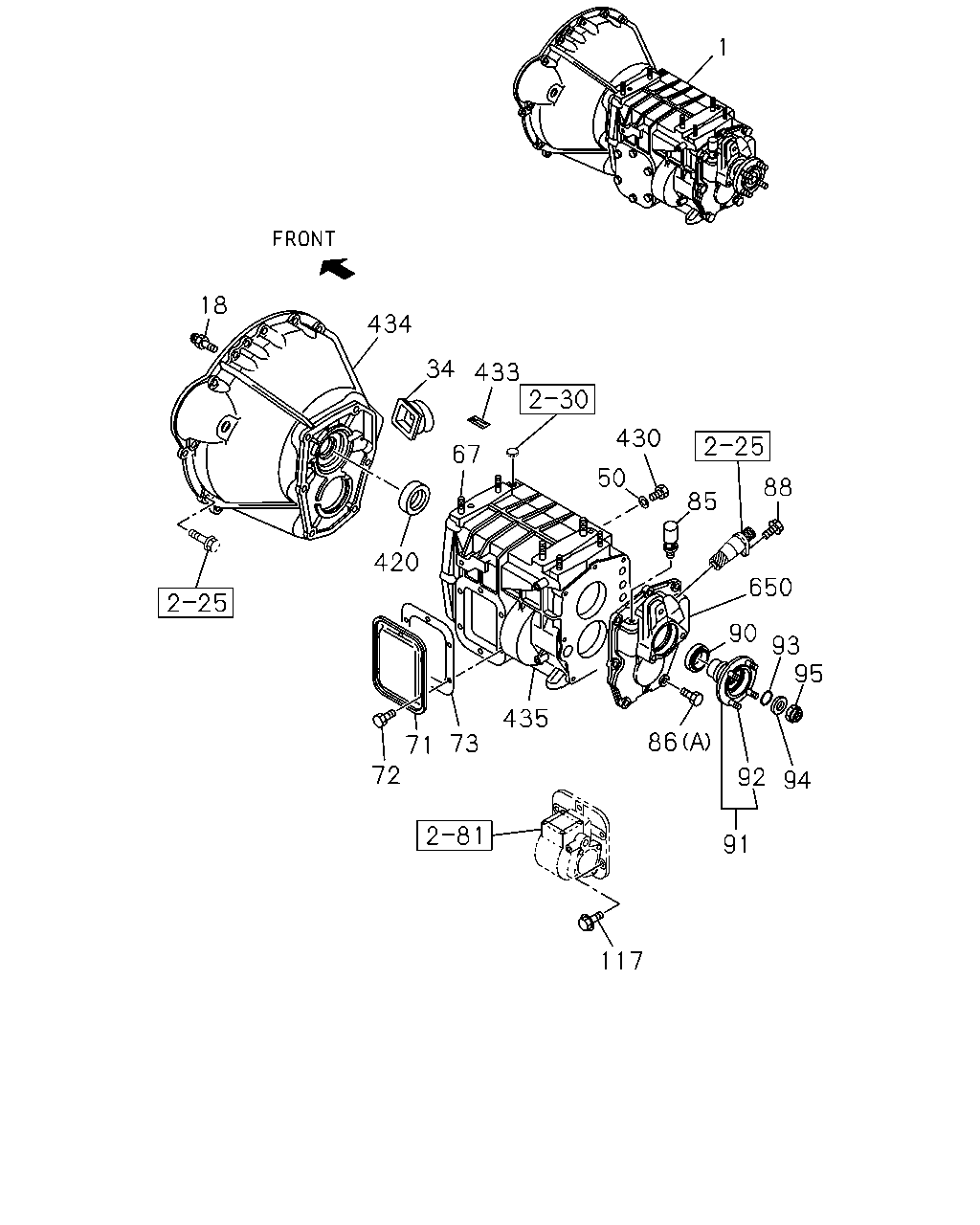

2-20 — MANUAL TRANSMISSION ASM AND CASE (#81100) — 154 parça

1 18 434 34 433 430 67 50 88 85 420 650 90 93 95 435 86 73 71 72 92 94 91 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98067-656-0	01	1	0804-1308	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1309-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-656-0	01	1	0804-1308	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1309-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-98066-126-0	01	1	0804-0808		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-563-0	01	1	0809-1209		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-882-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98066-128-0	01	1	0804-0808		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-564-0	01	1	0809-1209		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-883-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98066-118-0	01	1	0804-0808			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-559-0	01	1	0809-1209			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-878-0	01	1	1210-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98066-120-0	01	1	0804-0808			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-560-0	01	1	0809-1209			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-879-0	01	1	1210-			●
18	00.683 SUPPORT; DRAW LEVER 4JB1-TC ENG(RDT) L=47.5	8-97225-469-1	01	1	0804-1209		●	●
18	00.683 SUPPORT; DRAW LEVER 4JB1-TC ENG(RDT) L=47.5	8-98189-389-0	01	1	1210-		●	●
34	00.686 COVER; DUST,SHIFT FORK 4JB1-TC ENG(RDT)	8-97034-880-0	01	1	0804-1209		●	●
34	00.686 COVER; DUST,SHIFT FORK 4JB1-TC ENG(RDT)	8-98190-416-0	01	1	1210-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) 04.422 ID=15.3	8-94336-511-0	01	1	0804-1209		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) ID=15.5	8-98189-969-0	01	1	1210-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) ID=17	8-97115-712-0	02	1	0804-	●
67	04.105 STUD; CASE TRANS 4JB1-TC ENG(RDT)	9-09631-004-0	06	1	0804-1209		●	●
67	04.105 STUD; CASE TRANS 4JB1-TC ENG(RDT)	8-98189-390-0	06	1	1210-		●	●
71	04.439 COVER; SIDE,TRANS CASE 4JB1-TC ENG(RDT)	9-33141-601-2	01	1	0804-1209		●	●
71	04.439 COVER; SIDE,TRANS CASE 4JB1-TC ENG(RDT)	8-98189-244-0	01	1	1210-		●	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0804-1308	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1309-	●
72	04.439 BOLT; SIDE COVER 4JB1-TC ENG(RDT) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0804-1209		●	●
72	04.439 BOLT; SIDE COVER 4JB1-TC ENG(RDT) 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1210-		●	●
72	04.439 BOLT; SIDE COVER 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT)	9-33142-601-0	01	1	0804-1209		●	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT)	8-98189-272-0	01	1	1210-		●	●
85	04.104 BREATHER; RR COVER 4JB1-TC ENG(RDT)	8-97165-939-0	01	1	0804-1209		●	●
85	04.104 BREATHER; RR COVER 4JB1-TC ENG(RDT)	8-98189-454-0	01	1	1210-		●	●
86	04.317 BOLT; RR COVER 4JB1-TC ENG(RDT) 04.105 (A) M8X25	8-94128-786-0	07	1	0804-1209		●	●
86	04.317 BOLT; RR COVER 4JB1-TC ENG(RDT) 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0804-1405	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 09.171 (C) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0804-	●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JB1-TC ENG(RDT) M8X12	8-94128-785-0	01	1	0804-1209		●	●
88	04.338 SCREW; SPEEDOMETER BUSHING 4JB1-TC ENG(RDT) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-97257-296-0	01	1	0804-1209		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-98189-443-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) NOK	8-97253-552-1	01	1	0804-	●
91	05.605 DRIVER; COUPLING 4JB1-TC ENG(RDT)	8-97207-215-0	01	1	0804-1209		●	●
91	05.605 DRIVER; COUPLING 4JB1-TC ENG(RDT)	8-98190-298-0	01	1	1210-		●	●
92	05.605 BOLT; COUPLING DRIVER 4JB1-TC ENG(RDT) M10X33	8-97109-696-1	04	1	0804-1209		●	●
92	05.605 BOLT; COUPLING DRIVER 4JB1-TC ENG(RDT) M10X33	8-98189-989-0	04	1	1210-		●	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT)	8-94178-725-0	01	1	0804-1209		●	●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT)	8-98189-967-0	01	1	1210-		●	●
94	05.595 WASHER; COUPLING DRIVER 4JB1-TC ENG(RDT)	8-94249-240-0	01	1	0804-1209		●	●
94	05.595 WASHER; COUPLING DRIVER 4JB1-TC ENG(RDT)	8-98189-951-0	01	1	1210-		●	●
95	05.595 NUT; MAINSHAFT 4JB1-TC ENG(RDT) 04.162 M24 FLANGE	8-97087-750-0	01	1	0804-1209		●	●
95	05.595 NUT; MAINSHAFT 4JB1-TC ENG(RDT) M24 FLANGE	8-98189-932-0	01	1	1210-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0804-1308		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1309-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK&PL WASHER	0-50641-030-0	02	1	0804-1107		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1108-1308		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1309-		●	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0804-1107	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1308	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1309-	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-94326-441-0	01	1	0804-1209		●	●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-98189-424-0	01	1	1210-		●	●
430	04.105 PLUG; OIL DRAIN 4JB1-TC ENG(RDT)	8-94336-512-1	01	1	0804-1209		●	●
430	04.105 PLUG; OIL DRAIN 4JB1-TC ENG(RDT)	8-98190-430-0	01	1	1210-		●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCC ENG(RDU)	8-97365-374-0	02	1	0804-	●
433	04.105 LABEL; TRANS 4JB1-TC ENG(RDT)	8-97084-051-1	01	1	0804-1209		●
433	04.105 LABEL; TRANS 4JB1-TC ENG(RDT)	8-98189-385-0	01	1	1210-		●
433	04.105 LABEL; TRANS 4JB1-TC ENG(RDT)	8-97076-909-1	01	1	0804-1209			●
433	04.105 LABEL; TRANS 4JB1-TC ENG(RDT)	8-98189-384-0	01	1	1210-			●
434	00.683 HOUSING; CLU 4JB1-TC ENG(RDT)	8-97204-108-0	01	1	0804-		●	●
434	00.683 HOUSING; CLU 4JJ1-TCC ENG(RDU)	8-97237-099-5	01	1	0804-	●
435	04.103 CASE; TRANS 4JB1-TC ENG(RDT)	8-97373-564-0	01	1	0804-		●	●
435	04.103 CASE; TRANS 4JJ1-TCC ENG(RDU)	8-97379-374-0	01	1	0804-	●
650	04.317 COVER; RR 4JB1-TC ENG(RDT)	8-97174-087-0	01	1	0804-		●	●

1 434 13 388 256 33 256 316 24 429 417 45 429 435 430 50 256 609 256 611 86 71 324 119 610 72 121 586 50 430 86 319 317 90 421 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66)	8-98067-656-0	01	1	0804-1308	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1309-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-656-0	01	1	0804-1308	●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-656-0	01	1	1309-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-98066-126-0	01	1	0804-0808		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-563-0	01	1	0809-1209		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-882-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98066-128-0	01	1	0804-0808		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-564-0	01	1	0809-1209		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-883-0	01	1	1210-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98066-118-0	01	1	0804-0808			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98119-559-0	01	1	0809-1209			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98203-878-0	01	1	1210-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98066-120-0	01	1	0804-0808			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98119-560-0	01	1	0809-1209			●
1	04.003 TRANSMISSION ASM; MANUAL 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98203-879-0	01	1	1210-			●
13	04.302 SUPPORT; SHIFT FORK 4JJ1-TCC ENG(RDU)	8-97255-384-1	01	1	0804-	●
24	00.797 COVER; CHECK HOLE,DUST 4JJ1-TCC ENG(RDU)	8-97255-201-0	01	1	0804-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU)	8-97253-550-0	01	1	0804-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) ID=17	8-97115-712-0	01	1	0804-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) 04.422 ID=15.3	8-94336-511-0	01	1	0804-1209		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) ID=15.5	8-98189-969-0	01	1	1210-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) ID=17	8-97115-712-0	02	1	0804-	●
71	04.439 COVER; SIDE,TRANS CASE 4JB1-TC ENG(RDT)	9-33141-601-2	01	1	0804-1209		●	●
71	04.439 COVER; SIDE,TRANS CASE 4JB1-TC ENG(RDT)	8-98189-244-0	01	1	1210-		●	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0804-1308	●
71	04.439 COVER; SIDE,TRANS CASE 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-97252-625-0	01	1	1309-	●
72	04.439 BOLT; SIDE COVER 4JB1-TC ENG(RDT) 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0804-1209		●	●
72	04.439 BOLT; SIDE COVER 4JB1-TC ENG(RDT) 06.225 M10X12 FLANGE	0-28051-012-0	06	1	1210-		●	●
72	04.439 BOLT; SIDE COVER 4JJ1-TCC ENG(RDU) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0804-	●
86	04.317 BOLT; RR COVER 4JB1-TC ENG(RDT) 04.105 (A) M8X25	8-94128-786-0	07	1	0804-1209		●	●
86	04.317 BOLT; RR COVER 4JB1-TC ENG(RDT) 03.275 (A) M8X25 FLANGE	0-28050-825-0	07	1	1210-		●	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 09.171 (C) M10X40 FLANGE	0-28151-040-0	10	1	0804-1405	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 09.171 (C) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 4JJ1-TCC ENG(RDU) 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0804-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-97257-296-0	01	1	0804-1209		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1-TC ENG(RDT) NOK	8-98189-443-0	01	1	1210-		●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1-TCC ENG(RDU) NOK	8-97253-552-1	01	1	0804-	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0804-1308		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 05.601 M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1309-		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK&PL WASHER	0-50641-030-0	02	1	0804-1107		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1108-1308		●	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 17.208 M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	1309-		●	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0804-1107	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1308	●
117	04.439 BOLT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1309-	●
119	04.439 STUD; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0804-1107	●
119	04.439 STUD; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1308	●
119	04.439 STUD; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.342 M10X25 L=40	0-44011-025-0	02	1	1309-	●
119	04.439 STUD; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1308	●
119	04.439 STUD; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 03.403 M10X30 L=45	0-44011-030-0	02	1	1309-	●
121	04.439 NUT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0804-1006	●
121	04.439 NUT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-1308	●
121	04.439 NUT; PTO FIX 4JJ1-TCC ENG(RDU) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-	●
256	04.317 PIN; KNOCK 4JJ1-TCC ENG(RDU) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0804-	●
256	04.317 PIN; KNOCK 4JJ1-TCC ENG(RDU) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0804-	●
316	04.105 MAGNET; TRANS CASE 4JJ1-TCC ENG(RDU)	8-94249-524-2	01	1	0804-	●
317	04.109 COVER; CASE 4JJ1-TCC ENG(RDU)	8-97252-626-0	01	1	0804-	●
319	04.109 BOLT; COVER 4JJ1-TCC ENG(RDU) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0804-	●
324	04.319 STUD; RR COVER 4JJ1-TCC ENG(RDU) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0804-1405	●
324	04.319 STUD; RR COVER 4JJ1-TCC ENG(RDU) 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
388	00.683 BUSHING; CLU HSG 4JJ1-TCC ENG(RDU)	8-97241-326-2	02	1	0804-	●
417	04.105 PLUG; OIL FILLER,TRANS 4JJ1-TCC ENG(RDU)	8-97365-373-0	01	1	0804-	●
421	04.317 COVER; RR,TRANS 4JJ1-TCC ENG(RDU)	8-98020-028-0	01	1	0804-	●
429	04.105 PIN; STRAIGHT 4JJ1-TCC ENG(RDU) 04.510 OD=10 L=20	8-97135-423-0	02	1	0804-	●
430	04.105 PLUG; OIL DRAIN 4JB1-TC ENG(RDT)	8-94336-512-1	01	1	0804-1209		●	●
430	04.105 PLUG; OIL DRAIN 4JB1-TC ENG(RDT)	8-98190-430-0	01	1	1210-		●	●
430	04.105 PLUG; OIL DRAIN 4JJ1-TCC ENG(RDU)	8-97365-374-0	02	1	0804-	●
434	00.683 HOUSING; CLU 4JB1-TC ENG(RDT)	8-97204-108-0	01	1	0804-		●	●
434	00.683 HOUSING; CLU 4JJ1-TCC ENG(RDU)	8-97237-099-5	01	1	0804-	●
435	04.103 CASE; TRANS 4JB1-TC ENG(RDT)	8-97373-564-0	01	1	0804-		●	●
435	04.103 CASE; TRANS 4JJ1-TCC ENG(RDU)	8-97379-374-0	01	1	0804-	●
586	00.683 BEARING; NEEDLE 4JJ1-TCC ENG(RDU)	8-97253-109-0	01	1	0804-	●
609	04.104 BOLT; HSG TO CASE 4JJ1-TCC ENG(RDU) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0804-	●
610	04.412 RETAINER; BRG 4JJ1-TCC ENG(RDU)	8-97241-315-1	01	1	0804-	●
611	04.104 SCREW 4JJ1-TCC ENG(RDU) M10X27 TORQUES	8-97365-354-0	11	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
