Sayfa 1-31 - Isuzu EPC

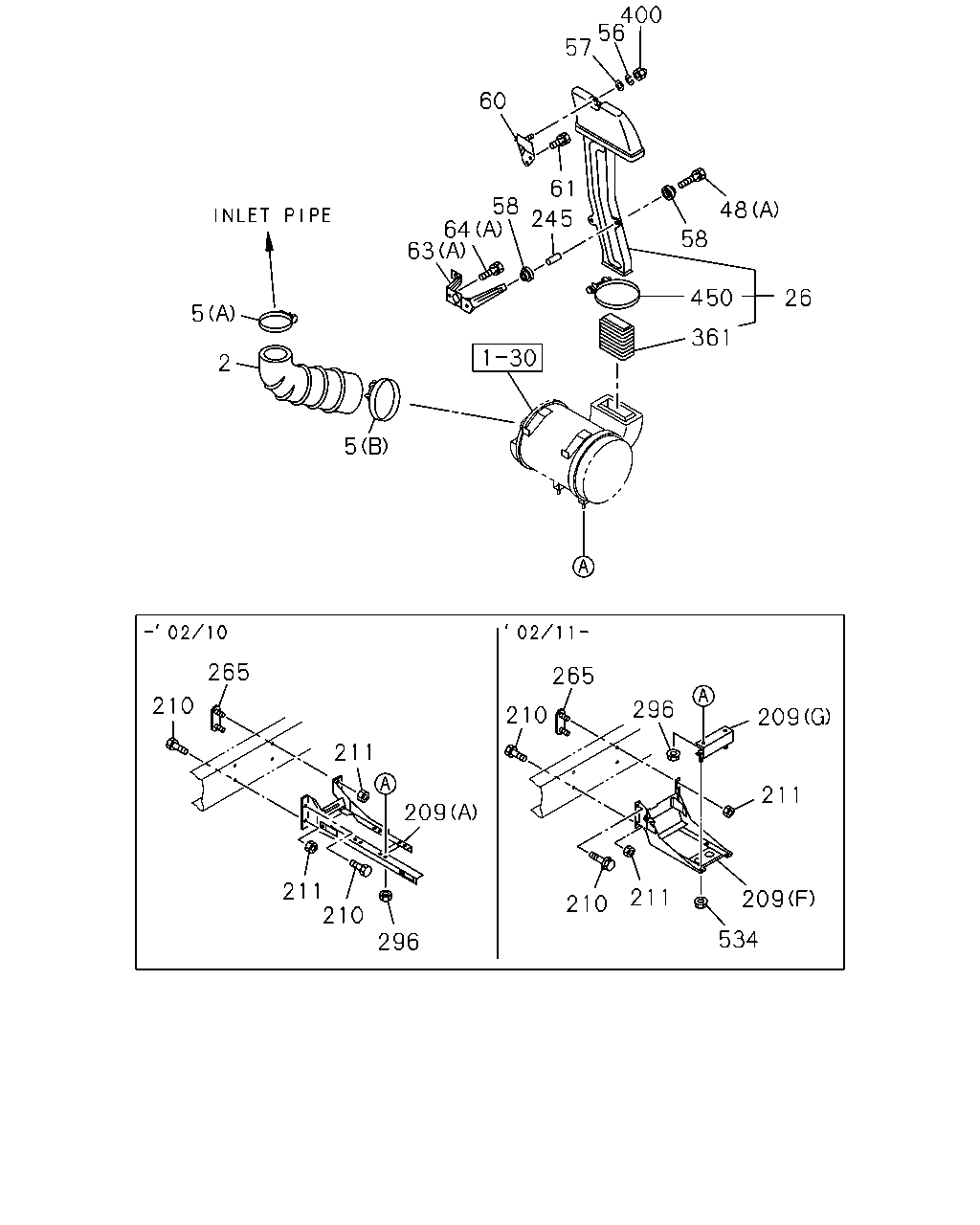

1-31 — AIR DUCT (#8110) — 278 parça

400 56 57 60 61 58 48 245 64 63 58 26 450 5 361 2 5 265 265 210 296 210 209 211 211 209 211 210 211 209 210 534 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL FSS STD CAB(FS*M)	1-14231-919-1	01	1	0005-0210	●
2	HOSE; ACL FSS STD CAB(FS*M)	1-14232-129-0	01	1	0211-		●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14231-876-0	01	1	0005-0012	●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14232-123-0	01	1	0101-0106	●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14232-125-0	01	1	0107-0210	●
2	HOSE; ACL FTS STD CAB(FT*M)	1-14232-126-0	01	1	0211-			●
2	HOSE; ACL FTS STD CAB(FT*M)	1-14231-929-0	01	1	0005-0210	●
2	HOSE; ACL FTS DOUBLE CAB(FT*W)	1-14231-941-1	01	1	0005-0210	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-198-0	01	1	0301-0810		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810	●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●	●
26	DUCT; AIR INT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-14230-176-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●	●
26	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14230-142-0	01	1	0005-0210	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) OD=40 T=18.5	1-14119-267-0	06	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-571-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●	●
209	BRACKET; ACL FSS STD CAB(FS*M) (A)	1-53497-508-2	01	1	0005-0210	●
209	BRACKET; ACL FSS STD CAB(FS*M) (F)	1-53497-545-1	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-554-0	01	1	0005-0210	●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-478-2	01	1	0211-		●	●
209	BRACKET; ACL FTS STD CAB(FT*M) (A)	1-53497-480-2	01	1	0005-0210	●
209	BRACKET; ACL FTS STD CAB(FT*M) (G)	1-53497-701-0	02	1	0211-			●
209	BRACKET; ACL FTS STD CAB(FT*M) (F)	1-53497-703-0	01	1	0211-			●
209	BRACKET; ACL FTS DOUBLE CAB(FT*W) (C)	1-53497-675-0	01	1	0211-			●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (D)	1-53497-687-2	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (E)	1-53497-688-2	01	1	0211-		●
210	BOLT; ACL BRKT FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	04	1	0005-0210	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-		●	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X50 FLANGE	0-28081-250-0	04	1	0005-0008	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28081-240-0	04	1	0009-0012	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28681-240-0	04	1	0101-0210	●
210	BOLT; ACL BRKT FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0005-0210	●
211	NUT; BRKT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	02	1	0211-0602		●	●
211	NUT; BRKT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	02	1	0603-		●	●
245	PIECE; DIST,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●	●
245	PIECE; DIST,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-228-0	03	1	0005-0210	●
265	BRACKET; STUD,ACL FTS STD CAB(FT*M)	1-53497-454-1	01	1	0005-0210	●
265	BRACKET; STUD,ACL FTS DOUBLE CAB(FT*W)	1-53497-689-0	01	1	0211-			●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0211-0602		●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
361	RUBBER; CUSHION,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-14231-973-0	01	1	0005-0210	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0211-		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●	●
450	CLAMP; HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	9-09915-504-1	01	1	0005-0210	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0211-		●	●
534	NUT; DISTANCE FTS STD CAB(FT*M) M8 FLANGE	0-91150-108-0	04	1	0211-0602			●
534	NUT; DISTANCE FTS STD CAB(FT*M) M8 FLANGE	0-91180-108-0	04	1	0603-			●

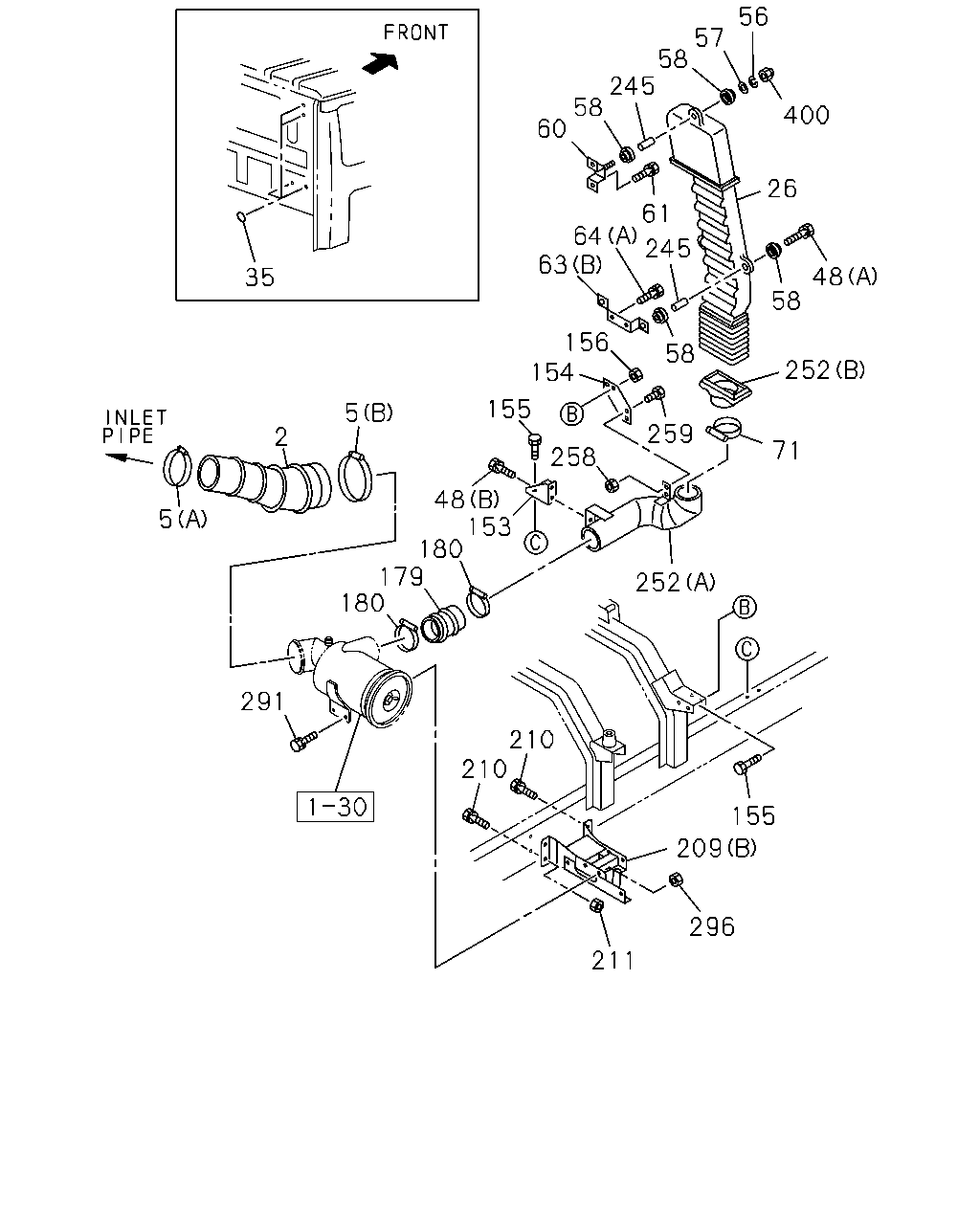

56 57 58 245 58 60 400 26 61 245 64 63 48 35 58 156 154 58 252 155 5 259 2 71 258 48 153 180 179 180 5 252 291 210 210 155 209 296 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL FSS STD CAB(FS*M)	1-14231-919-1	01	1	0005-0210	●
2	HOSE; ACL FSS STD CAB(FS*M)	1-14232-129-0	01	1	0211-		●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14231-876-0	01	1	0005-0012	●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14232-123-0	01	1	0101-0106	●
2	HOSE; ACL FSS DOUBLE CAB(FS*W)	1-14232-125-0	01	1	0107-0210	●
2	HOSE; ACL FTS STD CAB(FT*M)	1-14232-126-0	01	1	0211-			●
2	HOSE; ACL FTS STD CAB(FT*M)	1-14231-929-0	01	1	0005-0210	●
2	HOSE; ACL FTS DOUBLE CAB(FT*W)	1-14231-941-1	01	1	0005-0210	●
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-198-0	01	1	0301-0810		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810	●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●	●
26	DUCT; AIR INT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-14230-176-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●	●
26	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14230-142-0	01	1	0005-0210	●
35	SEAL; DUCT,INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) OD=30 BLACK	1-76798-035-0	04	1	0005-0210	●
35	SEAL; DUCT,INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) OD=30 BLACK	1-76798-035-0	04	1	0211-		●	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) OD=40 T=18.5	1-14119-267-0	06	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-571-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●	●
71	CLIP; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=104-142	1-09707-155-0	01	1	0005-0210	●
153	BRACKET; ACL,FRT FSS DOUBLE CAB(FS*W)	1-14239-222-0	01	1	0005-0210	●
153	BRACKET; ACL,FRT FTS DOUBLE CAB(FT*W)	1-14239-248-0	01	1	0005-0210	●
154	BRACKET; ACL,RR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14239-232-0	01	1	0005-0210	●
155	BOLT; BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) M12 FLANGE	0-91150-212-0	05	1	0211-0602		●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) M12 FLANGE	0-91180-212-0	05	1	0603-		●
156	NUT; BRKT FTS DOUBLE CAB(FT*W) M12 FLANGE	0-91150-212-0	02	1	0211-0602			●
156	NUT; BRKT FTS DOUBLE CAB(FT*W) M12 FLANGE	0-91180-212-0	02	1	0603-			●
179	HOSE; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14231-810-1	01	1	0005-0210	●
179	HOSE; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14232-131-0	01	1	0211-		●	●
180	CLIP; AIR INT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=104-142	1-09707-155-0	02	1	0005-0210	●
209	BRACKET; ACL FSS STD CAB(FS*M) (A)	1-53497-508-2	01	1	0005-0210	●
209	BRACKET; ACL FSS STD CAB(FS*M) (F)	1-53497-545-1	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-554-0	01	1	0005-0210	●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-478-2	01	1	0211-		●	●
209	BRACKET; ACL FTS STD CAB(FT*M) (A)	1-53497-480-2	01	1	0005-0210	●
209	BRACKET; ACL FTS STD CAB(FT*M) (G)	1-53497-701-0	02	1	0211-			●
209	BRACKET; ACL FTS STD CAB(FT*M) (F)	1-53497-703-0	01	1	0211-			●
209	BRACKET; ACL FTS DOUBLE CAB(FT*W) (C)	1-53497-675-0	01	1	0211-			●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (D)	1-53497-687-2	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (E)	1-53497-688-2	01	1	0211-		●
210	BOLT; ACL BRKT FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	04	1	0005-0210	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-		●	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X50 FLANGE	0-28081-250-0	04	1	0005-0008	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28081-240-0	04	1	0009-0012	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28681-240-0	04	1	0101-0210	●
210	BOLT; ACL BRKT FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
211	NUT; BRKT M12 FLANGE	0-91150-212-0	02	1	0005-0210	●
211	NUT; BRKT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12 FLANGE	0-91150-212-0	02	1	0211-0602		●	●
211	NUT; BRKT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M12 FLANGE	0-91180-212-0	02	1	0603-		●	●
245	PIECE; DIST,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●	●
245	PIECE; DIST,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-228-0	03	1	0005-0210	●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-14219-222-0	01	1	0005-0210	●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) (C)	1-14232-144-1	01	1	0211-		●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (A)	1-14231-819-1	01	1	0005-0210	●
252	DUCT; AIR INT FTS DOUBLE CAB(FT*W) (C)	1-14232-130-0	01	1	0211-			●
258	NUT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
259	BOLT; AIR DUCT TO BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
291	BOLT; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8X20 FLANGE	0-28680-820-0	04	1	0005-0210	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0211-0602		●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●	●

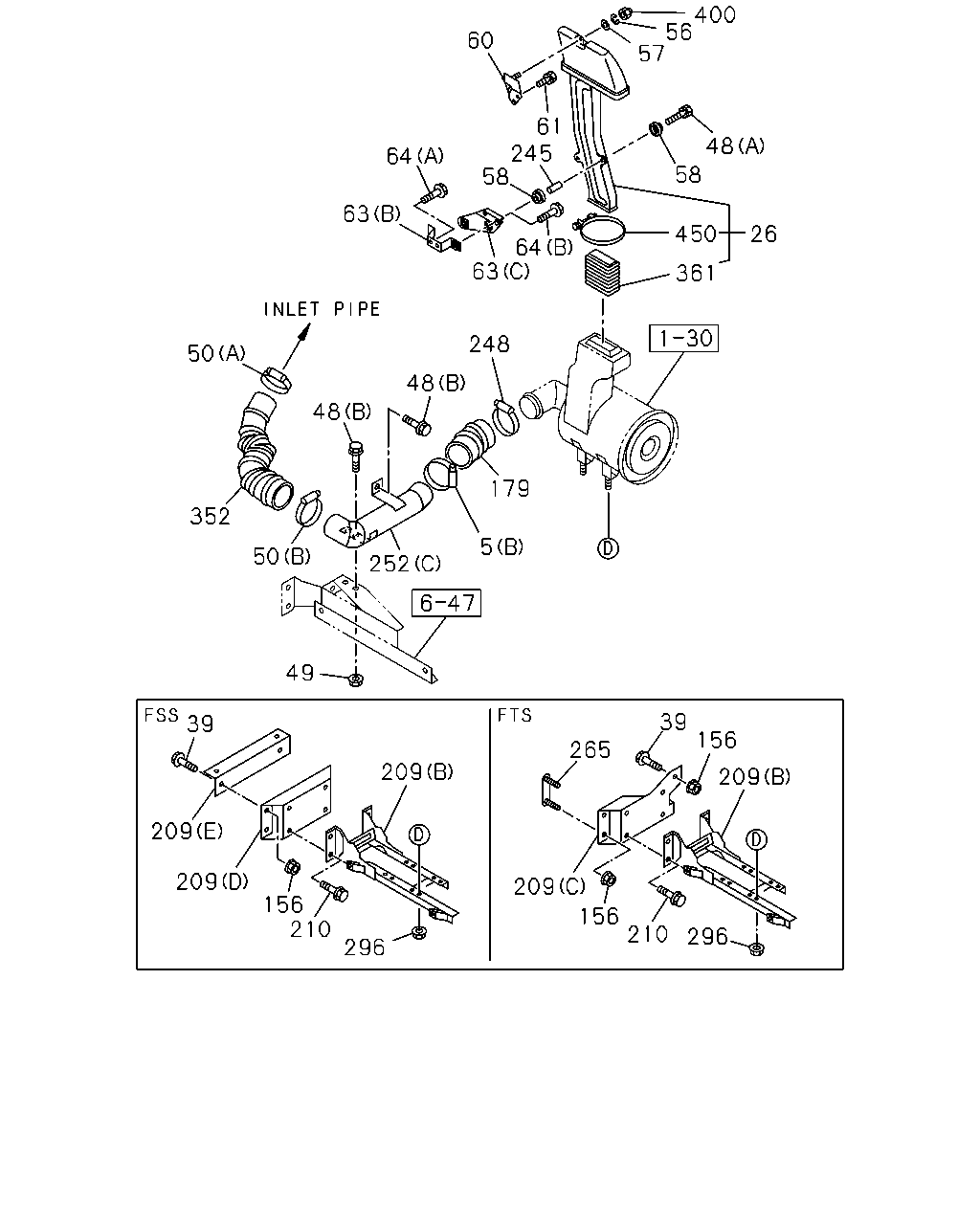

400 56 57 60 61 245 58 48 64 58 63 450 26 64 63 361 248 50 48 48 179 352 5 50 252 49 39 39 156 265 209 209 209 209 209 156 210 156 210 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; AIR DUCT (A) ID=87-116	1-09707-144-0	01	1	0005-0210	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=77-95	1-09707-198-0	01	1	0301-0810		●	●
5	CLIP; AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
5	CLIP; AIR DUCT (B) ID=104-142	1-09707-155-0	01	1	0005-0210	●
5	CLIP; AIR DUCT (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●	●
5	CLIP; AIR DUCT (B) ID=130-165	1-09707-201-0	01	1	0301-0810	●
5	CLIP; AIR DUCT (B) ID=130-150	8-98133-360-0	01	1	0811-		●	●
26	DUCT; AIR INT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-14230-176-0	01	1	0005-0210	●
26	DUCT; AIR INT	1-14230-173-2	01	1	0211-		●	●
26	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14230-142-0	01	1	0005-0210	●
39	BOLT; BRKT FTS DOUBLE CAB(FT*W) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512			●
39	BOLT; BRKT FTS DOUBLE CAB(FT*W) M12X35 FLANGE	0-28651-235-0	02	1	0601-			●
39	BOLT; BRKT FSS DOUBLE CAB(FS*W) M12X35 FLANGE	0-28681-235-0	06	1	0211-0512		●
39	BOLT; BRKT FSS DOUBLE CAB(FS*W) M12X35 FLANGE	0-28651-235-0	06	1	0601-		●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0005-0210	●
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0211-		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28680-820-0	04	1	0211-0512		●	●
48	BOLT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-		●	●
49	NUT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●	●
49	NUT; AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (A) ID=77-95	1-09707-114-0	01	1	0211-0212		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (A) ID=77-95	1-09707-198-0	01	1	0301-0810		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (A) ID=75-95	8-98133-357-0	01	1	0811-		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) ID=130-169	1-09707-157-0	01	1	0211-0212		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) ID=130-165	1-09707-201-0	01	1	0301-0810		●	●
50	CLIP; JOINT HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) ID=130-150	8-98133-360-0	01	1	0811-		●	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0005-0210	●
56	WASHER; LK,AIR INT DUCT M10	1-09500-046-0	01	1	0211-		●	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-0210	●
57	WASHER; PL,AIR INT DUCT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) OD=40 T=18.5	1-14119-267-0	04	1	0005-0210	●
58	SUPPORT; AIR INL DUCT OD=40 T=18.5	1-14119-267-0	04	1	0211-		●	●
58	SUPPORT; AIR INL DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) OD=40 T=18.5	1-14119-267-0	06	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-748-2	01	1	0211-		●	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-571-2	01	1	0005-0210	●
60	BRACKET; AIR DUCT,UPR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79996-596-1	01	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●
61	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS STD CAB(FS*M) FTS STD CAB(FT*M) (A)	1-79998-749-3	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0005-0210	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-79998-572-2	01	1	0211-		●	●
63	BRACKET; AIR DUCT,LWR FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (C)	1-79996-597-0	01	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0005-0210	●
64	BOLT; BRKT,AIR DUCT (A) M8X25 W/LK&PL WASHER	1-09980-526-0	02	1	0211-		●	●
64	BOLT; BRKT,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B) M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0211-		●	●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) M12 FLANGE	0-91150-212-0	05	1	0211-0602		●
156	NUT; BRKT FSS DOUBLE CAB(FS*W) M12 FLANGE	0-91180-212-0	05	1	0603-		●
156	NUT; BRKT FTS DOUBLE CAB(FT*W) M12 FLANGE	0-91150-212-0	02	1	0211-0602			●
156	NUT; BRKT FTS DOUBLE CAB(FT*W) M12 FLANGE	0-91180-212-0	02	1	0603-			●
179	HOSE; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14231-810-1	01	1	0005-0210	●
179	HOSE; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14232-131-0	01	1	0211-		●	●
209	BRACKET; ACL FSS STD CAB(FS*M) (A)	1-53497-508-2	01	1	0005-0210	●
209	BRACKET; ACL FSS STD CAB(FS*M) (F)	1-53497-545-1	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-554-0	01	1	0005-0210	●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-53497-478-2	01	1	0211-		●	●
209	BRACKET; ACL FTS STD CAB(FT*M) (A)	1-53497-480-2	01	1	0005-0210	●
209	BRACKET; ACL FTS STD CAB(FT*M) (G)	1-53497-701-0	02	1	0211-			●
209	BRACKET; ACL FTS STD CAB(FT*M) (F)	1-53497-703-0	01	1	0211-			●
209	BRACKET; ACL FTS DOUBLE CAB(FT*W) (C)	1-53497-675-0	01	1	0211-			●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (D)	1-53497-687-2	01	1	0211-		●
209	BRACKET; ACL FSS DOUBLE CAB(FS*W) (E)	1-53497-688-2	01	1	0211-		●
210	BOLT; ACL BRKT FSS STD CAB(FS*M) M12X35 FLANGE	0-28681-235-0	04	1	0005-0210	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28681-235-0	04	1	0211-0512		●	●
210	BOLT; ACL BRKT M12X35 FLANGE	0-28651-235-0	04	1	0601-		●	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X50 FLANGE	0-28081-250-0	04	1	0005-0008	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28081-240-0	04	1	0009-0012	●
210	BOLT; ACL BRKT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) M12X40 FLANGE	0-28681-240-0	04	1	0101-0210	●
210	BOLT; ACL BRKT FTS STD CAB(FT*M) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-79998-228-0	02	1	0005-0210	●
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0211-		●	●
245	PIECE; DIST,AIR DUCT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-79998-228-0	03	1	0005-0210	●
248	CLIP; RUBBER HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=130-169	1-09707-157-0	01	1	0211-0212		●	●
248	CLIP; RUBBER HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=130-165	1-09707-201-0	01	1	0301-0810		●	●
248	CLIP; RUBBER HOSE FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) ID=130-150	8-98133-360-0	01	1	0811-		●	●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (B)	1-14219-222-0	01	1	0005-0210	●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) (C)	1-14232-144-1	01	1	0211-		●
252	DUCT; AIR INT FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W) (A)	1-14231-819-1	01	1	0005-0210	●
252	DUCT; AIR INT FTS DOUBLE CAB(FT*W) (C)	1-14232-130-0	01	1	0211-			●
265	BRACKET; STUD,ACL FTS STD CAB(FT*M)	1-53497-454-1	01	1	0005-0210	●
265	BRACKET; STUD,ACL FTS DOUBLE CAB(FT*W)	1-53497-689-0	01	1	0211-			●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
296	NUT; ACL M8 FLANGE	0-91150-108-0	04	1	0211-0602		●	●
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0603-		●	●
352	HOSE; RUBBER,AIR DUCT TO ENG FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14232-151-0	01	1	0211-0305		●	●
352	HOSE; RUBBER,AIR DUCT TO ENG FSS DOUBLE CAB(FS*W) FTS DOUBLE CAB(FT*W)	1-14232-161-0	01	1	0306-		●	●
361	RUBBER; CUSHION,AIR DUCT FSS STD CAB(FS*M) FTS STD CAB(FT*M)	1-14231-973-0	01	1	0005-0210	●
361	RUBBER; CUSHION,AIR DUCT	1-14231-973-1	01	1	0211-		●	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0005-0210	●
400	NUT; CAP,AIR DUCT M10	1-09984-145-0	01	1	0211-		●	●
450	CLAMP; HOSE FSS STD CAB(FS*M) FTS STD CAB(FT*M)	9-09915-504-1	01	1	0005-0210	●
450	CLAMP; HOSE	9-09915-504-1	01	1	0211-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
