◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10626 - FTR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#811) — 16 parça

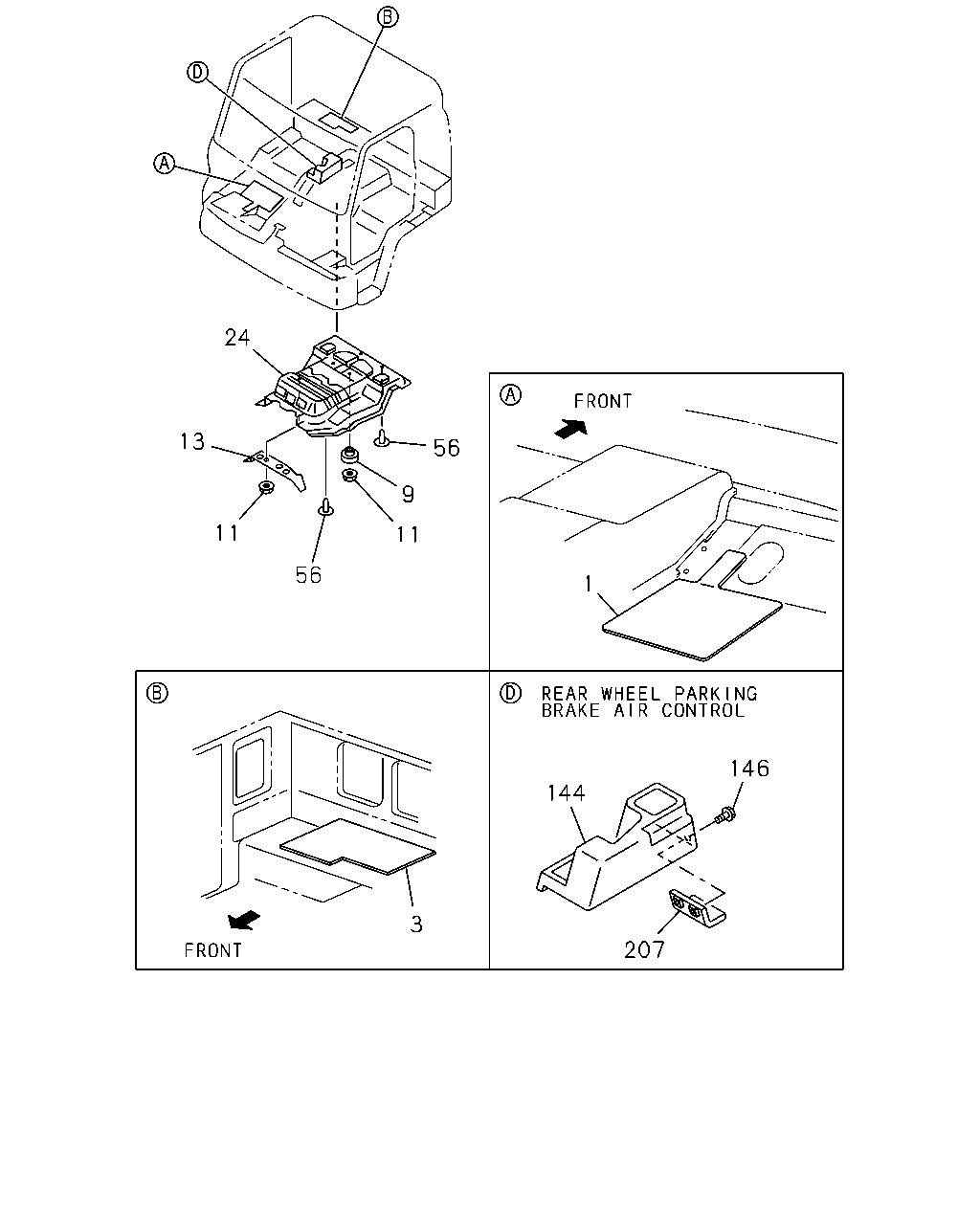

çizim 94522
24 13 56 9 11 11 56 1 146 144 3 207
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9202- ● ●
3 SHEET; MELTING,BED PAN
DELUXE CAB(W14) CUT BULK SHEET 900X1000 		1-61970-039-0 02 1 9202- ● ●
9 WASHER; HEAT INSULATOR 1-73377-052-1 02 1 9202- ● ●
11 NUT; HEAT INSULATOR
M6 FLANGE 		1-09984-141-0 04 1 9202- ● ●
13 PLATE; HEAT INSULATOR 1-71998-159-5 01 1 9202- ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. ANTI NOISE EQUIPMENT ECE<SLK> 		1-71998-325-7 01 1 9202-9404 ● ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-325-7 01 1 9405- ● ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTI NOISE EQUIPMENT ECE<SLK> 		1-71998-181-7 01 1 9202-9404 ● ●
24 INSULATOR; HEAT,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-181-7 01 1 9405- ● ●
24 INSULATOR; HEAT,FRT
ANTI NOISE EQUIPMENT ECE<SLK> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-71998-843-0 01 1 9202-9404 ●
24 INSULATOR; HEAT,FRT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ANTI NOISE EQUIPMENT ECE<SLK> 		1-71998-844-1 01 1 9202-9404 ●
56 CLIP; HEAT INSULATOR,ENG HOOD
D6X23 BLACK 		1-09987-114-0 12 1 9202- ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PASSENGER SEAT MULTI USED<WX9> 		1-73998-870-0 01 1 9202- ● ●
144 COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PASSENGER SEAT MULTI USED<WX9> 		1-73998-818-0 01 1 9202- ● ●
146 BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X16 W/WASHER 		9-03900-616-0 06 1 9202- ● ●
207 BRACKET ASM; HAND BRAKE VALVE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-73998-575-0 01 1 9202- ● ●
