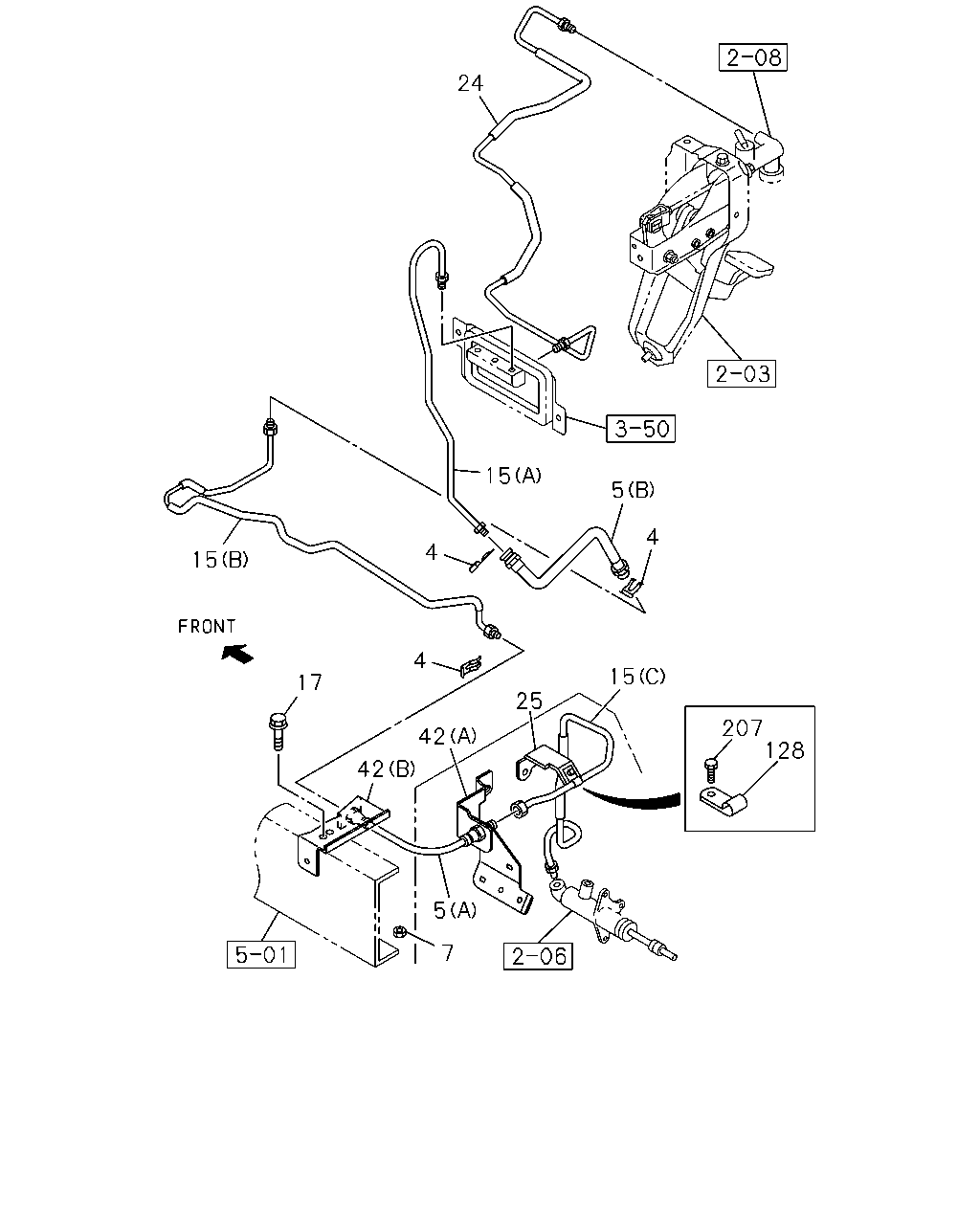

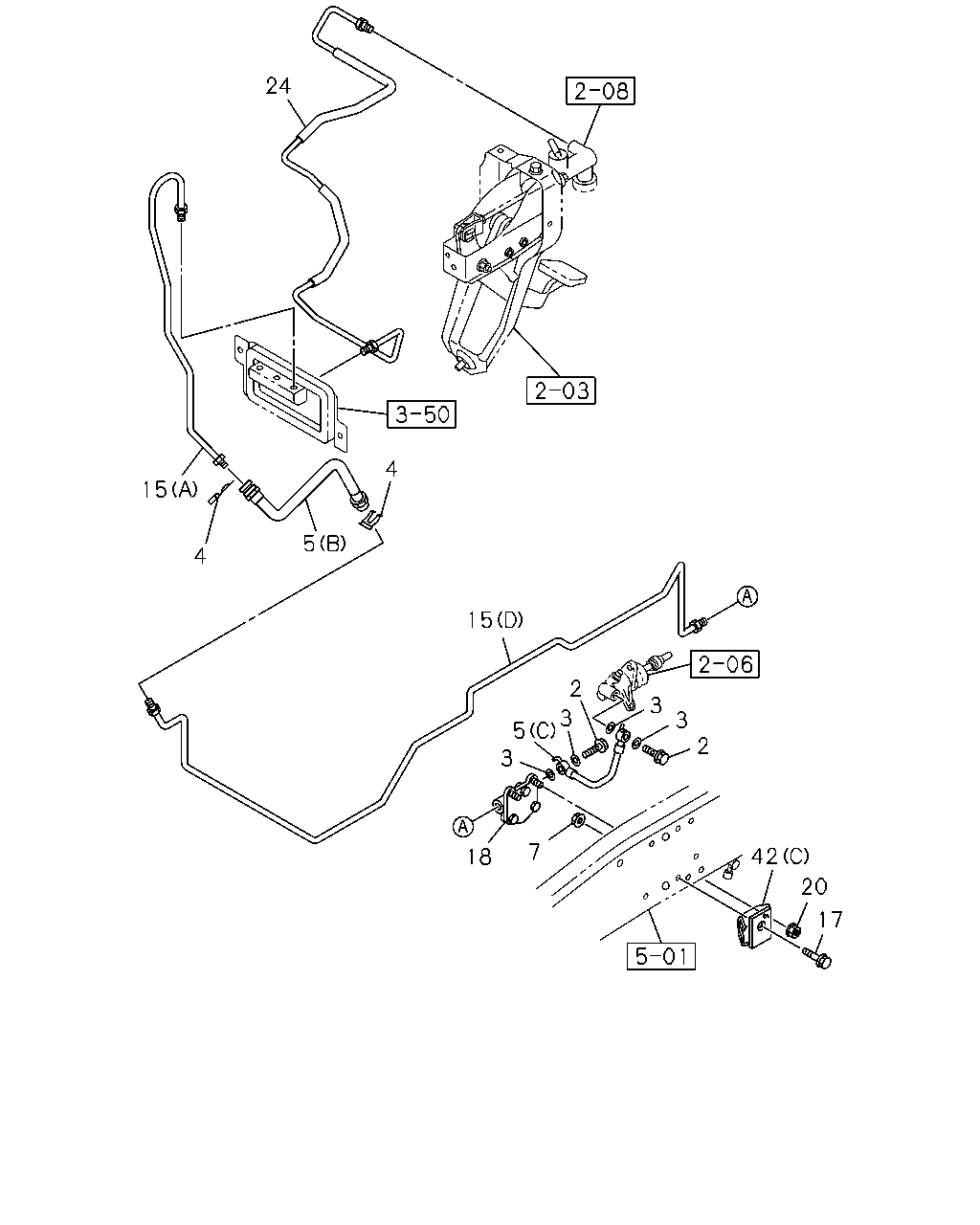

2-05 — CLUTCH PIPING (#81095) — 48 parça

24 4 15 5 4 15 2 3 3 5 3 3 2 7 42 18 20 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.782 BOLT; EYE,SLAVE CYL 4JJ1-TCC ENG(RDU) 04.681 M10X22	8-97381-454-0	02	1	0804-0905	●
2	00.782 BOLT; EYE,SLAVE CYL 4JJ1-TCC ENG(RDU) 04.681 M10X22	8-98014-005-0	02	1	0906-	●
3	00.785 GASKET; FLEX HOSE,CLU 4JJ1-TCC ENG(RDU) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0804-	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	02	1	0804-	●	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	02	1	0804-		●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (A)	8-94374-552-1	01	1	0804-		●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0804-	●	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JJ1-TCC ENG(RDU) (C)	8-98077-611-2	01	1	0804-	●
7	00.785 NUT; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-97063-756-2	01	1	0804-		●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (B)	8-98066-115-1	01	1	0804-		●	●
15	00.785 PIPE; CLU,FLEX HOSE (A) IDN	8-97389-642-1	01	1	0804-	●	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JJ1-TCC ENG(RDU) (D)	8-98051-538-0	01	1	0804-	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●	●
17	00.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-	●
18	00.830 DAMPER ASM; CLU OIL 4JJ1-TCC ENG(RDU)	8-98077-610-1	01	1	0804-	●
20	00.837 NUT; CLU OIL DAMPER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION IDN	8-98077-617-0	01	1	0804-		●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T) IDN	8-98077-617-0	01	1	0804-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-97389-356-1	01	1	0804-	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-98101-027-0	01	1	0804-		●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (A)	8-98110-199-0	01	1	0804-		●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JJ1-TCC ENG(RDU) (C)	8-98041-335-1	01	1	0804-	●

24 15 5 4 4 15 4 15 17 25 207 128 42 42 5 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	02	1	0804-	●	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	02	1	0804-		●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (A)	8-94374-552-1	01	1	0804-		●	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0804-	●	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JJ1-TCC ENG(RDU) (C)	8-98077-611-2	01	1	0804-	●
7	00.785 NUT; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-97063-756-2	01	1	0804-		●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (B)	8-98066-115-1	01	1	0804-		●	●
15	00.785 PIPE; CLU,FLEX HOSE (A) IDN	8-97389-642-1	01	1	0804-	●	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JJ1-TCC ENG(RDU) (D)	8-98051-538-0	01	1	0804-	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●	●
17	00.785 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION IDN	8-98077-617-0	01	1	0804-		●	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T) IDN	8-98077-617-0	01	1	0804-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-97389-356-1	01	1	0804-	●
25	00.785 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-97013-211-1	01	1	0804-		●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-98101-027-0	01	1	0804-		●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (A)	8-98110-199-0	01	1	0804-		●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JJ1-TCC ENG(RDU) (C)	8-98041-335-1	01	1	0804-	●
128	00.785 CLIP; AIR PIPE 4JB1-TC ENG(RDT) ID=7 L=16	0-95234-622-0	02	1	0804-		●	●
207	00.785 BOLT; CLIP 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0804-		●	●

183

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98017-169-1	01	1	0804-1012	●
	183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98121-942-0	01	1	1101-	●
