2-01 — CLUTCH (#81093) — 48 parça

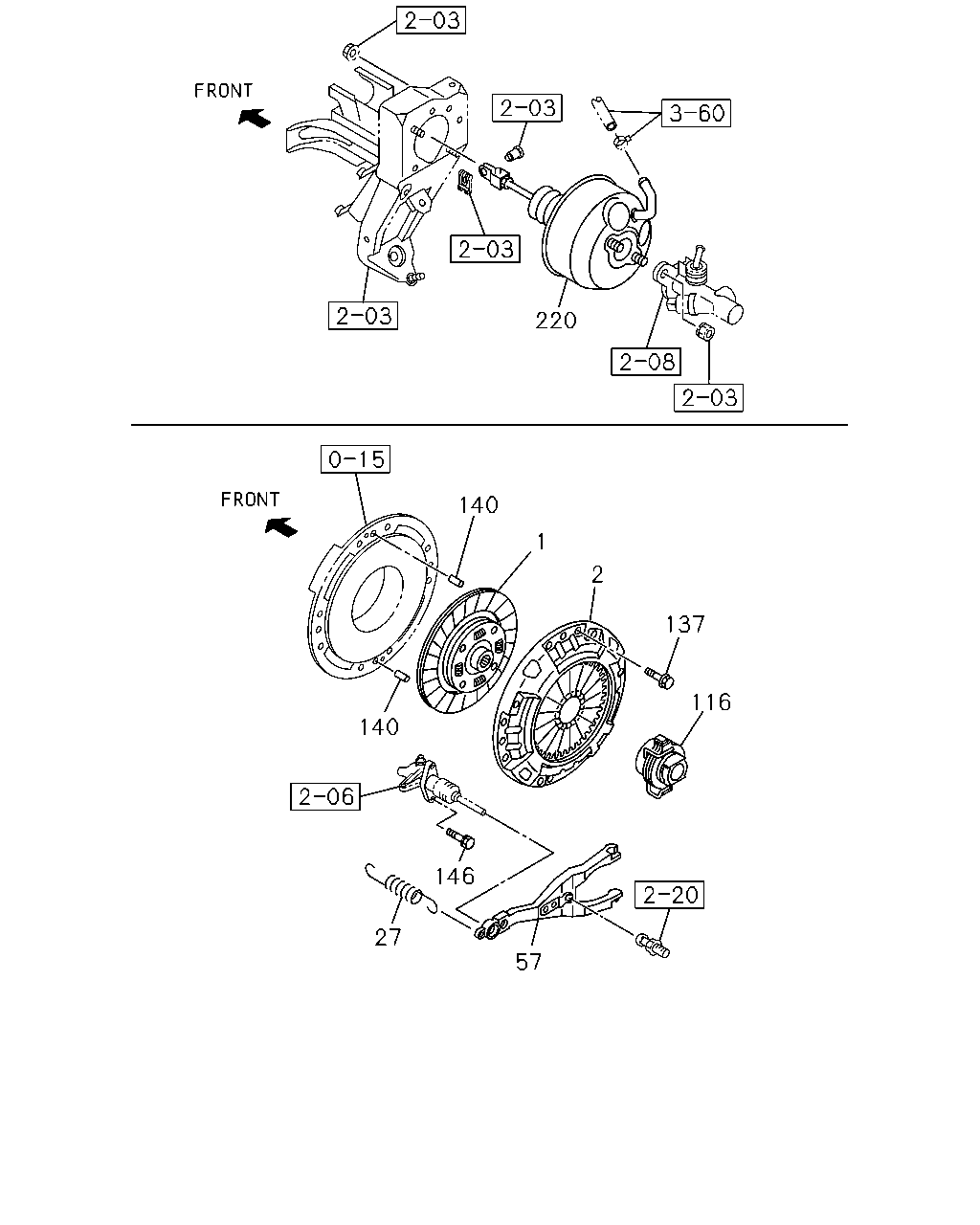

220 140 1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT)	8-98080-661-0	01	1	0804-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98037-004-2	01	1	0804-1401	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98255-139-1	01	1	1402-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-083-0	01	1	0804-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-0	01	1	0806-1401	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT)	8-97109-246-0	01	1	0804-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU)	8-98040-093-0	01	1	0804-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-082-0	01	1	0804-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-091-0	01	1	0804-	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JB1-TC ENG(RDT)	8-98025-314-0	01	1	0804-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JJ1-TCC ENG(RDU)	8-98025-313-0	01	1	0804-	●
57	00.795 FORK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97033-701-0	01	1	0804-		●	●
57	00.795 FORK; SHIFT,CLU 4JJ1-TCC ENG(RDU)	8-97255-303-0	01	1	0804-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97316-602-0	01	1	0804-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JJ1-TCC ENG(RDU)	8-97255-313-0	01	1	0804-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-116-0	01	1	0804-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-110-0	01	1	0804-	●
137	00.862 BOLT; CLU COVER 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0804-		●	●
137	00.862 BOLT; CLU COVER 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0804-	●
140	00.862 PIN; STRAIGHT 4JB1-TC ENG(RDT) OD=6 L=24	9-09878-532-0	02	1	0804-		●	●
140	00.862 PIN; STRAIGHT 4JJ1-TCC ENG(RDU) L=25	8-94410-361-0	02	1	0804-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCC ENG(RDU) POWER ASSIST CLUTCH(S2T)	8-98043-208-0	01	1	0804-0804	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98043-208-0	01	1	0805-	●

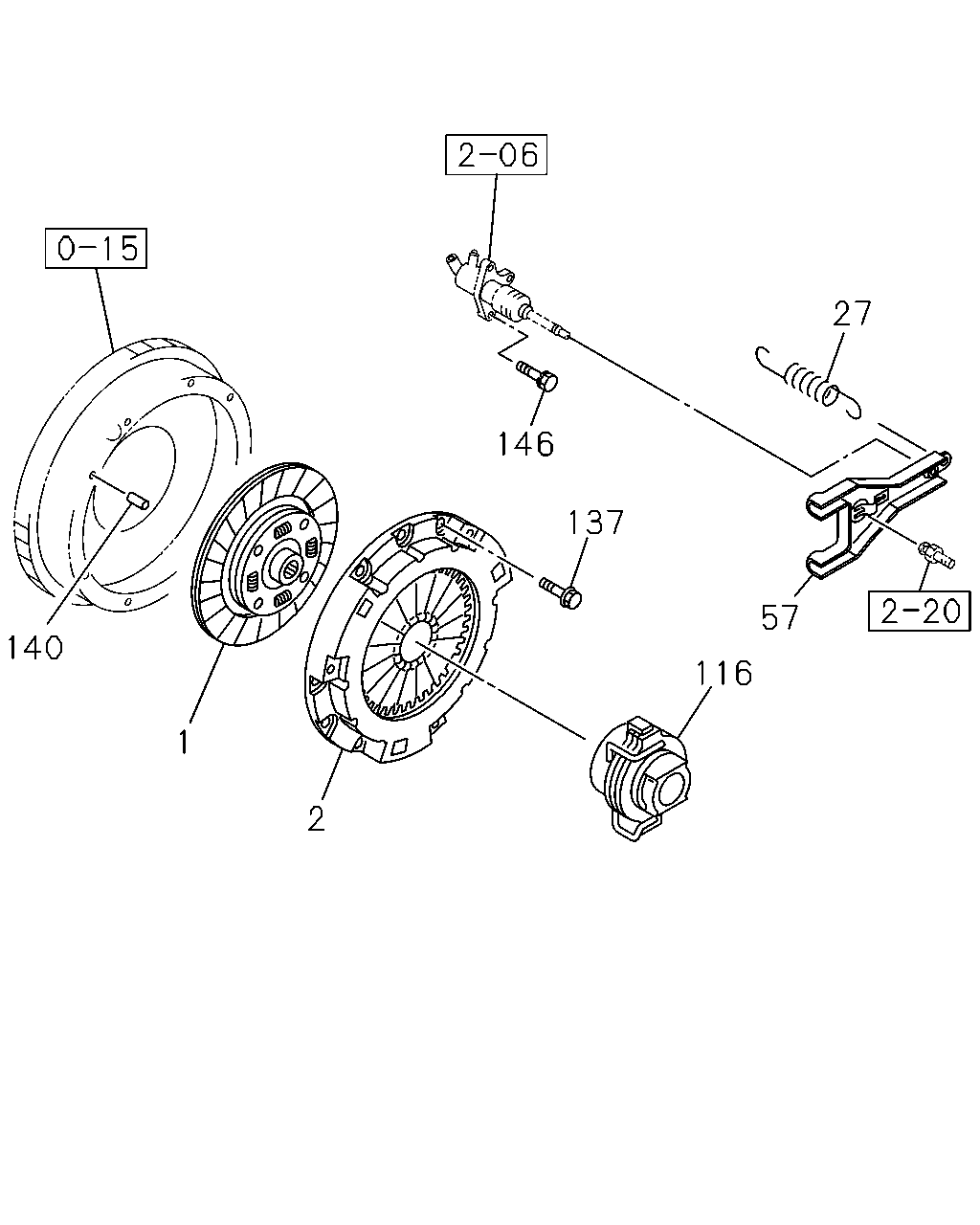

27 146 137 57 140 116 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT)	8-98080-661-0	01	1	0804-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98037-004-2	01	1	0804-1401	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU)	8-98255-139-1	01	1	1402-	●
1	00.886 DISC; CLUTCH 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-083-0	01	1	0804-		●	●
1	00.886 DISC; CLUTCH 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-077-0	01	1	0806-1401	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT)	8-97109-246-0	01	1	0804-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU)	8-98040-093-0	01	1	0804-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-082-0	01	1	0804-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-091-0	01	1	0804-	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JB1-TC ENG(RDT)	8-98025-314-0	01	1	0804-		●	●
27	00.837 SPRING; RETURN,SHIFT FORK 4JJ1-TCC ENG(RDU)	8-98025-313-0	01	1	0804-	●
57	00.795 FORK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97033-701-0	01	1	0804-		●	●
57	00.795 FORK; SHIFT,CLU 4JJ1-TCC ENG(RDU)	8-97255-303-0	01	1	0804-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT)	8-97316-602-0	01	1	0804-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JJ1-TCC ENG(RDU)	8-97255-313-0	01	1	0804-	●
116	00.799 BLOCK; SHIFT,CLU 4JB1-TC ENG(RDT) BEST VALUE PARTS	5-87610-116-0	01	1	0804-		●	●
116	00.799 BLOCK; SHIFT,CLU 4JJ1-TCC ENG(RDU) BEST VALUE PARTS	5-87610-110-0	01	1	0804-	●
137	00.862 BOLT; CLU COVER 4JB1-TC ENG(RDT) 02.343 M8X16 FLANGE	0-28050-816-0	06	1	0804-		●	●
137	00.862 BOLT; CLU COVER 4JJ1-TCC ENG(RDU) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0804-	●
140	00.862 PIN; STRAIGHT 4JB1-TC ENG(RDT) OD=6 L=24	9-09878-532-0	02	1	0804-		●	●
140	00.862 PIN; STRAIGHT 4JJ1-TCC ENG(RDU) L=25	8-94410-361-0	02	1	0804-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
