Isuzu WW
▶
TRUCKS
▶
NLR
▶
51395 - NLR/NMR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

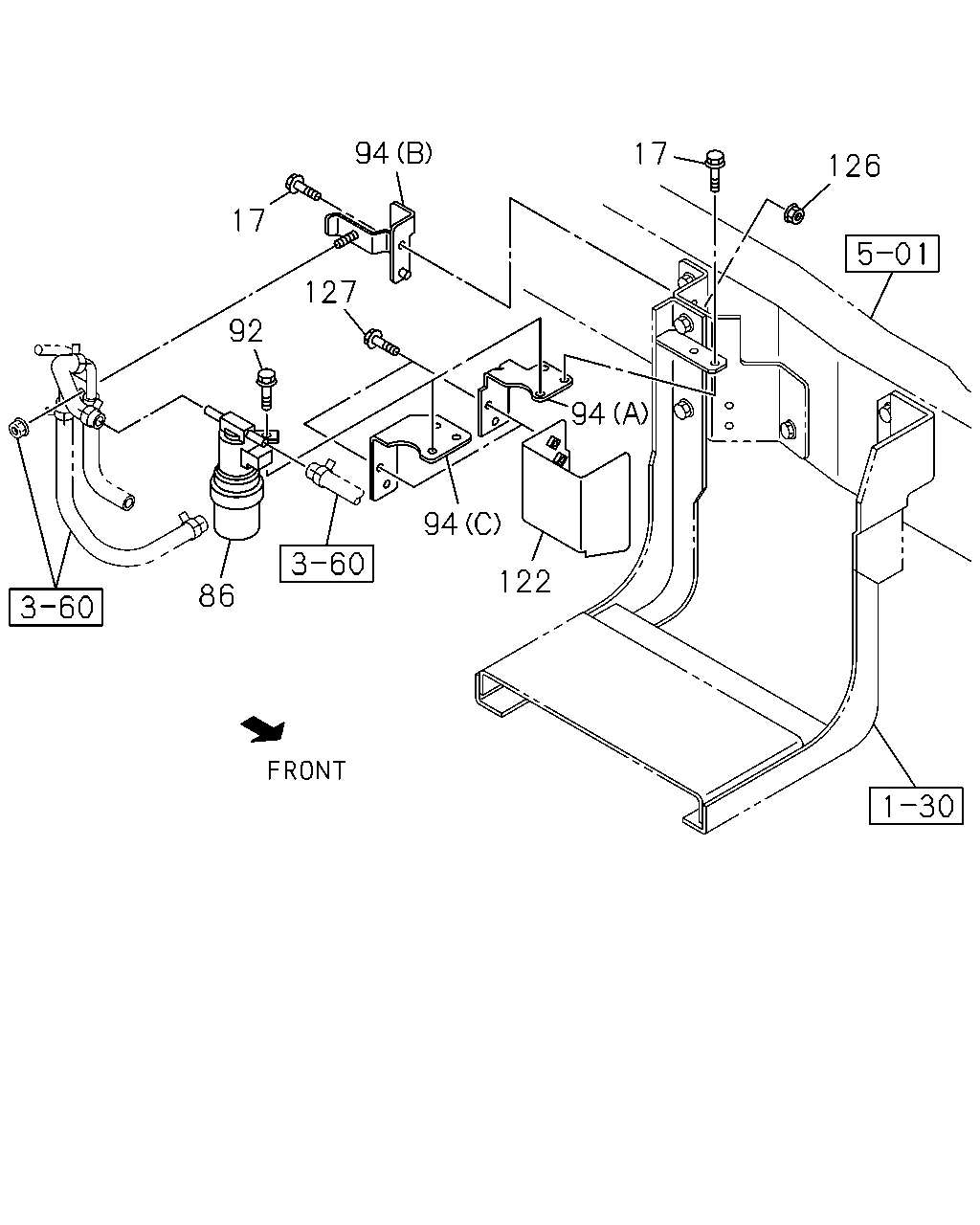

1-56 — EXHAUST BRAKE SYSTEM
(#81092) — 24 parça
Tümü
A - NMR5SN
B - NMR5SE
◀
[156A] DPD VALVE AND BRACKET (18 parça)
[156A] UNIT (6 parça)
▶
94
17
126
122
94
94
86
92
127
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
17
03.634 BOLT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN
0-28650-825-0
01
1
0804-
●
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE IDN
0-28650-825-0
02
1
0804-0906
●
●
17
03.634 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN
0-28650-825-0
02
1
0907-
●
17
03.634 BOLT; BRKT
06.216 M8X25 FLANGE IDN
0-28650-825-0
02
1
0907-
●
86
03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8>
8-97328-577-0
01
1
0804-
●
86
03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>
8-97328-577-0
01
1
0804-
●
86
03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>
8-98043-344-0
01
1
0804-0912
●
86
03.636 VALVE; MAG,EXH BRK
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>
8-98043-344-0
01
1
1001-
●
92
08.900 BOLT; MAG VLV
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE IDN
0-28650-825-0
01
1
0804-
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> (B)
8-98042-694-2
01
1
0804-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (A)
8-98042-145-2
01
1
0804-0906
●
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)
8-98042-145-2
01
1
0907-1206
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (A)
8-98042-145-2
01
1
0907-1206
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (C)
8-98211-757-1
01
1
1207-
●
94
03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (C)
8-98211-757-1
01
1
1207-
●
122
03.640 PROTECTOR; MAG VLV
EXHAUST BRAKE<NF8>
8-98098-564-0
01
1
0804-
●
●
126
03.634 NUT; BRKT
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE IDN
0-91180-108-0
01
1
0804-
●
127
04.902 BOLT; PROTECTOR
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE
0-28050-612-0
02
1
0804-
●
●
8
5
1
5
1
8
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.632 BRAKE UNIT; EXH
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)
8-98072-102-0
01
1
0804-
●
●
1
03.632 BRAKE UNIT; EXH
4JJ1-TCC ENG(RDU) (B)
8-98033-200-1
01
1
0804-
●
5
03.634 GASKET; EXH BRAKE UNIT
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54
8-94328-354-0
02
1
0804-
●
●
5
03.634 GASKET; EXH BRAKE UNIT
4JJ1-TCC ENG(RDU) ID=54
8-94328-354-0
02
1
0804-
●
8
03.632 NUT; EXH BRAKE UNIT FIX
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER IDN
8-97581-234-0
04
1
0804-
●
●
8
03.632 NUT; EXH BRAKE UNIT FIX
4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER IDN
8-97581-234-0
04
1
0804-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
