Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#81090) — 238 parça

2 1 36 84 88 329 44 44 8 25 2 84 1 36 88 562 44 319 44 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98072-117-0	01	1	0804-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98072-118-0	01	1	0804-	●	●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98075-966-0	01	1	0804-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	0804-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	0804-		●
8	03.704 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 IDN	8-97084-346-2	01	1	0804-	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	0804-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98072-122-0	01	1	0804-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98027-805-1	01	1	0804-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	0804-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	03	1	0804-		●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0804-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0804-0909	●	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97016-034-0	01	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5	8-97373-141-0	02	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
319	03.602 NUT; PROTECTOR 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-		●
562	03.690 PLATE; STUD,BOLT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.632 M8X70	0-10855-870-0	04	1	0804-	●	●

105 357 88 124 164 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

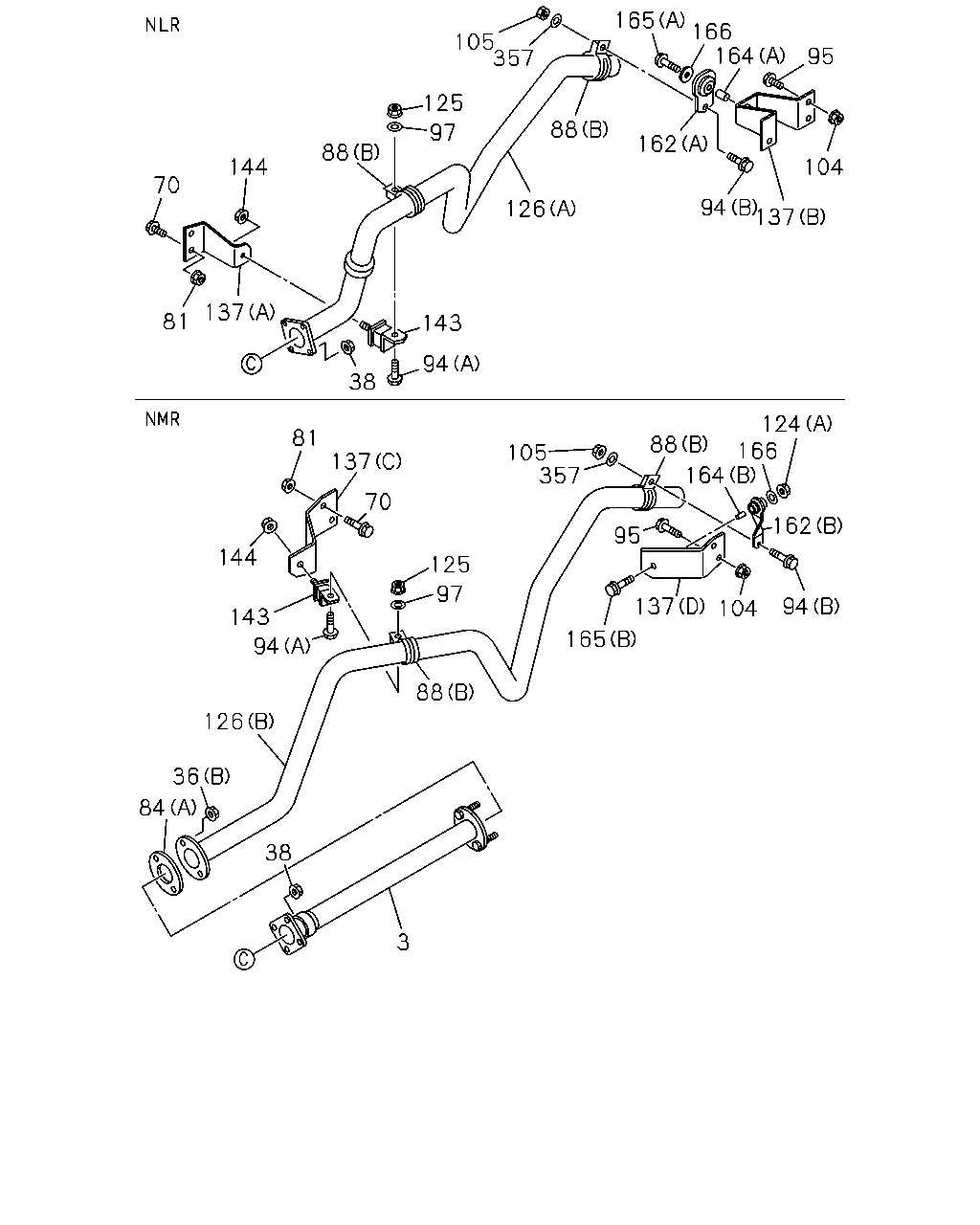

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0804-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-		●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
81	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
81	03.704 NUT; BRKT 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97016-034-0	01	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5	8-97373-141-0	02	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-		●
95	03.708 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●	●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
104	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
104	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
105	03.704 NUT; CLAMP 4JB1-TC ENG(RDT) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 02.334 (B) M8 IDN	0-91110-508-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (A)	8-98072-130-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-98072-133-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (A)	8-98001-893-1	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (B)	8-98001-903-0	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (C)	8-98001-897-1	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (D)	8-98001-913-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT)	8-98034-767-0	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0804-		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JB1-TC ENG(RDT) (A)	8-98032-149-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JB1-TC ENG(RDT) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JB1-TC ENG(RDT) (A) L=23	8-98006-011-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JB1-TC ENG(RDT) (B) L=37.5 IDN	9-22151-217-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 IDN	9-22151-217-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) (B) M10X70 FLANGE IDN	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE IDN	0-28051-070-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●

118 117 115 345 118 117 376 352 115 113 59 352 115 577 113 126 115 337 84 576 38 12 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98072-123-0	01	1	0804-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98072-124-0	01	1	0804-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98027-813-1	01	1	0804-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCC ENG(RDU) 03.611 ID=64	8-97373-108-0	01	1	0804-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0804-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-		●
59	03.704 BRACKET; EXH SILENCER,FRT 4JJ1-TCC ENG(RDU)	8-98082-156-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-		●
113	03.704 COLLAR; DIST,MTG BRKT 4JB1-TC ENG(RDT) 03.706 L=37.5 IDN	9-22151-217-0	01	1	0804-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCC ENG(RDU) 03.706 L=37.5 IDN	9-22151-217-0	02	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (A) IDN	8-94457-277-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (B) IDN	8-94457-278-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) 03.613 (C) IDN	8-97166-498-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A) IDN	8-94457-277-1	02	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B) IDN	8-94457-278-1	02	1	0804-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JB1-TC ENG(RDT) OD=55	9-09852-169-0	01	1	0804-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) OD=55	9-09852-169-0	02	1	0804-		●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	04	1	0804-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 07.874 (A) M10 FLANGE IDN	5-09440-006-0	01	1	0804-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) 07.874 (A) M10 FLANGE IDN	5-09440-006-0	02	1	0804-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (A)	8-98072-130-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-98072-133-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0804-		●
337	03.706 BOLT; RUBBER,SUPPORT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
345	03.704 BRACKET; EXH SILENCER,RR 4JJ1-TCC ENG(RDU)	8-98027-822-0	01	1	0804-		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
352	03.613 NUT; BRKT 4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0804-		●
376	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-		●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCC ENG(RDU)	8-98067-992-0	01	1	0804-		●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCC ENG(RDU)	8-98107-266-0	01	1	0804-		●

172 385 532 115 118 117 584 115 385 178 532 12 124 113 175 115 200 178 118 385 385 172 385 532 115 118 117 584 115 385 178 532 12 124 113 175 115 200 178 118 385 385

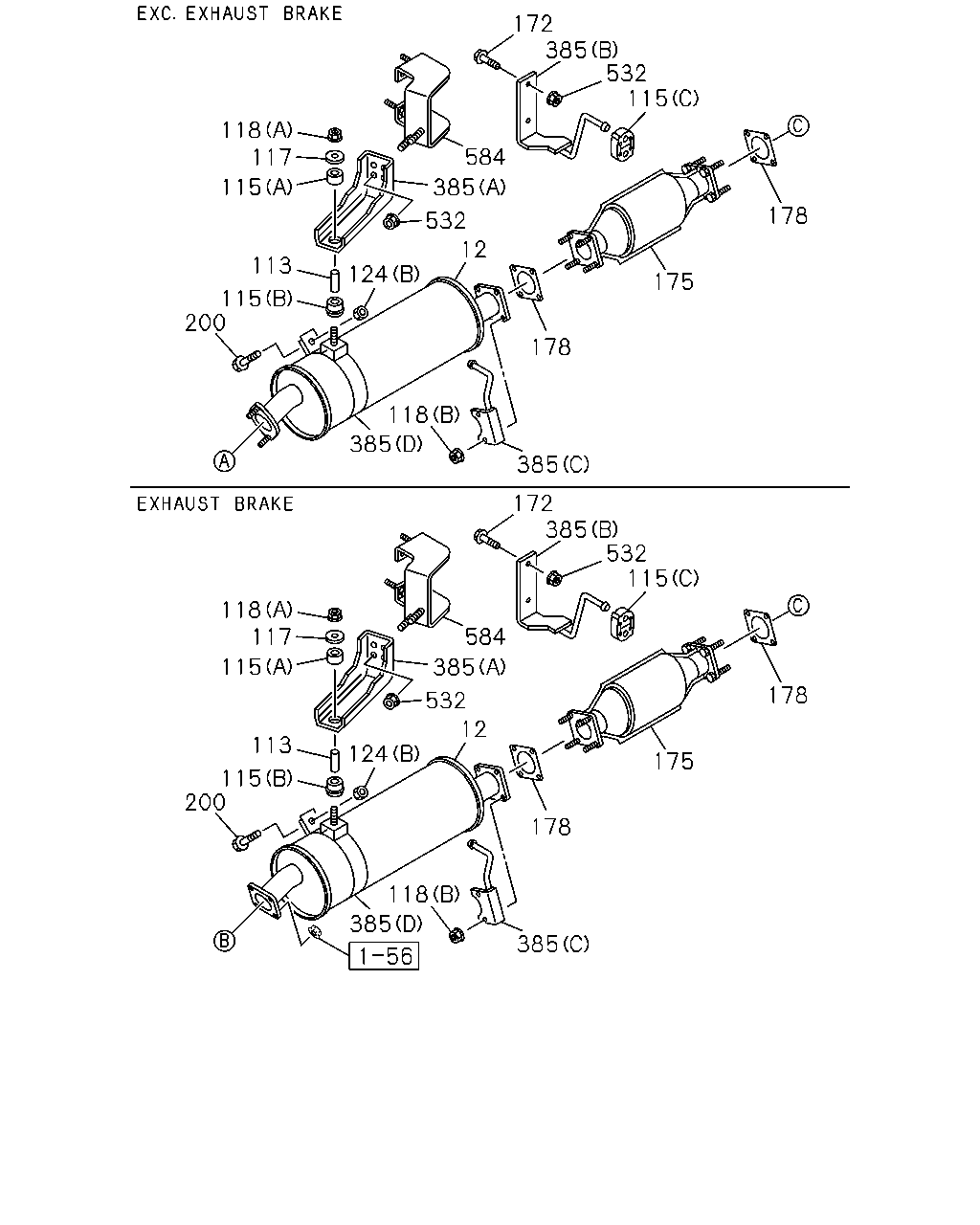

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98072-123-0	01	1	0804-	●	●
12	03.701 SILENCER ASM; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98072-124-0	01	1	0804-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1-TCC ENG(RDU)	8-98027-813-1	01	1	0804-		●
113	03.704 COLLAR; DIST,MTG BRKT 4JB1-TC ENG(RDT) 03.706 L=37.5 IDN	9-22151-217-0	01	1	0804-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCC ENG(RDU) 03.706 L=37.5 IDN	9-22151-217-0	02	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (A) IDN	8-94457-277-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) (B) IDN	8-94457-278-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JB1-TC ENG(RDT) 03.613 (C) IDN	8-97166-498-1	01	1	0804-	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (A) IDN	8-94457-277-1	02	1	0804-		●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCC ENG(RDU) (B) IDN	8-94457-278-1	02	1	0804-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JB1-TC ENG(RDT) OD=55	9-09852-169-0	01	1	0804-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) OD=55	9-09852-169-0	02	1	0804-		●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	04	1	0804-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JB1-TC ENG(RDT) 07.874 (A) M10 FLANGE IDN	5-09440-006-0	01	1	0804-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCC ENG(RDU) 07.874 (A) M10 FLANGE IDN	5-09440-006-0	02	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 02.334 (B) M8 IDN	0-91110-508-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
172	03.708 BOLT 4JB1-TC ENG(RDT) 02.277 M10X35 FLANGE IDN	0-28651-035-0	02	1	0804-	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) IDN	8-98118-541-0	01	1	1209-	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT)	8-97140-417-2	01	1	0804-0804	●	●
175	03.685 CONVERTER; CATALYST 4JB1-TC ENG(RDT) IDN	8-98118-541-0	01	1	0804-1208	●	●
178	03.611 GASKET; CONV TO MANIF 4JB1-TC ENG(RDT) ID=71 IDN	8-94324-194-1	02	1	0804-	●	●
200	03.704 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0804-0909	●	●
200	03.704 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) 03.706 (D)	8-97076-018-0	01	1	0804-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (A)	8-97172-313-0	01	1	0804-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (B)	8-98072-149-0	01	1	0804-	●	●
385	03.704 BRACKET; SILENCER MTG 4JB1-TC ENG(RDT) (C)	8-98072-150-0	01	1	0804-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●
532	03.704 NUT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	0804-	●	●
532	03.704 NUT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT)	8-98072-147-1	01	1	0804-	●
584	03.706 SPACER; EXH SILENCER 4JB1-TC ENG(RDT)	8-98072-148-1	01	1	0804-		●

2 329 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-98072-117-0	01	1	0804-	●	●
1	03.609 PIPE; EXH 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-98072-118-0	01	1	0804-	●	●
1	03.609 PIPE; EXH 4JJ1-TCC ENG(RDU)	8-98075-966-0	01	1	0804-		●
2	03.611 GASKET; PIPE TO MANIF 4JB1-TC ENG(RDT) (A)	8-97381-456-0	01	1	0804-	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCC ENG(RDU) (B)	8-97384-590-0	01	1	0804-		●
8	03.704 BRACKET; EXH PIPE 4JB1-TC ENG(RDT) 03.613 IDN	8-97084-346-2	01	1	0804-	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCC ENG(RDU) 03.613	8-98026-063-0	01	1	0804-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (A)	8-98072-122-0	01	1	0804-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCC ENG(RDU) (B)	8-98027-805-1	01	1	0804-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	0804-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	03	1	0804-		●
43	03.611 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU)	8-97351-200-1	01	1	0804-		●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0804-		●
44	03.613 BOLT; BRKT 4JJ1-TCC ENG(RDU) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0804-0909	●	●
44	03.613 BOLT; BRKT 4JB1-TC ENG(RDT) 03.704 (B) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-		●

165 166 164 105 357 95 125 88 97 162 88 144 104 70 94 137 126 137 81 143 94 38 124 166 164 81 88 105 357 137 70 162 95 144 125 97 137 94 104 143 165 94 88 126 36 84 38 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4JB1-TC ENG(RDT)	8-98072-125-1	01	1	0804-		●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) (A) M10 FLANGE	8-97096-192-1	02	1	0804-	●	●
36	03.613 NUT; EXH PIPE 4JB1-TC ENG(RDT) 03.162 (B) M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
36	03.613 NUT; EXH PIPE 4JJ1-TCC ENG(RDU) (A) M10 FLANGE	8-97096-192-1	03	1	0804-		●
38	00.002 NUT; SILENCER 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	0804-	●	●
38	00.002 NUT; SILENCER 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	04	1	0804-		●
70	03.706 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●	●
70	03.706 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
81	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-	●
81	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
81	03.704 NUT; BRKT 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.704 (B) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-	●	●
84	03.611 GASKET; EXH PIPE 4JB1-TC ENG(RDT) 03.704 (A) ID=64.7 IDN	8-94328-352-0	01	1	0804-		●
84	03.611 GASKET; EXH PIPE 4JJ1-TCC ENG(RDU) (C) ID=64	8-97373-108-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (A) ID=51.5	8-97016-034-0	01	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JB1-TC ENG(RDT) (B) ID=51.5	8-97373-141-0	02	1	0804-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-97373-158-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0804-		●
94	03.704 BOLT; CLAMP 4JB1-TC ENG(RDT) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0804-		●
95	03.708 BOLT; BRKT 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●	●
95	03.708 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
97	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●
104	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
104	03.704 NUT; BRKT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
104	03.704 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
105	03.704 NUT; CLAMP 4JB1-TC ENG(RDT) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
105	03.704 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 02.334 (B) M8 IDN	0-91110-508-0	01	1	0804-	●	●
124	03.704 NUT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
125	03.708 NUT; CLAMP 4JB1-TC ENG(RDT) 00.833 M10	0-91110-510-0	01	1	0804-	●	●
125	03.708 NUT; CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (A)	8-98072-130-0	01	1	0804-	●
126	03.705 PIPE; EXH,RR 4JB1-TC ENG(RDT) (B)	8-98072-133-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98072-137-0	01	1	0804-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (D)	8-98116-727-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (A)	8-98001-893-1	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (B)	8-98001-903-0	01	1	0804-	●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (C)	8-98001-897-1	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JB1-TC ENG(RDT) (D)	8-98001-913-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (E)	8-98075-674-0	01	1	0804-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	8-98075-675-1	01	1	0804-		●
143	03.704 RUBBER; SUPPORT 4JB1-TC ENG(RDT)	8-98034-767-0	01	1	0804-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98034-767-0	01	1	0804-		●
144	03.613 NUT; MTG RUBBER 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JB1-TC ENG(RDT) (A)	8-98032-149-0	01	1	0804-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JB1-TC ENG(RDT) (B) L=115	8-98034-765-0	01	1	0804-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=115	8-98034-765-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JB1-TC ENG(RDT) (A) L=23	8-98006-011-0	01	1	0804-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JB1-TC ENG(RDT) (B) L=37.5 IDN	9-22151-217-0	01	1	0804-		●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=37.5 IDN	9-22151-217-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0804-	●
165	03.706 BOLT; SUPPORT RUBBER 4JB1-TC ENG(RDT) (B) M10X70 FLANGE IDN	0-28051-070-0	01	1	0804-		●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X70 FLANGE IDN	0-28051-070-0	01	1	0804-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
357	03.708 WASHER; PL,CLAMP 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1-TCC ENG(RDU) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
