Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#81089) — 312 parça

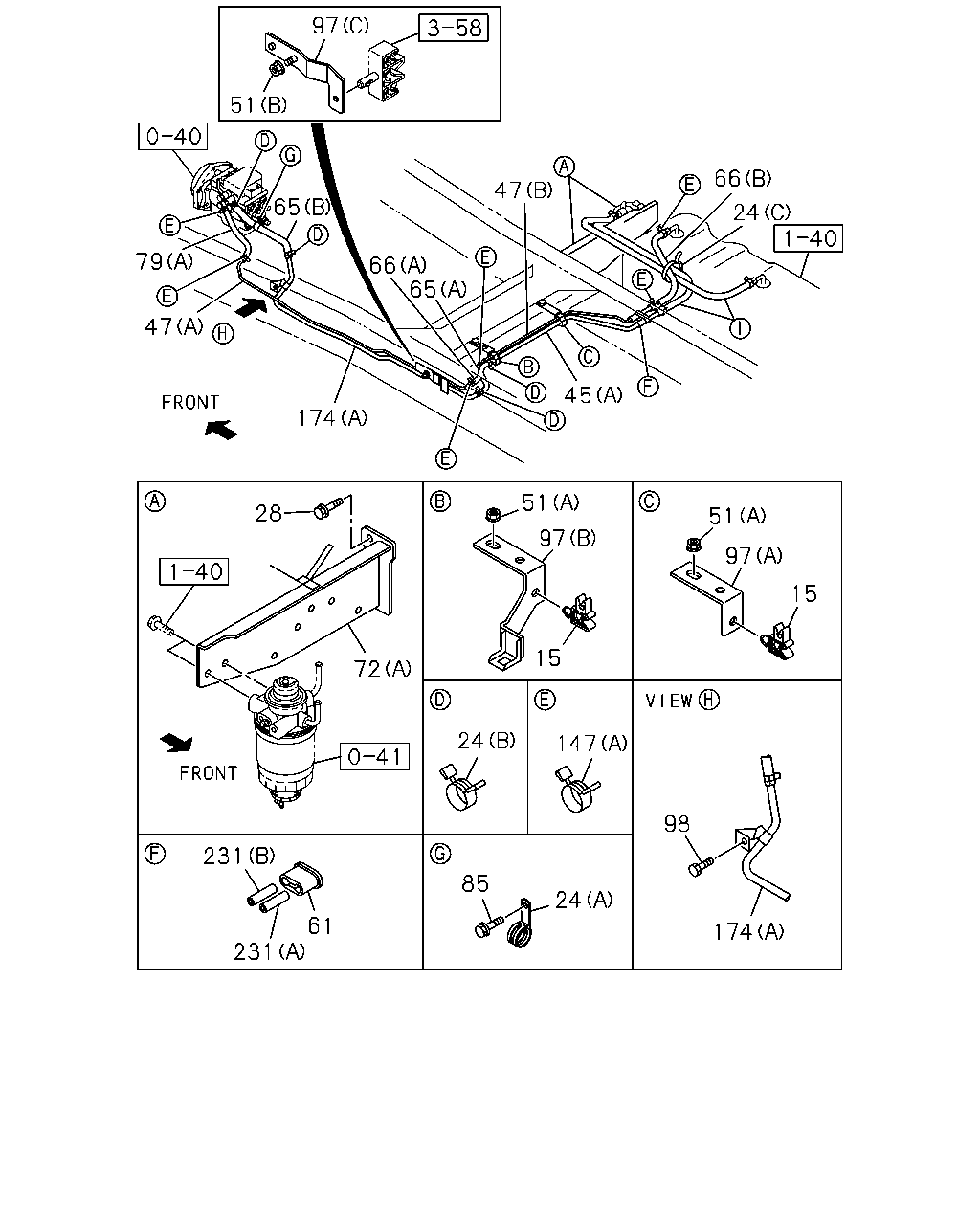

65 147 311 65 147 147 311 147 147 311 147 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) 03.003 (A) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97222-766-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-496-2	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (F)	8-97389-790-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98070-044-1	01	1	0804-0808	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (E)	8-98127-107-0	01	1	0809-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-495-1	01	1	0804-0810	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98132-679-1	01	1	0811-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0809-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-		●
311	03.163 JOINT; HOSE 4JB1-TC ENG(RDT)	8-97353-668-0	01	1	0804-0808	●	●
311	03.163 JOINT; HOSE 4JB1-TC ENG(RDT)	8-97353-668-0	01	1	0804-0808	●	●
311	03.163 JOINT; HOSE 4JB1-TC ENG(RDT)	8-97353-668-0	01	1	0809-	●	●

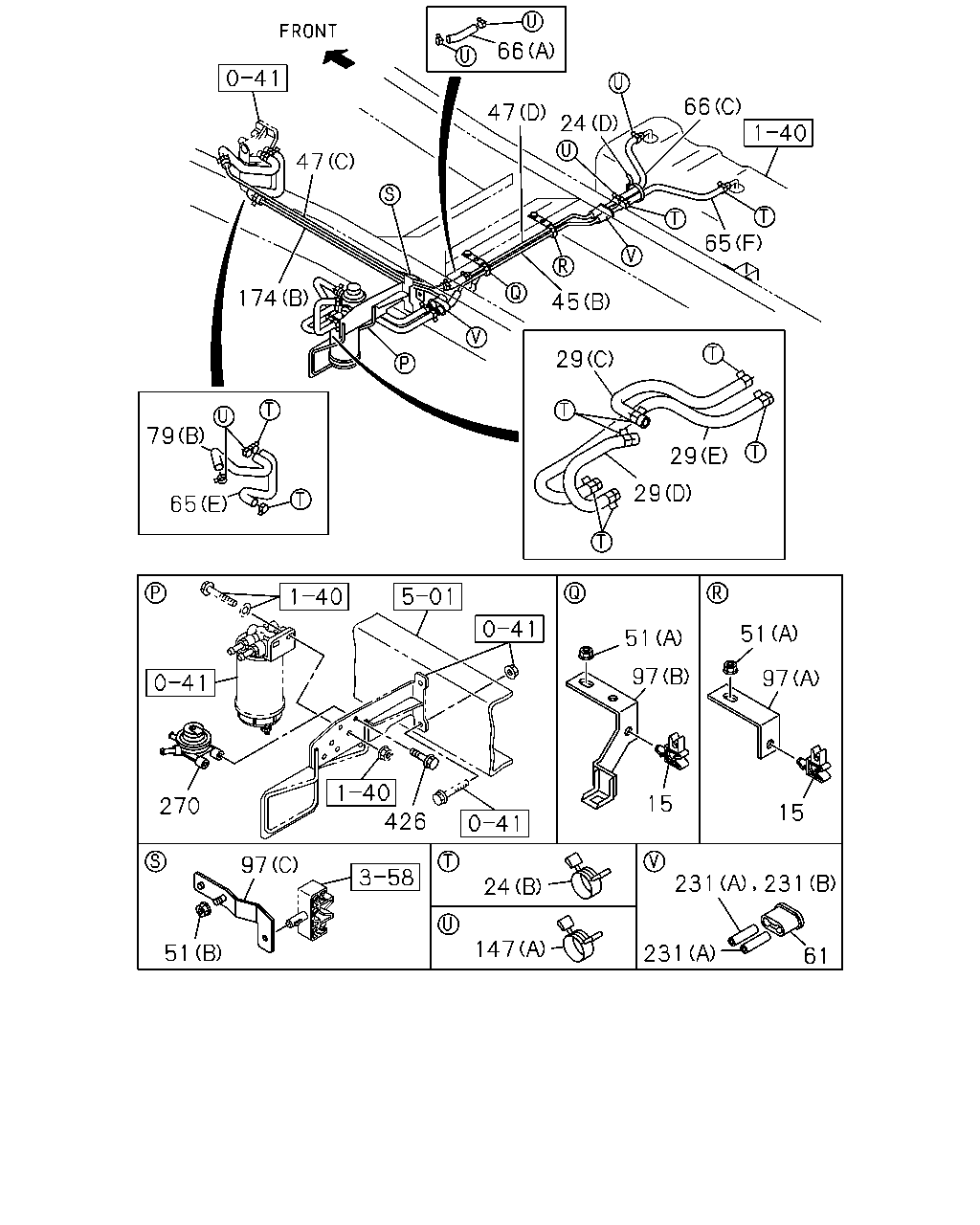

97 51 47 66 65 24 79 66 65 47 45 174 51 28 51 97 97 15 15 72 24 147 98 231 85 24 61 174 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0804-0906	●	●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0907-		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (A) ID=22 L=22 IDN	5-83574-045-0	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0804-0906	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	08	1	0912-	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-		●
28	03.330 BOLT; BRKT,FUEL PUMP 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744	8-98069-488-1	01	1	0804-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B)	8-97389-579-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690	8-98083-666-2	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-761-2	01	1	0804-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-761-2	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (D) L=679	8-98020-778-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-97389-594-3	01	1	0804-1005		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-98110-833-0	01	1	1006-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) 00.787 (A) M10	0-91111-510-0	02	1	0907-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-0906	●	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0804-0906		●
61	03.162 GROMMET; PIPE TO FRAME 4JB1-TC ENG(RDT)	8-98038-801-0	01	1	0907-	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0907-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) 03.003 (A) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97222-766-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-496-2	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (F)	8-97389-790-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98070-044-1	01	1	0804-0808	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (E)	8-98127-107-0	01	1	0809-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-495-1	01	1	0804-0810	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98132-679-1	01	1	0811-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=350 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) (C) L=500	8-98057-029-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-0906	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) 03.890 (A)	8-98107-351-2	01	1	0804-	●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.890 (A)	8-98107-351-2	01	1	0804-		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98028-752-2	01	1	0804-0804		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98107-370-0	01	1	0804-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-810-0	01	1	0804-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	0804-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-97389-777-1	01	1	0804-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1006-		●
85	03.162 BOLT; CLIP,FUEL HOSE 4JB1-TC ENG(RDT) M6X12 FLANGE	0-28050-612-0	01	1	0804-	●	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (A)	8-98006-480-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (B)	8-98039-929-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-0	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (C)	8-98064-442-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-		●
98	03.162 BOLT; BRKT,FUEL PIPE 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0804-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0809-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-756-2	01	1	0804-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A)	8-98113-756-2	01	1	0804-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B)	8-97389-589-1	01	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-		●

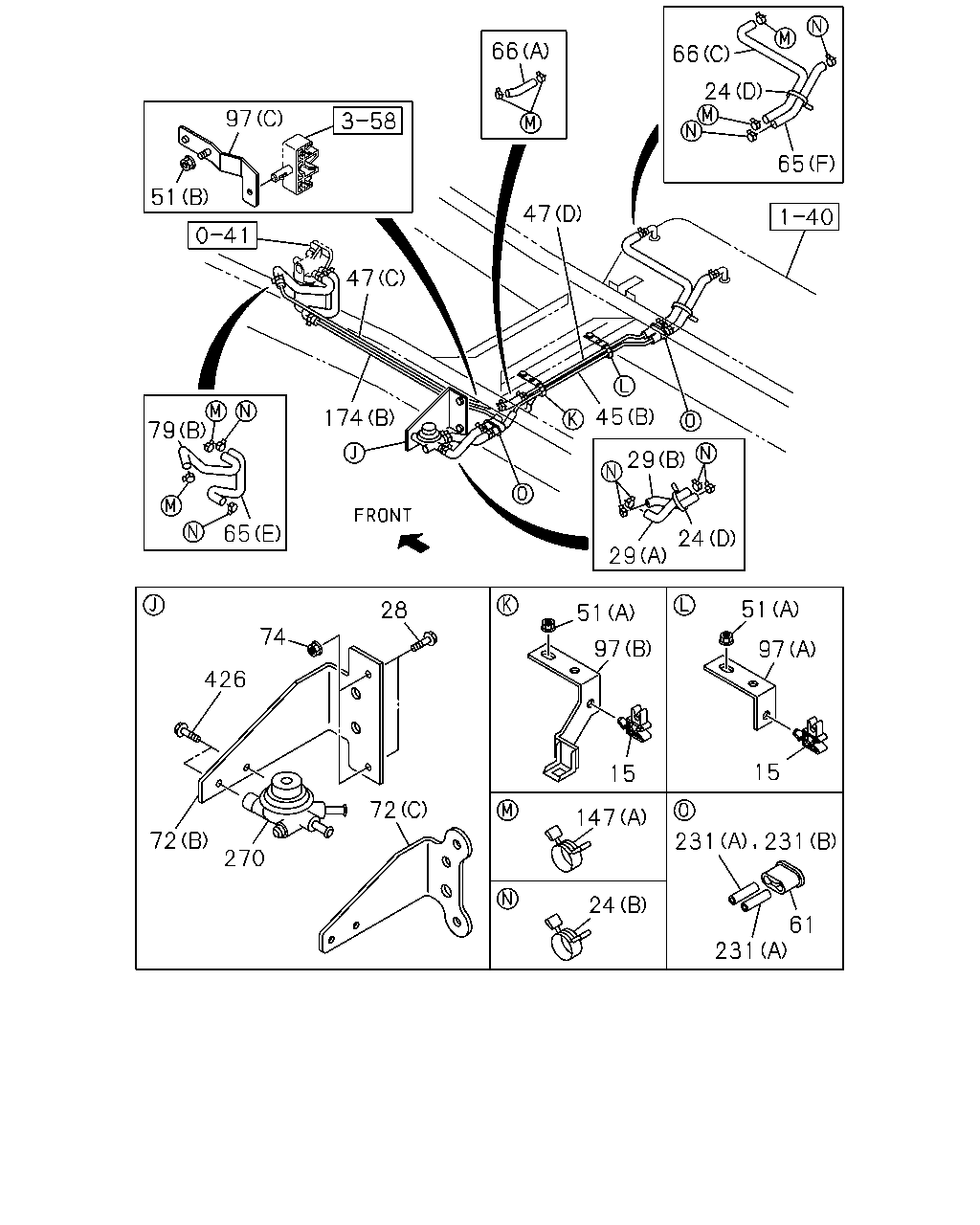

66 66 24 97 65 51 47 47 174 79 45 29 65 24 29 51 28 51 74 97 97 426 15 15 72 147 72 231 270 24 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0804-0906	●	●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0907-		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (A) ID=22 L=22 IDN	5-83574-045-0	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0804-0906	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	08	1	0912-	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-		●
28	03.330 BOLT; BRKT,FUEL PUMP 4JB1-TC ENG(RDT) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-	●
28	03.330 BOLT; BRKT,FUEL PUMP EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0804-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744	8-98069-488-1	01	1	0804-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B)	8-97389-579-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690	8-98083-666-2	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-761-2	01	1	0804-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-761-2	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (D) L=679	8-98020-778-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-97389-594-3	01	1	0804-1005		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-98110-833-0	01	1	1006-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) 00.787 (A) M10	0-91111-510-0	02	1	0907-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-0906	●	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0804-0906		●
61	03.162 GROMMET; PIPE TO FRAME 4JB1-TC ENG(RDT)	8-98038-801-0	01	1	0907-	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0907-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) 03.003 (A) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97222-766-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-496-2	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (F)	8-97389-790-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98070-044-1	01	1	0804-0808	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (E)	8-98127-107-0	01	1	0809-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-495-1	01	1	0804-0810	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98132-679-1	01	1	0811-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=350 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) (C) L=500	8-98057-029-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-0906	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) 03.890 (A)	8-98107-351-2	01	1	0804-	●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JB1-TC ENG(RDT) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.890 (A)	8-98107-351-2	01	1	0804-		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98028-752-2	01	1	0804-0804		●
72	03.901 BRACKET; FUEL PUMP & FILTER 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98107-370-0	01	1	0804-		●
74	03.901 NUT; BRKT,FUEL PUMP 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE IDN	0-91180-110-0	02	1	0804-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-810-0	01	1	0804-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	0804-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-97389-777-1	01	1	0804-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (A)	8-98006-480-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (B)	8-98039-929-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-0	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (C)	8-98064-442-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0809-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-756-2	01	1	0804-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A)	8-98113-756-2	01	1	0804-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B)	8-97389-589-1	01	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-		●
270	03.900 PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-98018-187-4	01	1	0804-1408		●
270	03.900 PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-97948-892-0	01	1	1409-		●
426	03.330 BOLT; FUEL PUMP 4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0804-		●

66 66 47 24 47 65 174 45 29 79 29 29 65 51 51 97 97 15 270 15 426 97 231 24 147 51 231 61 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0804-0906	●	●
15	03.162 CLIP; FUEL PIPE 4JB1-TC ENG(RDT) ID=12 & 6.35	8-97215-437-0	02	1	0907-	●
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0907-		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 02.559 (C) L=250 IDN	5-09707-030-1	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 09.242 (A) ID=22 L=22 IDN	5-83574-045-0	01	1	0804-	●	●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) (D) L=140 IDN	5-09707-031-1	01	1	0804-		●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0804-0906	●	●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911	●
24	03.162 CLIP; FUEL HOSE 04.930 (B) ID=16 IDN	8-94238-568-0	08	1	0907-0911		●
24	03.162 CLIP; FUEL HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	08	1	0912-	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	0912-		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0911		●
24	03.162 CLIP; FUEL HOSE 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (B) ID=16	8-98008-098-0	02	1	0912-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98099-502-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98099-503-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) (D)	8-98105-710-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) 03.003 (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0804-		●
29	03.163 HOSE; FUEL 4JJ1-TCC ENG(RDU) EXC. POOR QUALITY DIESEL FUEL(KF0) (B) L=200	8-98081-038-0	01	1	0804-		●
45	03.163 PIPE; FUEL,DELIVERY 4JB1-TC ENG(RDT) (A) L=744	8-98069-488-1	01	1	0804-	●	●
45	03.163 PIPE; FUEL,DELIVERY 4JJ1-TCC ENG(RDU) (B)	8-97389-579-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (B) L=690	8-98083-666-2	01	1	0804-	●	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-761-2	01	1	0804-	●
47	03.163 PIPE; FUEL,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-761-2	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (D) L=679	8-98020-778-3	01	1	0804-		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-97389-594-3	01	1	0804-1005		●
47	03.163 PIPE; FUEL,RETURN 4JJ1-TCC ENG(RDU) (C)	8-98110-833-0	01	1	1006-		●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) 00.787 (A) M10	0-91111-510-0	02	1	0907-	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0907-		●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0804-0906	●	●
51	03.162 NUT; CLIP,PIPE 4JB1-TC ENG(RDT) (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE IDN	0-91180-110-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0804-0906	●	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0804-0906		●
61	03.162 GROMMET; PIPE TO FRAME 4JB1-TC ENG(RDT)	8-98038-801-0	01	1	0907-	●
61	03.162 GROMMET; PIPE TO FRAME 4JJ1-TCC ENG(RDU)	8-98038-801-0	01	1	0907-		●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0907-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) 03.003 (A) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (B) IDN	8-97222-766-0	01	1	0804-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-496-2	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (E)	8-97389-772-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1-TCC ENG(RDU) (F)	8-97389-790-0	01	1	0804-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (D)	8-98070-044-1	01	1	0804-0808	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (E)	8-98127-107-0	01	1	0809-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98075-495-1	01	1	0804-0810	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JB1-TC ENG(RDT) (C)	8-98132-679-1	01	1	0811-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=400 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (B) L=350 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JJ1-TCC ENG(RDU) (C) L=500	8-98057-029-0	01	1	0804-		●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0804-0906	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JB1-TC ENG(RDT) (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000 IDN	0-01855-300-0	01	1	0907-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-810-0	01	1	0804-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1-TC ENG(RDT) (A)	8-98113-810-0	01	1	0804-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-97389-777-1	01	1	0804-1005		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JJ1-TCC ENG(RDU) (B)	8-98147-758-0	01	1	1006-		●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (A)	8-98006-480-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (B)	8-98039-929-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	0907-		●
97	03.162 BRACKET; CLIP (C)	8-98064-442-0	01	1	0804-0906	●	●
97	03.162 BRACKET; CLIP 4JB1-TC ENG(RDT) (C)	8-98064-442-1	01	1	0907-	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	0907-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0804-0808	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 04.930 (B) ID=16 IDN	8-94238-568-0	02	1	0809-0911	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) (B) ID=16	8-98008-098-0	02	1	0912-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	02	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	02	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	02	1	0912-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0804-0906	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (A) ID=12 IDN	8-94238-610-0	04	1	0907-0911		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JB1-TC ENG(RDT) 01.240 (A) ID=12	8-98150-358-0	04	1	0912-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	04	1	0912-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (A)	8-98113-756-2	01	1	0804-	●
174	03.163 PIPE; FUEL,FEED,FRT 4JB1-TC ENG(RDT) (A)	8-98113-756-2	01	1	0804-		●
174	03.163 PIPE; FUEL,FEED,FRT 4JJ1-TCC ENG(RDU) (B)	8-97389-589-1	01	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JJ1-TCC ENG(RDU) (A) OD=16.5 L=50	8-97214-235-0	02	1	0804-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50 IDN	8-94157-054-1	01	1	0907-		●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0804-0906	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JB1-TC ENG(RDT) (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	0907-		●
270	03.900 PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-98018-187-4	01	1	0804-1408		●
270	03.900 PUMP ASM; FUEL 4JJ1-TCC ENG(RDU)	8-97948-892-0	01	1	1409-		●
426	03.330 BOLT; FUEL PUMP 4JJ1-TCC ENG(RDU) 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0804-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
