Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#81086) — 178 parça

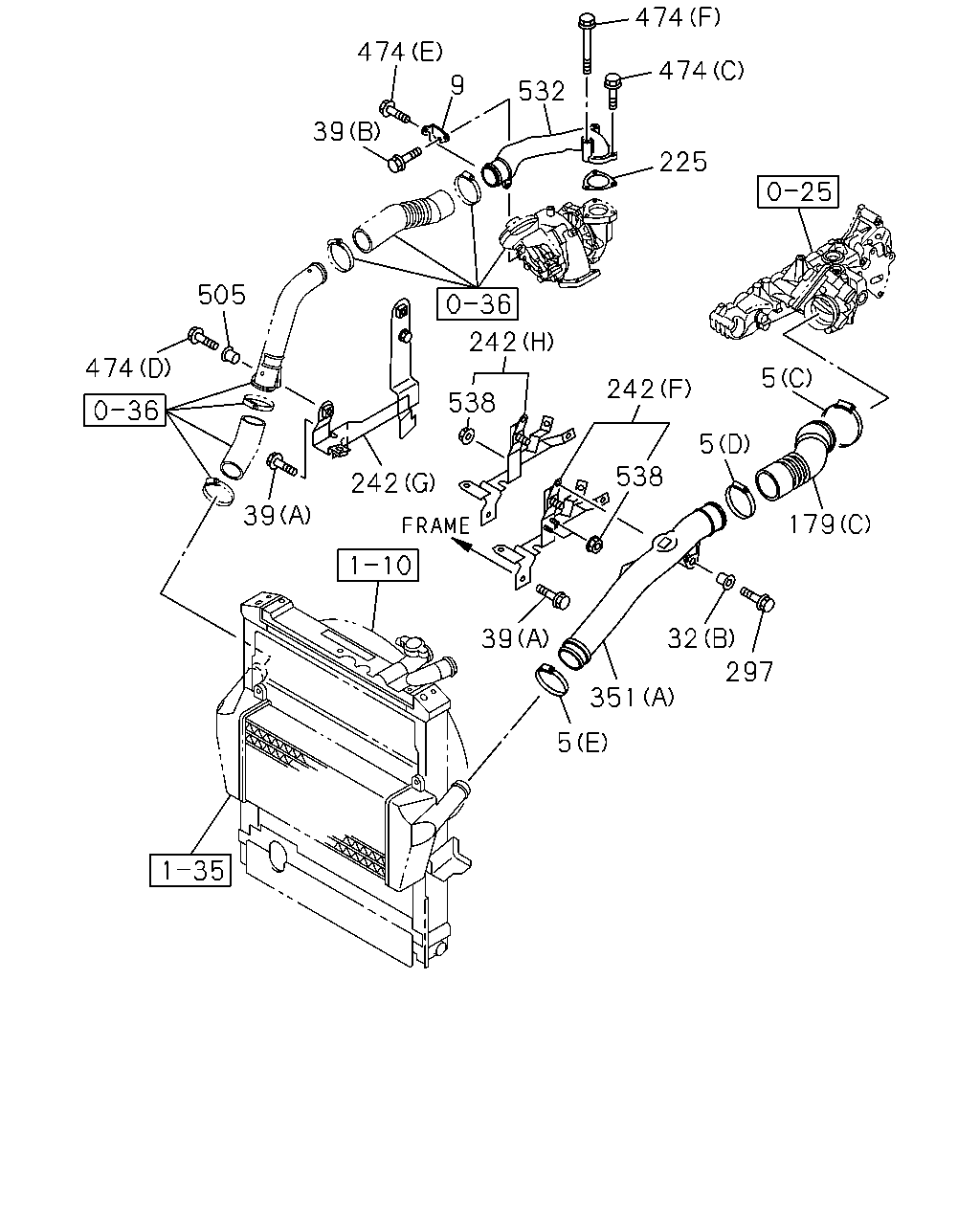

505 474 39 242 39 538 242 9 474 39 532 474 225 474 5 242 538 5 179 32 297 351 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (F) ID=127	1-14239-263-0	01	1	0804-	●
5	03.407 CLIP; AIR DUCT (F) ID=127	1-14239-263-0	01	1	0804-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=50-65	1-09707-204-0	02	1	0804-0807	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=44-57	1-09707-207-0	02	1	0808-0810	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.417 (B) ID=40-50	8-98133-347-0	02	1	0811-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=68-85	1-09707-202-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=65-85	8-98133-350-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=50-65	1-09707-204-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=45-65	8-98133-348-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 01.159 (A) ID=58-76	1-09707-203-0	02	1	0804-0811	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=55-75	8-98133-349-0	02	1	0812-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 01.159 (D) ID=58-76	1-09707-203-0	01	1	0804-0811		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=55-75	8-98133-349-0	01	1	0812-		●
9	03.417 BRACKET; INT PIPE 4JJ1-TCC ENG(RDU)	8-98009-086-0	01	1	0804-		●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (B) OD=23	8-97105-689-6	01	1	0804-		●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (A) IDN	8-98036-826-0	01	1	0804-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (A) IDN	8-97081-886-0	01	1	1107-	●	●
39	03.417 BOLT; BRKT 4JB1-TC ENG(RDT) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0804-		●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (B)	8-97228-658-2	01	1	0804-	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (A)	8-98069-637-1	01	1	0804-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU) (C)	8-98050-920-2	01	1	0804-		●
225	03.417 GASKET; AIR PIPE 4JJ1-TCC ENG(RDU) 03.270 ID=47	8-97202-328-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (A)	8-98072-277-1	01	1	0804-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (B)	8-98067-764-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-98067-765-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-98067-766-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E) IDN	8-98067-767-4	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (E) IDN	8-98067-767-4	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-97384-140-3	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98100-224-2	01	1	0804-1411		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98108-313-1	01	1	1412-		●
297	03.417 BOLT; DUCT 4JJ1-TCC ENG(RDU) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0804-		●
351	03.407 DUCT; AIR 4JB1-TC ENG(RDT) (B) IDN	8-98115-594-0	01	1	0804-	●
351	03.407 DUCT; AIR (B) IDN	8-98115-594-0	01	1	0804-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	0804-		●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE	0-28051-012-0	01	1	0804-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (F) M6X70 FLANGE	0-28050-670-0	02	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (E) M8X16 FLANGE	0-28050-816-0	01	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0804-		●
505	03.406 RUBBER; MTG 4JJ1-TCC ENG(RDU) 03.265 OD=23	8-97105-689-6	01	1	0804-		●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-97385-203-1	01	1	0804-1303		●
532	03.417 PIPE; INTAKE 4JJ1-TCC ENG(RDU)	8-98237-771-1	01	1	1304-		●
538	03.417 NUT; PLATE,AIR DUCT 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●

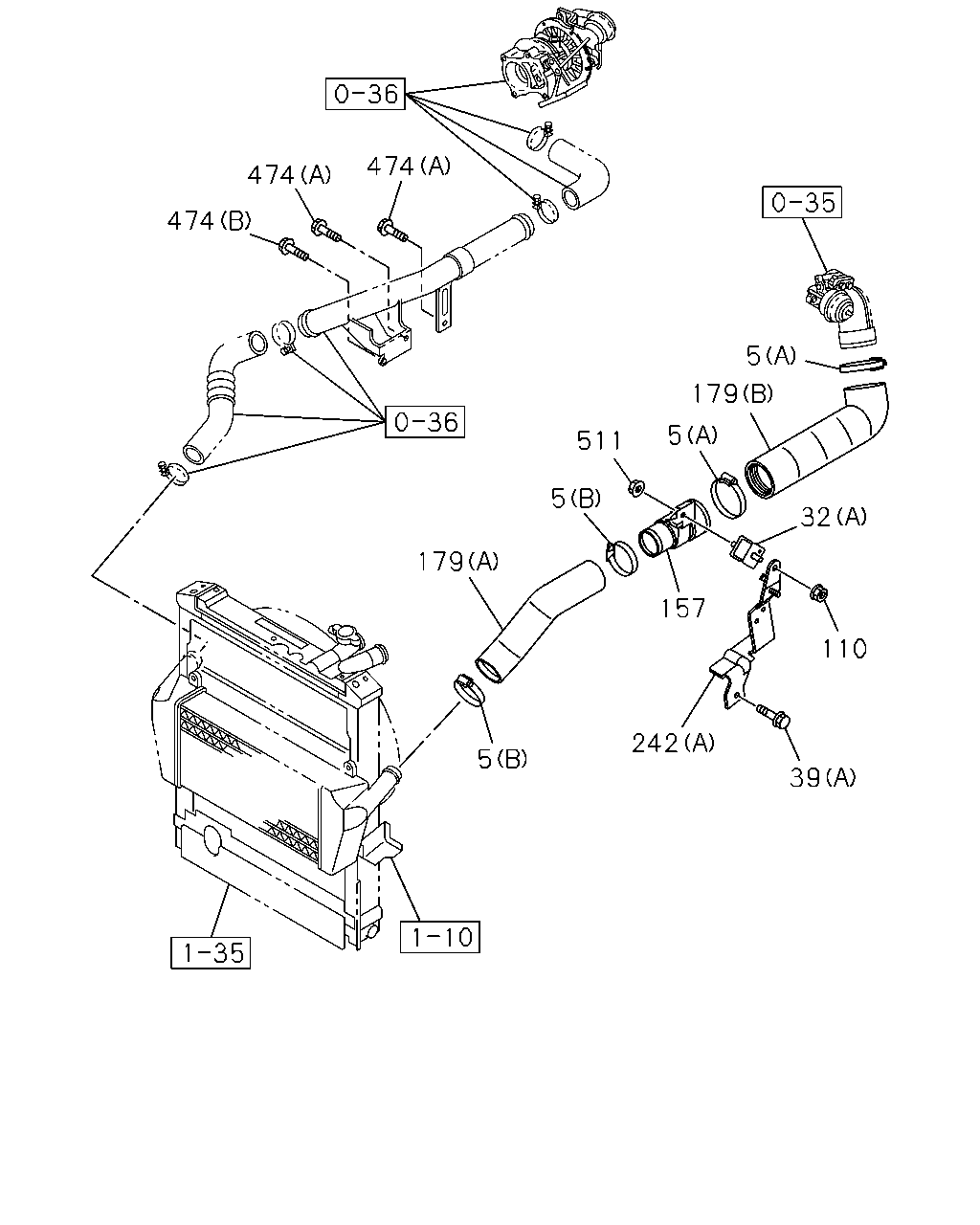

474 474 474 5 179 5 511 5 32 179 157 110 242 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (F) ID=127	1-14239-263-0	01	1	0804-	●
5	03.407 CLIP; AIR DUCT (F) ID=127	1-14239-263-0	01	1	0804-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=50-65	1-09707-204-0	02	1	0804-0807	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=44-57	1-09707-207-0	02	1	0808-0810	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.417 (B) ID=40-50	8-98133-347-0	02	1	0811-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=68-85	1-09707-202-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=65-85	8-98133-350-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=50-65	1-09707-204-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=45-65	8-98133-348-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 01.159 (A) ID=58-76	1-09707-203-0	02	1	0804-0811	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=55-75	8-98133-349-0	02	1	0812-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 01.159 (D) ID=58-76	1-09707-203-0	01	1	0804-0811		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=55-75	8-98133-349-0	01	1	0812-		●
32	03.417 RUBBER; AIR DUCT MTG 4JJ1-TCC ENG(RDU) 03.265 (B) OD=23	8-97105-689-6	01	1	0804-		●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (A) IDN	8-98036-826-0	01	1	0804-1106	●	●
32	03.417 RUBBER; AIR DUCT MTG 4JB1-TC ENG(RDT) (A) IDN	8-97081-886-0	01	1	1107-	●	●
39	03.417 BOLT; BRKT 4JB1-TC ENG(RDT) 03.403 (A) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
39	03.417 BOLT; BRKT 4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0804-		●
110	03.403 NUT; RUBBER MTG 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●
157	03.417 PIPE; AIR 4JB1-TC ENG(RDT)	8-98072-276-0	01	1	0804-	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (B)	8-97228-658-2	01	1	0804-	●	●
179	03.417 HOSE; AIR INT 4JB1-TC ENG(RDT) (A)	8-98069-637-1	01	1	0804-	●	●
179	03.417 HOSE; AIR INT 4JJ1-TCC ENG(RDU) (C)	8-98050-920-2	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (A)	8-98072-277-1	01	1	0804-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (B)	8-98067-764-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-98067-765-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-98067-766-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E) IDN	8-98067-767-4	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (E) IDN	8-98067-767-4	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-97384-140-3	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98100-224-2	01	1	0804-1411		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98108-313-1	01	1	1412-		●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0804-	●	●
474	03.417 BOLT; PIPE 4JB1-TC ENG(RDT) 06.225 (B) M10X12 FLANGE	0-28051-012-0	01	1	0804-	●	●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) (F) M6X70 FLANGE	0-28050-670-0	02	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 02.343 (E) M8X16 FLANGE	0-28050-816-0	01	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0804-		●
474	03.417 BOLT; PIPE 4JJ1-TCC ENG(RDU) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0804-		●
511	03.417 NUT; PIPE 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●	●

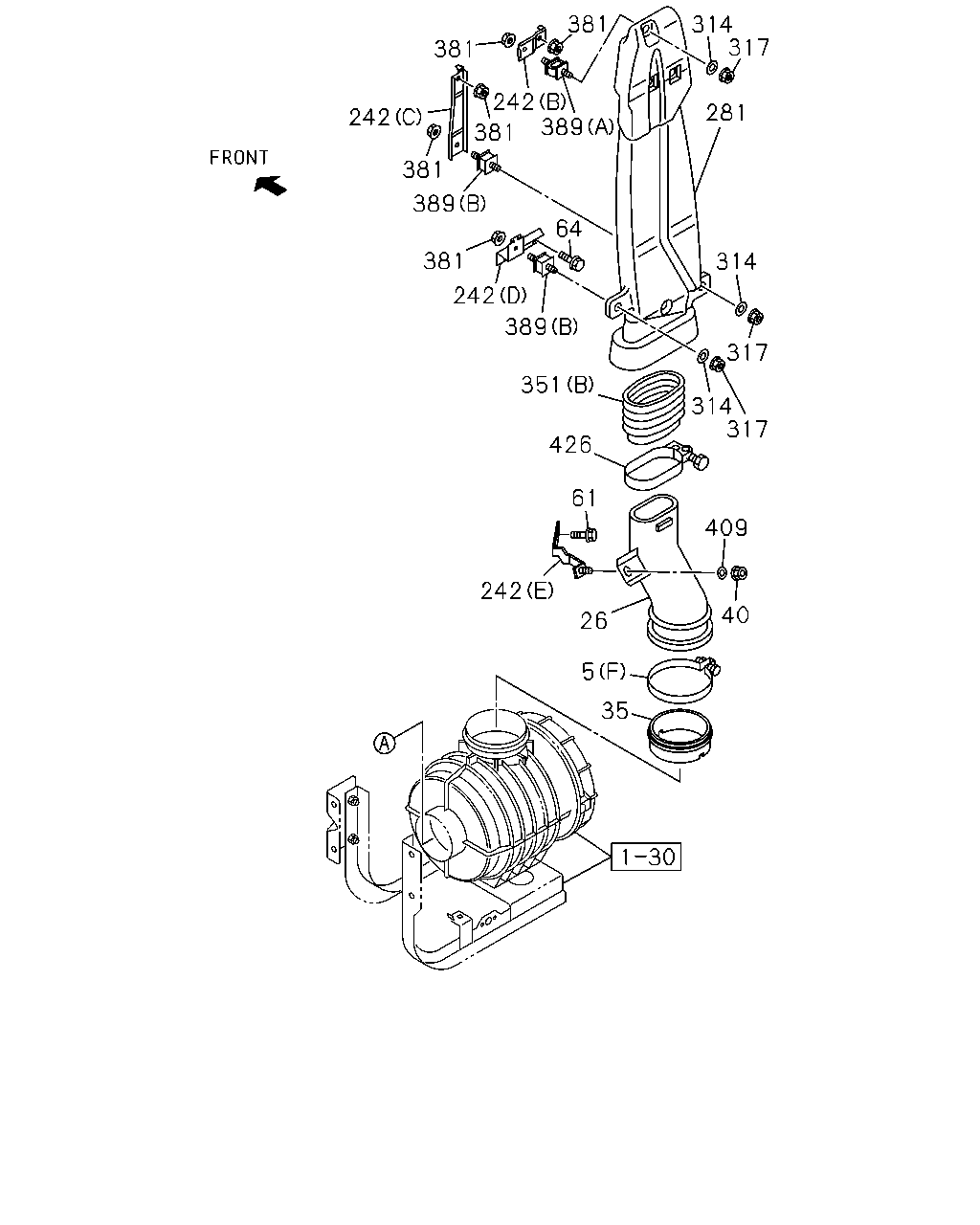

381 314 317 381 242 389 281 242 381 381 389 64 381 314 242 389 317 351 314 317 426 61 409 242 40 26 5 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (F) ID=127	1-14239-263-0	01	1	0804-	●
5	03.407 CLIP; AIR DUCT (F) ID=127	1-14239-263-0	01	1	0804-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=50-65	1-09707-204-0	02	1	0804-0807	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (B) ID=44-57	1-09707-207-0	02	1	0808-0810	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.417 (B) ID=40-50	8-98133-347-0	02	1	0811-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=68-85	1-09707-202-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (C) ID=65-85	8-98133-350-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=50-65	1-09707-204-0	01	1	0804-0810		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (E) ID=45-65	8-98133-348-0	01	1	0811-		●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 01.159 (A) ID=58-76	1-09707-203-0	02	1	0804-0811	●	●
5	03.407 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=55-75	8-98133-349-0	02	1	0812-	●	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 01.159 (D) ID=58-76	1-09707-203-0	01	1	0804-0811		●
5	03.407 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) (D) ID=55-75	8-98133-349-0	01	1	0812-		●
26	03.417 DUCT; AIR INT 4JB1-TC ENG(RDT)	8-98023-339-0	01	1	0804-	●
26	03.417 DUCT; AIR INT	8-98023-339-0	01	1	0804-		●
35	03.406 SEAL; DUCT,INT 4JB1-TC ENG(RDT)	8-98029-332-0	01	1	0804-	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0804-		●
40	03.417 NUT; AIR INT DUCT 4JB1-TC ENG(RDT) 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE IDN	0-91180-110-0	01	1	0804-		●
61	03.417 BOLT; BRKT,AIR DUCT 4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-		●
64	03.417 BOLT; BRKT,AIR DUCT 4JB1-TC ENG(RDT) M8X16 IDN	0-52000-816-0	01	1	0804-	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16 IDN	0-52000-816-0	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (A)	8-98072-277-1	01	1	0804-	●	●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (B)	8-98067-764-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98067-764-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (C)	8-98067-765-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98067-765-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (D)	8-98067-766-1	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (D)	8-98067-766-1	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JB1-TC ENG(RDT) (E) IDN	8-98067-767-4	01	1	0804-	●
242	03.417 BRACKET; AIR DUCT (E) IDN	8-98067-767-4	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (G)	8-97384-140-3	01	1	0804-		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (F)	8-98100-224-2	01	1	0804-1411		●
242	03.417 BRACKET; AIR DUCT 4JJ1-TCC ENG(RDU) (H)	8-98108-313-1	01	1	1412-		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) IDN	8-97369-706-0	01	1	0804-0811	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97369-706-0	01	1	0804-0811		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97369-706-0	01	1	0812-	●
281	03.417 DUCT; AIR,VERTICAL INT EXC. HEAVY DUTY AIR CLEANER<K46> IDN	8-97369-706-0	01	1	0812-		●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-994-2	01	1	0804-0811		●
281	03.417 DUCT; AIR,VERTICAL INT 4JB1-TC ENG(RDT) HEAVY DUTY AIR CLEANER<K46>	8-98101-994-2	01	1	0812-	●
281	03.417 DUCT; AIR,VERTICAL INT HEAVY DUTY AIR CLEANER<K46>	8-98101-994-2	01	1	0812-		●
314	03.417 WASHER; PL,AIR INT DUCT 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0804-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0804-		●
317	03.417 NUT; CUSHION RUBBER 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	03	1	0804-	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER IDN	8-97581-234-0	03	1	0804-		●
351	03.407 DUCT; AIR 4JB1-TC ENG(RDT) (B) IDN	8-98115-594-0	01	1	0804-	●
351	03.407 DUCT; AIR (B) IDN	8-98115-594-0	01	1	0804-		●
351	03.407 DUCT; AIR 4JJ1-TCC ENG(RDU) 03.417 (A)	8-98067-267-0	01	1	0804-		●
381	03.417 NUT; BRKT,AIR DUCT 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	02	1	0804-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER IDN	8-97581-234-0	02	1	0804-		●
381	03.417 NUT; BRKT,AIR DUCT 4JB1-TC ENG(RDT) M8 W/LK WASHER IDN	8-97581-234-0	03	1	0804-	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER IDN	8-97581-234-0	03	1	0804-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) (A) IDN	8-98036-825-0	01	1	0804-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A) IDN	8-98036-825-0	01	1	0804-		●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JB1-TC ENG(RDT) 03.417 (B) IDN	8-98036-826-0	02	1	0804-	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B) IDN	8-98036-826-0	02	1	0804-		●
409	03.417 WASHER; PL,BRKT 4JB1-TC ENG(RDT) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0804-		●
426	03.417 CLIP; DUCT 4JB1-TC ENG(RDT) 03.407 D=101.6 IDN	9-09915-502-1	01	1	0804-	●
426	03.417 CLIP; DUCT 03.407 D=101.6 IDN	9-09915-502-1	01	1	0804-		●

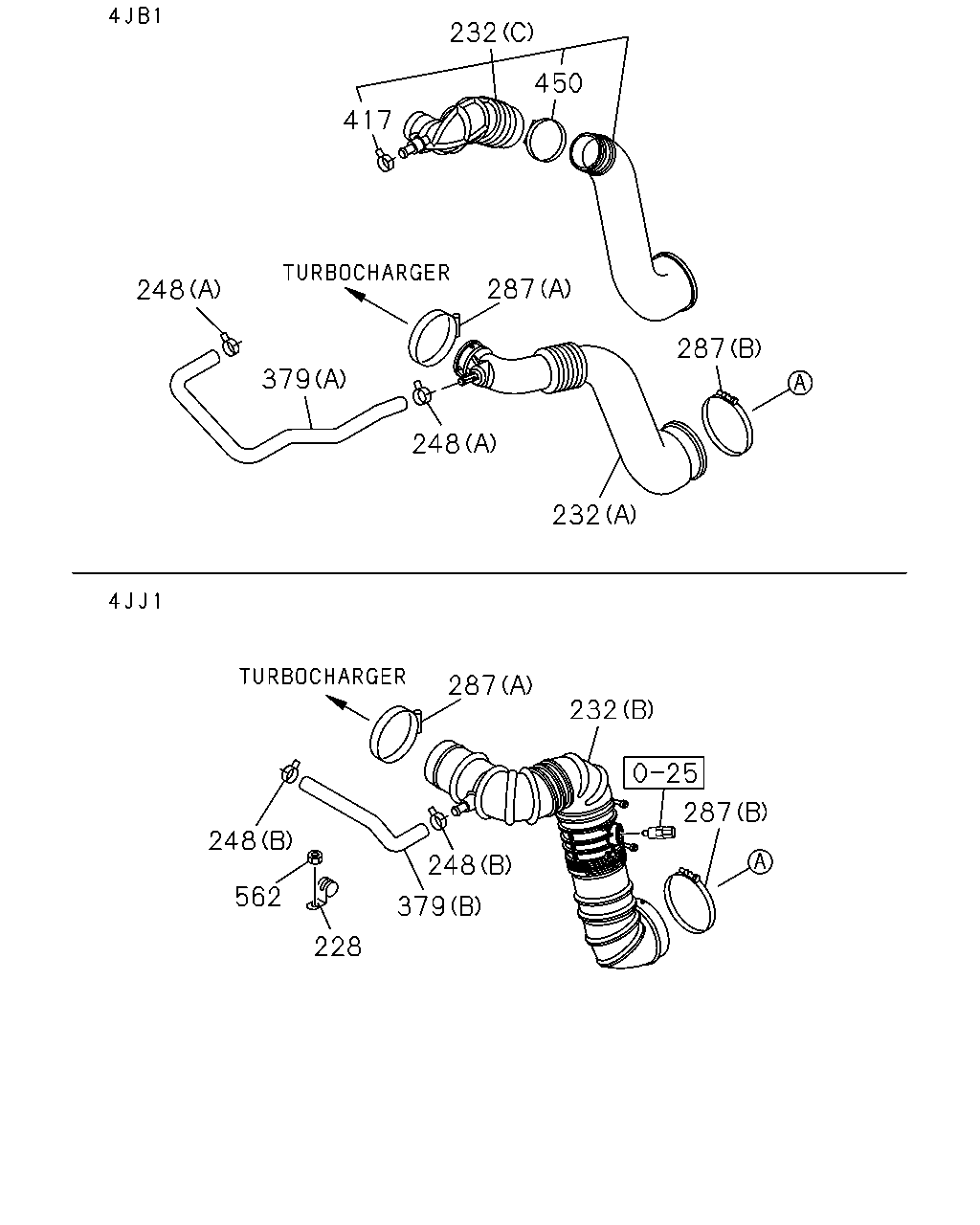

232 417 450 287 287 232 248 379 248 287 232 287 248 379 228 562 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
228	03.278 CLIP; PCV HOSE 4JJ1-TCC ENG(RDU) ID=25 H=40 L=50	8-98073-275-0	01	1	0804-		●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (A)	8-98069-040-2	01	1	0804-1509	●	●
232	03.417 HOSE; CONN 4JB1-TC ENG(RDT) (C)	8-98327-660-0	01	1	1510-	●	●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98048-540-0	01	1	0804-1409		●
232	03.417 HOSE; CONN 4JJ1-TCC ENG(RDU) (B)	8-98269-834-0	01	1	1410-		●
248	03.417 CLIP; RUBBER HOSE 4JB1-TC ENG(RDT) 03.265 (A) ID=20.4	8-94121-113-0	02	1	0804-	●	●
248	03.417 CLIP; RUBBER HOSE 4JJ1-TCC ENG(RDU) 08.846 (B) ID=21.7	8-97203-074-0	02	1	0804-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (B) ID=112	9-09915-074-1	01	1	0804-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (B) ID=117	9-09915-075-1	01	1	0804-		●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (A) ID=50-65	1-09707-204-0	01	1	0804-0805	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) 03.407 (A) ID=44-57	1-09707-207-0	01	1	0806-0810	●	●
287	03.417 CLIP; AIR DUCT 4JB1-TC ENG(RDT) (A) ID=40-50	8-98133-347-0	01	1	0811-	●	●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (A) ID=68-85	1-09707-202-0	01	1	0804-0810		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (A) ID=65-85	8-98133-350-0	01	1	0811-0812		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) MANUAL TILT CAB<RWZ> 03.407 (A) ID=65-85	8-98133-350-0	01	1	0901-1001		●
287	03.417 CLIP; AIR DUCT 4JJ1-TCC ENG(RDU) 03.407 (A) ID=65-85	8-98133-350-0	01	1	1002-		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98088-700-2	01	1	0804-0810		●
379	03.675 HOSE; RUBBER 4JJ1-TCC ENG(RDU) (B)	8-98135-511-0	01	1	0811-		●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) 03.265 (A)	8-97212-347-1	01	1	0804-1010	●	●
379	03.675 HOSE; RUBBER 4JB1-TC ENG(RDT) (A)	8-98178-711-0	01	1	1011-	●	●
417	03.278 CLIP; WATER HOSE 4JB1-TC ENG(RDT) 08.846 ID=23	8-94382-402-0	01	1	1510-	●	●
450	03.417 CLAMP; HOSE 4JB1-TC ENG(RDT) 03.407 ID=65-85	8-98133-350-0	01	1	1510-	●	●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-0809		●
562	03.403 NUT; HOSE CLIP 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0810-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
