0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#81074) — 36 parça

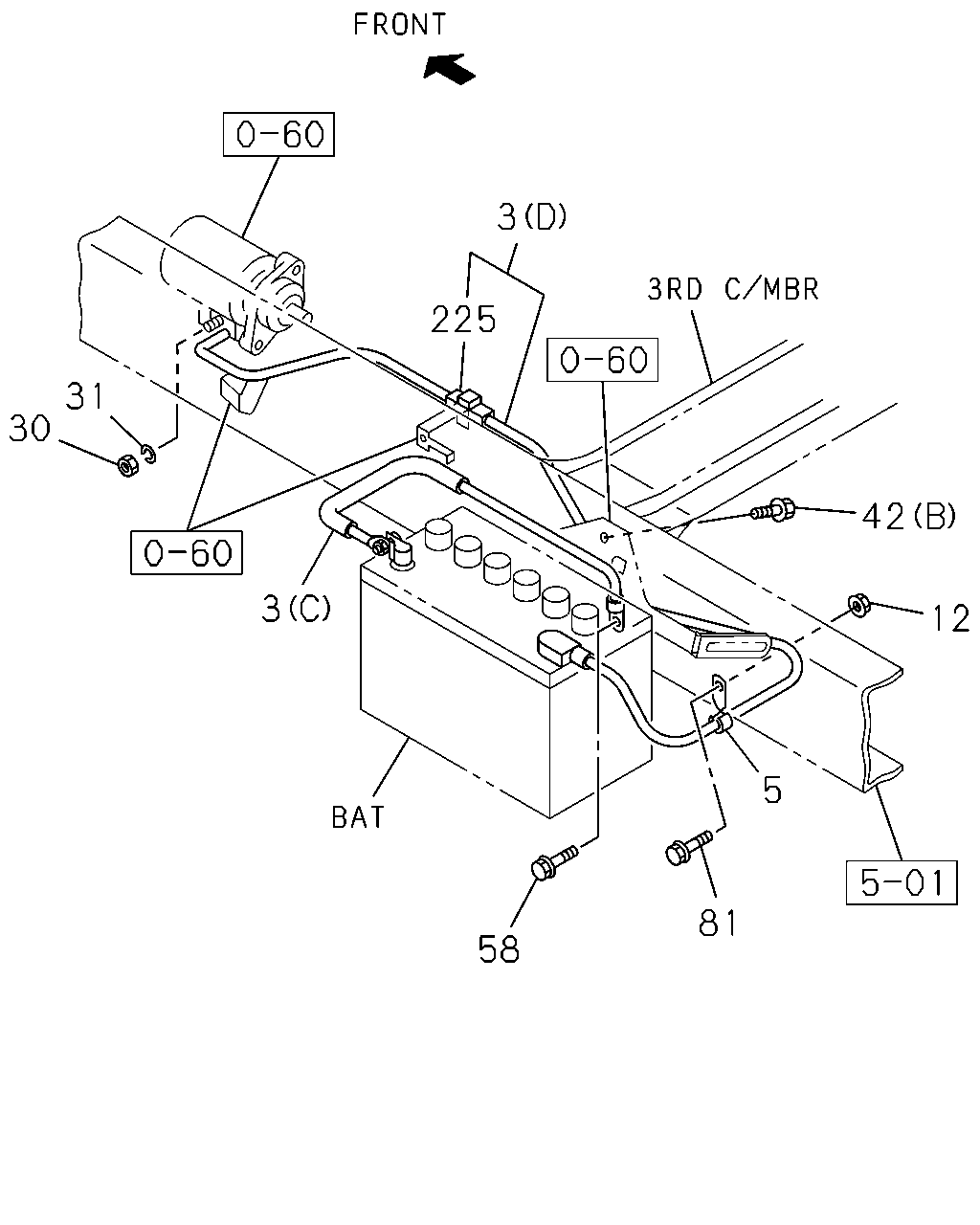

3 225 31 30 42 3 12 5 81 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (C)	8-98072-081-3	01	1	0804-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D)	8-98108-626-1	01	1	0804-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D)	8-98294-683-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE (B) L=200 IDN	8-98056-337-1	01	1	0804-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98048-441-2	01	1	0804-0901		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98131-620-0	01	1	0902-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98294-685-0	01	1	1410-		●
5	02.559 CLIP; BATTERY CABLE TO BODY ID=19 L=58	1-09700-733-1	01	1	0804-	●
12	02.343 NUT; BATTERY CABLE CLIP 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	0804-	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0804-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	0804-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	01	1	0804-0901		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	0804-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
81	02.559 BOLT; BATTERY CABLE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	0804-	●
225	02.343 BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>, BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>, BATTERY 130E41L<8MC>	8-98029-689-0	01	1	0804-1409	●	●
225	02.343 BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>, BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>, BATTERY 130E41L<8MC> IDN	8-98294-524-0	01	1	1410-	●	●

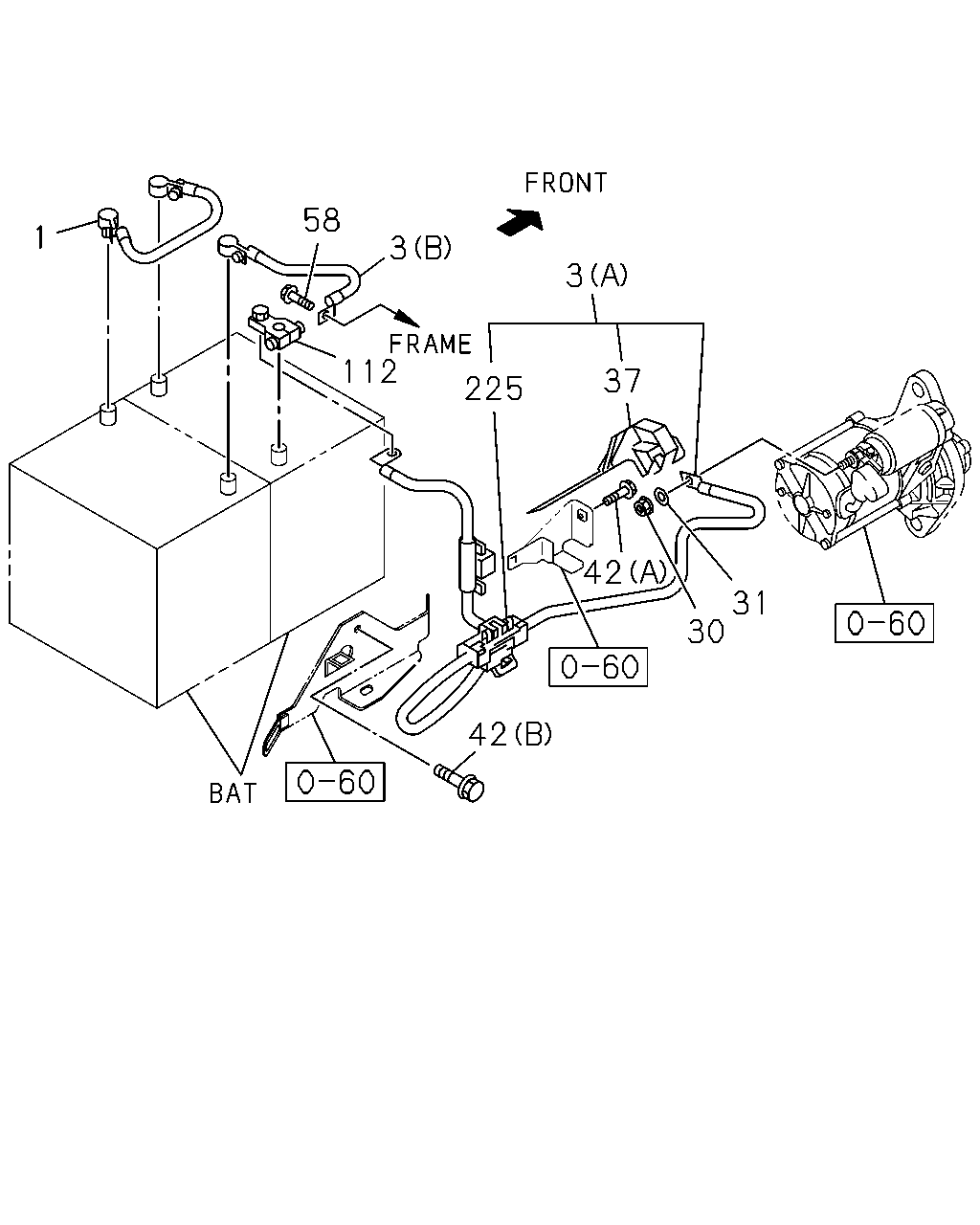

58 1 3 3 112 37 225 42 31 30 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280 IDN	8-98025-412-3	01	1	0804-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (C)	8-98072-081-3	01	1	0804-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D)	8-98108-626-1	01	1	0804-1409	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 95D31L<TQ8>,BATTERY 130E41L<8MC> (D)	8-98294-683-0	01	1	1410-	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE (B) L=200 IDN	8-98056-337-1	01	1	0804-		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98048-441-2	01	1	0804-0901		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98131-620-0	01	1	0902-1409		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-98294-685-0	01	1	1410-		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8 IDN	0-91110-508-0	01	1	0804-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	0804-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	8-98042-507-0	01	1	0804-		●
42	02.343 BOLT; BRKT,BATTERY CABLE 00.685 (A) M6X25 FLANGE IDN	0-28650-625-0	01	1	0804-0901		●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (B) M6X16 FLANGE	8-97329-599-0	01	1	0804-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●
112	02.343 TERMINAL; BATTERY <+> IDN	8-97365-771-0	01	1	0804-		●
225	02.343 BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>, BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>, BATTERY 130E41L<8MC>	8-98029-689-0	01	1	0804-1409	●	●
225	02.343 BLOCK; TERMINAL BATTERY 80D26L<TM1>,BATTERY 95D31L<TQ8>, BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>, BATTERY 130E41L<8MC> IDN	8-98294-524-0	01	1	1410-	●	●
