◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10831 - FSS/FTS(AUSTRALIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#8107) — 112 parça
çizim 76592
87 87 96 87 96 96 87 87 486 87 96 100 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0210 ●
1 RADIATOR ASM
FSS ALL(FS****) 		1-21410-863-0 01 1 0211- ●
1 RADIATOR ASM
FTS ALL(FT****) 		1-21410-887-0 01 1 0211- ●
87 STAY; FAN GUIDE
(A) 		8-94394-775-0 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-1 01 1 0211- ● ●
87 STAY; FAN GUIDE
(B) 		8-94396-496-1 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(E) 		8-94393-778-2 01 1 0211- ● ●
87 STAY; FAN GUIDE
(C) 		8-94397-395-1 01 1 0005-0210 ●
87 STAY; FAN GUIDE
(F) 		8-97602-582-0 01 1 0211- ● ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28081-045-0 02 1 0211-0512 ● ●
96 BOLT; STAY FIX
M10X45 FLANGE 		0-28051-045-0 02 1 0601- ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0211-0512 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

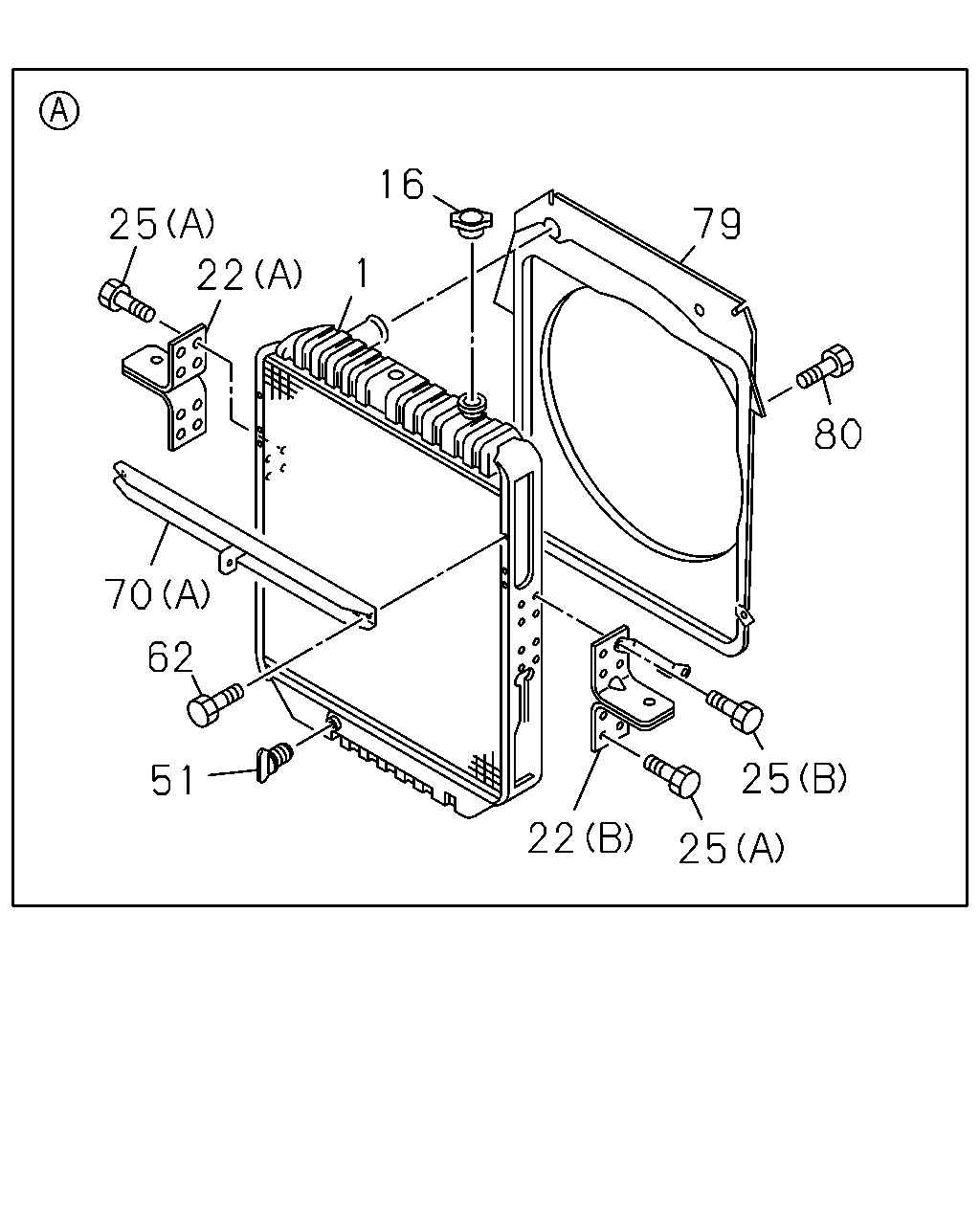

çizim 76977
16 25 22 79 1 80 70 62 25 51 22 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM 1-21410-675-1 01 1 0005-0210 ●
1 RADIATOR ASM
FSS ALL(FS****) 		1-21410-863-0 01 1 0211- ●
1 RADIATOR ASM
FTS ALL(FT****) 		1-21410-887-0 01 1 0211- ●
16 CAP; RAD 1-21450-053-1 01 1 0005-0210 ●
16 CAP; RAD 1-21450-097-2 01 1 0211- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FSS ALL(FS****) (B) 		1-21464-646-0 01 1 0211- ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 0005-0210 ●
22 BRACKET; RAD MTG
FSS ALL(FS****) (A) 		1-21464-654-0 01 1 0211- ●
22 BRACKET; RAD MTG
FTS ALL(FT****) (A) 		1-21464-458-0 01 1 0211- ●
22 BRACKET; RAD MTG
FTS ALL(FT****) (B) 		1-21464-520-0 01 1 0211- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0005-0210 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 0211- ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0211- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0005-0210 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0211- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-374-1 01 1 0005-0210 ●
79 GUIDE; FAN,RAD 1-21551-471-1 01 1 0211- ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0005-0210 ●
80 BOLT; FAN GUIDE
FSS ALL(FS****) M6X10 FLANGE 		0-28080-610-0 04 1 0211- ●
80 BOLT; FAN GUIDE
FTS ALL(FT****) M6X10 FLANGE 		0-28080-610-0 06 1 0211- ●

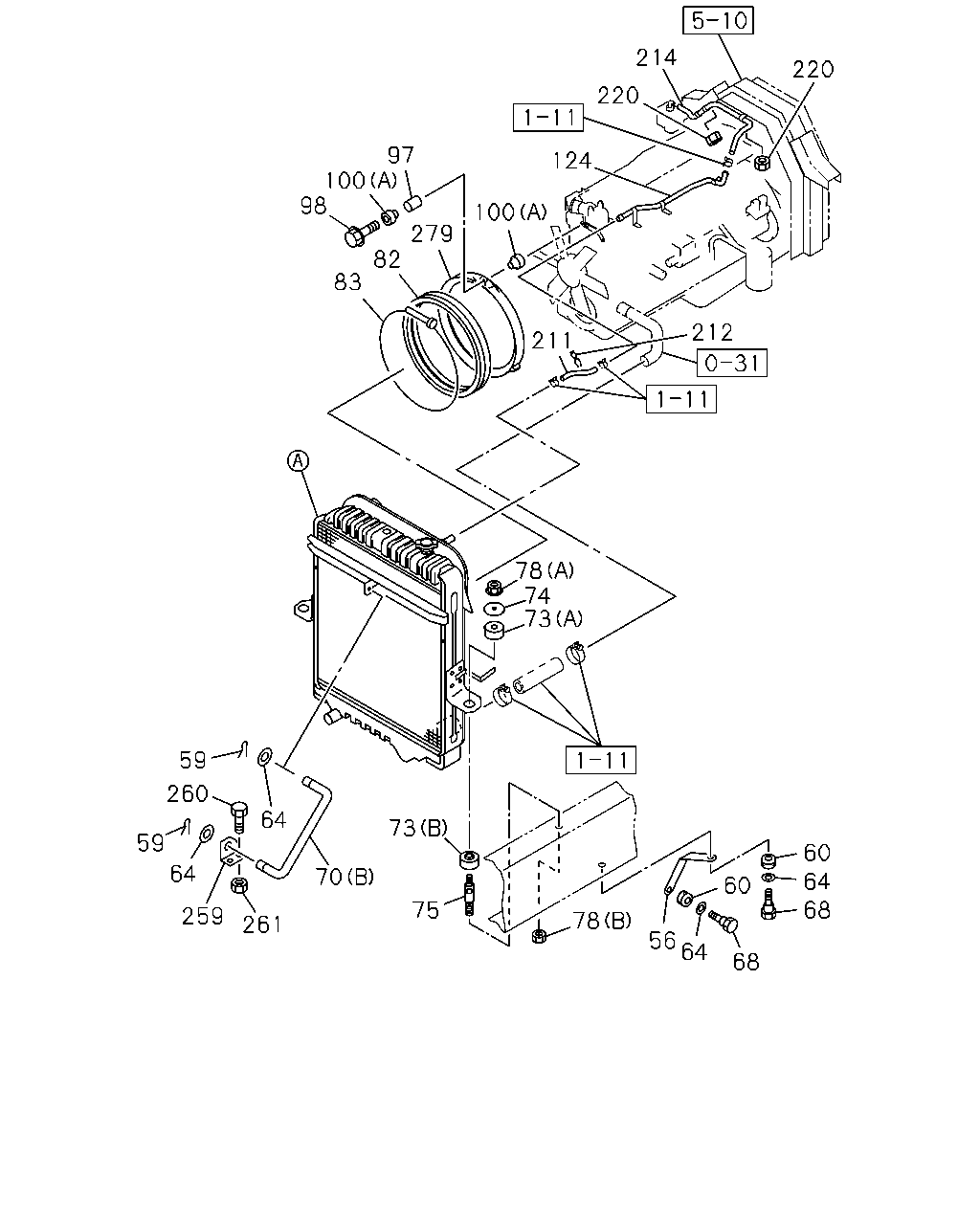

çizim 102887
214 220 220 97 124 100 98 100 279 82 83 211 212 78 74 73 59 260 64 73 59 60 64 70 64 68 60 78 75 259 261 56 64 68
BalonParca AdiParca NoAdetTipApplied Date A B C
56 STAY; RAD
FTS ALL(FT****) 		1-21464-634-0 01 1 0211- ●
56 STAY; RAD
FTS ALL(FT****) 		1-21464-633-0 01 1 0211- ●
56 STAY; RAD
FSS ALL(FS****) 		1-21464-570-0 01 1 0211- ●
56 STAY; RAD
FSS ALL(FS****) 		1-21464-569-0 01 1 0211- ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005-0210 ●
60 GROMMET 1-09332-117-0 04 1 0211- ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0210 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0211-0605 ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ● ●
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 02 1 0211- ● ●
68 BOLT; STAY TO BRKT
M8X22 		1-09009-123-0 02 1 0211- ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 0005-0210 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005-0210 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005-0210 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0211- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005-0210 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0211- ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005-0210 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0211- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005-0210 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0211- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0210 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0211-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005-0210 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0211- ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 0005-0210 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0211- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005-0210 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0211- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005-0210 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0211- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0210 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0211-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0005-0210 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0211- ● ●
100 RUBBER; MTG
(B) 		8-94394-268-1 01 1 0211-0910 ● ●
100 RUBBER; MTG
(B) 		8-98148-109-0 01 1 0911- ● ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0005-0210 ●
124 PIPE; WATER,TANK TO RAD 8-97602-556-1 01 1 0211- ● ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=450 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
212 CLIP; HOSE
ID=13 & 21 		8-94417-626-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
L=200 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0010 ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=200 SERVICED BY L=3000 		0-03257-300-0 01 1 0011-0210 ●
214 HOSE; PIPE TO RESERVE TANK
FSS STD CAB(FS**M*) L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FSS STD CAB(FS**M*) L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
FSS STD CAB(FS**M*) FTS STD CAB(FT**M*) L=1500 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
FSS DOUBLE CAB(FS**W*) L=1800 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FSS DOUBLE CAB(FS**W*) L=1800 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
FSS DOUBLE CAB(FS**W*) FTS DOUBLE CAB(FT**W*) L=2100 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ● ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 0005-0109 ●
214 HOSE; PIPE TO RESERVE TANK
FTS STD CAB(FT**M*) L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
220 NUT; CLIP
FSS ALL(FS****) FTS DOUBLE CAB(FT**W*) M8 FLANGE 		0-91150-108-0 04 1 0005-0010 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0011-0210 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0211-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
220 NUT; CLIP
FTS STD CAB(FT**M*) M8 FLANGE 		0-91150-108-0 03 1 0005-0010 ●
220 NUT; CLIP
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
259 BRACKET; RAD STAY
FSS ALL(FS****) 		1-21523-024-0 01 1 0005-0210 ●
259 BRACKET; RAD STAY
FTS ALL(FT****) 		1-21523-025-0 01 1 0005-0210 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●
279 BELL MOUTH 8-94394-808-2 01 1 0005-0210 ●
279 BELL MOUTH 8-94393-779-1 01 1 0211- ● ●
