0-40 — FUEL INJECTION SYSTEM (#81066) — 293 parça

29 283 216 175 175 329 205 210 137 30 29 29 30 29 211 216 199 289 288 199 290 283 426 282 282 445 219 382 424 408

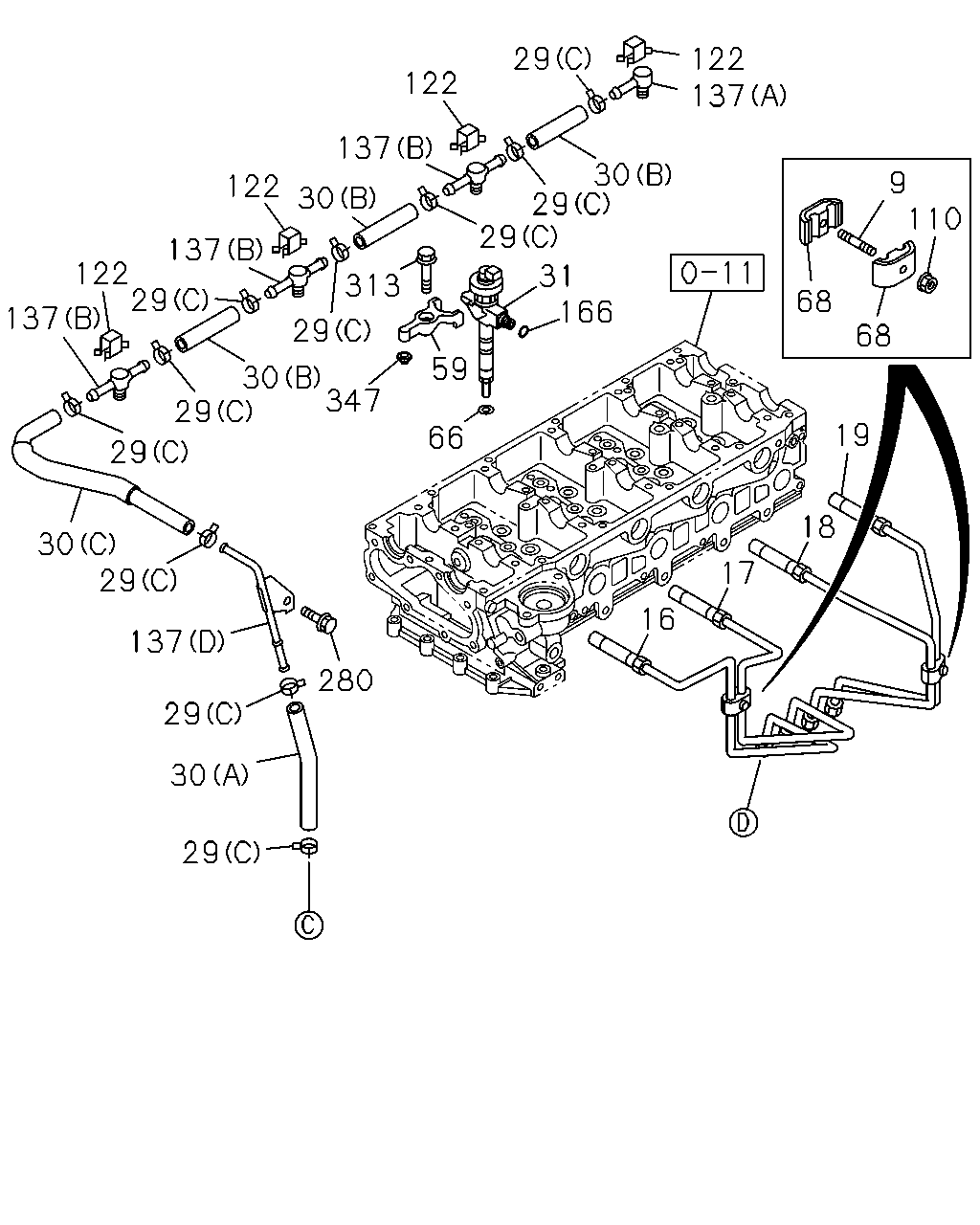

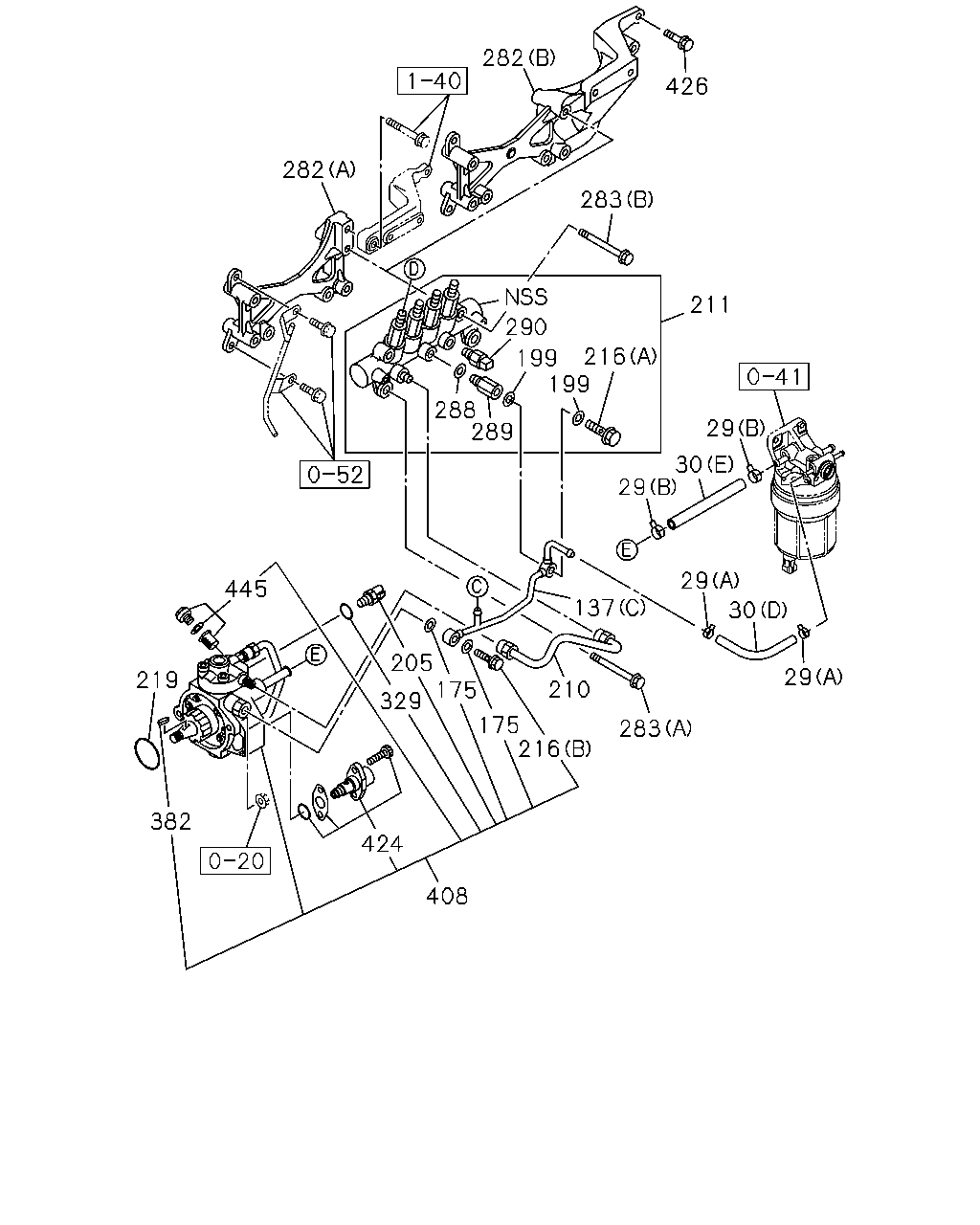

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0804-	●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0804-		●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0804-		●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0804-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0804-1101		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-		●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0804-		●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0804-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0804-1101		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0804-1101		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-		●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0804-		●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0804-		●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0804-		●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	0804-		●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0804-		●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0804-		●
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	0804-		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0804-		●
282	03.163 BRACKET; COMMON RAIL (A)	8-98053-912-0	01	1	0804-1001		●
282	03.163 BRACKET; COMMON RAIL (B)	8-98147-694-0	01	1	1002-		●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0804-		●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0804-		●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0804-		●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0804-		●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0804-0809		●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	0810-		●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0804-1104		●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0804-1104		●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1105-		●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	0804-		●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-484-0	01	1	0804-0905		●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	0906-		●
426	03.330 BOLT; BRACKET 04.686 M8X60 FLANGE	0-28050-860-0	01	1	1002-		●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	0804-		●

93 63 34 31 32 31 29 30 34 29 61 59 50 140 66 44 43 120 110 47 19 45 113 113 138 17 140 43 18 113 16 272 113 35 76 81 1 78 80 80 72

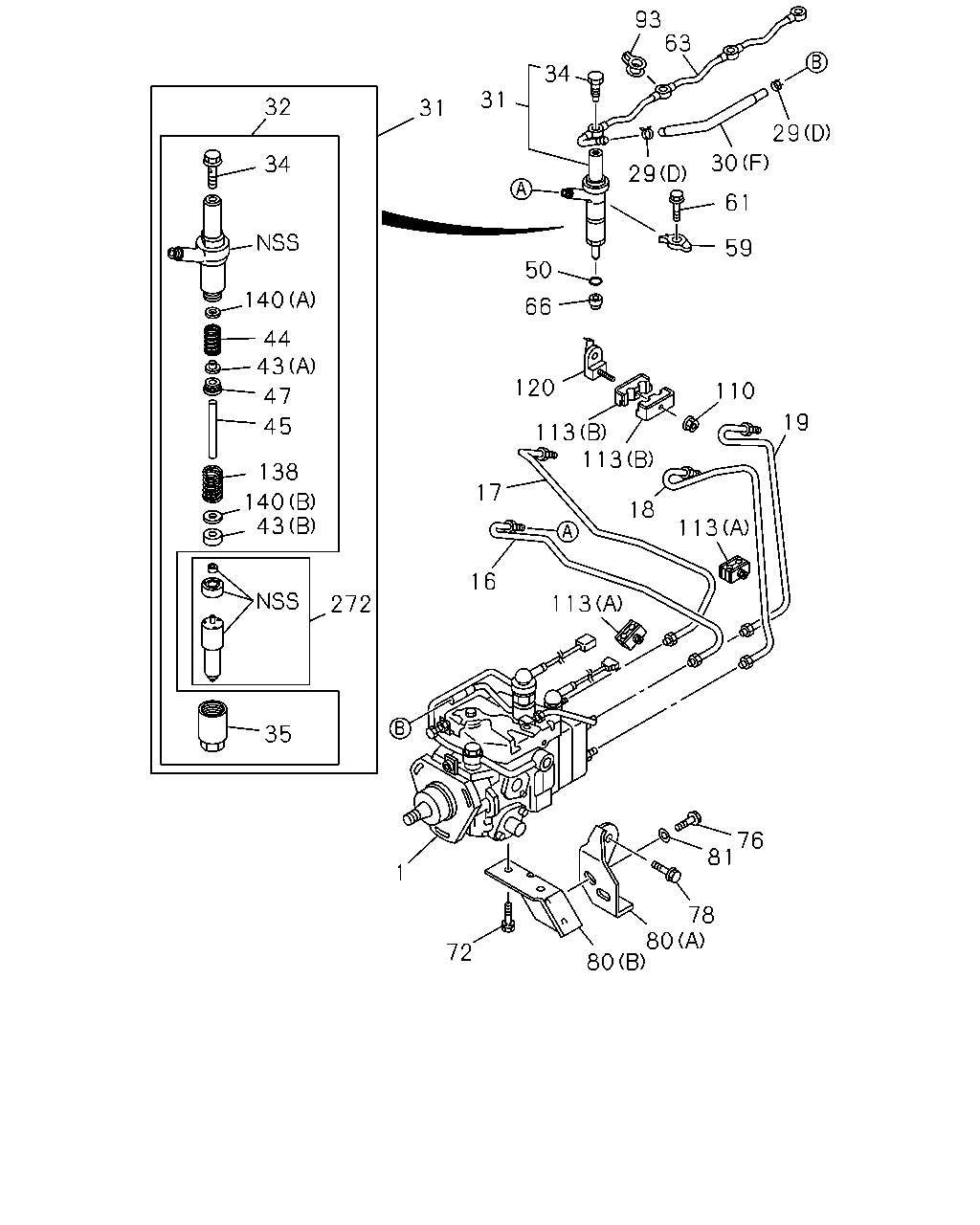

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97263-086-3	01	1	0804-	●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0804-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0804-1201		●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0804-	●
17	03.330 PIPE; INJ NO.2	8-98011-607-0	01	1	0804-0804		●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0805-1201		●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0804-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0804-1201		●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0804-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0804-1201		●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-		●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0804-	●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0804-		●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0804-		●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0804-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0804-1101		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	0804-	●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0804-		●
32	03.332 HOLDER ASM; NOZZLE	8-97203-471-1	04	1	0804-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0804-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	0804-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	0804-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	0804-	●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	0804-	●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0804-	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	0804-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0804-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0804-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0804-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0804-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0804-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0804-1103		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1104-		●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0804-	●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0804-	●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE IDN	0-28650-820-0	02	1	0804-	●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	0804-	●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	0804-	●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	0804-	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0804-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	02	1	0804-1210	●
113	03.162 CLIP; INJ PIPE 03.634 (B)	1-09701-240-0	02	1	1211-	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	02	1	0804-1212	●
113	03.162 CLIP; INJ PIPE (A)	8-98227-926-0	02	1	1301-	●
120	03.330 BRACKET; INJ PIPE	8-98015-024-1	01	1	0804-	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	0804-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	0804-	●
272	03.332 NOZZLE KIT; INJ	8-97329-208-0	04	1	0804-	●

29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	0804-1201		●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	02	1	1202-		●
16	03.330 PIPE; INJ NO.1	8-97223-923-1	01	1	0804-	●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0804-1201		●
16	03.330 PIPE; INJ NO.1	8-98203-719-0	01	1	1202-		●
17	03.330 PIPE; INJ NO.2	8-97223-924-1	01	1	0804-	●
17	03.330 PIPE; INJ NO.2	8-98011-607-0	01	1	0804-0804		●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0805-1201		●
17	03.330 PIPE; INJ NO.2	8-98203-720-0	01	1	1202-		●
18	03.330 PIPE; INJ NO.3	8-97223-925-1	01	1	0804-	●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0804-1201		●
18	03.330 PIPE; INJ NO.3	8-98203-721-0	01	1	1202-		●
19	03.330 PIPE; INJ NO.4	8-97223-926-1	01	1	0804-	●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0804-1201		●
19	03.330 PIPE; INJ NO.4	8-98203-722-0	01	1	1202-		●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0804-	●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0804-		●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0804-		●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0804-1509	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	02	1	1510-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0804-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0804-1101		●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1102-		●
31	03.332 NOZZLE ASM; INJ	8-97382-945-0	04	1	0804-	●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	0804-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0804-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0804-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0804-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0804-1103		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98181-540-0	04	1	1104-		●
68	03.162 CLIP; INJ PIPE	8-97213-481-0	04	1	0804-1201		●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405		●
68	03.162 CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	04	1	1406-		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	0804-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	0804-		●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0804-		●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0804-		●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0804-		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0804-1101		●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1102-		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0804-1101		●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1102-		●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	0804-		●
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0804-		●
347	03.332 PIN	8-97383-286-0	04	1	0804-1011		●
347	03.332 PIN	8-98165-035-0	04	1	1012-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
