0-31 — THERMOSTAT AND HOUSING (#81060) — 30 parça

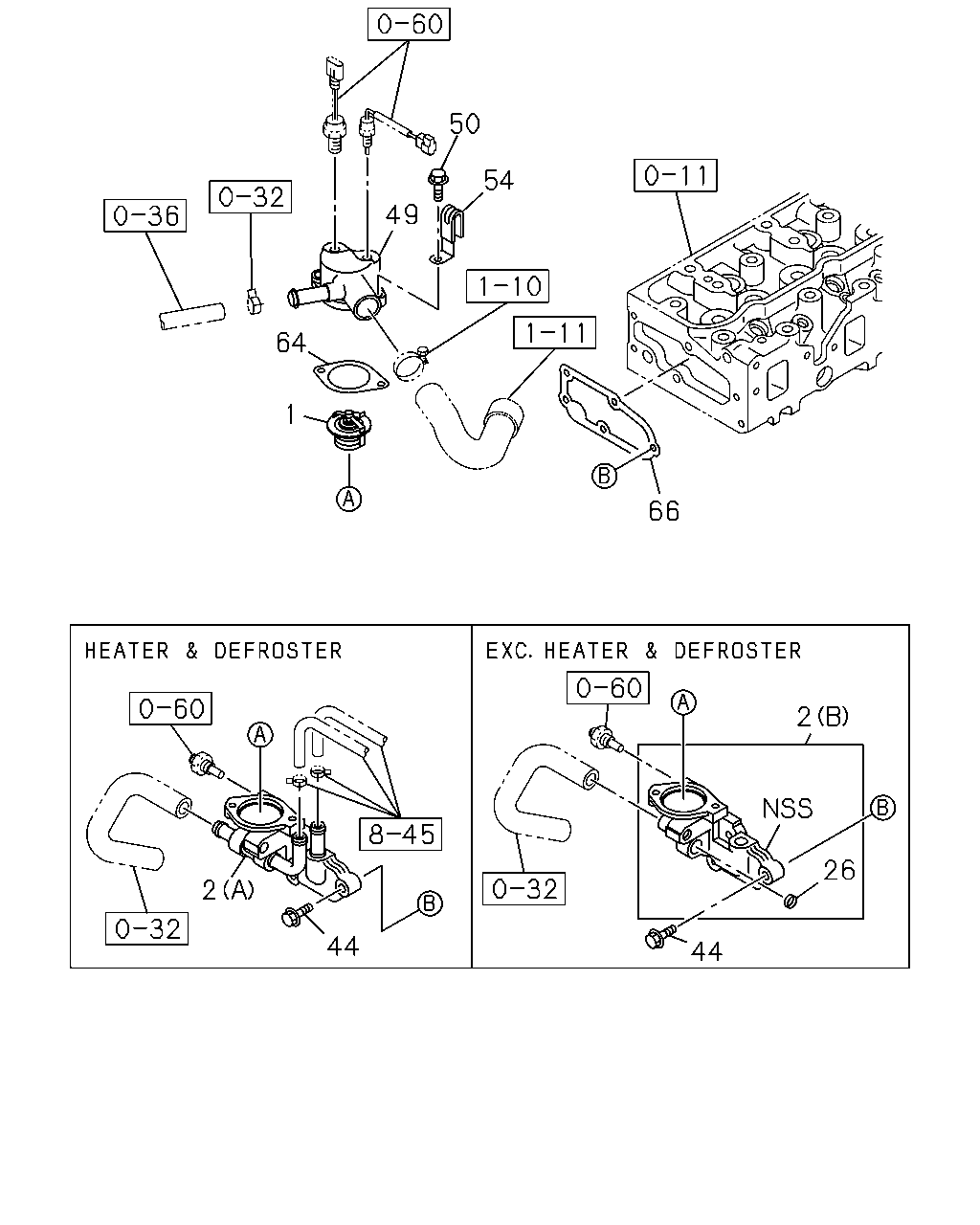

50 54 49 64 1 66 2 26 2 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.246 THERMOSTAT 82 CELSIUS	8-97254-816-1	01	1	0804-	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	0804-		●
2	01.251 HOUSING; THERMOSTAT HEATER & DEFROSTER(C41) (A)	8-97139-603-1	01	1	0804-	●
2	01.251 HOUSING; THERMOSTAT EXC. HEATER & DEFROSTER(C41) (B)	8-97139-604-3	01	1	0804-	●
26	01.251 CUP; SEALING,VLV,VENTILATION EXC. HEATER & DEFROSTER(C41) 00.253 OD=18	5-11219-008-0	01	1	0804-	●
44	01.252 BOLT; HSG TO HD 09.171 M8X30 W/LK WASHER	0-50540-830-0	05	1	0804-	●
49	01.153 PIPE; WATER OUTLET	8-97204-199-0	01	1	0804-	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0804-		●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0804-	●
50	01.252 BOLT; OUTLET PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
54	01.152 CLIP; THERMO SWITCH,OUTLET PIPE 02.559 ID=13 H=50 L=27	8-94130-076-0	01	1	0804-	●
64	01.154 GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.252	8-94365-674-2	01	1	0804-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	0804-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0804-0905	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	0906-	●

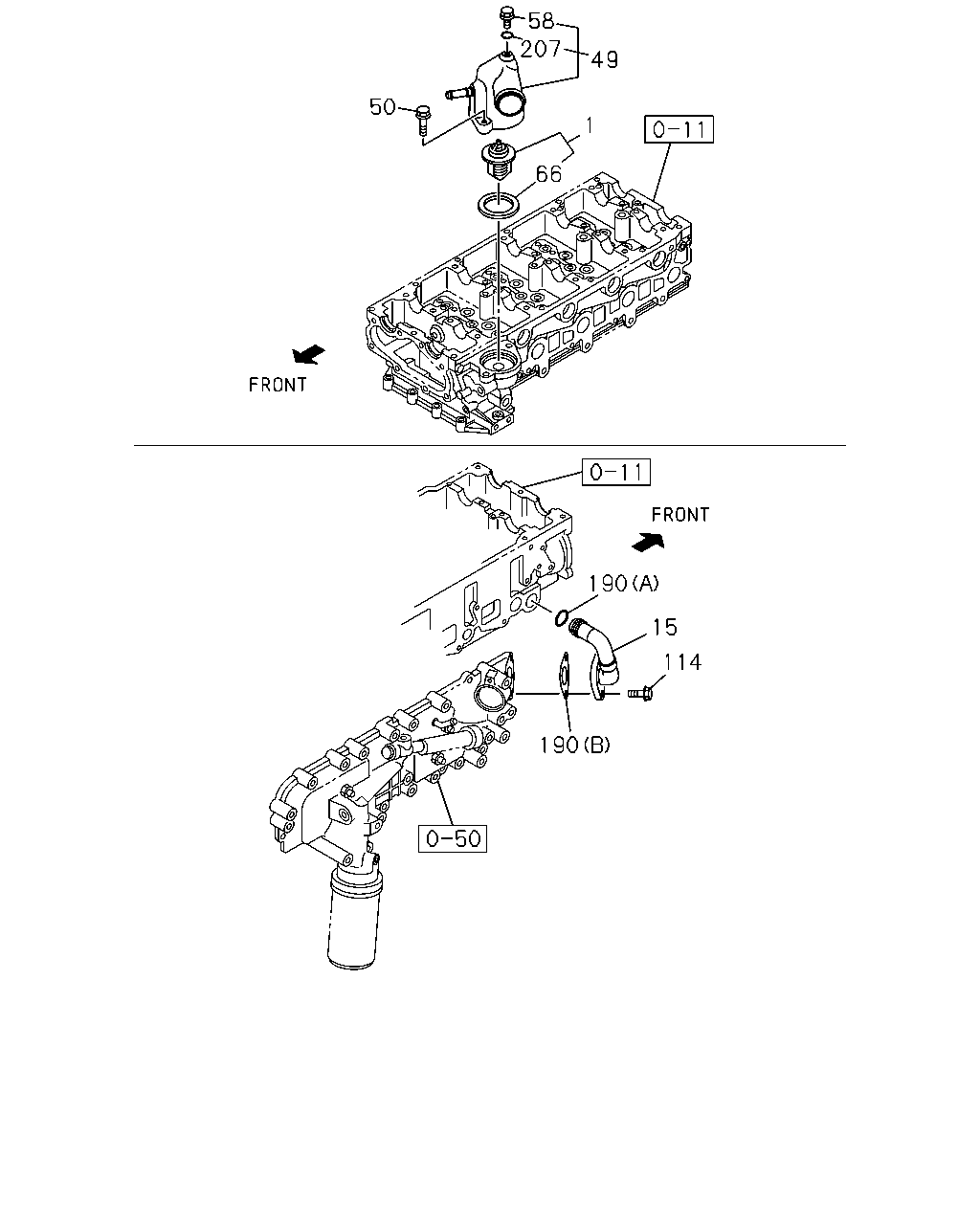

58 207 49 50 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.246 THERMOSTAT 82 CELSIUS	8-97254-816-1	01	1	0804-	●
1	01.246 THERMOSTAT 85 CELSIUS	8-98017-027-2	01	1	0804-		●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	0804-		●
49	01.153 PIPE; WATER OUTLET	8-97204-199-0	01	1	0804-	●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	0804-		●
50	01.252 BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0804-	●
50	01.252 BOLT; OUTLET PIPE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0804-		●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98114-587-0	01	1	0804-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97216-156-0	01	1	0804-0905	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97212-537-1	01	1	0906-	●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	0804-		●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	0804-		●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	0804-		●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0804-		●
