1-01 — ACCELERATOR PEDAL AND CONTROL (#8106) — 177 parça

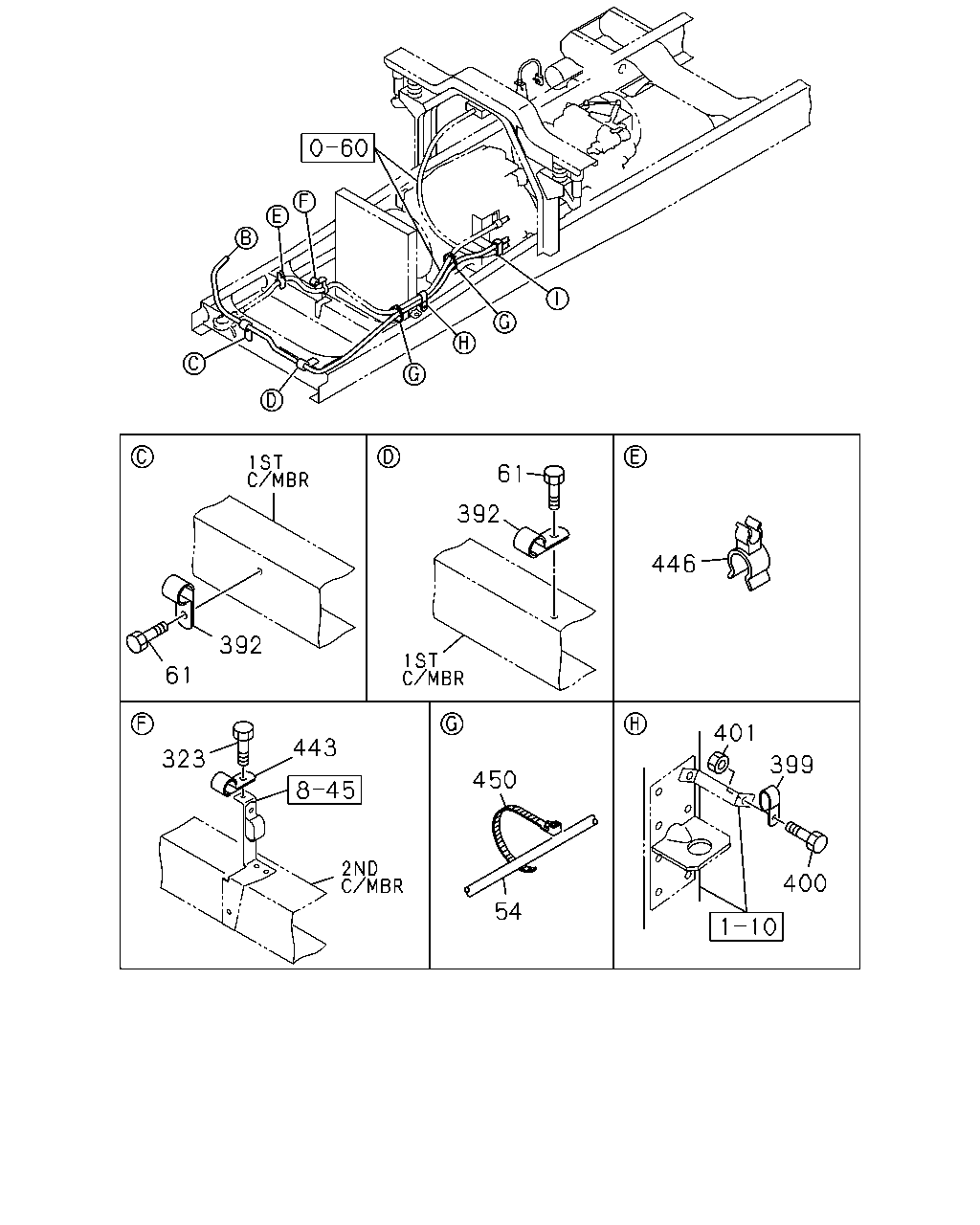

çizim 76975
61 392 446 392 61 401 443 323 399 450 400 54
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 0005-0007 ●
54 CABLE; ENG CONT
FTS ALL(FT****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-6 01 1 0008-0210 ●
54 CABLE; ENG CONT
FSS ALL(FS****) L=2931 		1-73996-446-0 01 1 0008-0210 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
392 CLIP; ACCEL CONT CABLE
ID=13 L=32 		9-09525-265-0 02 1 0005-0210 ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005-0210 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
443 CLIP; CABLE
ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 0005-0210 ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 0005-0210 ●

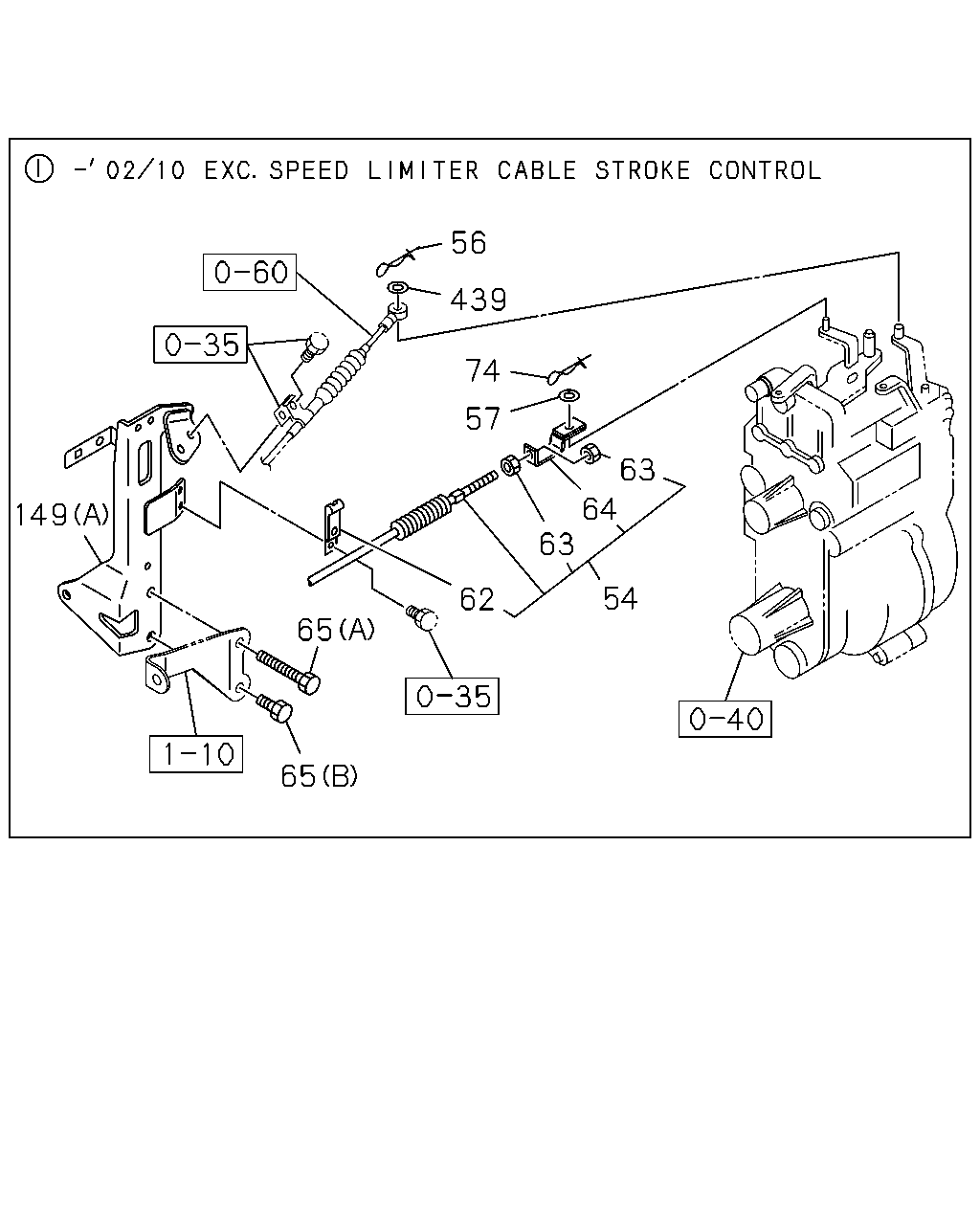

çizim 76976
56 439 74 57 63 64 63 149 54 62 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 0005-0007 ●
54 CABLE; ENG CONT
FTS ALL(FT****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-6 01 1 0008-0210 ●
54 CABLE; ENG CONT
FSS ALL(FS****) L=2931 		1-73996-446-0 01 1 0008-0210 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ●
62 CLIP; ENG CONT CABLE
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=30 		1-09701-104-0 01 1 0005-0007 ●
62 CLIP; ENG CONT CABLE
FSS ALL(FS****) L=30 		1-09701-104-0 01 1 0008-0210 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0210 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0211-0512 ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0211-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
FSS ALL(FS****) (A) 		8-94390-006-2 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0211-0401 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 02 1 0402-0407 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0408- ● ●
149 BRACKET; ENG CONT
FTS ALL(FT****) (B) 		8-94390-107-0 01 1 0005-0210 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ●

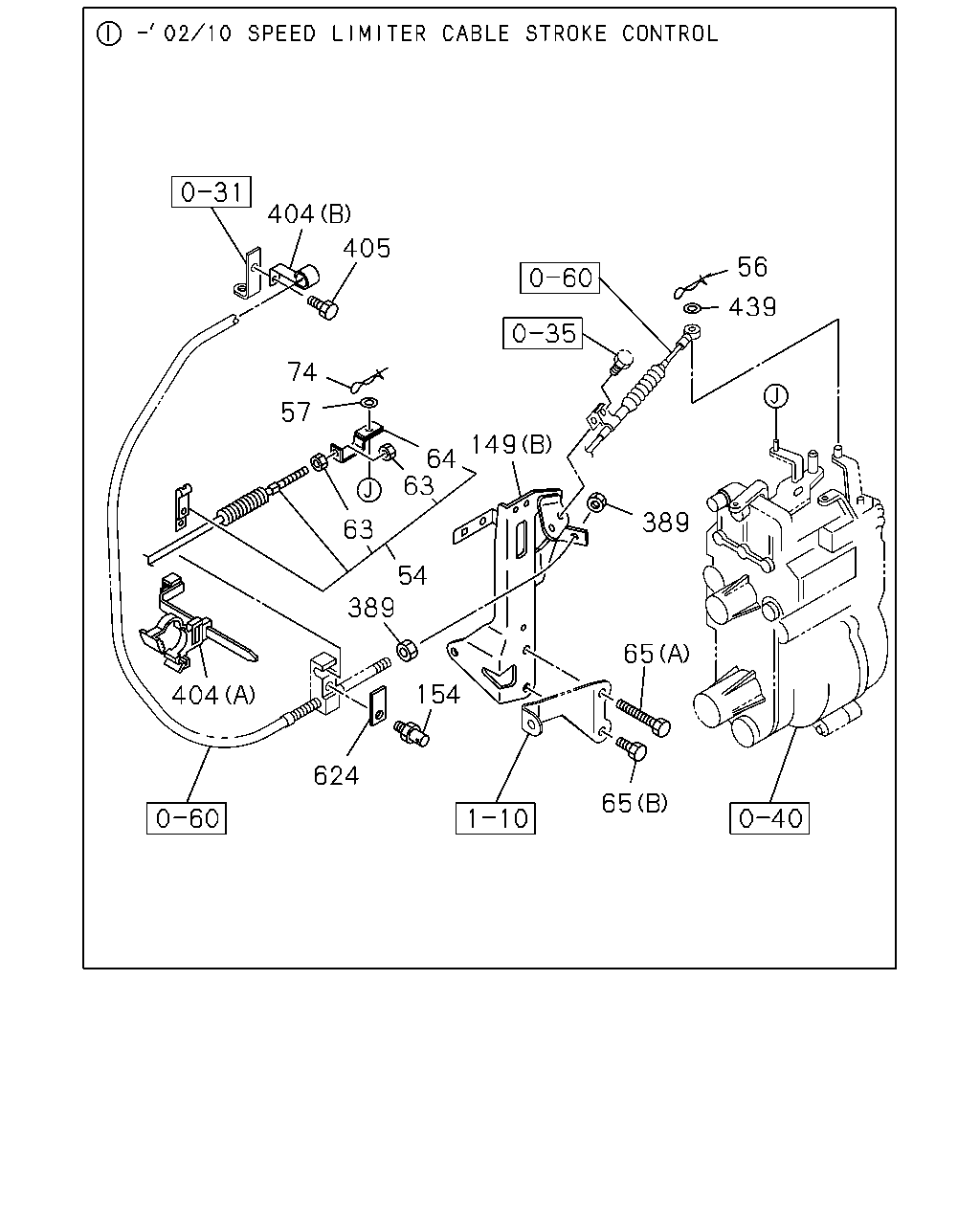

çizim 76978
404 405 56 439 74 57 149 64 63 389 63 54 389 65 154 404 624 65
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 0005-0007 ●
54 CABLE; ENG CONT
FTS ALL(FT****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-6 01 1 0008-0210 ●
54 CABLE; ENG CONT
FSS ALL(FS****) L=2931 		1-73996-446-0 01 1 0008-0210 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0210 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0211-0512 ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0211-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
FSS ALL(FS****) (A) 		8-94390-006-2 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0211-0401 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 02 1 0402-0407 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0408- ● ●
149 BRACKET; ENG CONT
FTS ALL(FT****) (B) 		8-94390-107-0 01 1 0005-0210 ●
154 BOLT; CABLE BRKT
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		9-23321-272-0 01 1 0005-0210 ●
389 NUT; ACCEL CONT CABLE FIX
SPEED LIMITER CABLE STROKE CONTROL<TDT> M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (B) ID=10 & 10 M8 		1-09701-220-0 01 1 0005-0210 ●
404 CLIP; CABLE
SPEED LIMITER CABLE STROKE CONTROL<TDT> (A) 		1-09707-187-0 01 1 0005-0210 ●
405 BOLT; CABLE CLIP
SPEED LIMITER CABLE STROKE CONTROL<TDT> M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ●
624 PLATE; CONT LINK
SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-47477-576-0 01 1 0005-0210 ●

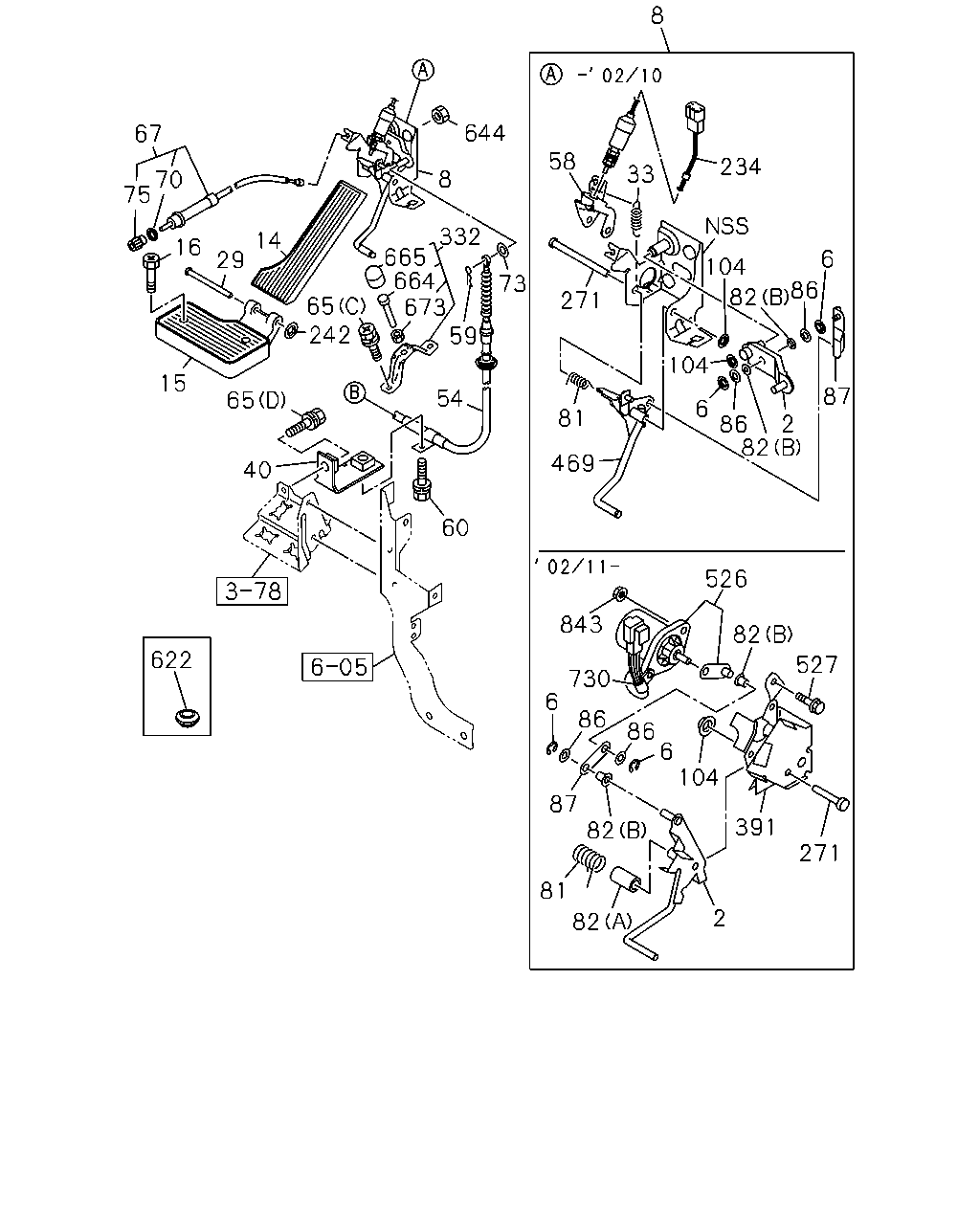

çizim 102885
8 644 67 58 234 33 8 70 75 332 14 16 665 664 673 59 6 29 104 73 86 82 271 65 242 104 15 87 54 65 6 81 82 469 40 60 526 843 82 622 527 730 6 86 6 104 86 87 82 391 271 81 2 82
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005-0210 ●
2 LEVER; ENG CONT 1-71907-535-1 01 1 0211- ● ●
6 RING; SNAP,LINK TO LINK
ID=4 		9-09185-404-0 02 1 0005-0210 ●
6 RING; SNAP,LINK TO LINK
ID=4 		9-09185-404-0 02 1 0211-0604 ● ●
6 RING; SNAP,LINK TO LINK
ID=4 		0-91805-504-0 02 1 0605- ● ●
8 LINK ASM; ENG CONT 1-73996-276-2 01 1 0005-0210 ●
8 LINK ASM; ENG CONT 1-73996-532-0 01 1 0211- ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0005-0210 ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0211- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 0005-0210 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0211- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0005-0210 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0211- ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0211- ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0005-0210 ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0005-0210 ●
54 CABLE; ENG CONT
SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-5 01 1 0005-0007 ●
54 CABLE; ENG CONT
FTS ALL(FT****) EXC. SPEED LIMITER CABLE STROKE CONTROL<TDT> L=2939 		1-73998-940-6 01 1 0008-0210 ●
54 CABLE; ENG CONT
FSS ALL(FS****) L=2931 		1-73996-446-0 01 1 0008-0210 ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0005-0210 ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0005-0210 ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0211-0512 ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0211-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 0005-0204 ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-0 01 1 0205-0210 ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0005-0210 ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 0005-0109 ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205-0210 ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0005-0210 ●
81 SPRING; RETURN,ENG CONT LEVER 8-97853-205-1 01 1 0211- ● ●
82 BUSHING; ENG CONT LVR
(B) 		1-71907-244-1 02 1 0005-0210 ●
82 BUSHING; ENG CONT LVR
(B) 		1-71907-244-1 02 1 0211- ● ●
82 BUSHING; ENG CONT LVR
(A) L=31.5 		1-53459-627-0 01 1 0211- ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0005-0210 ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0211- ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0005-0210 ●
87 LINK; ENG CONT 8-97865-545-0 01 1 0211- ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005-0210 ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0211- ● ●
234 SWITCH; ACCEL 1-82440-098-0 01 1 0005-0210 ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0210 ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0211- ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0211- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0005-0210 ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0211-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301- ● ●
391 BRACKET; ENG CONT 1-73996-533-0 01 1 0211- ● ●
469 LEVER ASM 1-71907-209-5 01 1 0005-0210 ●
526 SENSOR; ACCEL 8-94390-280-0 01 1 0211- ● ●
527 BOLT; ACCEL SENSOR
M6X25 FLANGE 		0-28680-625-0 02 1 0211-0512 ● ●
527 BOLT; ACCEL SENSOR
M6X25 FLANGE 		0-28650-625-0 02 1 0601- ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0211- ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0210 ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0211- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0005-0210 ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0211- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0005-0210 ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0211-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0005-0210 ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0211-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ●
730 CLIP
ID=11 L=20 		9-09525-032-0 01 1 0211-0606 ● ●
730 CLIP
ID=11 L=20 		0-95235-032-0 01 1 0607- ● ●
843 NUT
M6 FLANGE 		0-91150-106-0 02 1 0211-0602 ● ●
843 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●

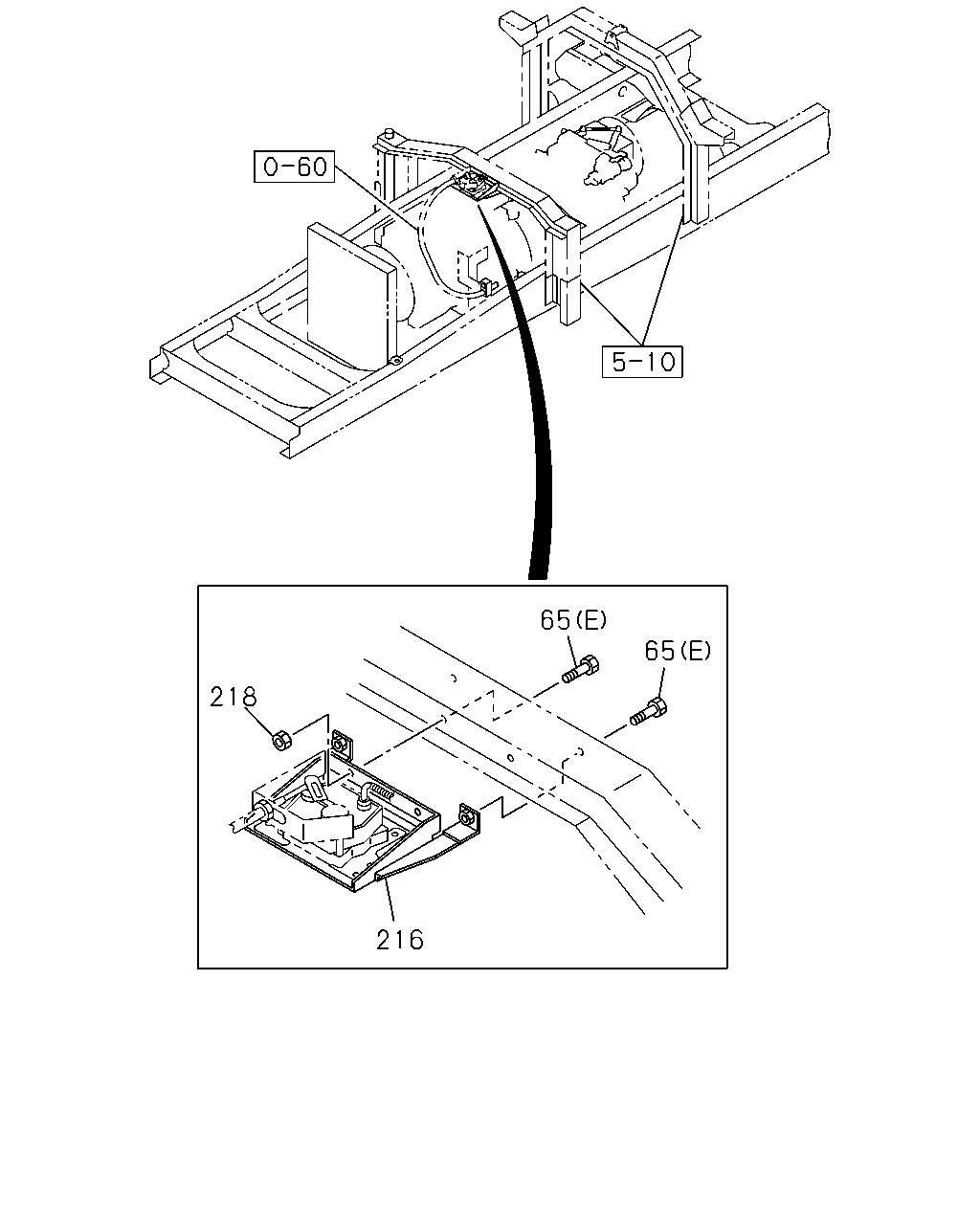

çizim 102886
65 65 218 216
BalonParca AdiParca NoAdetTipApplied Date A B C
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0211-0512 ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0211-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
216 BRACKET
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> 		1-47478-763-1 01 1 0005-0210 ●
218 NUT; BRKT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ●

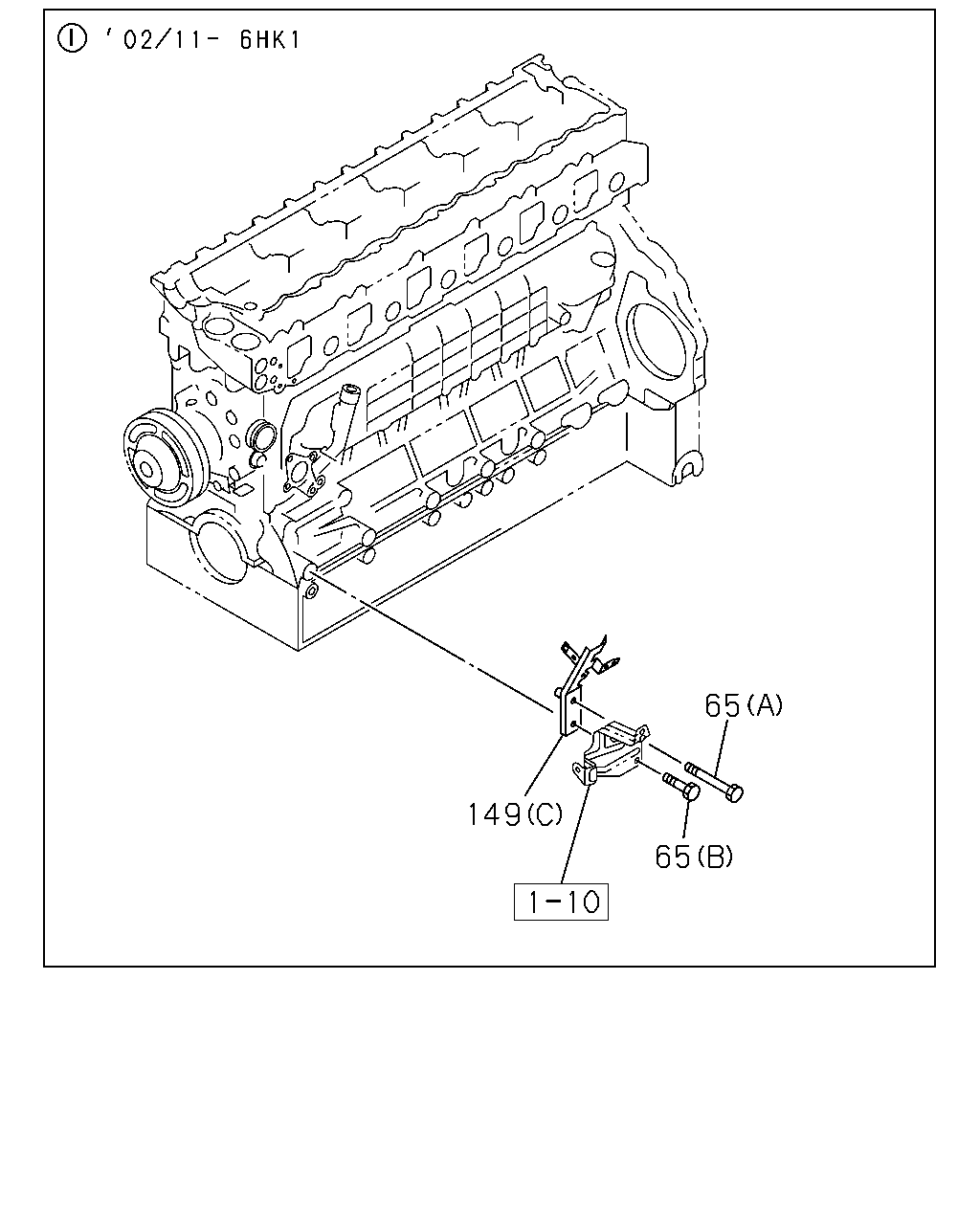

çizim 103540
65 149 65
BalonParca AdiParca NoAdetTipApplied Date A B C
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0211-0512 ● ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0211-0512 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ●
65 BOLT
FTS DOUBLE CAB(FT**W*) SPEED LIMITER CABLE STROKE CONTROL<TDT> (E) M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ●
149 BRACKET; ENG CONT
FSS ALL(FS****) (A) 		8-94390-006-2 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0211-0401 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 02 1 0402-0407 ● ●
149 BRACKET; ENG CONT
(C) 		8-97600-017-0 01 1 0408- ● ●
149 BRACKET; ENG CONT
FTS ALL(FT****) (B) 		8-94390-107-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
