Isuzu WW
▶
TRUCKS
▶
NLR
▶
51395 - NLR/NMR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶

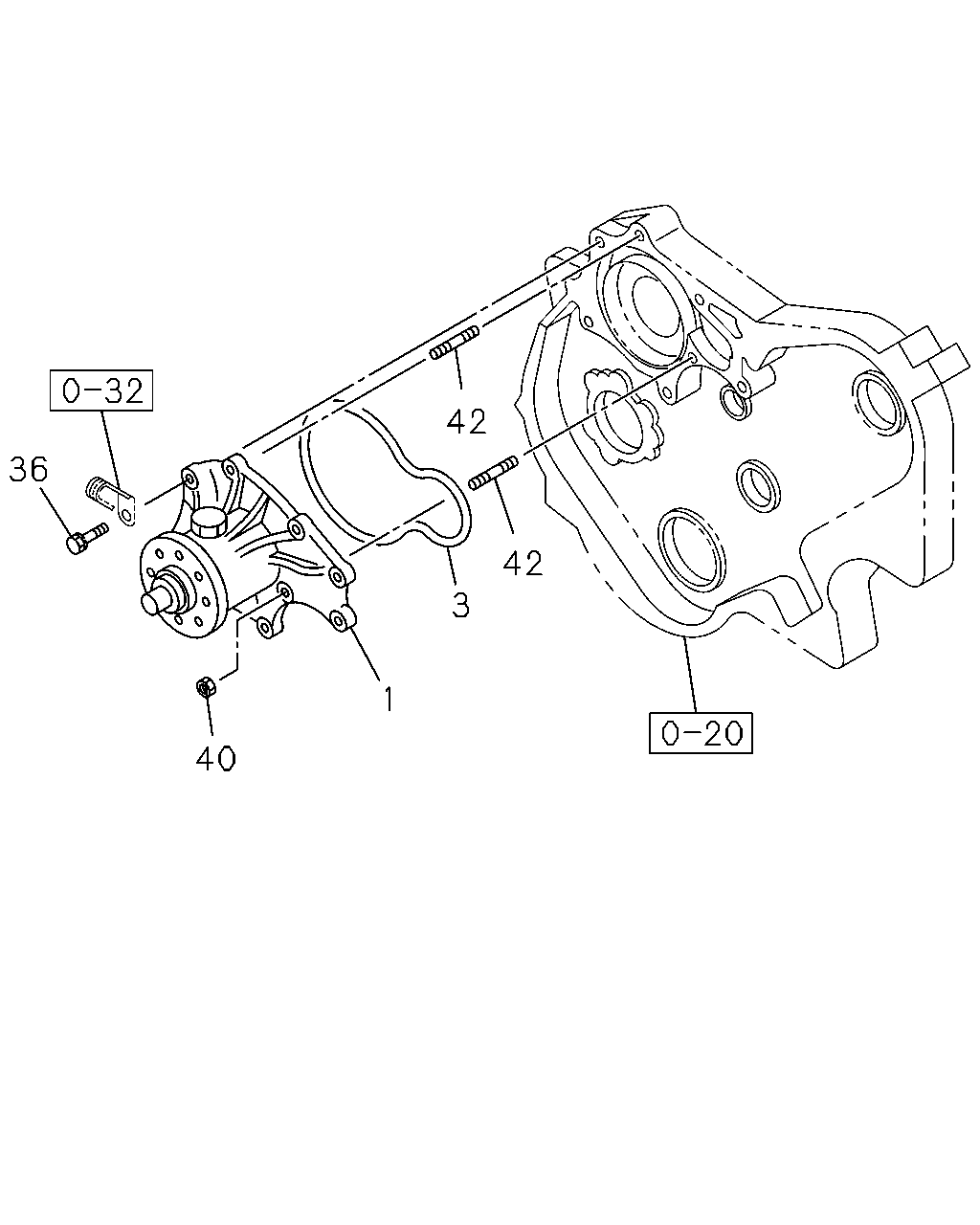

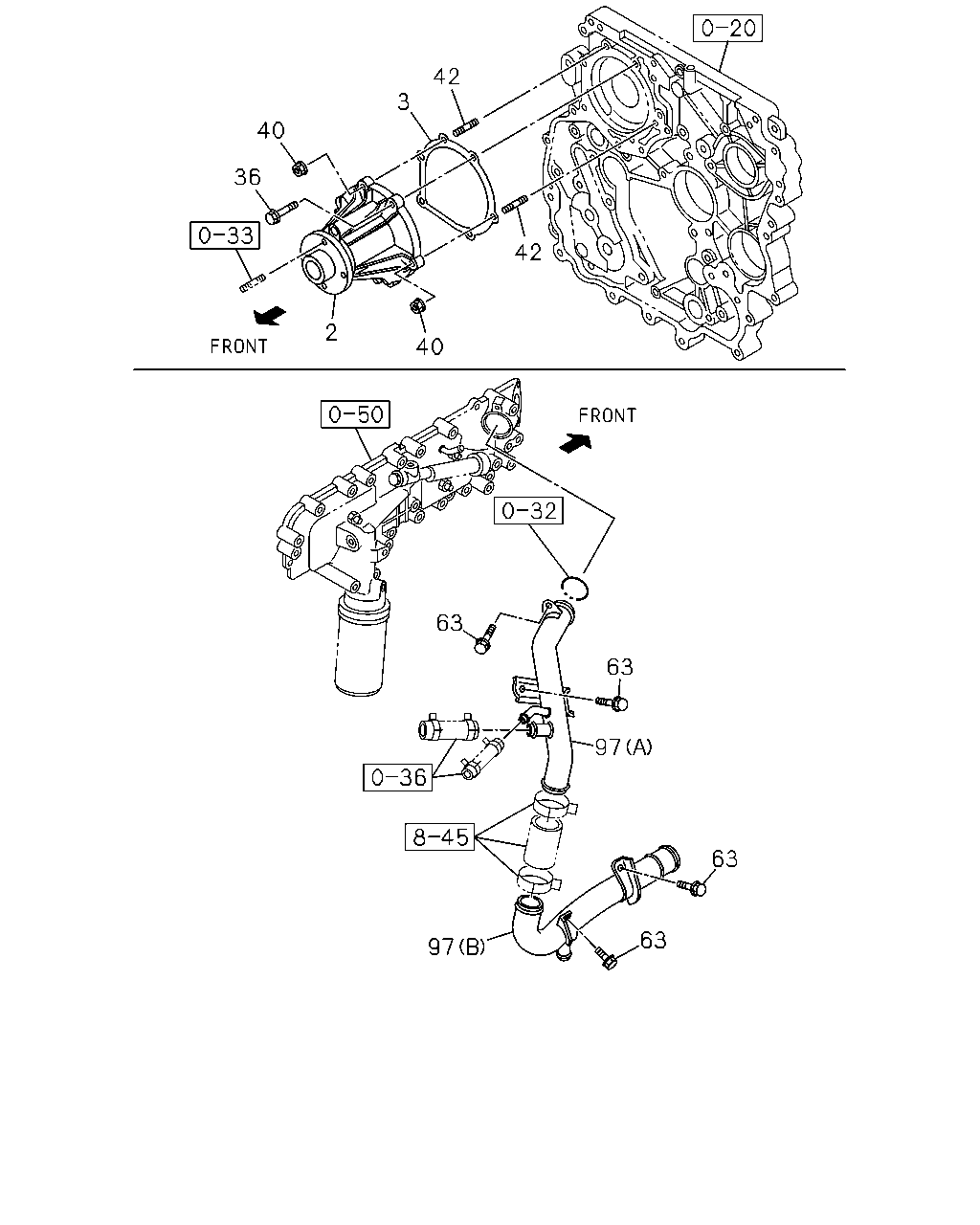

0-30 — WATER PUMP AND CORROSION RESISTOR
(#81059) — 22 parça
Tümü
A - 4JJ1-TCC ENG
B - 4JB1-TC ENG
◀
[030A] 4JJ1 (12 parça)
[030A] 4JB1 (10 parça)
▶
42
3
40
36
42
2
40
63
63
97
63
63
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
01.069 PUMP ASM; WATER
8-98004-292-3
01
1
0804-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
0804-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
0804-
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
0804-
●
36
00.386 BOLT; WATER PUMP TO C/BL
04.686 M8X60 FLANGE
0-28050-860-0
04
1
0804-
●
40
07.874 NUT; WATER PUMP
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
0804-
●
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE IDN
0-91180-208-0
02
1
0804-
●
42
01.073 STUD; WATER PUMP
M8X22 L=34 IDN
0-41010-822-0
02
1
0804-
●
42
01.073 STUD; WATER PUMP
M8X28 L=40
0-41010-828-0
02
1
0804-
●
63
01.073 BOLT; INL PIPE
02.343 M8X16 FLANGE
0-28050-816-0
04
1
0804-
●
97
01.097 PIPE; WATER
(B)
8-98009-676-3
01
1
0804-
●
97
01.097 PIPE; WATER
(A)
8-98066-089-1
01
1
0804-
●
36
40
1
3
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
01.069 PUMP ASM; WATER,W/GASKET
8-97105-012-5
01
1
0804-
●
1
01.069 PUMP ASM; WATER,W/GASKET
BEST VALUE PARTS
5-87610-088-0
01
1
1009-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
0804-
●
3
01.079 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97312-156-0
01
1
0804-
●
36
00.386 BOLT; WATER PUMP TO C/BL
03.330 M8X55 W/LK WASHER
5-09000-084-1
05
1
0804-
●
36
00.386 BOLT; WATER PUMP TO C/BL
04.686 M8X60 FLANGE
0-28050-860-0
04
1
0804-
●
40
07.874 NUT; WATER PUMP
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
0804-
●
40
07.874 NUT; WATER PUMP
01.540 M8 FLANGE IDN
0-91180-208-0
02
1
0804-
●
42
01.073 STUD; WATER PUMP
M8X22 L=34 IDN
0-41010-822-0
02
1
0804-
●
42
01.073 STUD; WATER PUMP
M8X28 L=40
0-41010-828-0
02
1
0804-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
