◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#81051) — 42 parça

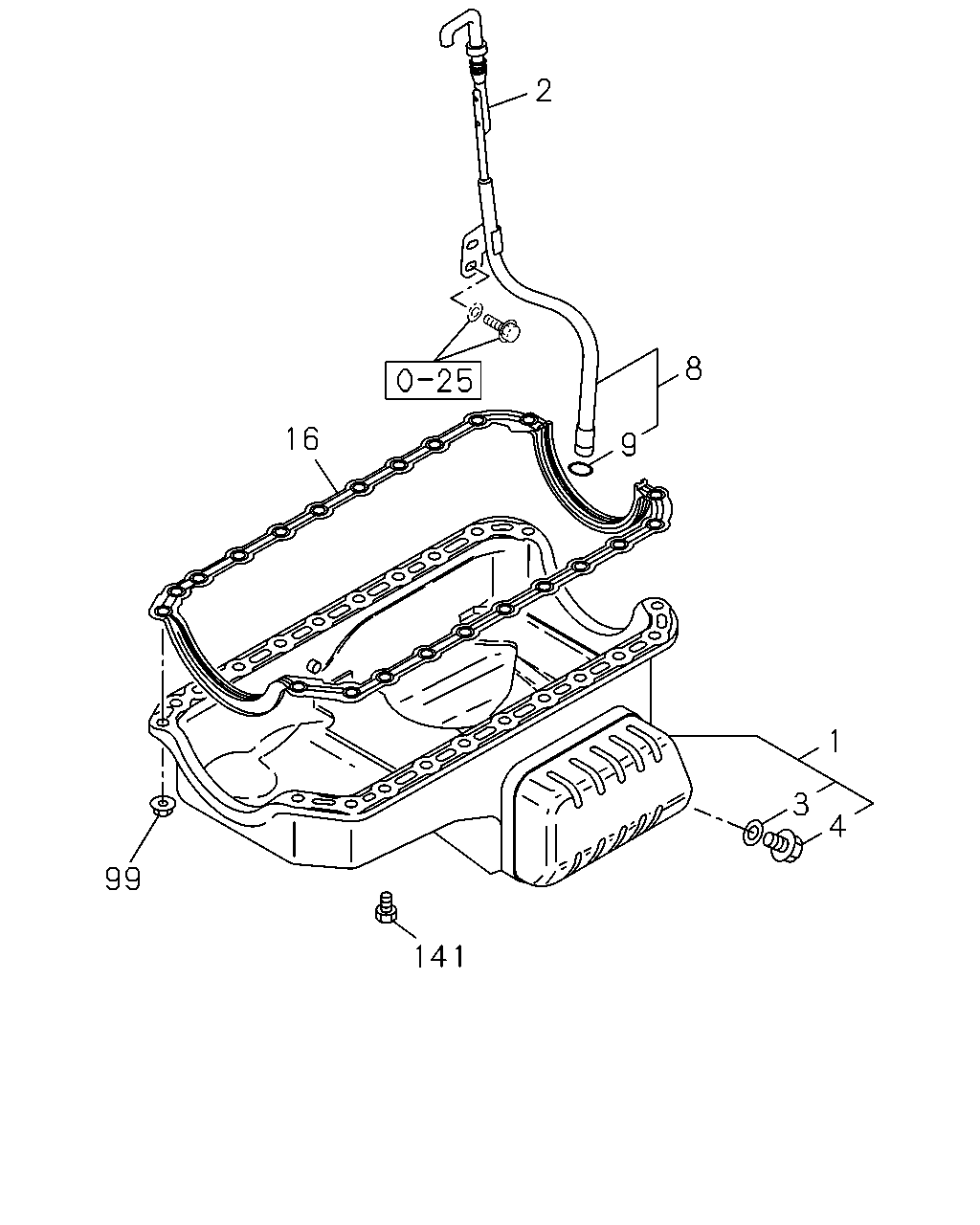

çizim 33731
2 8 16 9 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 0804- ●
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0804- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0804- ●
2 01.516 GAUGE; OIL LEVEL 8-98112-777-1 01 1 0804- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0804- ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0804-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 IDN 		8-94152-613-0 01 1 0804-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 IDN 		8-94152-613-0 01 1 0807- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 0804- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0804- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0804- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0804- ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0804- ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0804- ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0804- ●

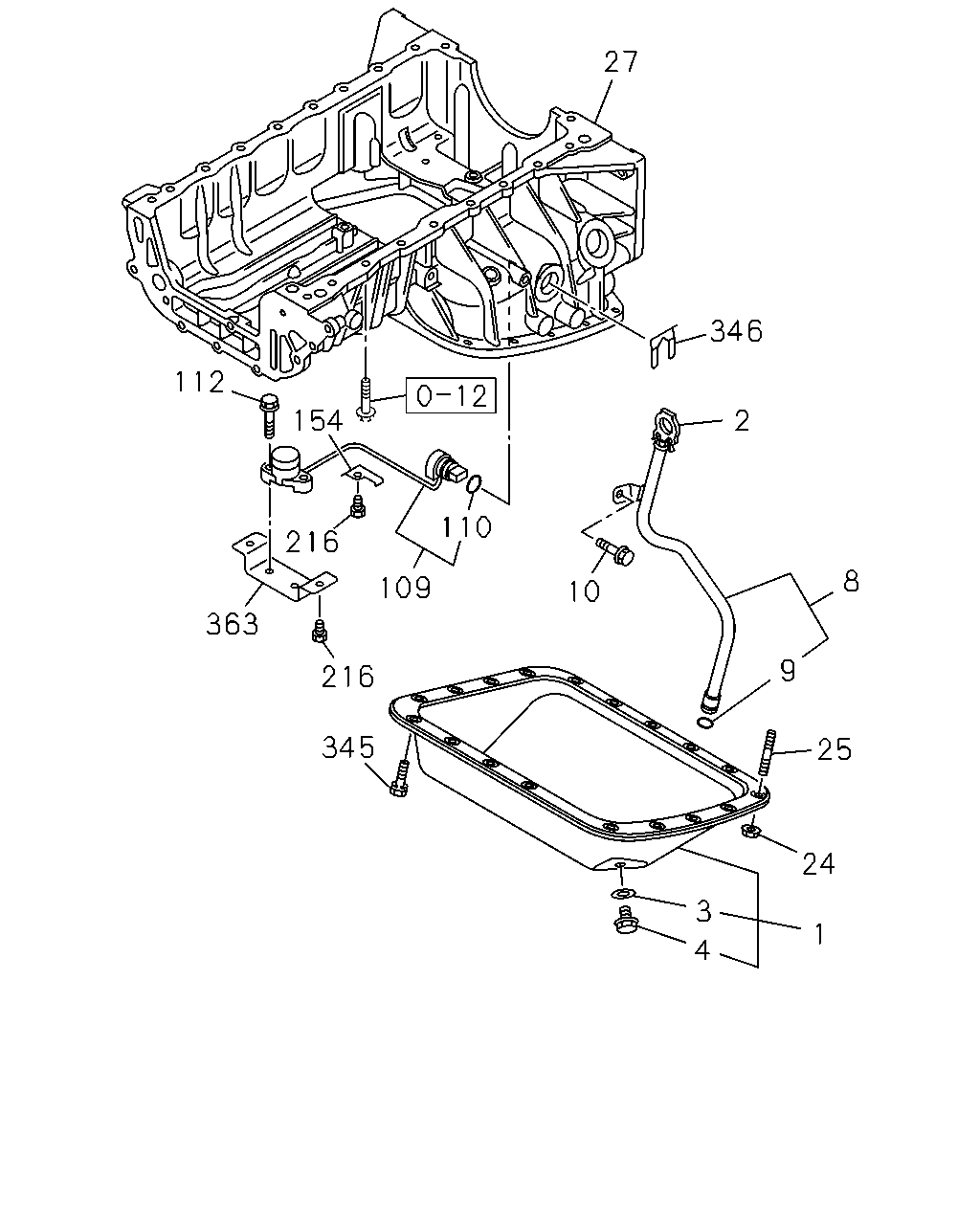

çizim 37446
27 346 112 154 2 110 216 8 109 10 363 9 216 345 25 24 3 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 0804- ●
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0804- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0804- ●
2 01.516 GAUGE; OIL LEVEL 8-98112-777-1 01 1 0804- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0804- ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0804-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 IDN 		8-94152-613-0 01 1 0804-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 IDN 		8-94152-613-0 01 1 0807- ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 0804- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0804- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0804- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0804- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0804- ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE IDN 		0-91180-208-0 02 1 0804- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0804-1405 ●
25 01.453 STUD; OIL PAN
00.349 M8X20 L=31 		8-97945-022-0 02 1 1406- ●
27 01.426 CRANKCASE 8-97381-483-6 01 1 0804-1106 ●
27 01.426 CRANKCASE 8-97381-483-7 02 1 1107-1111 ●
27 01.426 CRANKCASE 8-98191-052-0 01 1 1112- ●
109 01.516 SWITCH; OIL LEVEL 8-97328-879-0 01 1 0804-1111 ●
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0804-1111 ●
112 01.516 BOLT; SW,OIL LEVEL
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0804-1111 ●
154 01.428 BRACKET; CLIP,ENG HARNESS 8-97386-380-0 01 1 0804-1111 ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0804-1111 ●
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0804- ●
346 01.516 CLIP; OIL LEVEL SW
04.047 ID=19.2 		8-97211-011-0 01 1 0804-1111 ●
363 01.516 BRACKET; OIL LEVEL SW 8-97381-486-0 01 1 0804-1111 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
