1 |

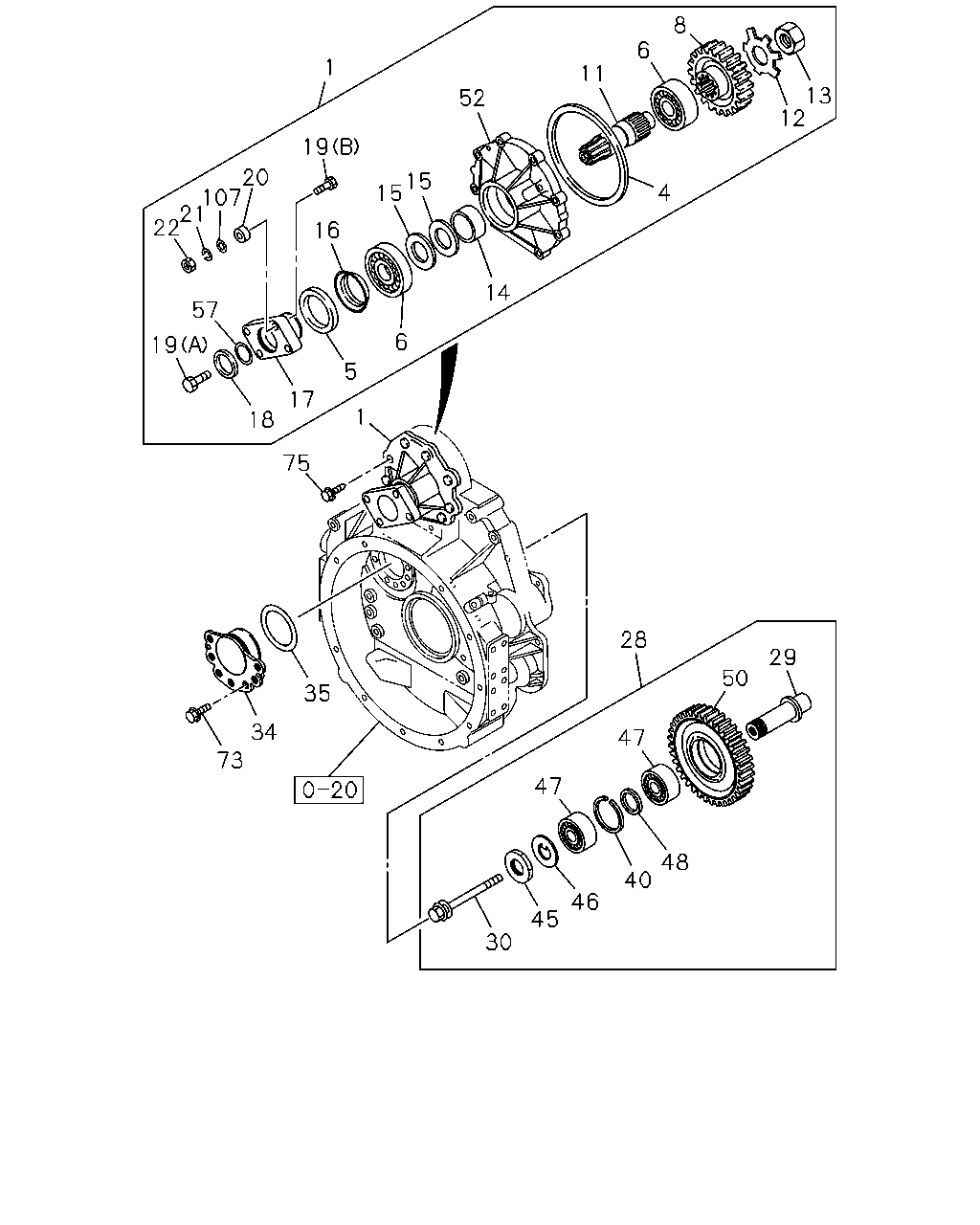

POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
8-94396-900-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
1 |
POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1)
|
8-94396-900-4 |
01 |
1 |
0211- |
|
● |
● |
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
9-09720-519-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
4 |
GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
9-09720-519-0 |
01 |
1 |
0211- |
|
● |
● |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09625-128-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
1-09625-128-0 |
01 |
1 |
0211-0709 |
|
● |
● |
| |
5 |
SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE).
ENGINE REAR PTO(SV1)
|
8-97388-533-0 |
01 |
1 |
0710- |
|
● |
● |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
KOYO
|
8-94248-088-2 |
02 |
1 |
0506-1204 |
|
● |
● |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
JTEKT
|
8-98171-254-0 |
02 |
1 |
1205- |
|
● |
● |
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
NSK
|
9-00093-149-0 |
02 |
1 |
0005-0210 |
● |
|
|
| |
6 |
BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
NSK
|
9-00093-149-0 |
02 |
1 |
0211- |
|
● |
● |
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=60
|
8-94396-885-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
8 |
GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
Z=60
|
8-94396-885-0 |
01 |
1 |
0211- |
|
● |
● |
| |
11 |
SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
8-94397-265-1 |
01 |
1 |
0005-0210 |
● |
|
|
| |
11 |
SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
8-94397-265-1 |
01 |
1 |
0211- |
|
● |
● |
| |
12 |
WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09853-865-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
12 |
WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09853-865-0 |
01 |
1 |
0211- |
|
● |
● |
| |
13 |
NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09843-720-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
13 |
NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-09843-720-1 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=17.95
|
9-38226-045-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=17.95
|
9-38226-045-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.20
|
9-38226-046-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.20
|
9-38226-046-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.45
|
9-38226-047-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.45
|
9-38226-047-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.70
|
9-38226-048-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.70
|
9-38226-048-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.95
|
9-38226-049-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=18.95
|
9-38226-049-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.20
|
9-38226-050-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.20
|
9-38226-050-0 |
01 |
1 |
0211- |
|
● |
● |
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.45
|
9-38226-051-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
14 |
SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=19.45
|
9-38226-051-0 |
01 |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.50
|
9-41229-324-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.50
|
9-41229-324-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.51
|
9-41229-325-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.51
|
9-41229-325-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.52
|
9-41229-326-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.52
|
9-41229-326-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.53
|
9-41229-327-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.53
|
9-41229-327-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.54
|
9-41229-328-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.54
|
9-41229-328-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.55
|
9-41229-329-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.55
|
9-41229-329-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.56
|
9-41229-330-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.56
|
9-41229-330-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.57
|
9-41229-331-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.57
|
9-41229-331-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.58
|
9-41229-332-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.58
|
9-41229-332-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.59
|
9-41229-333-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.59
|
9-41229-333-0 |
AR |
1 |
0211- |
|
● |
● |
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.60
|
9-41229-334-0 |
AR |
1 |
0005-0210 |
● |
|
|
| |
15 |
SHIM; PTO
ENGINE REAR PTO(SV1)
T=3.60
|
9-41229-334-0 |
AR |
1 |
0211- |
|
● |
● |
| |
16 |
THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-38175-011-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
16 |
THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
9-38175-011-0 |
01 |
1 |
0211- |
|
● |
● |
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-011-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
17 |
FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-38189-011-1 |
01 |
1 |
0211- |
|
● |
● |
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
18 |
WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
|
1-09509-014-1 |
01 |
1 |
0211- |
|
● |
● |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(A)
M20X60
|
9-92052-060-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(A)
M20X60
|
9-92052-060-0 |
01 |
1 |
0211-0709 |
|
● |
● |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(A)
M20X60
|
0-20852-060-0 |
01 |
1 |
0710- |
|
● |
● |
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(B)
M12X45
|
9-92621-245-0 |
04 |
1 |
0005-0210 |
● |
|
|
| |
19 |
BOLT; FLANGE
ENGINE REAR PTO(SV1)
(B)
M12X45
|
9-92621-245-0 |
04 |
1 |
0211- |
|
● |
● |
| |
20 |
SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=13 ID=22.2
|
9-38189-005-0 |
04 |
1 |
0005-0210 |
● |
|
|
| |
20 |
SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1)
T=13 ID=22.2
|
9-38189-005-0 |
04 |
1 |
0211-0312 |
|
● |
● |
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0005-0210 |
● |
|
|
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0211-0603 |
|
● |
● |
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604-0709 |
|
● |
● |
| |
21 |
WASHER; LK,FLANGE
ENGINE REAR PTO(SV1)
ID=12.2
|
0-91510-812-0 |
04 |
1 |
0710- |
|
● |
● |
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
0005-0210 |
● |
|
|
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
9-99110-512-0 |
04 |
1 |
0211-0512 |
|
● |
● |
| |
22 |
NUT; FLANGE
ENGINE REAR PTO(SV1)
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
|
● |
● |
| |
28 |
GEAR; IDLE
ENGINE REAR PTO(SV1)
|
8-94396-916-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
28 |
GEAR; IDLE
ENGINE REAR PTO(SV1)
|
8-94392-384-0 |
01 |
1 |
0211- |
|
● |
● |
| |
29 |
SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1)
|
8-94396-895-1 |
01 |
1 |
0005-0210 |
● |
|
|
| |
29 |
SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1)
|
8-94392-379-0 |
01 |
1 |
0211- |
|
● |
● |
| |
30 |
BOLT; SPINDLE
ENGINE REAR PTO(SV1)
M14X125 FLANGE W/PL WASHER
|
1-09070-043-1 |
01 |
1 |
0005-0210 |
● |
|
|
| |
30 |
BOLT; SPINDLE
ENGINE REAR PTO(SV1)
M14X125 FLANGE W/PL WASHER
|
1-09070-043-1 |
01 |
1 |
0211- |
|
● |
● |
| |
34 |
COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
8-94396-896-2 |
01 |
1 |
0005-0210 |
● |
|
|
| |
34 |
COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
8-97600-138-0 |
01 |
1 |
0211- |
|
● |
● |
| |
35 |
GASKET; COVER
ENGINE REAR PTO(SV1)
|
8-94396-903-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
35 |
GASKET; COVER
ENGINE REAR PTO(SV1)
|
8-94396-903-0 |
01 |
1 |
0211- |
|
● |
● |
| |
40 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
40 |
SPACER; IDLE GEAR
ENGINE REAR PTO(SV1)
T=3
|
1-38226-015-0 |
01 |
1 |
0211- |
|
● |
● |
| |
45 |
NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
45 |
NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1)
|
1-09840-005-0 |
01 |
1 |
0211-0805 |
|
● |
● |
| |
45 |
NUT; BRG,IDLE GEAR
ENGINE REAR PTO(SV1)
M45
|
8-98013-634-0 |
01 |
1 |
0806- |
|
● |
● |
| |
46 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
46 |
WASHER; LK,BRG
ENGINE REAR PTO(SV1)
ID=47
|
1-09533-003-0 |
01 |
1 |
0211- |
|
● |
● |
| |
47 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
0005-0210 |
● |
|
|
| |
47 |
BEARING; TAPER ROLLER
ENGINE REAR PTO(SV1)
ID=45 OD=85
|
9-00032-209-0 |
02 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.05
|
1-38226-016-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.12
|
1-38226-017-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.19
|
1-38226-018-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.26
|
1-38226-019-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.33
|
1-38226-020-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.40
|
1-38226-021-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.47
|
1-38226-022-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.54
|
1-38226-023-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.61
|
1-38226-024-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.68
|
1-38226-025-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.75
|
1-38226-026-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.82
|
1-38226-027-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.89
|
1-38226-028-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=6.96
|
1-38226-029-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.03
|
1-38226-030-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.10
|
1-38226-031-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.17
|
1-38226-032-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.24
|
1-38226-033-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.31
|
1-38226-034-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.38
|
1-38226-035-0 |
01 |
1 |
0211- |
|
● |
● |
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
48 |
SPACER; INNER
ENGINE REAR PTO(SV1)
T=7.45
|
1-38226-036-0 |
01 |
1 |
0211- |
|
● |
● |
| |
50 |
GEAR; IDLE A
ENGINE REAR PTO(SV1)
Z=72
|
8-94396-884-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
50 |
GEAR; IDLE A
ENGINE REAR PTO(SV1)
Z=72
|
8-94392-381-0 |
01 |
1 |
0211- |
|
● |
● |
| |
52 |
CASE; BRG,PTO
ENGINE REAR PTO(SV1)
|
5-38110-001-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
52 |
CASE; BRG,PTO
ENGINE REAR PTO(SV1)
|
5-38110-001-0 |
01 |
1 |
0211- |
|
● |
● |
| |
57 |
GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-09623-285-0 |
01 |
1 |
0005-0210 |
● |
|
|
| |
57 |
GASKET; FLANGE,PTO,FLYWHEEL
ENGINE REAR PTO(SV1)
|
1-09623-285-0 |
01 |
1 |
0211- |
|
● |
● |
| |
73 |
BOLT; COVER,PTO
ENGINE REAR PTO(SV1)
M10X25 FLANGE
|
0-28181-025-0 |
07 |
1 |
0005-0210 |
● |
|
|
| |
73 |
BOLT; COVER,PTO
ENGINE REAR PTO(SV1)
M10X25 FLANGE
|
0-28181-025-0 |
07 |
1 |
0211-0512 |
|
● |
● |
| |
73 |
BOLT; COVER,PTO
ENGINE REAR PTO(SV1)
M10X25 FLANGE
|
0-28151-025-0 |
07 |
1 |
0601- |
|
● |
● |
| |
75 |
BOLT; COVER
ENGINE REAR PTO(SV1)
M10X28 FLANGE
|
0-28181-028-0 |
08 |
1 |
0005-0210 |
● |
|
|
| |
75 |
BOLT; COVER
ENGINE REAR PTO(SV1)
M10X28 FLANGE
|
0-28181-028-0 |
08 |
1 |
0211-0805 |
|
● |
● |
| |
75 |
BOLT; COVER
ENGINE REAR PTO(SV1)
M10X28 FLANGE
|
8-98044-944-0 |
08 |
1 |
0806- |
|
● |
● |
| |
107 |
WASHER; PL,FLANGE
ENGINE REAR PTO(SV1)
ID=12.5
|
9-09160-512-0 |
04 |
1 |
0401-0605 |
|
● |
● |
| |
107 |
WASHER; PL,FLANGE
ENGINE REAR PTO(SV1)
ID=12.5 OD=22
|
0-91610-512-0 |
04 |
1 |
0606- |
|
● |
● |
