Sayfa 0-05 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51395 - NLR/NMR(INDONESIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶

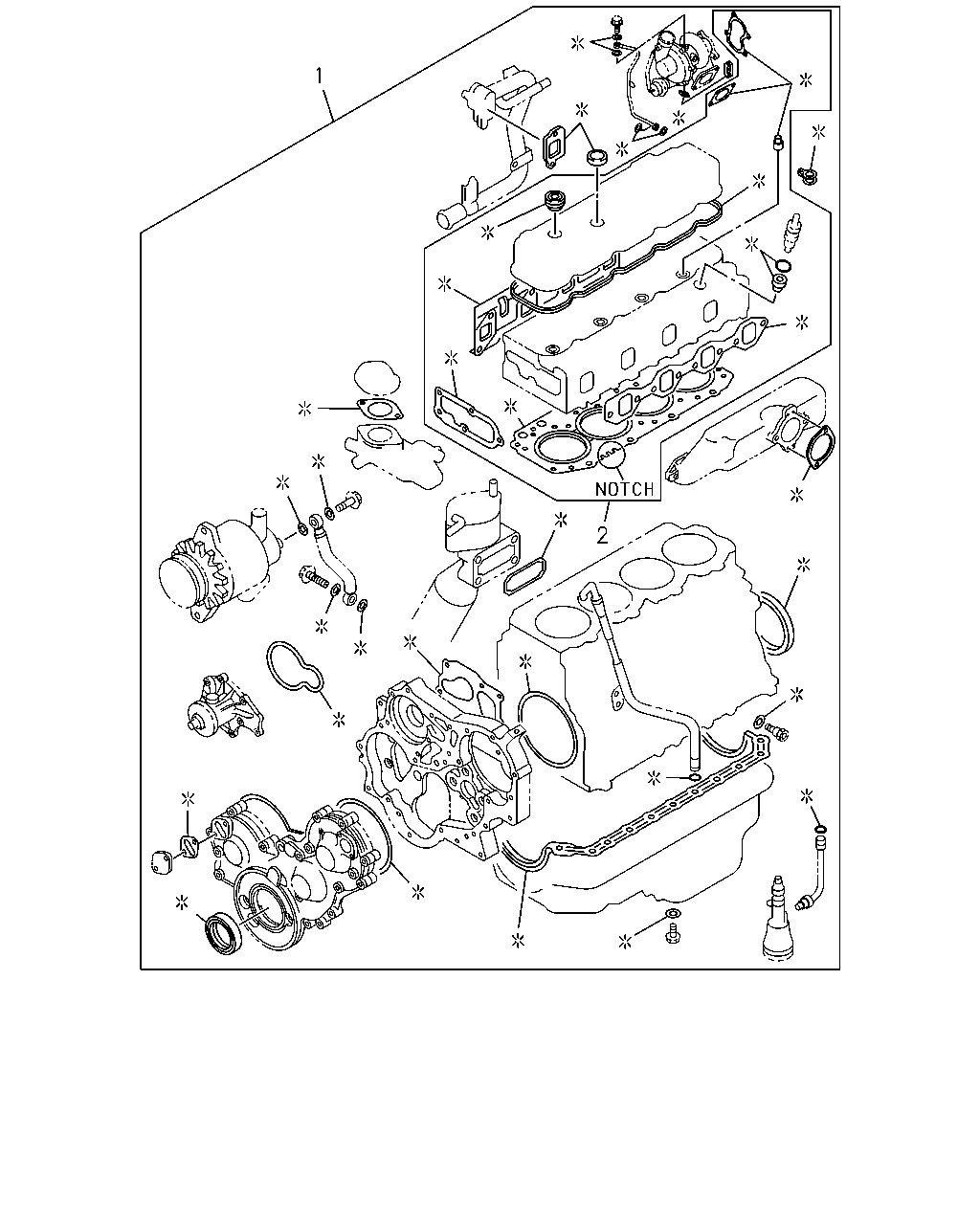

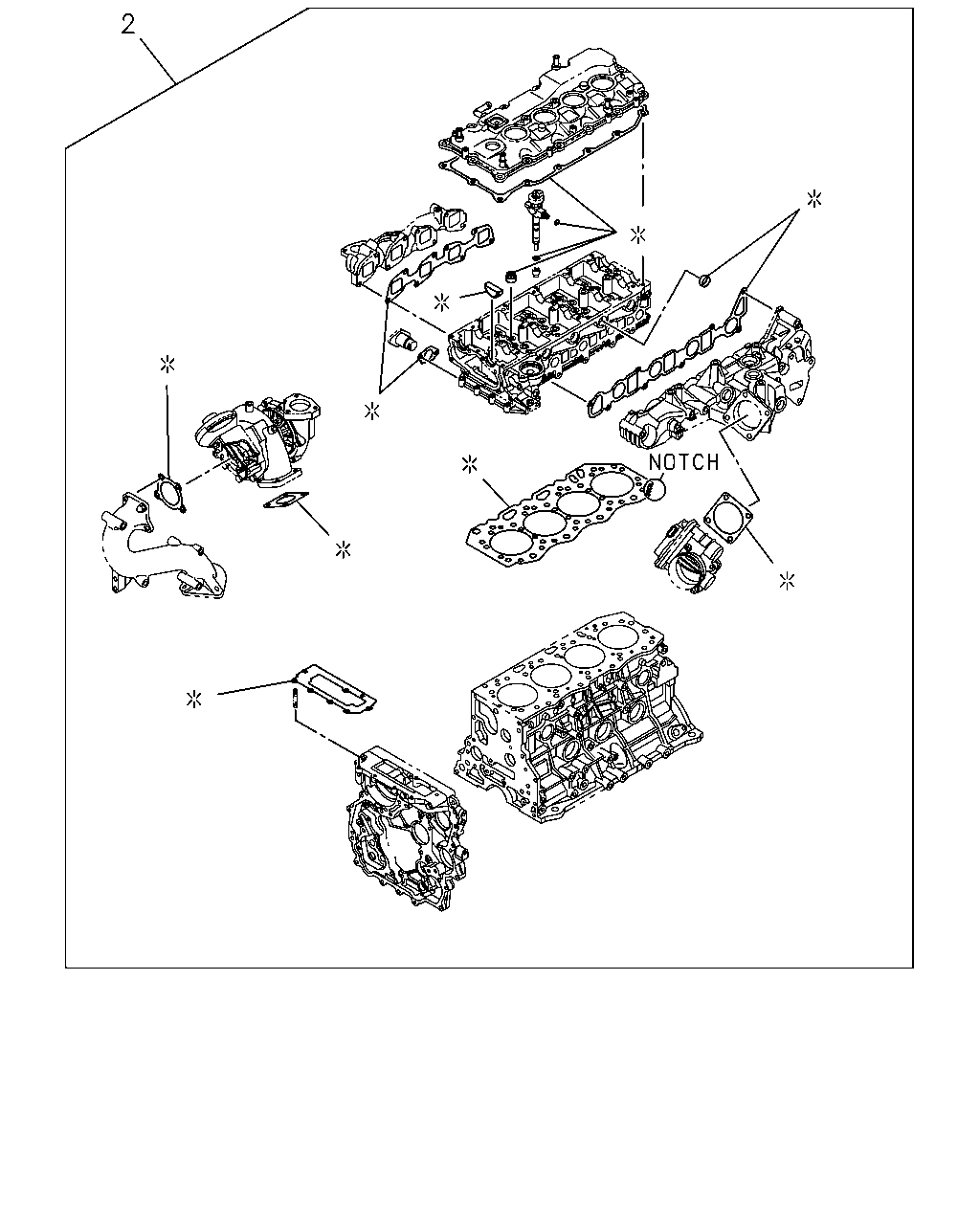

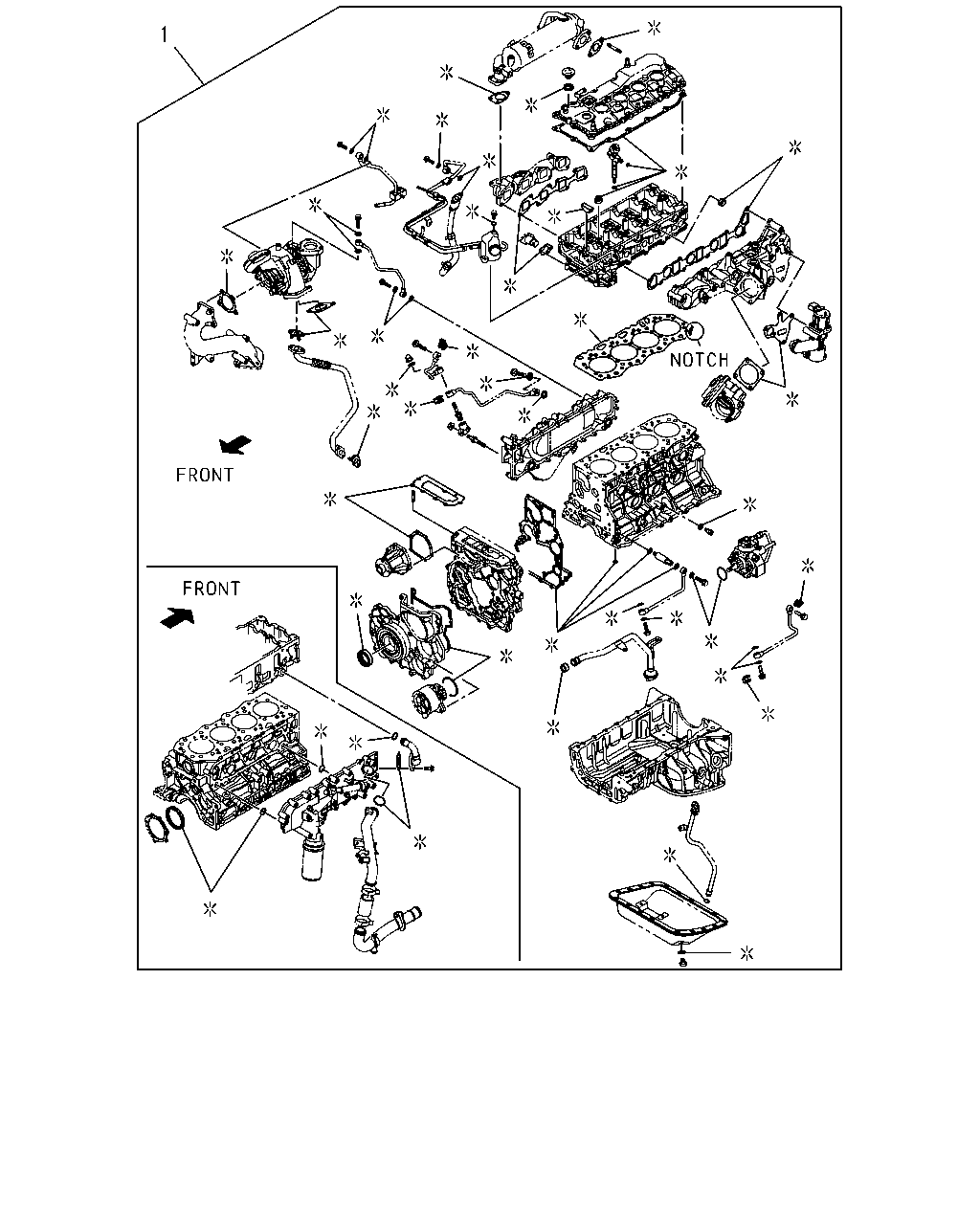

0-05 — ENGINE GASKET KIT (#81047) — 126 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87815-175-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87815-176-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87815-177-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-096-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-364-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-433-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-776-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-921-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-108-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-352-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-534-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-574-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-779-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-877-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87817-674-0	01	1	1412-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-097-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-365-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-434-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-777-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-922-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-109-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-353-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-535-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-575-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-780-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-878-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87817-675-0	01	1	1412-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-098-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-366-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-435-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-778-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-923-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-110-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-354-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-536-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-576-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-781-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-879-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87817-676-0	01	1	1412-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87813-711-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87813-712-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87813-713-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87815-373-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87815-912-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-117-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-361-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-543-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-886-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87817-668-0	01	1	1412-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87815-374-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87815-913-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-118-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-362-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-544-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-887-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87817-669-0	01	1	1412-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87815-375-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87815-914-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-119-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-363-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-545-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-888-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87817-670-0	01	1	1412-		●

1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.010 GASKET SET; ENG OVERHAUL T=1.60 1-NOTCH	5-87815-175-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.65 2-NOTCH	5-87815-176-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.70 3-NOTCH	5-87815-177-3	01	1	0804-	●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-096-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-364-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-433-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-776-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87815-921-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-108-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-352-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-534-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-574-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-779-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87816-877-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.05 1-NOTCH	5-87817-674-0	01	1	1412-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-097-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-365-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-434-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-777-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87815-922-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-109-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-353-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-535-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-575-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-780-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87816-878-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.10 2-NOTCH	5-87817-675-0	01	1	1412-		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-098-1	01	1	0804-0805		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-366-0	01	1	0806-0902		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-435-1	01	1	0903-1007		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-778-1	01	1	1008-1012		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87815-923-1	01	1	1101-1108		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-110-0	01	1	1109-1204		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-354-0	01	1	1205-1211		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-536-0	01	1	1212-1212		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-576-0	01	1	1301-1302		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-781-0	01	1	1303-1304		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87816-879-1	01	1	1305-1411		●
1	00.010 GASKET SET; ENG OVERHAUL T=1.15 3-NOTCH	5-87817-676-0	01	1	1412-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.60 1-NOTCH	5-87813-711-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.65 2-NOTCH	5-87813-712-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.70 3-NOTCH	5-87813-713-7	01	1	0804-	●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87815-373-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87815-912-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-117-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-361-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-543-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87816-886-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.05 1-NOTCH	5-87817-668-0	01	1	1412-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87815-374-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87815-913-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-118-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-362-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-544-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87816-887-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.10 2-NOTCH	5-87817-669-0	01	1	1412-		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87815-375-2	01	1	0804-1012		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87815-914-1	01	1	1101-1108		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-119-0	01	1	1109-1204		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-363-0	01	1	1205-1211		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-545-0	01	1	1212-1304		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87816-888-1	01	1	1305-1411		●
2	00.010 GASKET SET; ENG HD OVERHAUL T=1.15 3-NOTCH	5-87817-670-0	01	1	1412-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
