8-21 — METER ASM (#81037) — 25 parça

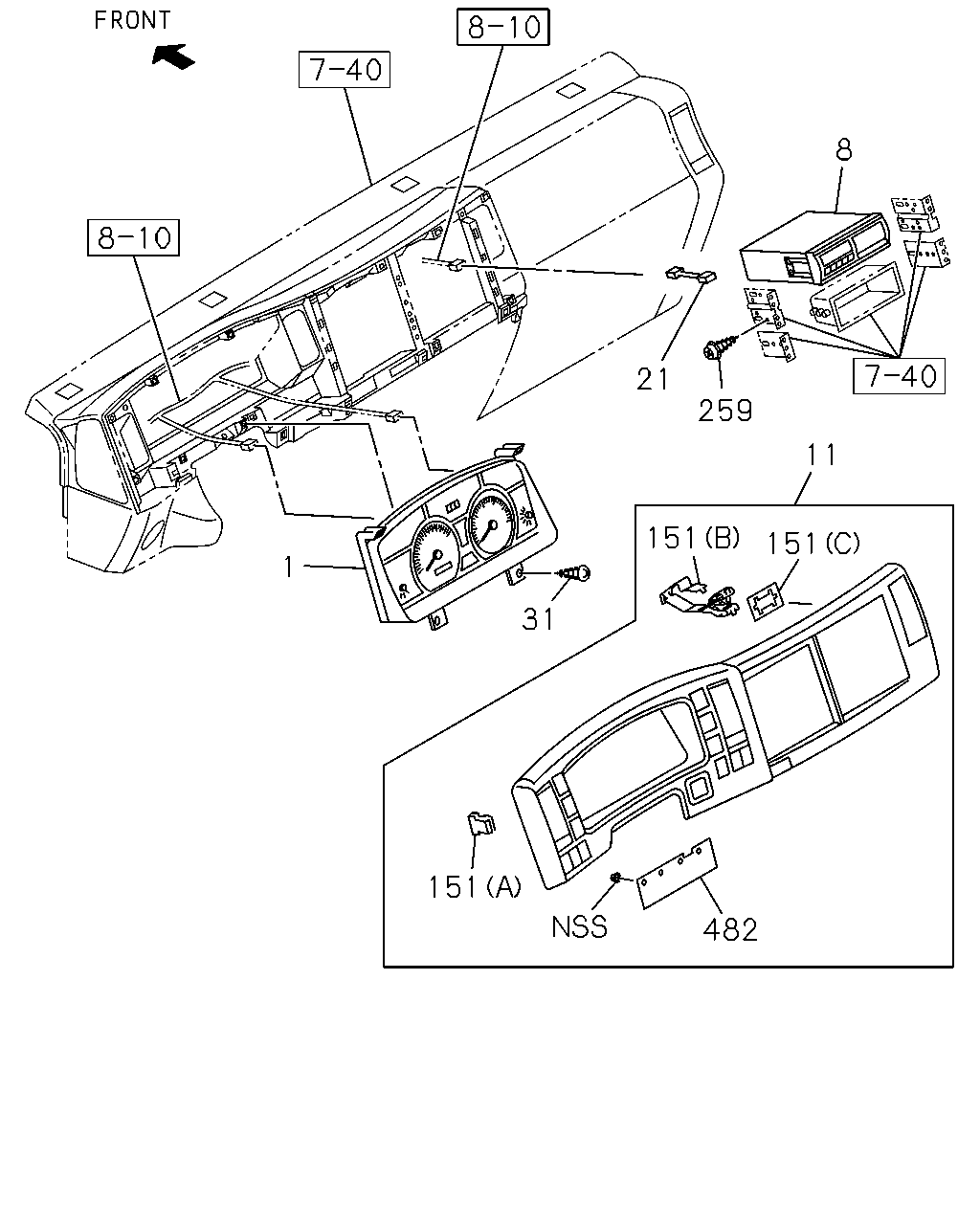

çizim 137903
8 21 259 11 151 151 1 31 151 482
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98171-929-0 01 1 1111-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1111-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1112-
11 09.743 CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY 		8-97418-534-1 01 1 1111-
11 09.743 CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY 		8-97406-005-6 01 1 1111-
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		8-98201-154-0 01 1 1112-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1111-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.085 (A) 		8-98021-271-0 12 1 1111-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (B) 		8-98152-030-0 01 1 1111-
151 09.747 CLIP; METER CLUSTER
ECE R29<EFE> 16.090 (C) 		8-98152-031-0 01 1 1111-
151 09.747 CLIP; METER CLUSTER
EXC. ECE R29<EFE> 16.085 (A) 		8-98021-271-0 13 1 1111-
259 09.772 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 09.650 M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1112-
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 1111-

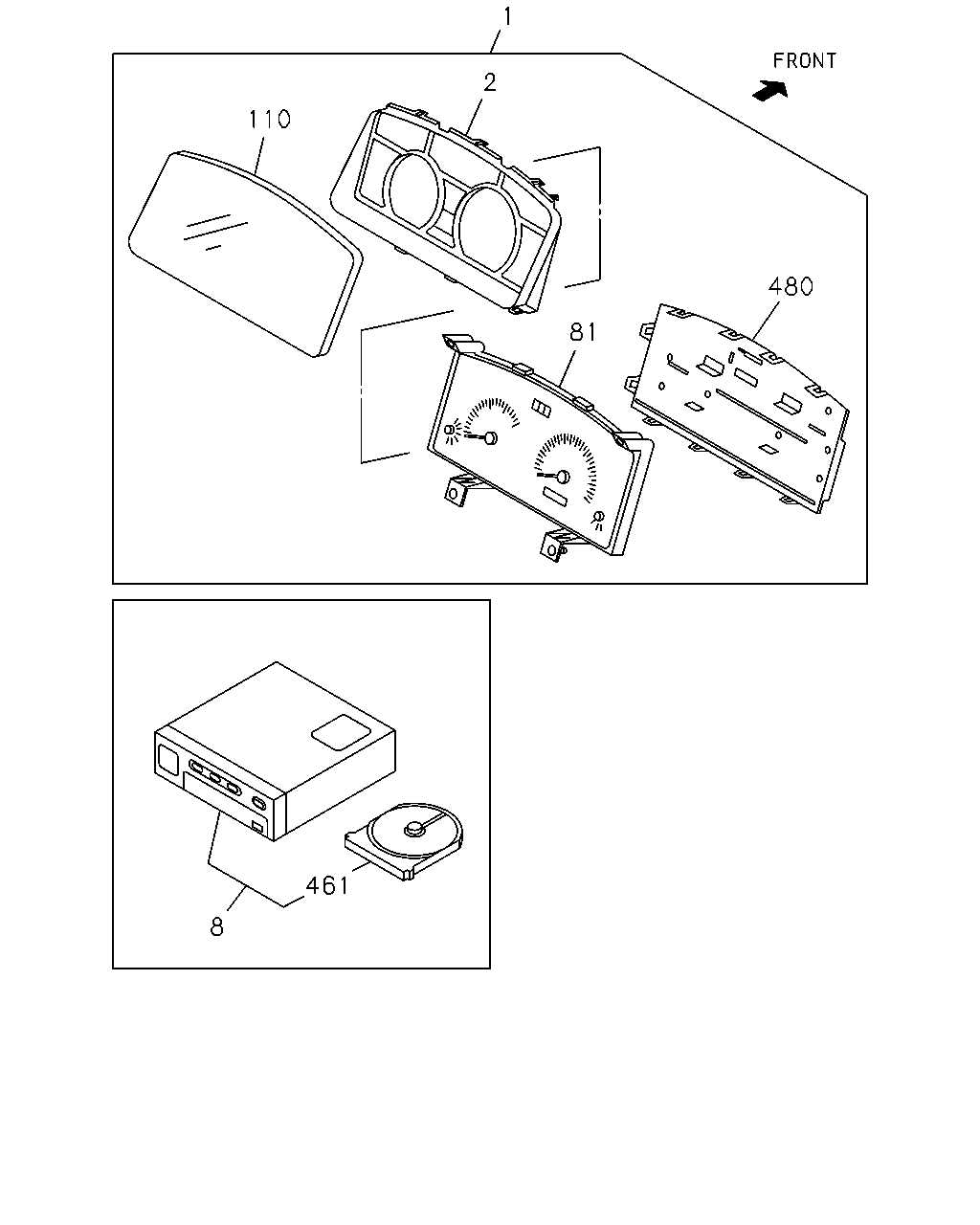

çizim 183358
1 2 110 480 81 461 8
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
SPEEDOMETER MILE<UC1> 		8-98171-929-0 01 1 1111-
1 09.735 METER COMPL; CLUSTER
EXC. SPEEDOMETER MILE<UC1> 		8-98171-927-0 01 1 1111-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1111-
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<SM8> 		8-97387-082-2 01 1 1112-
81 09.735 METER SUB ASM
SPEEDOMETER MILE<UC1> 		8-98183-881-0 01 1 1111-
81 09.735 METER SUB ASM
EXC. SPEEDOMETER MILE<UC1> 		8-98183-879-0 01 1 1111-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1111-
461 09.750 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<SM8> 		1-83129-433-0 01 1 1112-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1111-

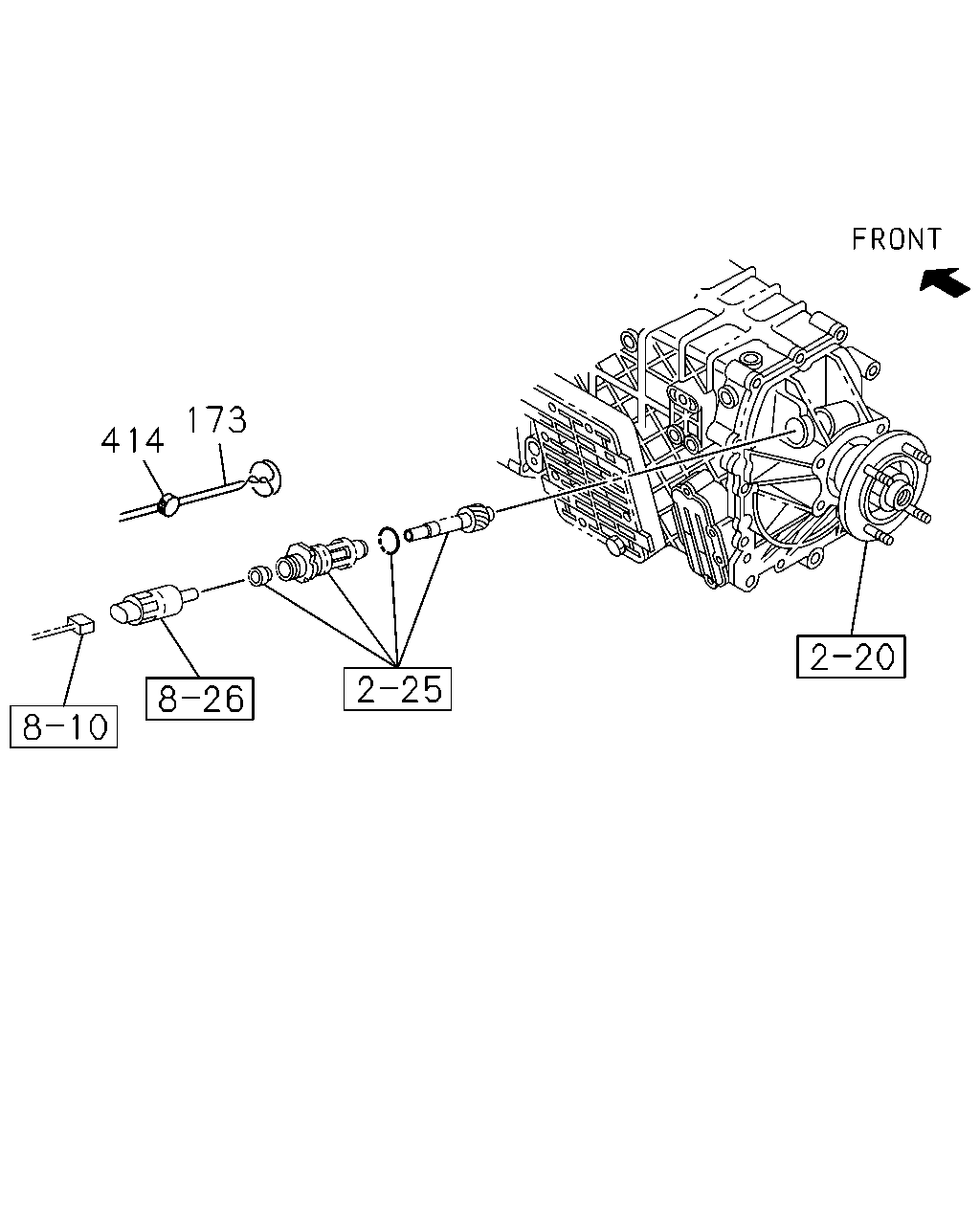

çizim 371022
414 173
BalonParca AdiParca NoAdetTipApplied Date
173 09.744 WIRE; LEAD
SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		1-80249-010-0 01 1 1306-1309
414 09.772 SEAL; LEAD
SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		1-15739-008-0 01 1 1306-1309
