7-40 — INSTRUMENT PANEL AND BOX (#81031) — 151 parça

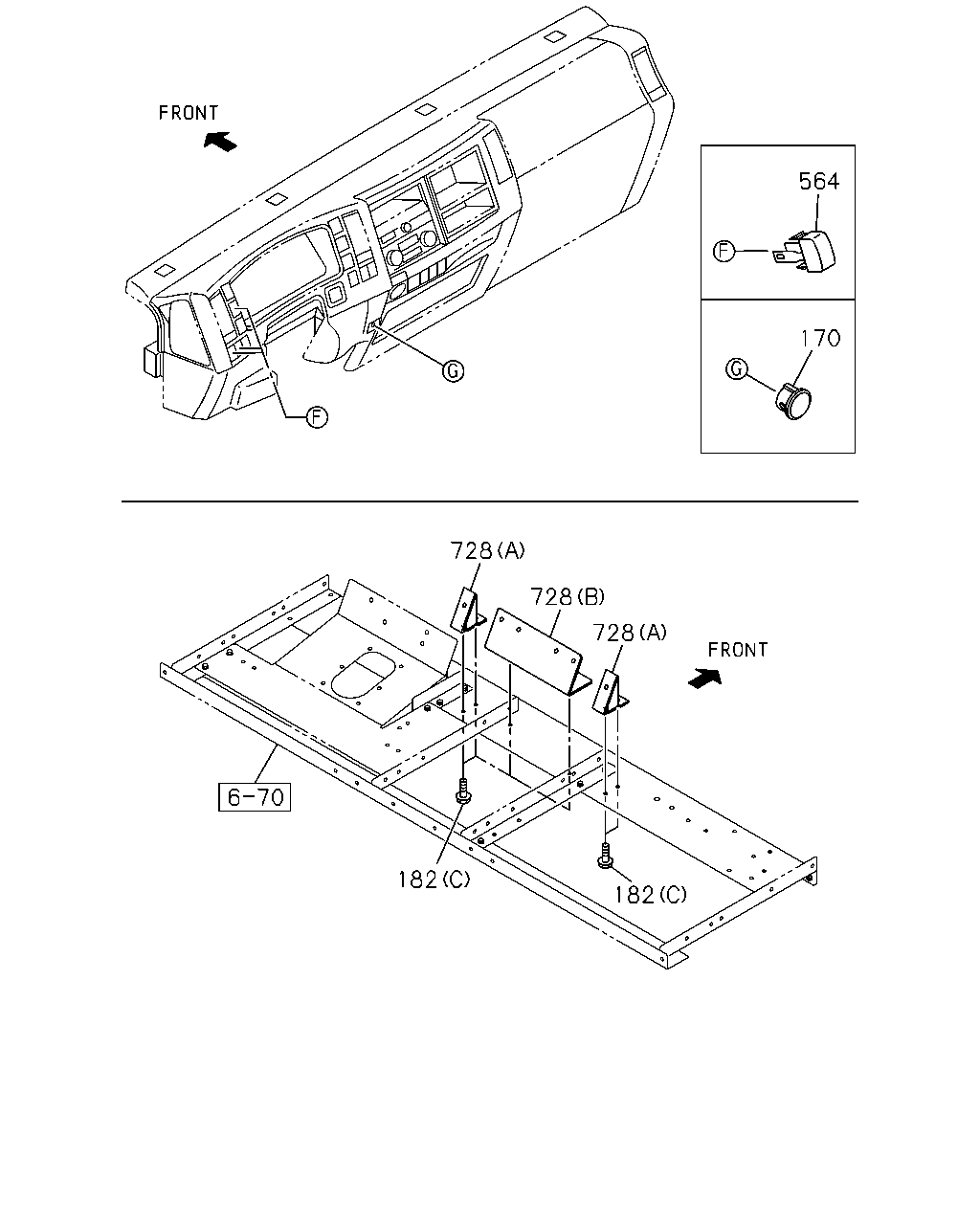

çizim 132603
564 170 728 728 728 182 182
BalonParca AdiParca NoAdetTipApplied Date
170 16.165 COVER; HOLE 8-98070-401-2 01 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
06.216 (C) M8X25 FLANGE 		0-28650-825-0 06 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1111-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
564 16.081 COVER; SW 8-98025-954-1 03 1 1111-
728 16.085 BRACKET; INST PNL LWR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98169-687-0 01 1 1111-
728 16.085 BRACKET; INST PNL LWR
(A) 		8-98156-234-1 02 1 1111-
728 16.085 BRACKET; INST PNL LWR
(B) 		8-98178-319-1 01 1 1111-

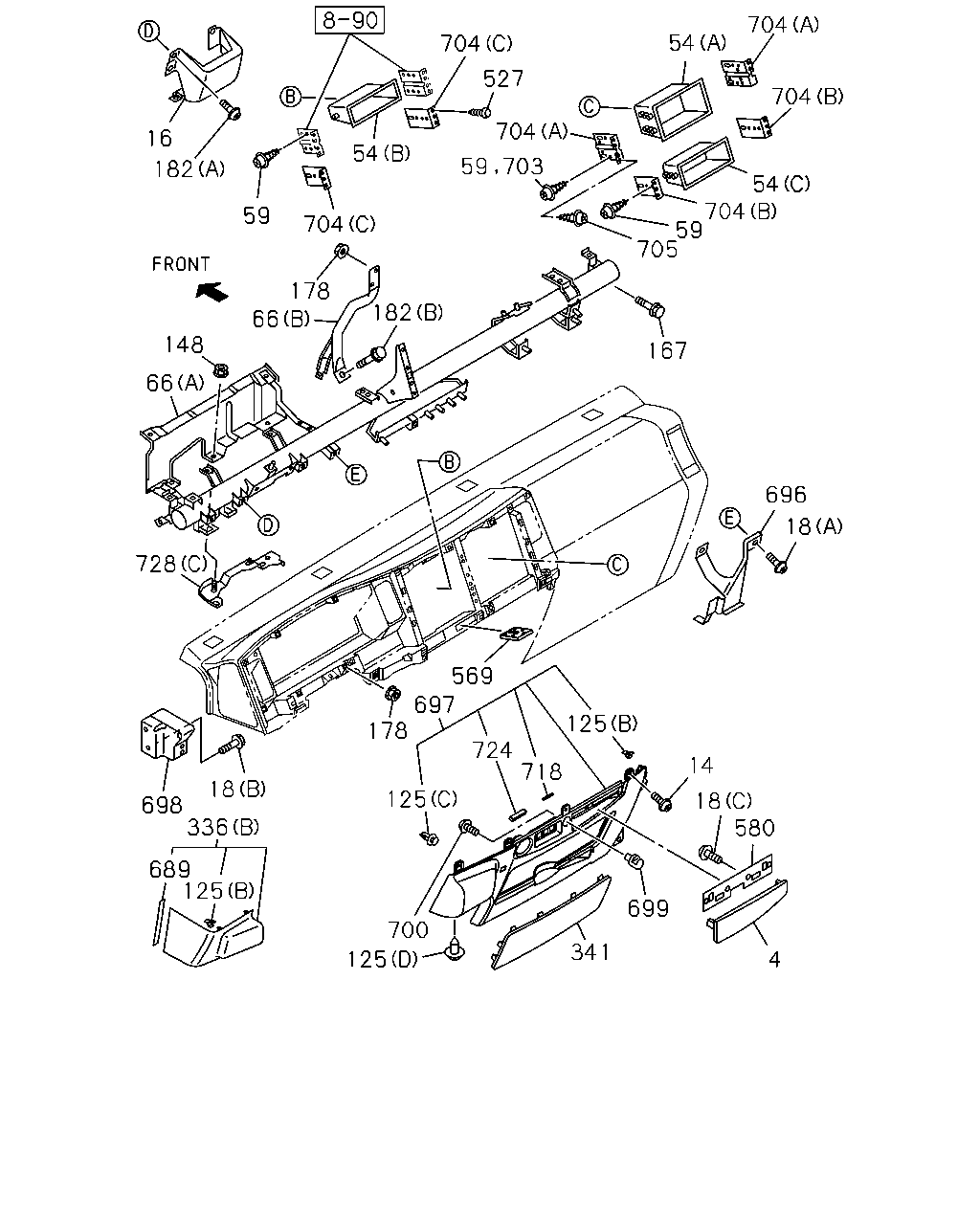

çizim 183354
704 704 54 704 59 705 167 696 18 14 18 580 4 699 341 125 700 125 724 718 125 125 689 698 336 18 178 697 569 728 66 148 66 178 182 703 704 59 54 527 704 704 59 182 16 54
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
GRAY 		8-97407-898-1 01 1 1111-
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1111-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL 8-98081-718-1 01 1 1111-
18 16.085 BOLT; BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 1111-
18 16.085 BOLT; BRKT
16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1111-
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1111-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1111-1111
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<SM8> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1112-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 1111-1209
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1210-
54 16.100 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1210-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1111-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1111-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1111-1209
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 16.100 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1111-
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 1111-
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98089-365-3 01 1 1111-1309
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98192-944-0 01 1 1310-
125 16.085 CLIP; INST PANEL
(F) M6 SPIRE NUT 		8-97210-973-1 01 1 1111-
125 16.085 CLIP; INST PANEL
16.802 (E) GRAY 		8-97405-205-0 01 1 1111-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 01 1 1111-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1111-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 1111-
148 16.080 NUT; INST PANEL BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1111-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1111-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
06.216 (C) M8X25 FLANGE 		0-28650-825-0 06 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1111-
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1111-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1111-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1111-
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 1111-1205
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206-
527 16.100 CLIP; INST CLUSTER
16.742 DARK GRAY 		8-97098-326-0 01 1 1111-
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1111-
580 16.080 BRACKET; COVER 8-98091-546-0 01 1 1111-
689 09.743 SEAL; INST 8-98068-244-0 01 1 1111-
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1111-1211
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212-
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 1111-1205
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206-
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1111-
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1111-
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1111-
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1111-1111
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<SM8> 16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1112-
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1111-
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1111-
704 16.085 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 1111-
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1111-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 08 1 1111-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1301-
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206-
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1111-
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1111-
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1111-
728 16.085 BRACKET; INST PNL LWR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98169-687-0 01 1 1111-
728 16.085 BRACKET; INST PNL LWR
(A) 		8-98156-234-1 02 1 1111-
728 16.085 BRACKET; INST PNL LWR
(B) 		8-98178-319-1 01 1 1111-

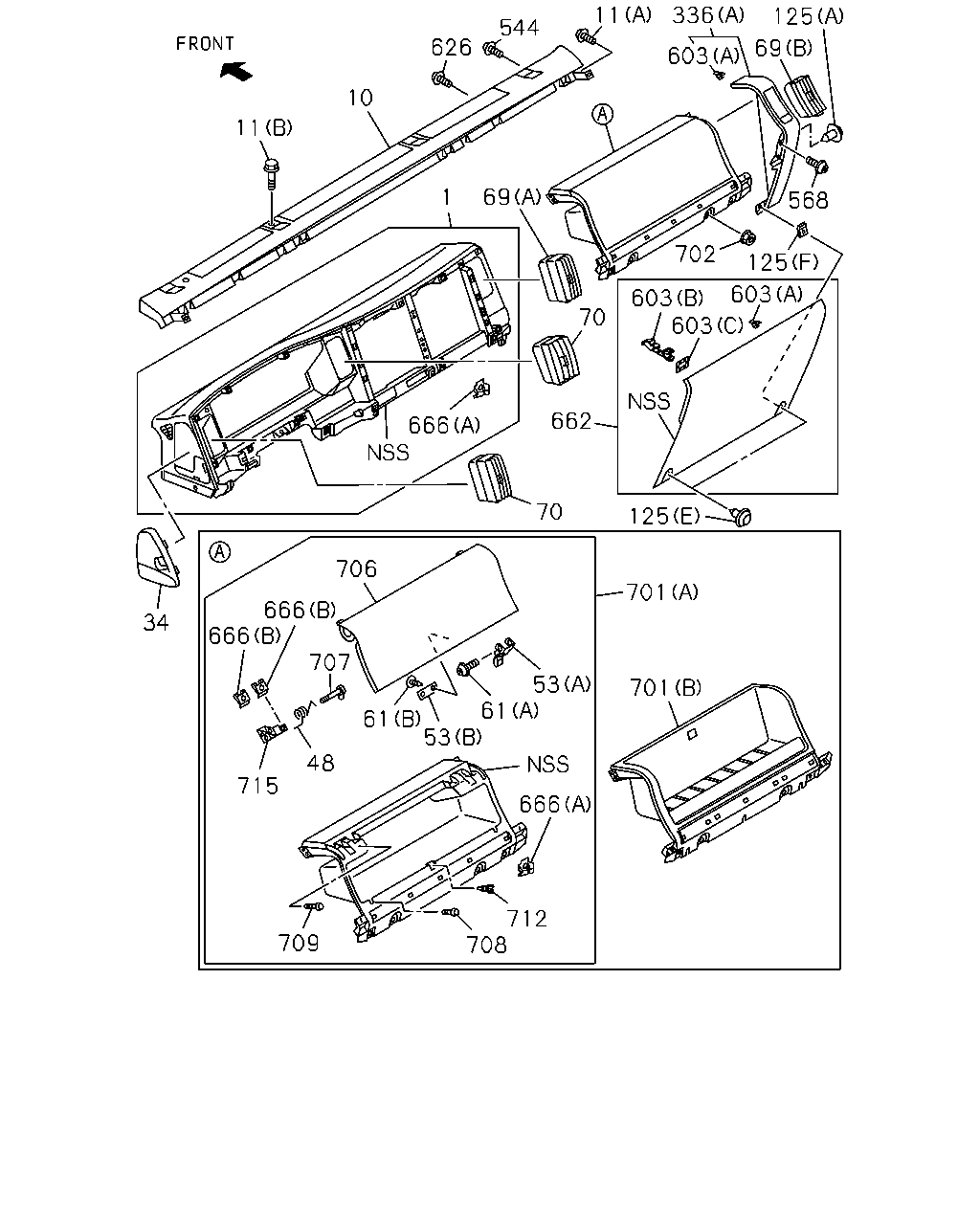

çizim 183359
11 10 626 544 11 336 603 69 125 1 69 70 603 603 603 662 70 125 701 701 702 125 568 666 706 666 666 707 48 715 61 53 61 666 53 712 708 709 34
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 1111-
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1111-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1111-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1111-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 1111-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1111-1201
48 16.110 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1202-1311
48 16.110 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1111-1201
48 16.110 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1202-1311
48 16.110 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1111-1201
53 16.115 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1202-1405
53 16.115 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1111-1201
61 16.100 SCREW; GLOVE BOX
(A) 		8-98108-915-0 01 1 1202-1405
61 16.100 SCREW; GLOVE BOX
(B) M4X85 		8-97926-404-0 02 1 1406-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 1111-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1111-
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 1111-
125 16.085 CLIP; INST PANEL
(F) M6 SPIRE NUT 		8-97210-973-1 01 1 1111-
125 16.085 CLIP; INST PANEL
16.802 (E) GRAY 		8-97405-205-0 01 1 1111-
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1111-
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 01 1 1111-
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 1111-
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 03 1 1111-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97406-000-4 01 1 1111-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 1111-
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1111-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1111-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
ECE R29<EFE> 16.085 (A) 		8-98021-271-0 03 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (B) 		8-98152-030-0 02 1 1111-
603 16.090 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-031-0 02 1 1111-
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 1111-
603 16.090 CLIP; COVER
EXC. ECE R29<EFE> 16.085 (A) 		8-98021-271-0 05 1 1111-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1111-
662 16.081 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97418-533-2 01 1 1111-
662 16.081 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97405-258-2 01 1 1111-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1111-1201
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 1202-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1111-1201
666 16.085 INSERT; INST PANEL
(B) 		8-98038-450-0 04 1 1202-1311
666 16.085 INSERT; INST PANEL
(B) M5 		8-97926-400-0 04 1 1312-
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1111-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-5 01 1 1111-1201
701 16.100 TRAY; INST
(A) GRAY 		8-97415-542-6 01 1 1202-1405
701 16.100 TRAY; INST
(A) GRAY 		8-97429-702-1 01 1 1406-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1111-1201
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1111-
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1111-1201
706 16.081 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1202-1405
706 16.081 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1111-1201
707 09.744 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1202-1311
707 09.744 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1111-1201
708 16.100 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1202-
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1111-1201
709 16.085 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 1202-
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1111-1201
712 16.110 LOCK; TRAY INST LID 8-98031-846-0 01 1 1202-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1111-1201
715 16.081 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1202-1311
715 16.081 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1111-1201
715 16.081 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1202-1311
715 16.081 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
