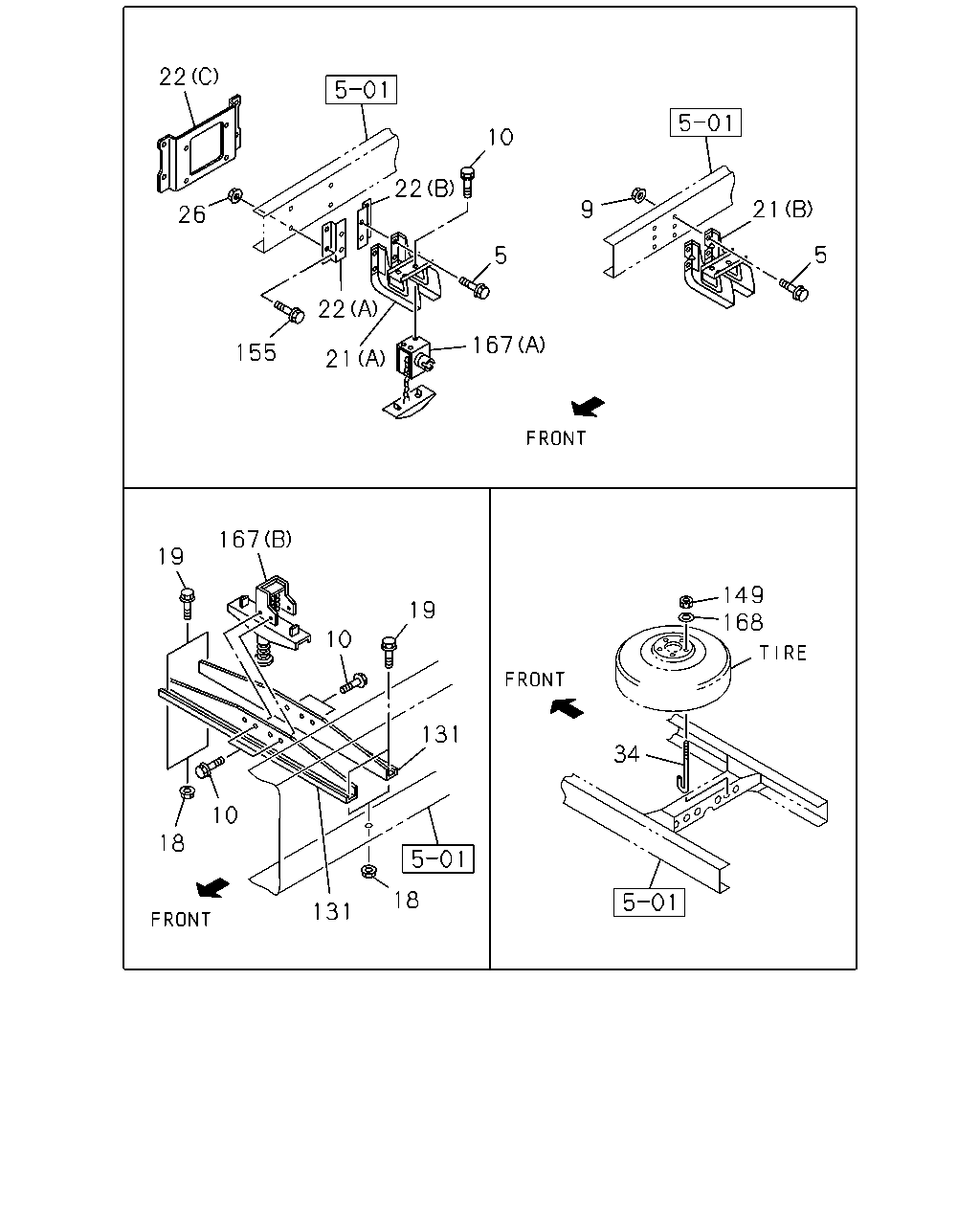

5-30 — SPARE TIRE CARRIER AND COVER
(#81023) — 21 parça
22
5
5
10
22
21
9
26
5
5
22
167
155
21
167
19
149
168
19
10
131
34
10
18
5
18
5
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 09.171 M10X25 FLANGE
0-28051-025-0
04
1
1111-
9
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE
0-91180-110-0
04
1
1111-
10
07.632 BOLT; TIRE HANGER
WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE
0-28650-825-0
04
1
1111-
10
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.531 M8X20 FLANGE
0-28650-820-0
03
1
1111-
18
07.633 NUT; MEMBER
WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE
0-91180-110-0
04
1
1111-
19
07.632 BOLT; C/MBR
WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1111-
21
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W) (A)
8-98072-378-2
01
1
1111-
21
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W) (B)
8-98036-085-2
01
1
1111-
22
07.629 BRACKET; SPARE TIRE
WHEEL BASE 4100MM(41W) (A) FRONT
8-98201-109-0
01
1
1111-1111
22
07.629 BRACKET; SPARE TIRE
WHEEL BASE 4100MM(41W) (C)
8-98206-731-0
01
1
1111-
22
07.629 BRACKET; SPARE TIRE
WHEEL BASE 4100MM(41W) (B) REAR
8-98201-110-0
01
1
1111-1111
26
07.629 NUT; BRKT FIX
WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE
0-91180-110-0
04
1
1111-
34
07.629 BOLT; SPARE TIRE
M12X305
8-94441-189-0
02
1
1111-1209
34
07.629 BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1210-
131
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3800MM(38W)
8-98035-827-1
02
1
1111-
149
07.629 NUT; CARRIER
05.002 M12
0-91110-512-0
02
1
1111-
155
07.629 BOLT; BRKT
WHEEL BASE 4100MM(41W) 09.171 M10X25 FLANGE
0-28051-025-0
04
1
1111-1111
155
07.629 BOLT; BRKT
WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE
0-28651-030-0
04
1
1111-
167
07.629 HANGER; TIRE
WHEEL BASE 3800MM(38W) (B)
8-98036-383-0
01
1
1111-
167
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)
8-97010-955-1
01
1
1111-
168
07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
02
1
1111-
