◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51392 - NQR BUS A/BRAKE LHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#81019) — 98 parça

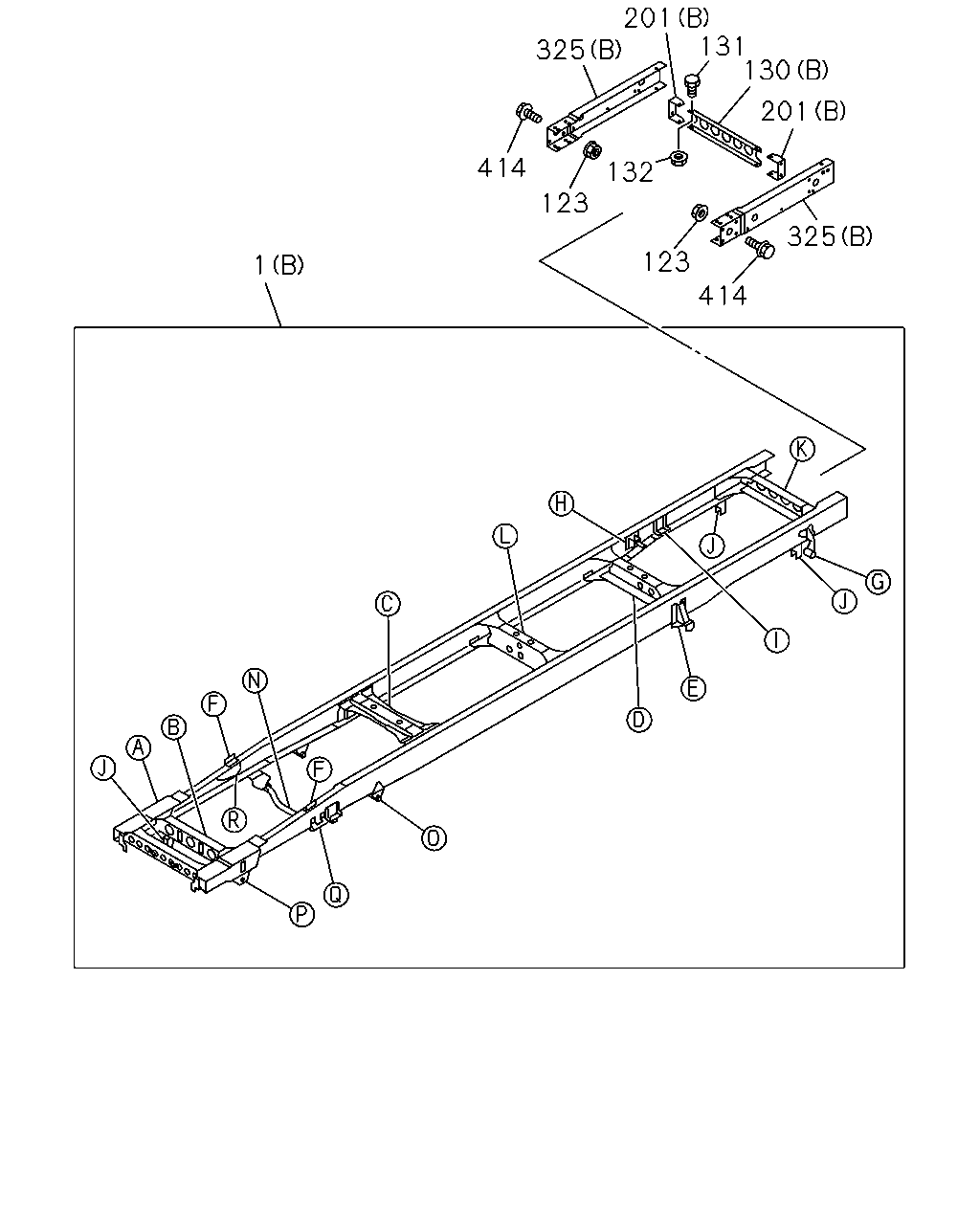

çizim 125401
1 414 123 123 414 325 201 130 131 201 325 132
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-446-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-446-2 01 1 1508-
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-452-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-452-2 01 1 1508-
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98197-719-1 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98197-719-1 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-444-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-444-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-450-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-450-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-454-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-454-2 01 1 1508-
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1111-
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1111-
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1111-
201 07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97128-805-0 02 1 1111-
201 07.039 GUSSET; C/MBR
WHEEL BASE 3800MM(38W) (A) 		8-97096-871-0 02 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-347-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1111-
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1111-
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE 		0-28661-240-0 04 1 1111-
çizim 125516
376 376 376 376 376 376 376 376 376 376 376 176 176 296 67
BalonParca AdiParca NoAdetTipApplied Date
67 07.011 NUT; C/MBR
M/T MZZ6U(RSF) 04.085 M10 FLANGE 		0-91180-210-0 17 1 1111-
67 07.011 NUT; C/MBR
M/T MYY6S(RST) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1111-
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1111-
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1111-
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1111-
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1111-
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1111-
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1111-
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1111-
376 07.039 RIVET; FRAME
(E) D10X32 TAPER END 		9-06751-032-0 AR 1 1111-
376 07.039 RIVET; FRAME
(F) D10X36 TAPER END 		9-06751-036-0 AR 1 1111-
376 07.039 RIVET; FRAME
(G) D11X26 TAPER END 		9-06751-126-0 AR 1 1111-
376 07.039 RIVET; FRAME
(H) D11X30 TAPER END 		9-06751-130-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END 		9-06751-230-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END 		9-06751-236-0 AR 1 1111-
376 07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END 		9-06751-240-0 AR 1 1111-

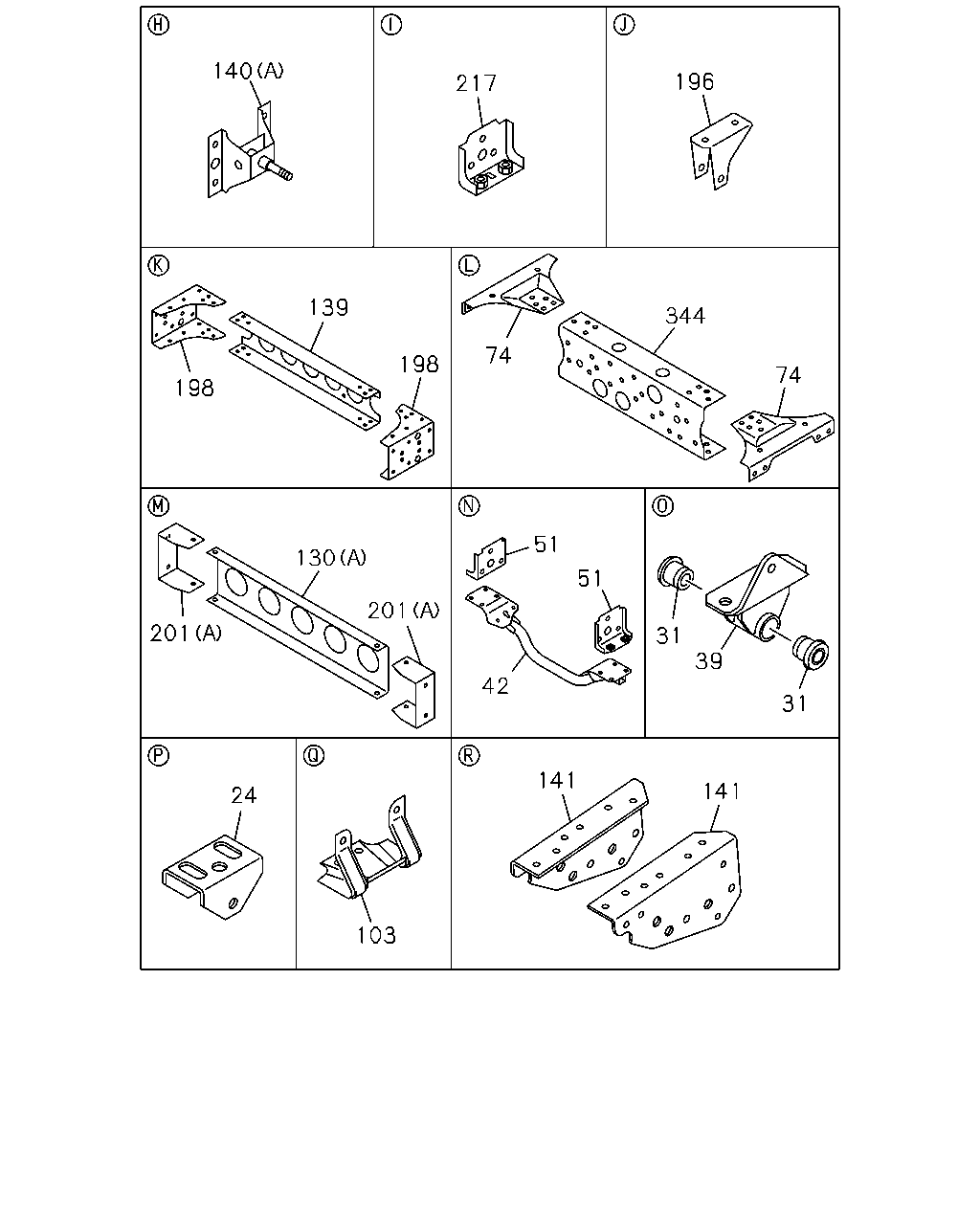

çizim 125583
140 217 196 74 344 74 198 139 198 201 130 201 51 51 42 31 39 31 141 141 103 24
BalonParca AdiParca NoAdetTipApplied Date
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1111-
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1111-
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1111-
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1111-
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1111-
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1111-
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1111-
103 07.420 STOPPER; SUB SPR
07.524 		8-97079-659-1 02 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1111-
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1111-
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1111-
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1111-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98184-110-0 02 1 1111-1412
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1501-
141 07.112 STIFFENER 8-98064-354-2 01 1 1111-
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 1111-
198 07.039 GUSSET; 6TH C/MBR 8-98014-079-1 02 1 1111-
201 07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97128-805-0 02 1 1111-
201 07.039 GUSSET; C/MBR
WHEEL BASE 3800MM(38W) (A) 		8-97096-871-0 02 1 1111-
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1111-
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1111-

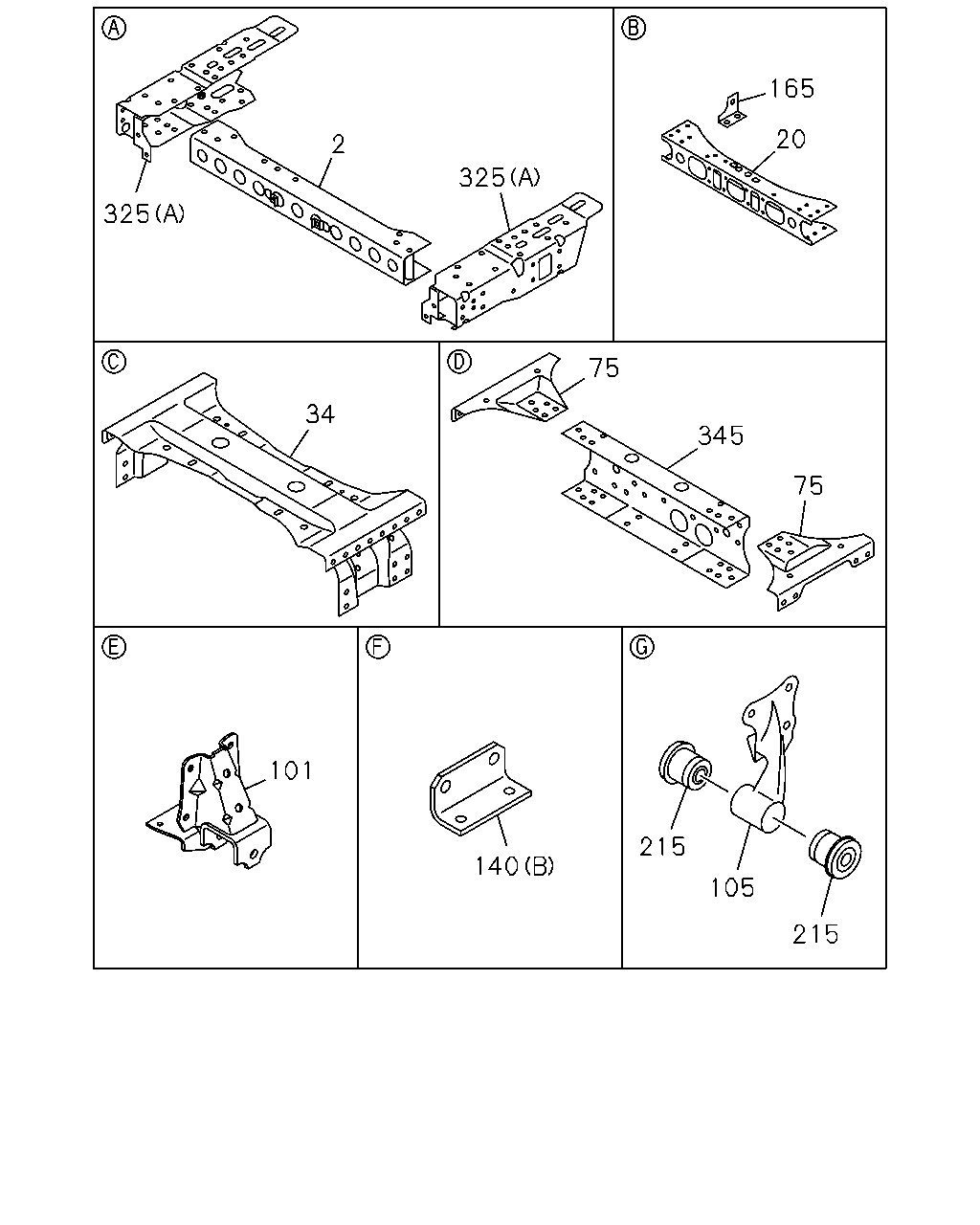

çizim 125615
165 20 2 325 325 75 34 345 75 101 215 140 105 215
BalonParca AdiParca NoAdetTipApplied Date
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1111-
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1111-
34 07.012 MEMBER; CROSS,3RD
M/T MZZ6U(RSF) 		8-98072-038-1 01 1 1111-
34 07.012 MEMBER; CROSS,3RD
M/T MYY6S(RST) 		8-98074-639-4 01 1 1111-
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1111-
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1111-
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 1111-1111
101 07.112 BRACKET; RR SPR,FRT 8-98202-857-0 02 1 1112-
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1111-
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1111-
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1111-
140 07.112 BRACKET; S/ABS,RR
(A) 		8-98184-110-0 02 1 1111-1412
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1501-
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1111-
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1111-
325 07.039 EXTENSION; FRAME
(A) 		8-98073-347-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1111-
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1111-
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1111-

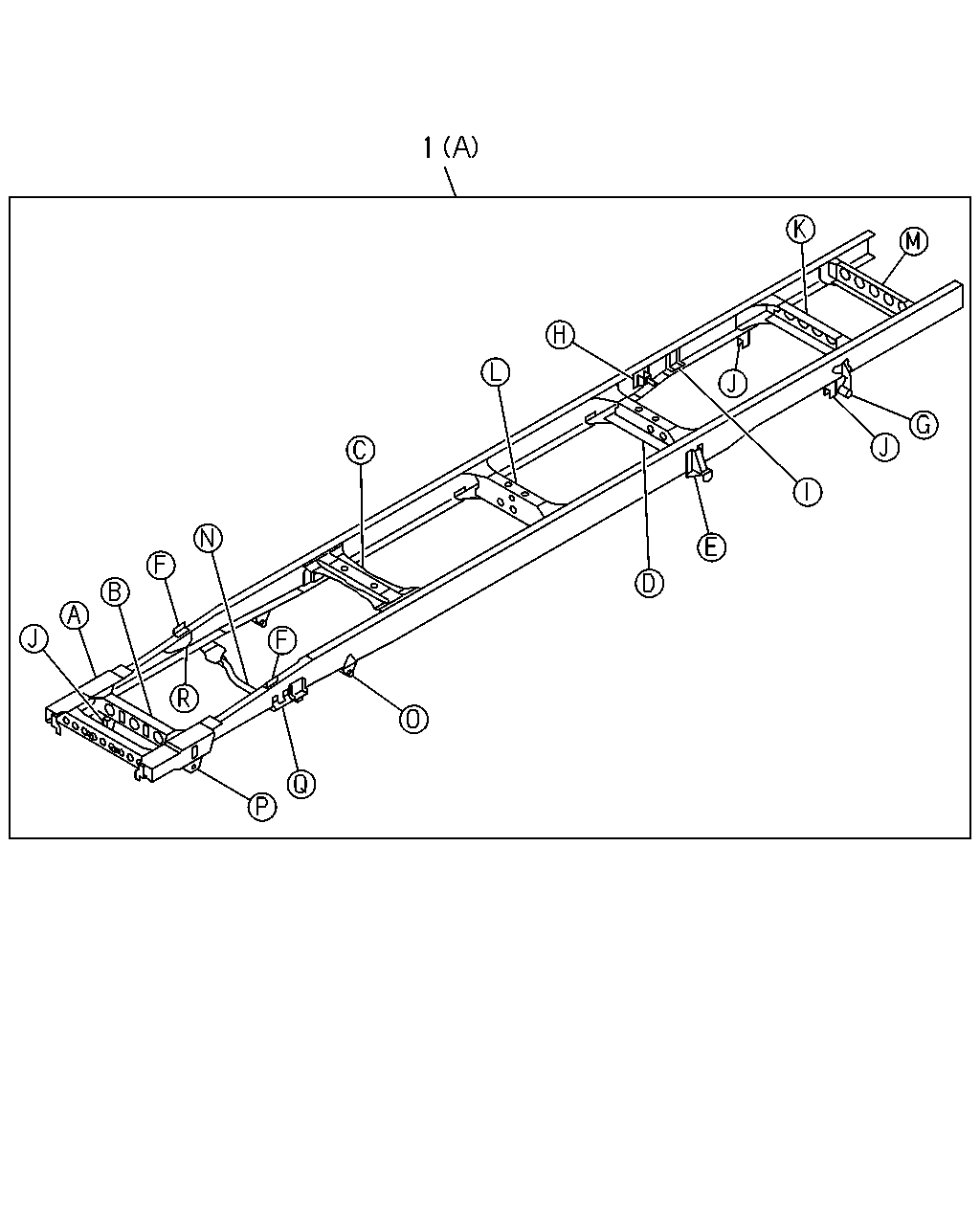

çizim 183431
1
BalonParca AdiParca NoAdetTipApplied Date
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-446-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-446-2 01 1 1508-
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-452-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-452-2 01 1 1508-
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98197-719-1 01 1 1111-1507
1 07.003 FRAME ASM
M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98197-719-1 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-444-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (A) 		8-98181-444-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-450-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-450-2 01 1 1508-
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-454-2 01 1 1111-1507
1 07.003 FRAME ASM
M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> (B) 		8-98181-454-2 01 1 1508-
