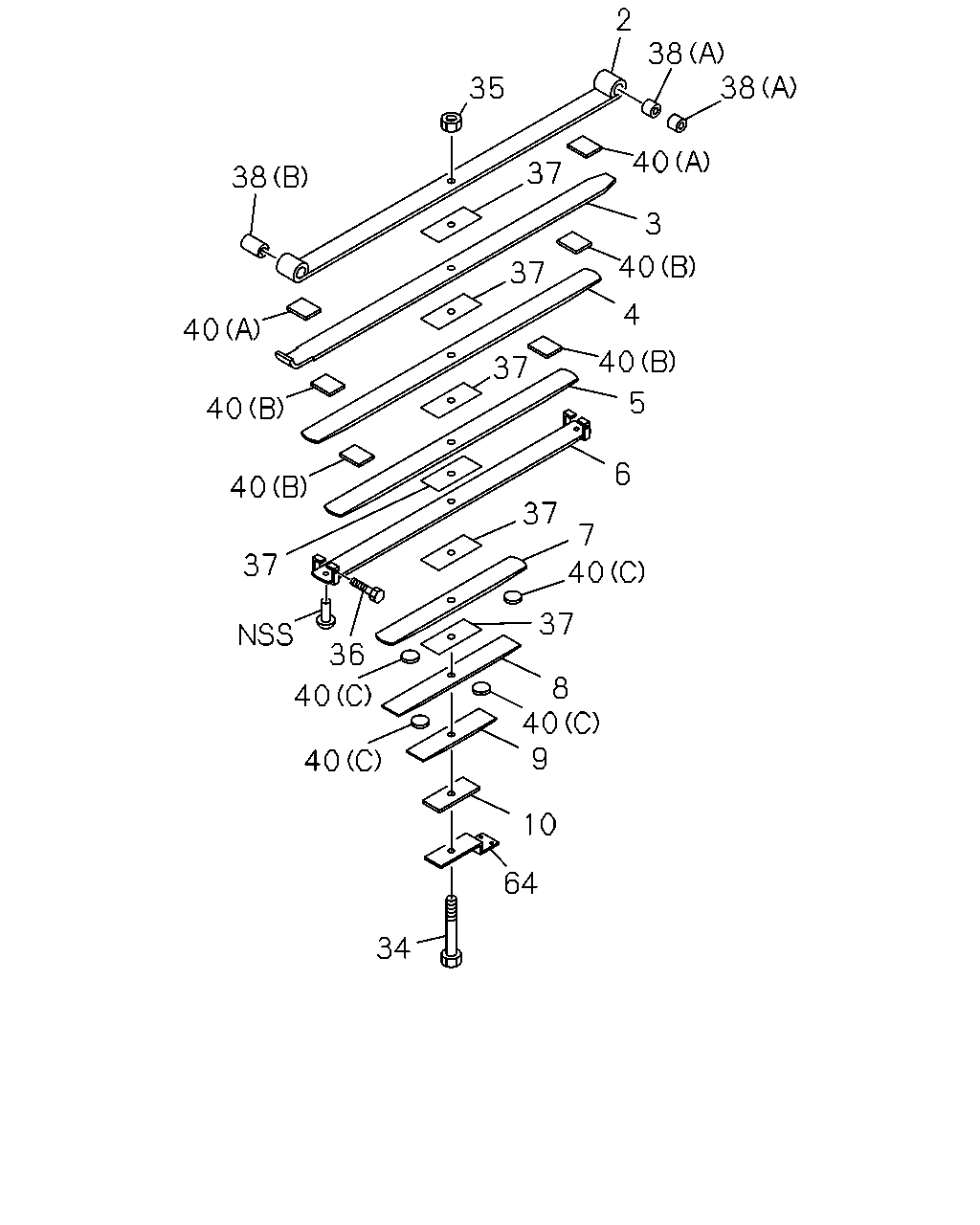

4-65 — REAR LEAF SPRING (#81017) — 30 parça

2 38 38 35 40 37 38 3 40 37 4 40 40 37 5 40 6 40 37 7 40 37 37 36 8 40 9 40 40 10 64 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-330-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-404-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-331-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-405-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-332-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-406-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-333-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-407-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-334-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-408-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-335-0	01	1	-
7	07.505 SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-409-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-336-0	01	1	-
8	07.505 SPRING; LEAF,NO 7,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-410-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-337-0	01	1	-
9	07.505 SPRING; LEAF,NO 8,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-411-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 8-98181-940-2, 98181940	8-98186-338-0	01	1	-
10	07.505 SPRING; LEAF,NO 9,RR MAIN ASM PART: B = 8-98182-048-2, 98182048	8-98201-412-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=135 ASM PART: B = 8-98182-048-2, 98182048	8-98041-354-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=140 ASM PART: A = 8-98181-940-2, 98181940	8-98041-356-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X89 ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-98040-332-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-97084-102-0	06	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-97074-826-0	01	1	-
40	07.506 LINER; LEAF SPR,RR 07.518, (C) ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-94406-909-0	04	1	-
40	07.506 LINER; LEAF SPR,RR 07.436, (A) ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-97084-848-0	02	1	-
40	07.506 LINER; LEAF SPR,RR (B) ASM PART: A = 8-98181-940-2, 98181940, B = 8-98182-048-2, 98182048	8-98186-060-0	04	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98181-940-2, 98181940	8-97225-579-1	01	1	-
