Isuzu WW
▶
TRUCKS
▶
NQR
▶
51392 - NQR BUS A/BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-70 - BRAKE PIPING; AIR,AIR MASTER
▶
3-70 — BRAKE PIPING; AIR,AIR MASTER
(#80998) — 48 parça
◀

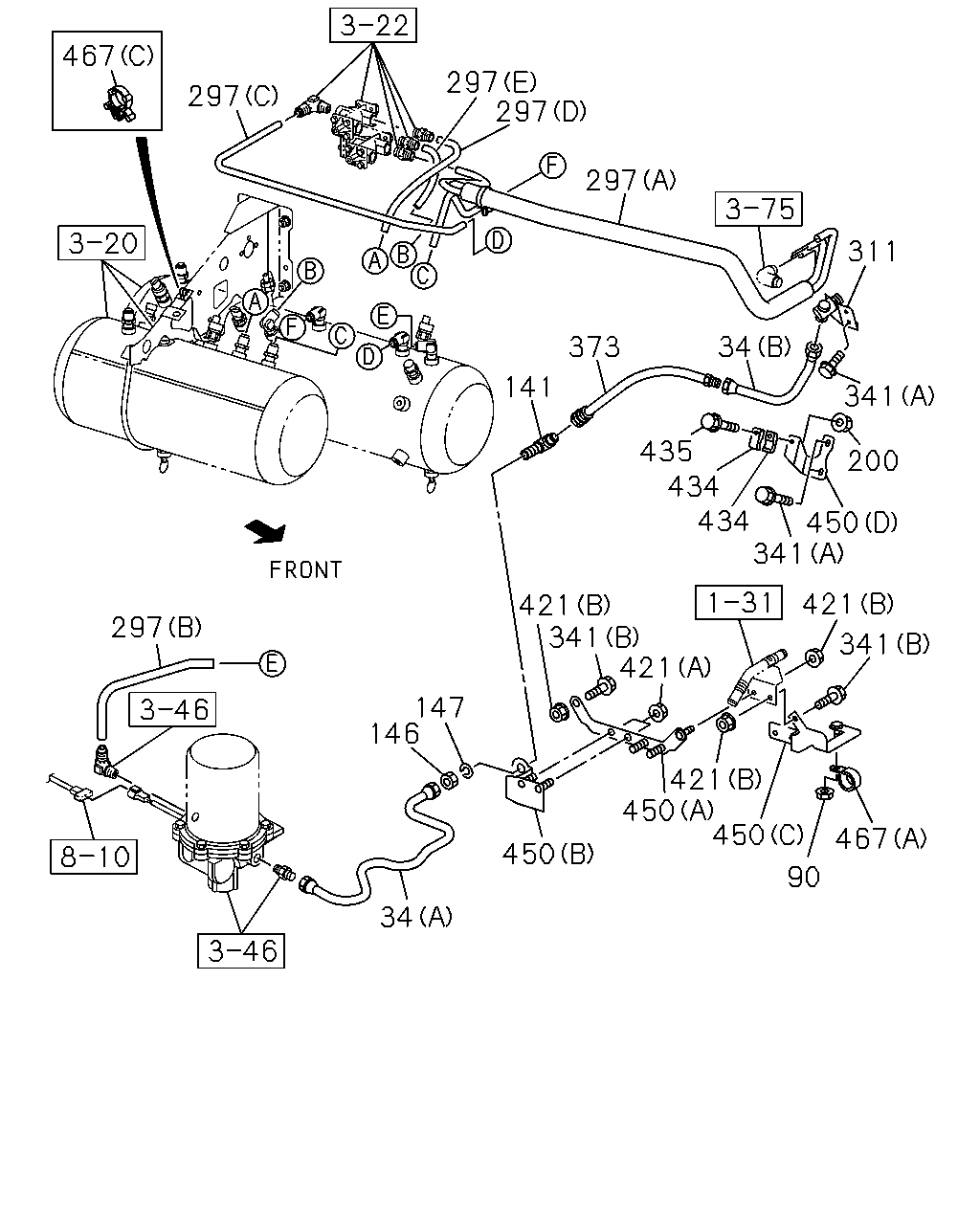

[370A] AIR TANK SIDE (33 parça)

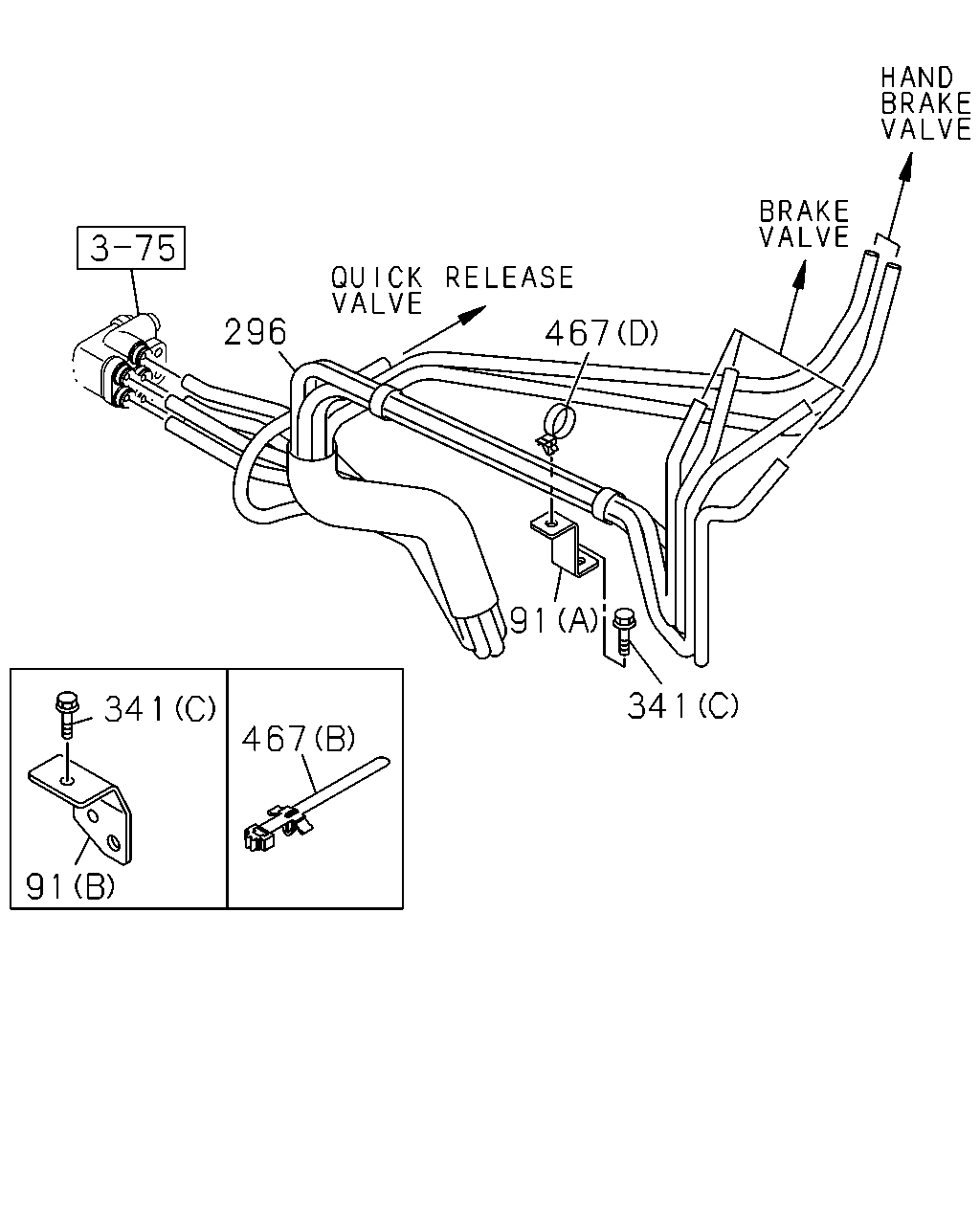

[370A] CAB SIDE (14 parça)
[370A] BRAKE VALVE SIDE (1 parça)
▶
467
297
297
297
297
311
34
373
141
341
435
434
434
450
341
200
421
421
341
421
297
341
147
146
421
450
450
467
450
90
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
04.867 PIPE; AIR
(A) L=708
8-98177-346-4
01
1
1111-
34
04.867 PIPE; AIR
(B) L=282
8-98189-186-2
01
1
1111-1411
34
04.867 PIPE; AIR
(B)
8-98287-884-0
01
1
1412-
90
04.866 NUT; TUBE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
1111-
141
04.866 UNION; FLEX HOSE
M22X2 ELBOW
0-92135-215-0
01
1
1111-
146
04.866 NUT; UNION
06.861 M22
0-91111-522-0
01
1
1111-
147
04.866 WASHER; LK,UNION
06.861 ID=22.5
0-91510-622-0
01
1
1111-
200
04.594 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
03
1
1111-
297
04.867 TUBE; NYLON
(A)
8-98181-138-3
01
1
1111-
297
04.867 TUBE; NYLON
(B)
8-98186-473-0
01
1
1111-
297
04.867 TUBE; NYLON
(C)
8-98186-474-1
01
1
1111-
297
04.867 TUBE; NYLON
(D)
8-98186-475-0
01
1
1111-
297
04.867 TUBE; NYLON
(E)
8-98186-476-1
01
1
1111-
311
04.866 BRACKET; PIPE
8-98189-184-0
01
1
1111-
341
04.866 BOLT; BRKT
00.685 (C) M6X25 FLANGE
0-28650-625-0
03
1
1111-1312
341
04.866 BOLT; BRKT
03.162 (C) M6X20 FLANGE
0-28650-620-0
03
1
1401-
341
04.866 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
1111-
341
04.866 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
1111-
373
04.866 HOSE; RUBBER,AIR CMPR
1-09363-910-0
01
1
1111-
421
04.866 NUT; BRKT
01.062 (A) M8 FLANGE
0-91180-108-0
04
1
1111-
421
04.866 NUT; BRKT
03.162 (B) M10 FLANGE
0-91180-110-0
02
1
1111-
434
04.866 CLIP
01.550
1-09701-282-0
02
1
1111-
435
04.866 BOLT; CLIP
00.685 M6X40 FLANGE
0-28650-640-0
01
1
1111-
450
04.866 BRACKET; CLIP
(A)
8-98186-455-1
01
1
1111-
450
04.866 BRACKET; CLIP
(B)
8-98186-456-3
01
1
1111-
450
04.866 BRACKET; CLIP
(C)
8-98186-457-0
01
1
1111-
450
04.866 BRACKET; CLIP
(D)
8-98189-185-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (B) L=212
8-94107-652-0
02
1
1111-
467
04.866 CLIP; NYLON TUBE
(A) ID=35 L=33
1-09700-945-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
04.128 (D) L=213.5
8-98000-506-1
02
1
1111-
467
04.866 CLIP; NYLON TUBE
04.128 (D) L=213.5
8-98000-506-1
02
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (B) L=170.3
1-09987-182-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (C) ID=12
1-09987-201-0
01
1
1111-
296
467
91
341
341
467
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
04.866 BRACKET; TUBE CLIP
(A)
8-98182-131-1
01
1
1111-
91
04.866 BRACKET; TUBE CLIP
(B)
8-98182-140-0
02
1
1111-
296
04.867 TUBE; NYLON
8-98182-135-2
01
1
1111-1506
296
04.867 TUBE; NYLON
8-98307-818-0
01
1
1507-
341
04.866 BOLT; BRKT
00.685 (C) M6X25 FLANGE
0-28650-625-0
03
1
1111-1312
341
04.866 BOLT; BRKT
03.162 (C) M6X20 FLANGE
0-28650-620-0
03
1
1401-
341
04.866 BOLT; BRKT
06.216 (A) M8X25 FLANGE
0-28650-825-0
04
1
1111-
341
04.866 BOLT; BRKT
00.029 (B) M10X30 FLANGE
0-28651-030-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (B) L=212
8-94107-652-0
02
1
1111-
467
04.866 CLIP; NYLON TUBE
(A) ID=35 L=33
1-09700-945-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
04.128 (D) L=213.5
8-98000-506-1
02
1
1111-
467
04.866 CLIP; NYLON TUBE
04.128 (D) L=213.5
8-98000-506-1
02
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (B) L=170.3
1-09987-182-0
01
1
1111-
467
04.866 CLIP; NYLON TUBE
02.559 (C) ID=12
1-09987-201-0
01
1
1111-
295
295
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
295
04.866 CONNECTOR; NYLON TUBE
DIN12 & M16 ELBOW
1-09661-535-0
02
1
1111-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
