Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#80997) — 202 parça

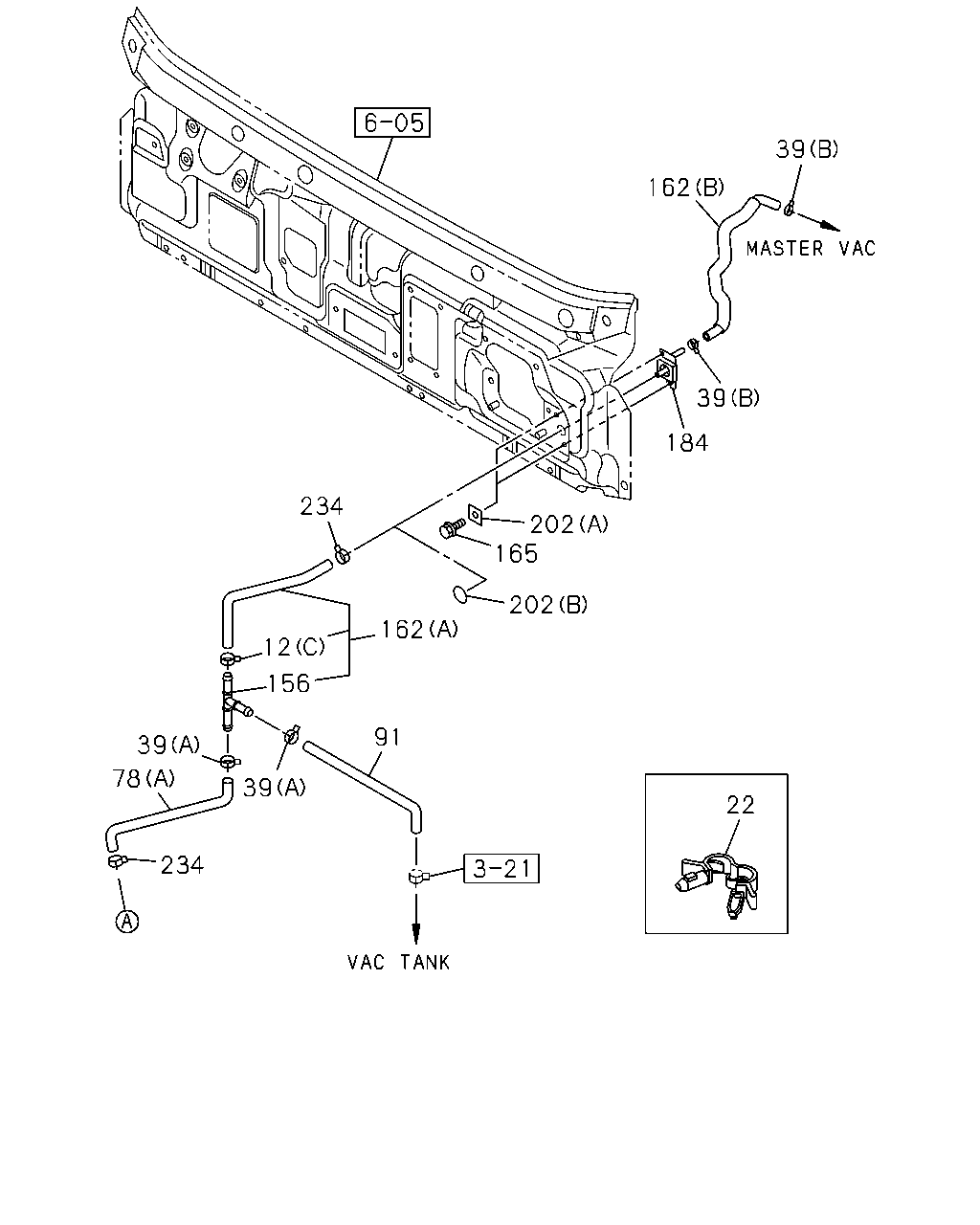

39 162 39 184 234 202 165 202 162 12 156 91 39 78 39 22 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
22	04.681 CLIP; HOSE,VAC TANK POWER ASSIST CLUTCH(S2T) 02.559 ID=13-18 L=18	1-09709-291-0	01	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1111-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (A) ID=16	8-98008-098-0	02	1	1111-1205
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (A) ID=16	8-97329-628-0	02	1	1206-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
91	04.931 HOSE; VAC,RESERVE TANK POWER ASSIST CLUTCH(S2T)	8-98186-036-1	01	1	1111-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98169-697-0	01	1	1111-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (A)	8-98182-127-1	01	1	1111-
165	04.686 BOLT; BRKT POWER ASSIST CLUTCH(S2T) 02.762 M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1111-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T)	8-98169-731-1	01	1	1111-
202	04.686 SEAL POWER ASSIST CLUTCH(S2T) 08.845 (A)	8-97856-616-0	02	1	1111-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98201-038-0	01	1	1111-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	02	1	1111-

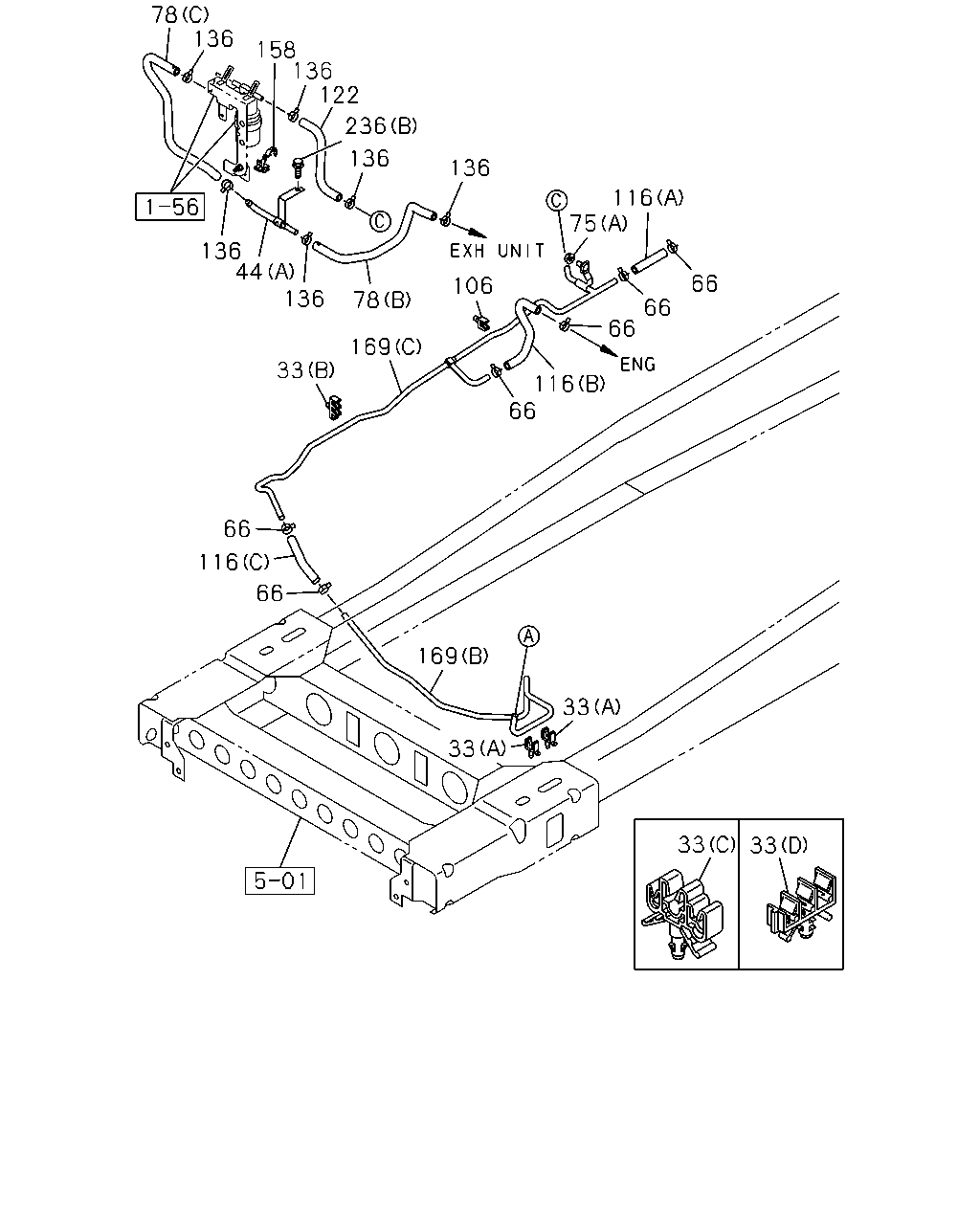

78 136 158 136 122 236 136 136 116 75 136 44 136 66 106 78 66 66 169 33 116 66 66 116 66 169 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-1507
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1508-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
106	04.930 CLIP; PIPE EURO2 SPECIFICATION(NT2) ID=10 H=40	8-94462-219-0	02	1	1111-
106	04.930 CLIP; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) ID=10 H=40	8-94462-219-0	03	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1508-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98180-913-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-910-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98180-910-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98180-911-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-

122 136 136 136 78 136 136 78 44 136 158 236 44 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO2 SPECIFICATION(NT2) (D)	8-98181-404-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98189-106-0	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98182-129-1	01	1	1111-
78	04.931 HOSE; VAC,PIPE TO PIPE EURO5 SPECIFICATION(NT5) (B)	8-98197-253-0	01	1	1111-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98179-179-1	01	1	1111-
136	04.681 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2) 03.162 ID=16	8-98008-098-0	02	1	1111-
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1111-
158	04.681 CLIP; HOSE 02.559 ID=14-20	8-97061-603-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-

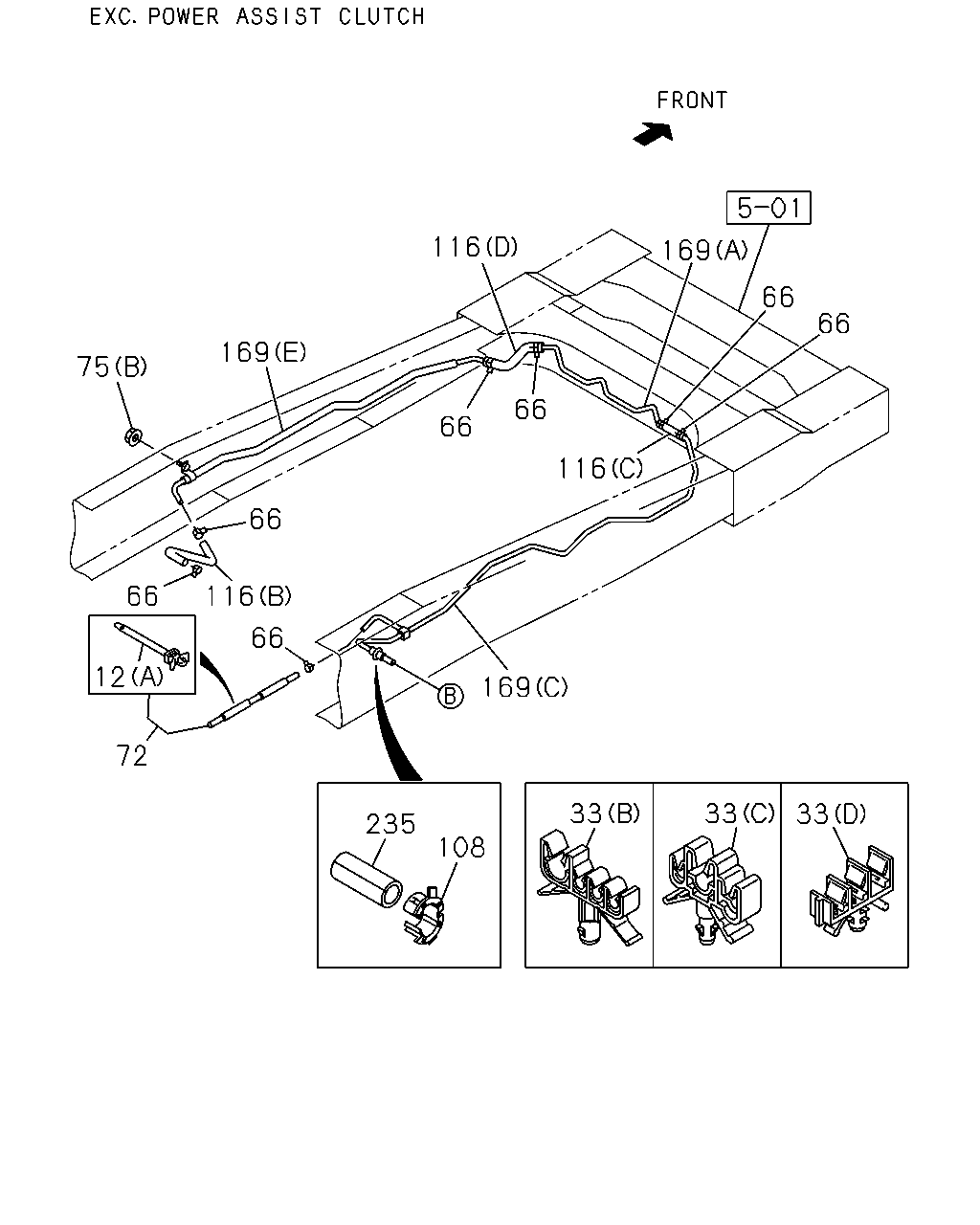

116 169 66 66 169 75 66 66 116 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2)	8-98201-857-1	01	1	1111-1509
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04)	8-98201-857-1	01	1	1510-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-1507
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1508-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98180-913-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-910-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98180-910-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98180-911-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-

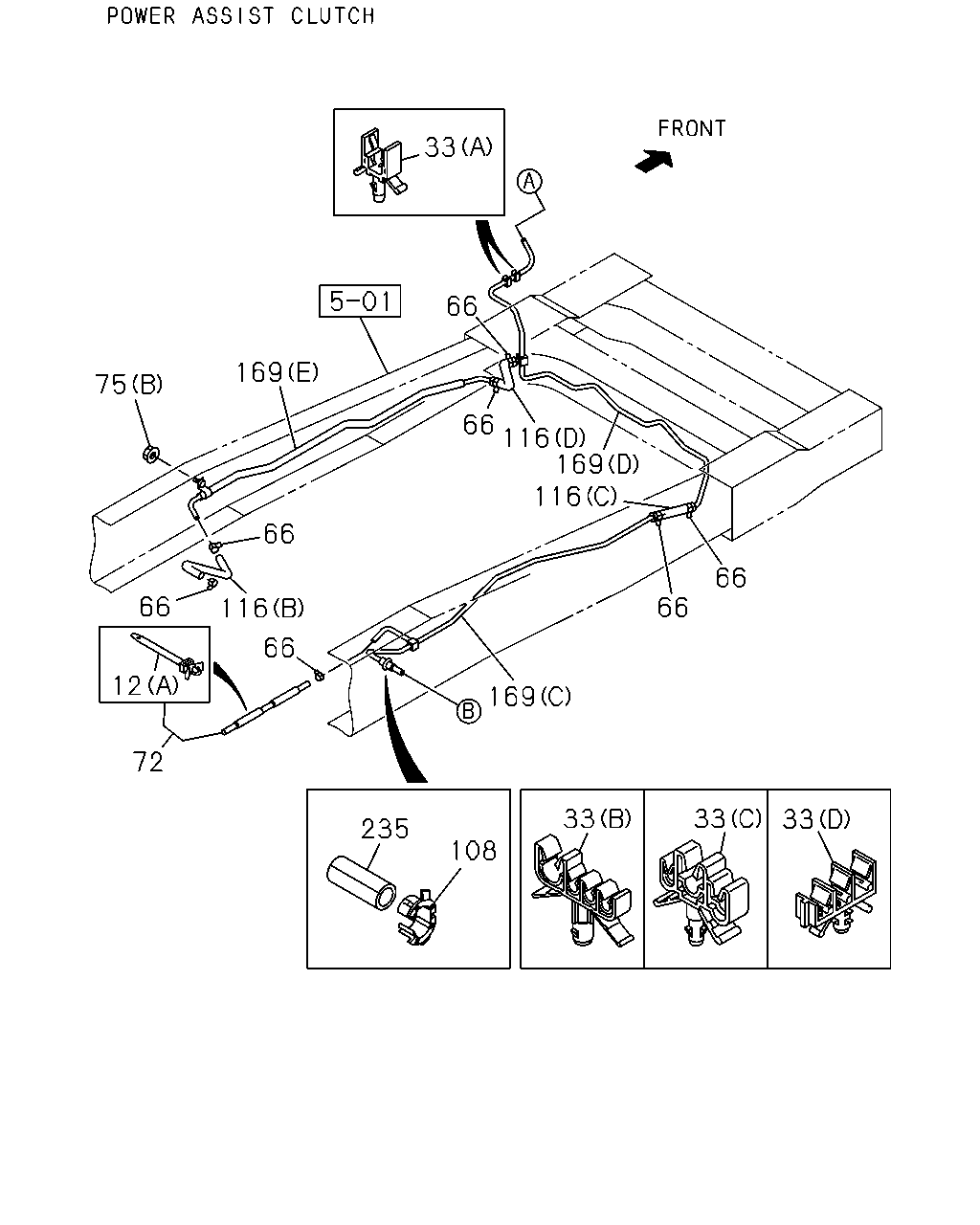

33 66 169 75 66 116 169 116 66 66 66 66 116 66 12 169 72 33 33 33 235 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1111-
33	04.930 CLIP; VAC PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	03	1	1111-
33	04.930 CLIP; VAC PIPE 03.162 (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1111-
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) (A) ID=10 H=40	8-94462-219-0	02	1	1111-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	06	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	02	1	1111-1509
66	04.930 CLIP; VAC HOSE,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 03.162 ID=16	8-98008-098-0	04	1	1510-
66	04.930 CLIP; VAC HOSE,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1510-
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2)	8-98201-857-1	01	1	1111-1509
72	04.931 HOSE; VAC,VAC PUMP TO PIPE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04)	8-98201-857-1	01	1	1510-
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1111-1507
75	04.930 NUT; CLIP,VAC HOSE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1508-
75	04.930 NUT; CLIP,VAC HOSE 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1111-
108	04.931 GROMMET; PIPE EURO2 SPECIFICATION(NT2) 02.343 ID=17	8-94128-319-2	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) 08.962 (D) L=140 SERVICED BY L=3000	0-04740-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1508-
116	04.931 HOSE; VAC,M/VAC (B)	8-98178-956-0	01	1	1111-
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1507
116	04.931 HOSE; VAC,M/VAC EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.630 (A) L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (E)	8-98180-913-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (E)	8-98180-913-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) (C)	8-98181-501-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98181-501-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) (D)	8-98180-912-3	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) POWER ASSIST CLUTCH(S2T) EXC. CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98180-912-3	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98180-910-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T),CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98180-910-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (C)	8-98179-003-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98179-003-4	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) (B)	8-98180-911-2	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) POWER ASSIST CLUTCH(S2T) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98180-911-2	01	1	1508-
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1111-1507
169	04.930 PIPE; VAC,BOOSTER SIDE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98180-965-4	01	1	1508-
235	04.931 RUBBER; SUPPORT,PIPE EURO2 SPECIFICATION(NT2) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1111-

12 197 198 12 12 237 236 228 12 44 12 237 238 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) 04.128 (A) L=213.5	8-98000-506-1	01	1	1111-1509
12	04.681 CLIP; HOSE EURO2 SPECIFICATION(NT2) EXC. TAIWAN EQUIPMENT(B04) 04.128 (A) L=213.5	8-98000-506-1	01	1	1510-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (C) ID=15.5	8-98008-097-0	01	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	02	1	1111-
12	04.681 CLIP; HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=16	8-98008-098-0	04	1	1111-
44	04.930 PIPE; VAC,MAG VLV EURO2 SPECIFICATION(NT2) (B)	8-98181-403-3	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV (A)	8-98034-281-1	01	1	1111-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-807-1	01	1	1111-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98179-118-4	01	1	1111-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	01	1	1111-1111
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-98206-671-0	01	1	1111-
228	04.930 NUT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
236	04.930 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE EURO2 SPECIFICATION(NT2) EXC. POWER ASSIST CLUTCH(S2T) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
236	04.930 BOLT; PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	1111-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97378-771-0	01	1	1111-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98040-785-1	01	1	1111-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) CATALYSIS CONTROL WITH DPD(8JM)	8-97377-521-0	02	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
