◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51392 - NQR BUS A/BRAKE LHD ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#80994) — 107 parça

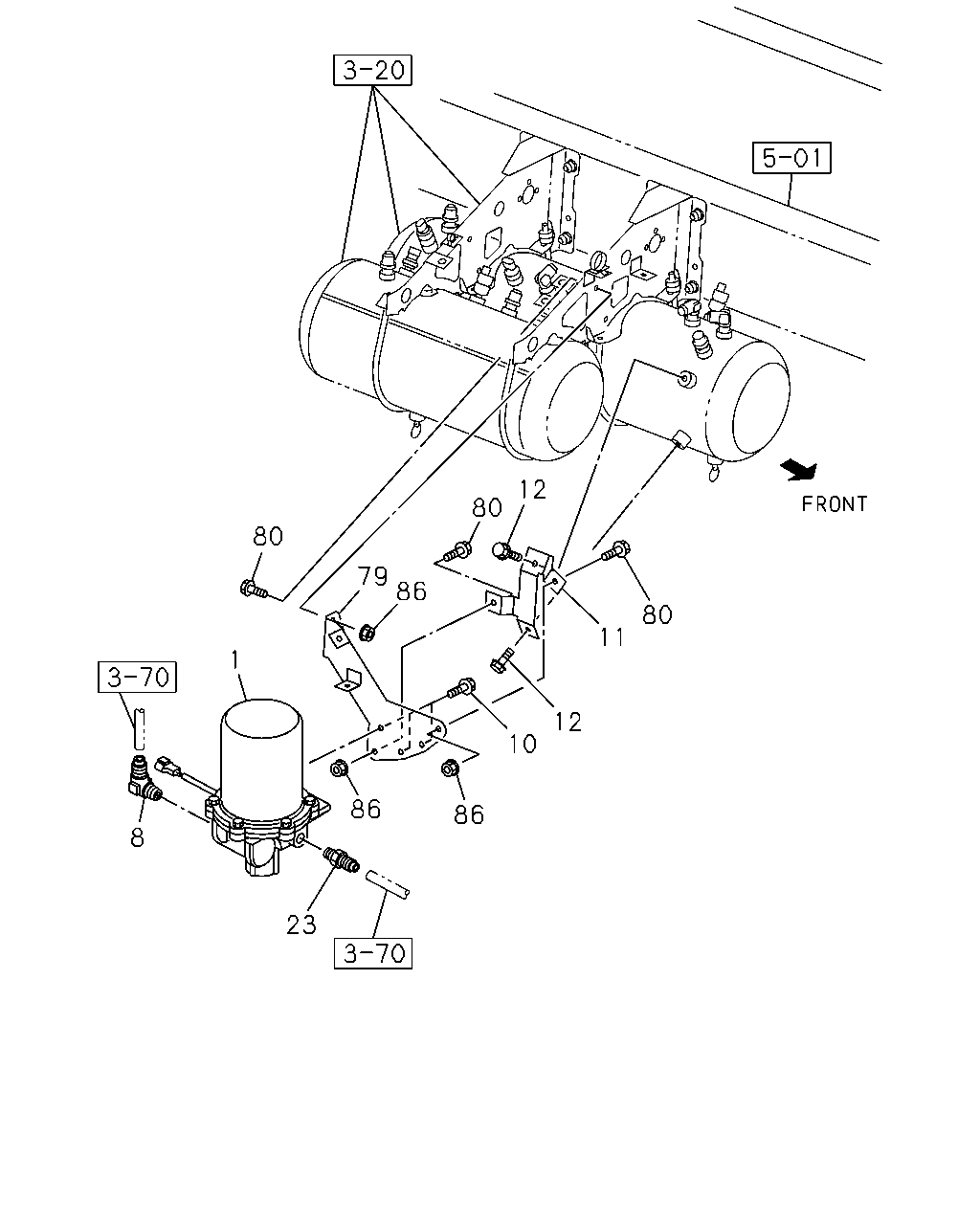

çizim 118409
12 80 80 79 86 80 11 1 12 10 86 86 8 23
BalonParca AdiParca NoAdetTipApplied Date
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-214-0 01 1 1112-1212
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-701-0 01 1 1301-
1 04.846 DRYER; AIR 8-98172-322-0 01 1 1111-1111
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-322-0 01 1 1112-1212
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-700-0 01 1 1301-
8 04.846 CONNECTOR; OUT,AIR DRYER
04.642 DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 1111-
10 04.846 BOLT; AIR DRYER
09.171 M10X25 FLANGE 		0-28051-025-0 03 1 1111-
11 04.846 BRACKET; AIR DRYER 8-98176-286-2 01 1 1111-
12 04.846 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1111-
23 04.846 CONNECTOR; AIR TANK
M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1111-
79 04.846 BRACKET; AIR DRYER 8-98176-285-3 01 1 1111-
80 04.846 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 03 1 1111-1111
80 04.846 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 03 1 1111-
86 04.846 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 1111-

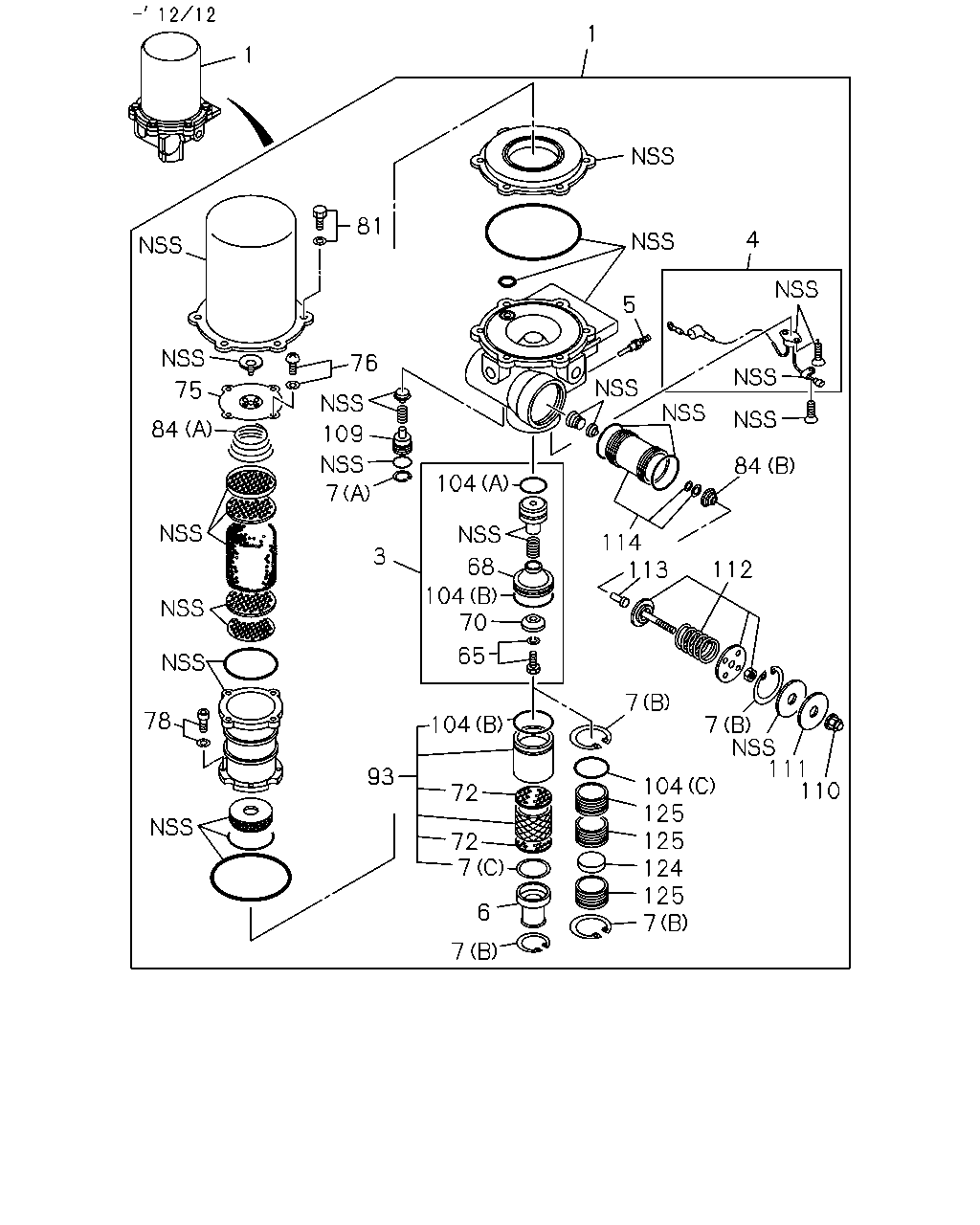

çizim 183420
1 1 81 76 109 7 3 93 104 68 104 70 65 104 72 72 7 6 7 7 104 125 125 124 125 7 7 111 110 112 113 114 84 4 5 75 84 78
BalonParca AdiParca NoAdetTipApplied Date
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-214-0 01 1 1112-1212
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-701-0 01 1 1301-
1 04.846 DRYER; AIR 8-98172-322-0 01 1 1111-1111
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-322-0 01 1 1112-1212
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-700-0 01 1 1301-
3 04.846 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 1111-1212
3 04.846 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1301-
4 04.846 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 1111-
5 04.846 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 1111-
6 04.846 COVER; EXH,AIR DRYER 1-48199-519-0 01 1 1111-1111
6 04.846 COVER; EXH,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		1-48199-519-0 01 1 1112-1212
7 04.846 RING; SNAP,AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-520-0 03 1 1112-
7 04.846 RING; SNAP,AIR DRYER
(C) 		1-48199-154-0 01 1 1111-1111
7 04.846 RING; SNAP,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		1-48199-154-0 01 1 1112-1212
7 04.846 RING; SNAP,AIR DRYER
(B) 		1-48199-520-0 02 1 1111-1111
7 04.846 RING; SNAP,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-520-0 02 1 1112-
7 04.846 RING; SNAP,AIR DRYER
(A) 		1-48199-529-0 01 1 1111-
65 04.846 BOLT; PURGE VLV 1-48199-517-0 01 1 1111-
68 04.846 BODY; VALVE 1-48199-515-0 01 1 1111-
70 04.846 VALVE; AIR DRYER 1-48199-504-0 01 1 1111-
72 04.846 PLATE; FILTER,AIR DRYER 1-48199-550-0 02 1 1111-1111
72 04.846 PLATE; FILTER,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		1-48199-550-0 02 1 1112-1212
75 04.846 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1111-
76 04.846 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 1111-
78 04.846 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 1111-
81 04.846 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1111-
84 04.846 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1111-
84 04.846 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1111-
93 04.846 SILENCER; AIR DRYER 1-48199-518-0 01 1 1111-1111
93 04.846 SILENCER; AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		1-48199-518-0 01 1 1112-1212
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 01 1 1112-1212
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1301-
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98172-786-0 01 1 1112-1212
104 04.846 GASKET
(A) 		1-48199-495-0 01 1 1111-1212
104 04.846 GASKET
(A) 		8-98226-321-0 01 1 1301-
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1111-1111
104 04.846 GASKET
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 02 1 1112-1212
109 04.846 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1111-
110 04.846 NUT; CAP 1-48199-527-0 01 1 1111-
111 04.846 PLATE; GOVERNOR 1-48199-526-0 01 1 1111-
112 04.846 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1111-
113 04.846 STEM; EXHAUST 1-48199-522-0 01 1 1111-
114 04.846 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1111-
124 04.846 FILTER; SILENCER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-784-0 01 1 1112-1212
125 04.846 CASE; SILENCER,AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-780-0 03 1 1112-1212

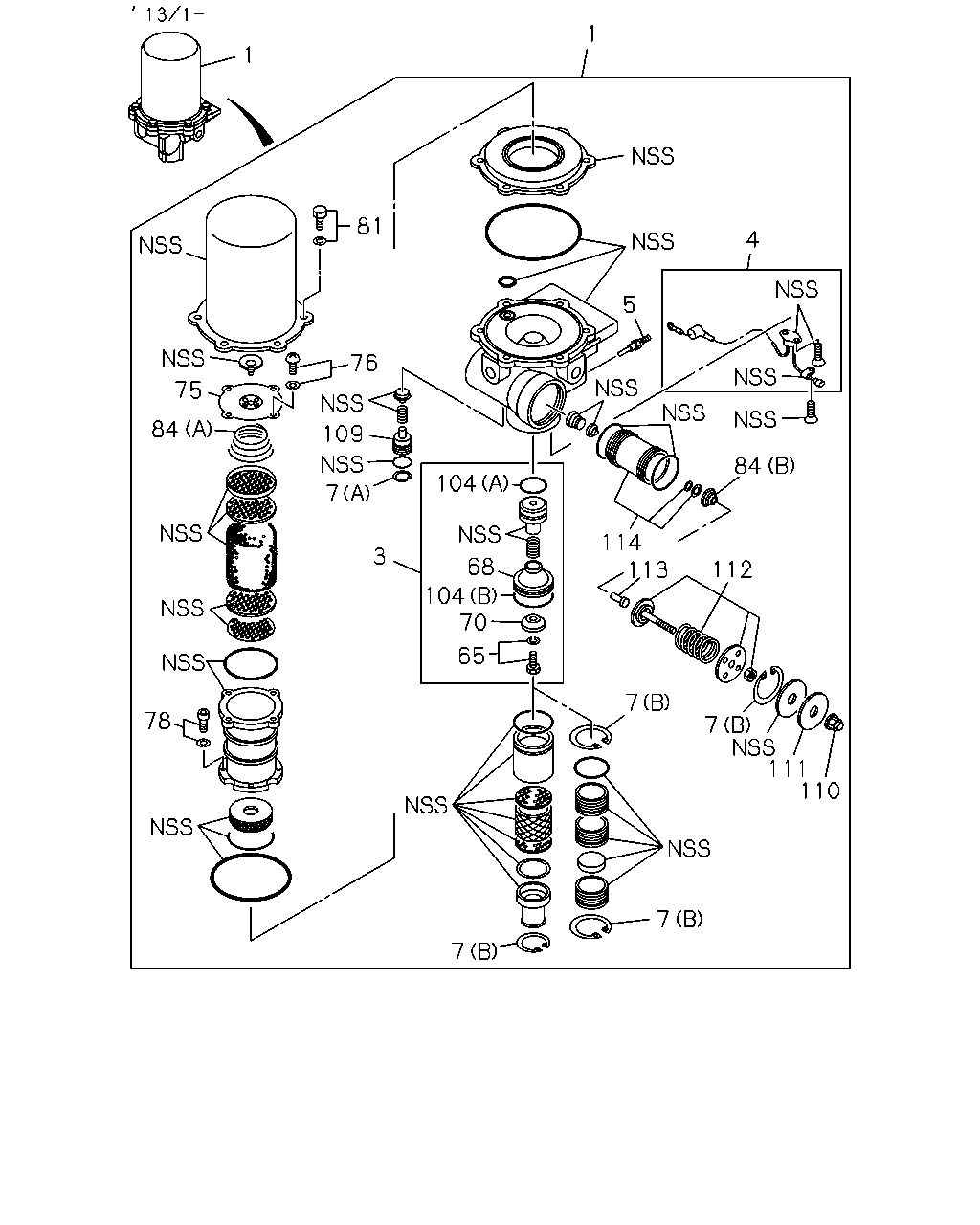

çizim 183421
1 1 81 76 109 7 3 75 84 78 7 7 7 65 70 104 104 114 113 112 7 111 110 84 5 4 68
BalonParca AdiParca NoAdetTipApplied Date
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-214-0 01 1 1112-1212
1 04.846 DRYER; AIR
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-701-0 01 1 1301-
1 04.846 DRYER; AIR 8-98172-322-0 01 1 1111-1111
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98172-322-0 01 1 1112-1212
1 04.846 DRYER; AIR
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98225-700-0 01 1 1301-
3 04.846 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 1111-1212
3 04.846 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1301-
4 04.846 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 1111-
5 04.846 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 1111-
7 04.846 RING; SNAP,AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-520-0 03 1 1112-
7 04.846 RING; SNAP,AIR DRYER
(C) 		1-48199-154-0 01 1 1111-1111
7 04.846 RING; SNAP,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		1-48199-154-0 01 1 1112-1212
7 04.846 RING; SNAP,AIR DRYER
(B) 		1-48199-520-0 02 1 1111-1111
7 04.846 RING; SNAP,AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-520-0 02 1 1112-
7 04.846 RING; SNAP,AIR DRYER
(A) 		1-48199-529-0 01 1 1111-
65 04.846 BOLT; PURGE VLV 1-48199-517-0 01 1 1111-
68 04.846 BODY; VALVE 1-48199-515-0 01 1 1111-
70 04.846 VALVE; AIR DRYER 1-48199-504-0 01 1 1111-
75 04.846 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1111-
76 04.846 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 1111-
78 04.846 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 1111-
81 04.846 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1111-
84 04.846 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1111-
84 04.846 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1111-
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 01 1 1112-1212
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1301-
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98172-786-0 01 1 1112-1212
104 04.846 GASKET
(A) 		1-48199-495-0 01 1 1111-1212
104 04.846 GASKET
(A) 		8-98226-321-0 01 1 1301-
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1111-1111
104 04.846 GASKET
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 02 1 1112-1212
109 04.846 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1111-
110 04.846 NUT; CAP 1-48199-527-0 01 1 1111-
111 04.846 PLATE; GOVERNOR 1-48199-526-0 01 1 1111-
112 04.846 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1111-
113 04.846 STEM; EXHAUST 1-48199-522-0 01 1 1111-
114 04.846 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1111-

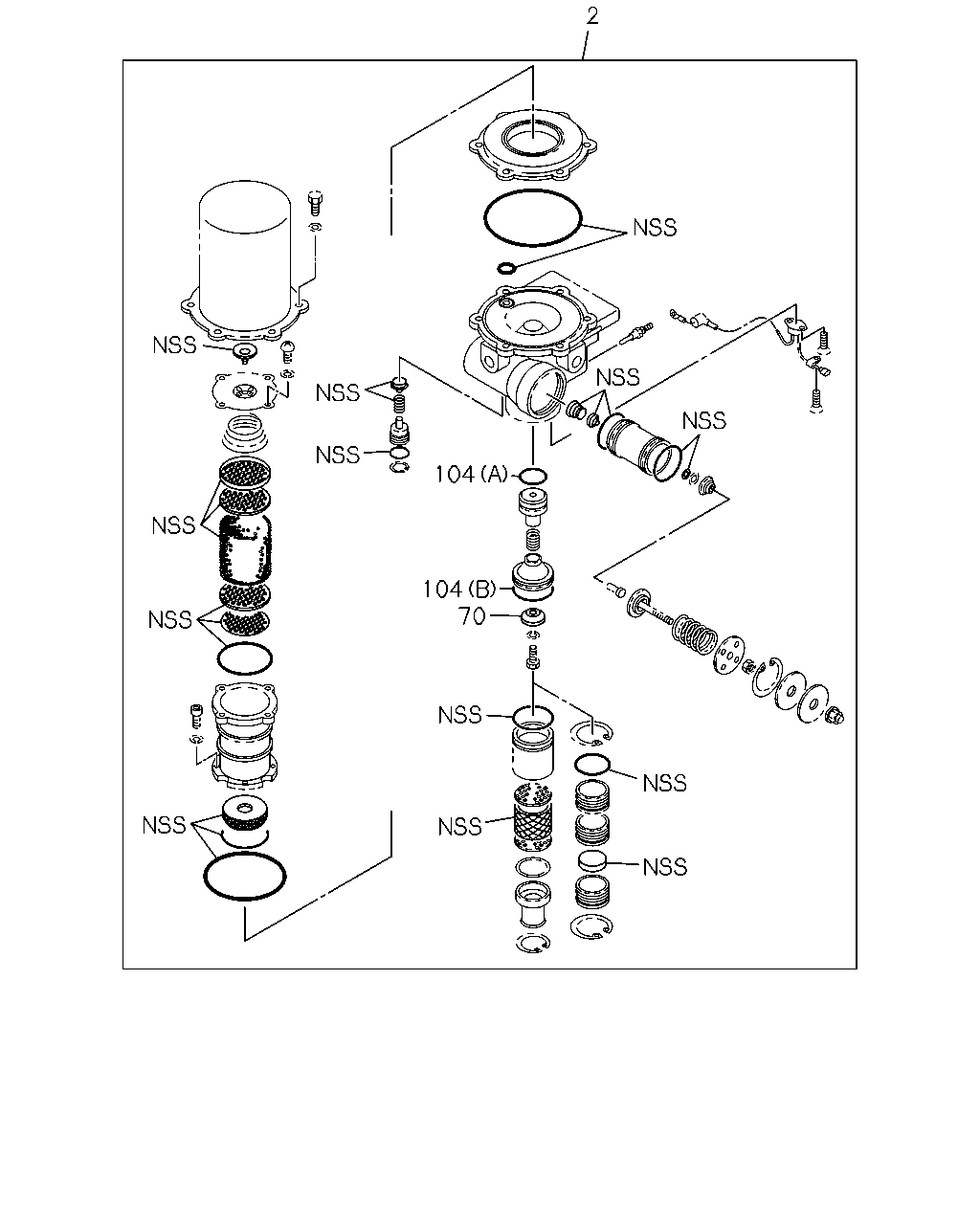

çizim 322291
2 104 104 70
BalonParca AdiParca NoAdetTipApplied Date
2 04.846 REPAIR KIT; AIR DRYER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98226-325-0 01 1 1301-
2 04.846 REPAIR KIT; AIR DRYER 8-98206-119-0 01 1 1111-1212
2 04.846 REPAIR KIT; AIR DRYER
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-98226-324-0 01 1 1301-
70 04.846 VALVE; AIR DRYER 1-48199-504-0 01 1 1111-
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 01 1 1112-1212
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1301-
104 04.846 GASKET
NOISE PACK FOR REGULATION VAR.2<7TF> (C) 		8-98172-786-0 01 1 1112-1212
104 04.846 GASKET
(A) 		1-48199-495-0 01 1 1111-1212
104 04.846 GASKET
(A) 		8-98226-321-0 01 1 1301-
104 04.846 GASKET
(B) 		1-48199-496-0 02 1 1111-1111
104 04.846 GASKET
EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		1-48199-496-0 02 1 1112-1212
