Isuzu WW
▶
TRUCKS
▶
NQR
▶
51392 - NQR BUS A/BRAKE LHD
▶
3 - Brakes, Brake System
▶

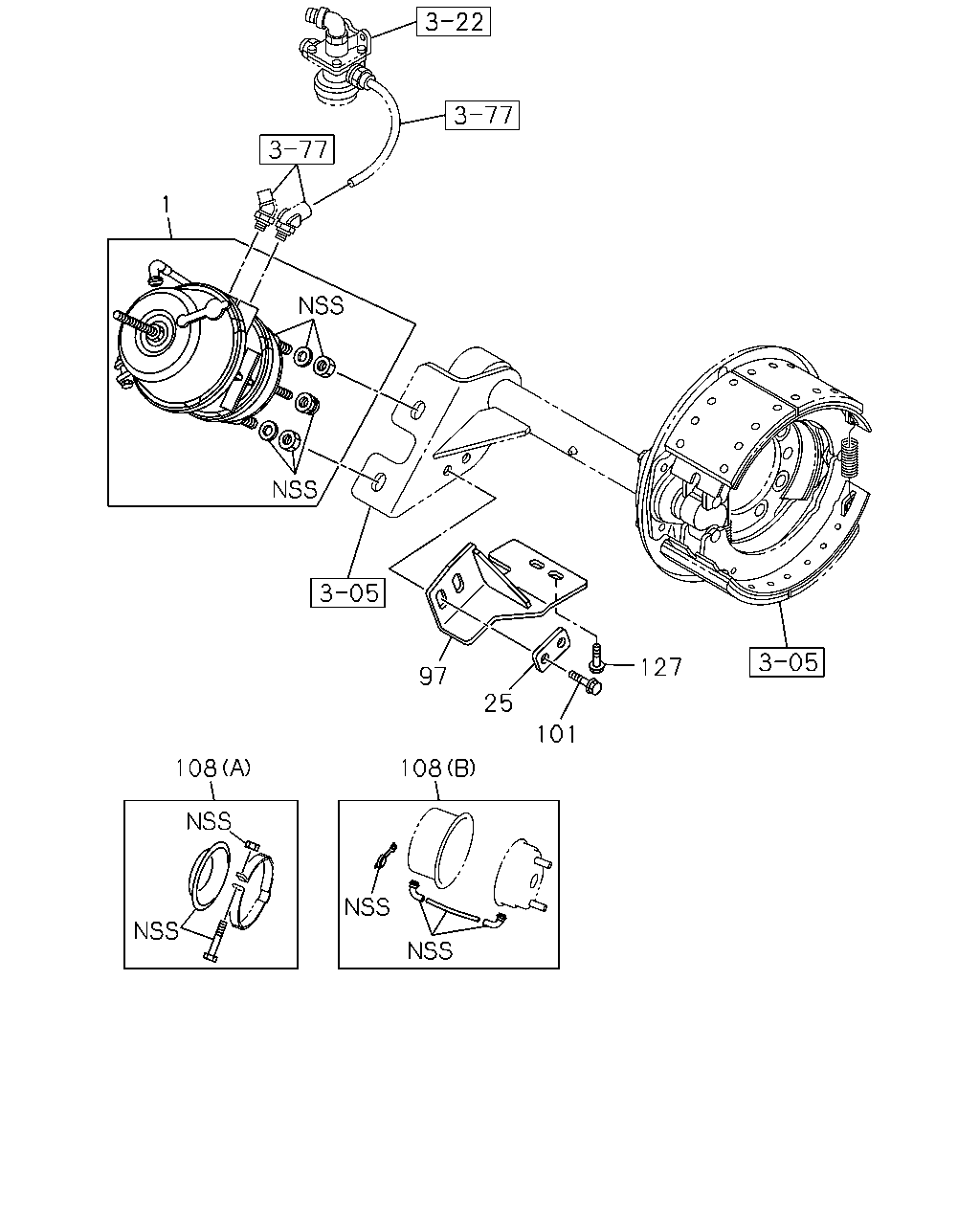

3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#80993) — 11 parça
1
127
97
25
101
108
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
05.120 CHAMBER ASM; SPRING
8-98205-503-0
01
1
1111-
1
05.120 CHAMBER ASM; SPRING
8-98205-504-0
01
1
1111-
25
05.120 PLATE; PRESSURE,SPR CHAMBER
8-98200-650-0
02
1
1111-
97
05.120 BRACKET; CHAMBER
8-98200-654-0
01
1
1111-
97
05.120 BRACKET; CHAMBER
8-98200-655-0
01
1
1111-
101
05.002 BOLT; SPR CHAMBER
05.120 M14X30 FLANGE
0-28861-430-0
04
1
1111-
108
04.667 REPAIR KIT; SPR CHAMBER
(B)
8-98205-508-0
02
1
1210-
108
04.667 REPAIR KIT; SPR CHAMBER
(A)
8-98205-509-0
02
1
1210-
108
04.667 REPAIR KIT; SPR CHAMBER
(B)
8-98205-508-0
02
1
1111-1209
108
04.667 REPAIR KIT; SPR CHAMBER
(A)
8-98205-509-0
02
1
1111-1209
127
05.120 BOLT; BRKT
M14X30 FLANGE
0-28861-430-0
04
1
1111-
