Isuzu WW
▶
TRUCKS
▶
NQR
▶
51392 - NQR BUS A/BRAKE LHD
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#80988) — 47 parça
◀
[320A] FIXING;CONNECTOR REAR(NO.2) (9 parça)
[320A] FIXING;CONNECTOR REAR(NO.1) (11 parça)
[320A] FIXING;CONNECTOR FRONT (2 parça)

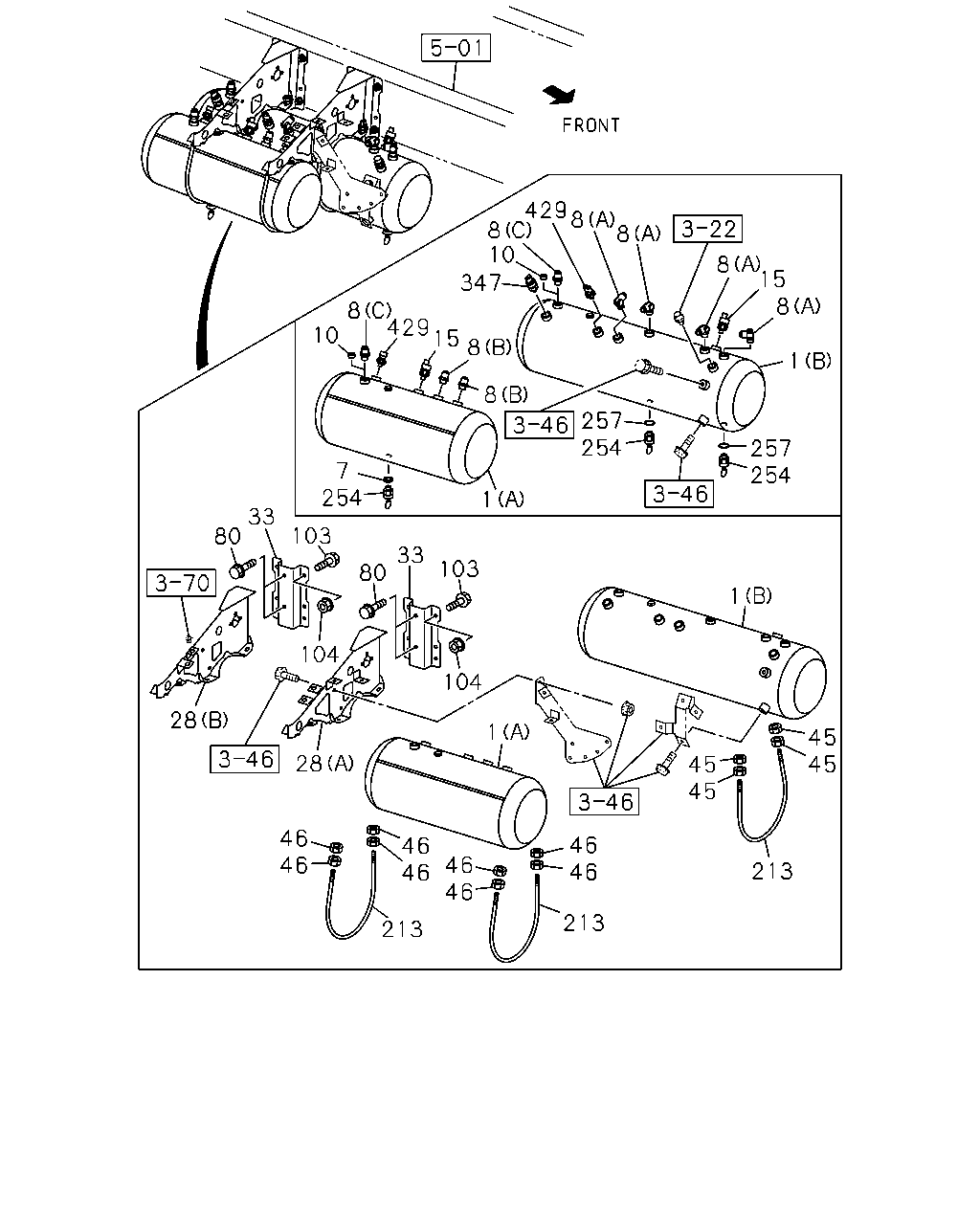

[320A] TANK ASM (25 parça)
▶

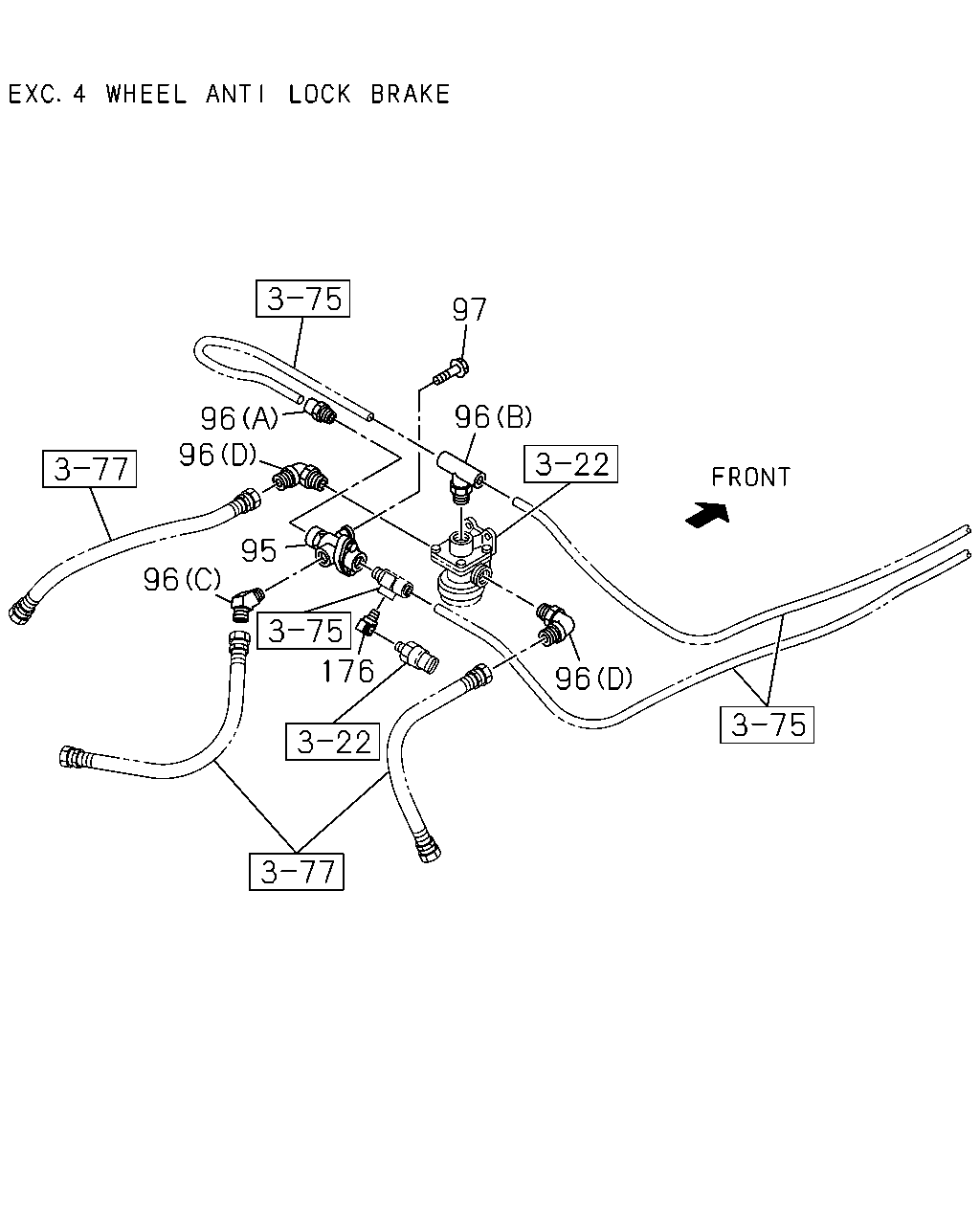

97
96
96
96
95
96
176
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
04.646 VALVE; DOUBLE CHECK
1-48410-531-1
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
04.866 (A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
17.505 (B)
1-09661-568-0
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
(C)
8-98179-493-0
01
1
1111-1502
96
04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98179-493-0
01
1
1503-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 STRAIGHT
1-09661-050-0
02
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98179-494-0
02
1
1111-
97
04.642 BOLT; BRKT,DBL CHECK VLV
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1111-
176
04.902 ADAPTER
04.642 PT1/4 2WAY
1-09660-693-0
01
1
1111-

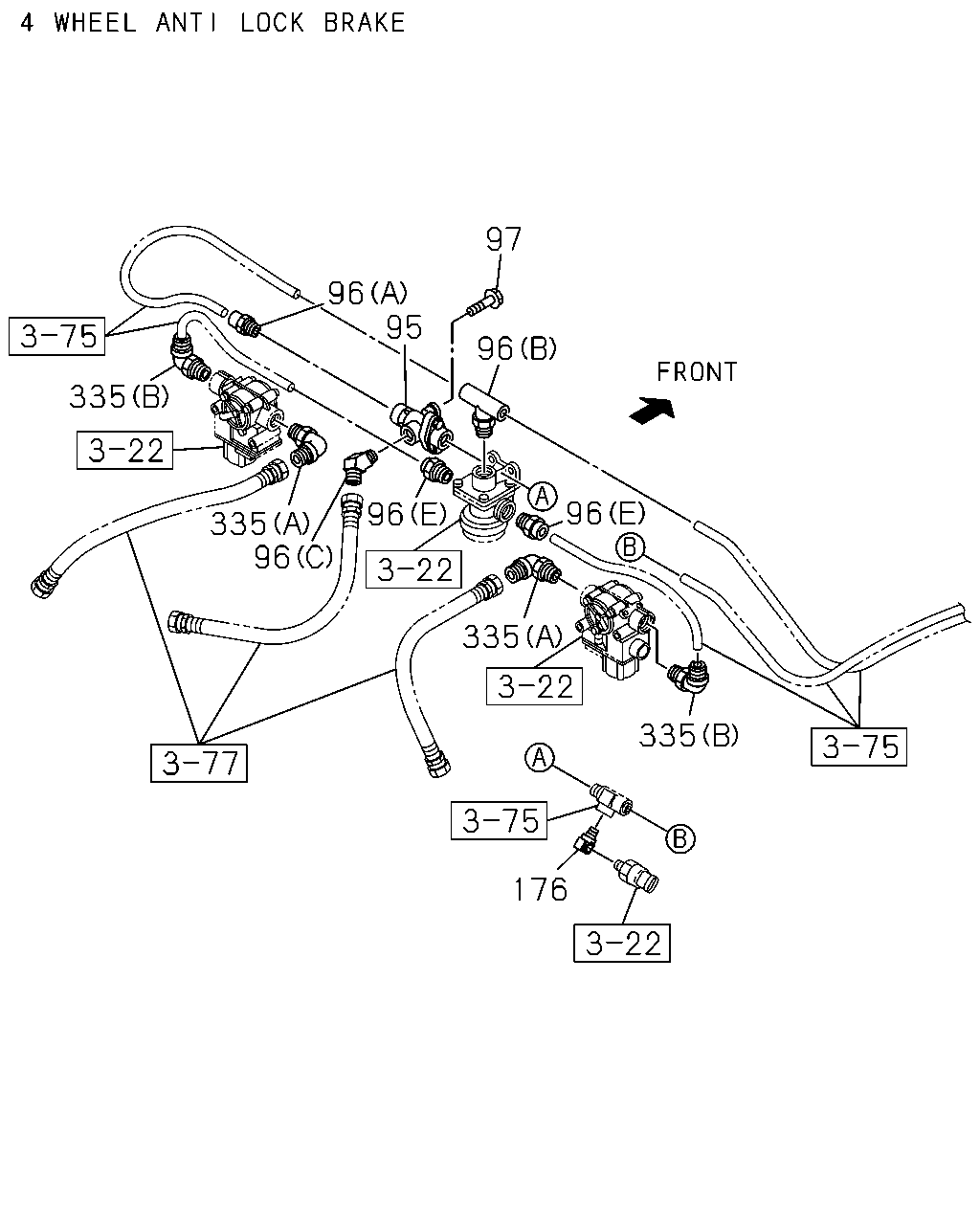

97
96
95
96
335
96
96
335
96
335
335
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
95
04.646 VALVE; DOUBLE CHECK
1-48410-531-1
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
04.866 (A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
17.505 (B)
1-09661-568-0
01
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
(C)
8-98179-493-0
01
1
1111-1502
96
04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)
8-98179-493-0
01
1
1503-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
4 WHEEL ANTI LOCK BRAKE<JE5> (E) DIN12 & M22 STRAIGHT
1-09661-050-0
02
1
1111-
96
04.642 CONNECTOR; DOUBLE CHECK VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)
8-98179-494-0
02
1
1111-
97
04.642 BOLT; BRKT,DBL CHECK VLV
02.343 M8X16 FLANGE
0-28050-816-0
02
1
1111-
176
04.902 ADAPTER
04.642 PT1/4 2WAY
1-09660-693-0
01
1
1111-
335
04.902 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 04.642 (A)
8-98179-494-0
02
1
1111-
335
04.902 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98201-089-0
02
1
1111-

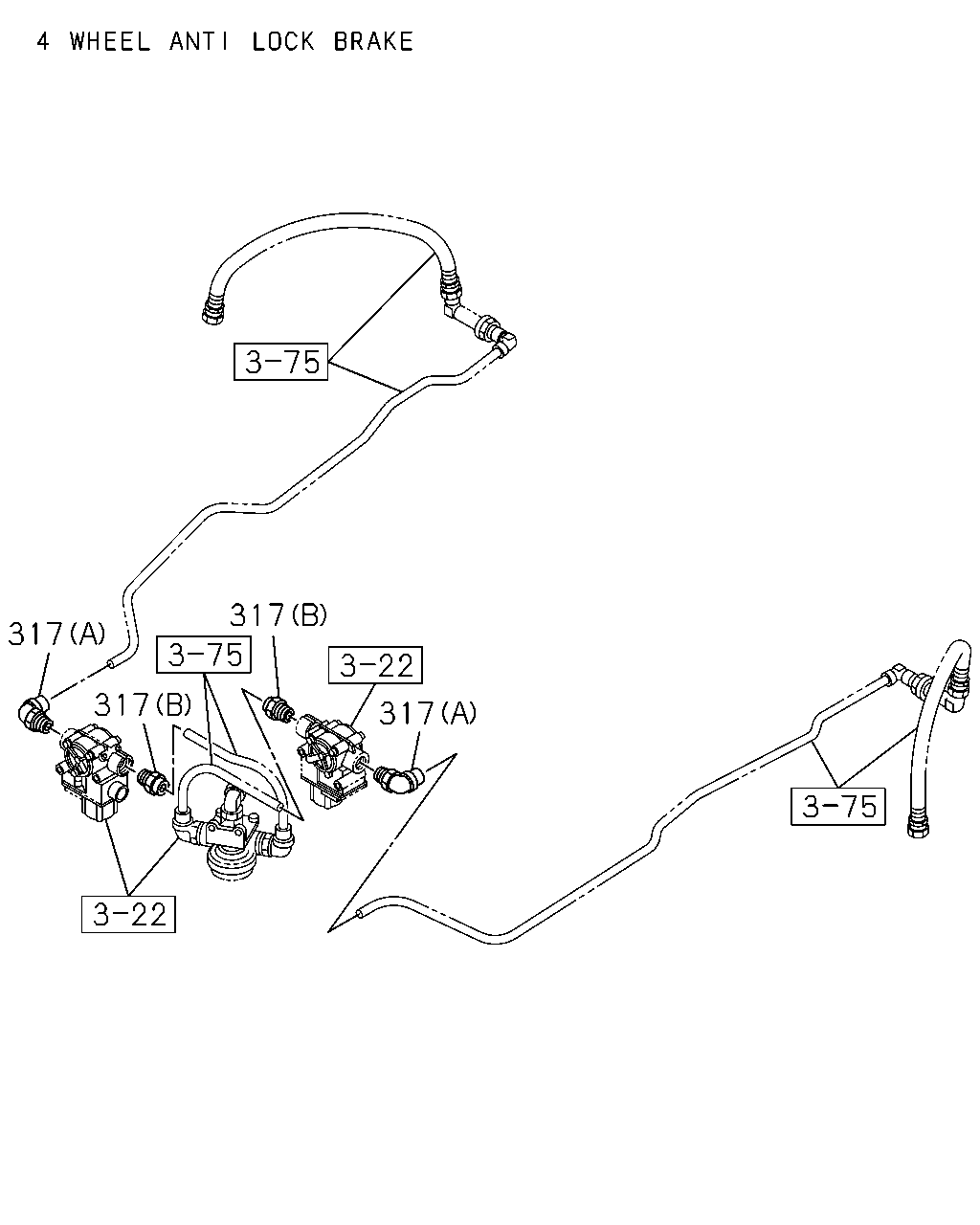

317
317
317
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
317
04.880 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> 04.642 (A) DIN12 & M22 ELBOW
1-09661-497-0
02
1
1111-
317
04.880 CONNECTOR; MODULATOR
4 WHEEL ANTI LOCK BRAKE<JE5> (B)
8-98201-088-0
02
1
1111-
429
8
8
10
347
8
8
15
8
8
429
10
15
8
1
8
257
254
257
254
7
254
1
33
80
103
33
103
80
1
104
104
28
1
45
45
45
45
28
46
46
46
46
46
46
46
46
213
213
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.902 TANK ASM; AIR
(A)
8-98176-290-3
01
1
1111-
1
04.902 TANK ASM; AIR
(B)
8-98176-293-3
01
1
1111-
7
04.902 GASKET; DRAIN COCK
8-98201-803-0
01
1
1111-
8
04.866 CONNECTOR; AIR TANK
04.902 (A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1111-
8
04.866 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1111-
8
04.866 CONNECTOR; AIR TANK
BRAKE REGULATION ECE(TDV) (C) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1111-
10
04.902 PLUG; AIR TANK
EXC. BRAKE REGULATION ECE(TDV) PT1/4
9-99204-513-0
02
1
1111-
15
04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5
8-97609-249-0
01
1
1111-1306
15
04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5
8-97609-249-0
01
1
1111-1306
15
04.902 SWITCH; LOW PRESS,AIR TANK
STAMP 5.5
8-97609-249-0
02
1
1307-
28
04.902 BRACKET; AIR TANK
(A)
8-98176-282-2
01
1
1111-
28
04.902 BRACKET; AIR TANK
(B)
8-98176-283-2
01
1
1111-
33
04.902 BRACKET; BRKT,AIR TANK
EURO2 SPECIFICATION(NT2)
8-98176-284-3
01
1
1111-
33
04.902 BRACKET; BRKT,AIR TANK
EURO2 SPECIFICATION(NT2)
8-98176-284-3
01
1
1111-
33
04.902 BRACKET; BRKT,AIR TANK
EURO5 SPECIFICATION(NT5)
8-98176-284-3
02
1
1111-
45
04.642 NUT; AIR TANK,MAIN
02.334 M8
0-91110-508-0
08
1
1111-
46
04.902 NUT; U-BOLT
02.334 M8
0-91110-508-0
08
1
1111-
80
04.642 BOLT; BRKT
09.003 M12X35 FLANGE
0-28651-235-0
04
1
1111-
103
04.902 BOLT; BRKT
02.277 M10X35 FLANGE
0-28651-035-0
07
1
1111-
104
04.852 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
07
1
1111-
213
04.902 BOLT; U AIR TANK
1-48317-254-1
04
1
1111-
254
04.642 PLUG; DRAIN COCK
8-98202-293-0
03
1
1111-
257
04.902 GASKET; PLUG
8-98201-803-0
02
1
1111-
347
04.902 SWITCH; LOW PRESS,WHEEL PARK
STAMP 5.5
8-97609-249-0
01
1
1111-
429
04.902 SENSOR
THREAD R1/4
1-80220-023-1
02
1
1111-
