◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51392 - NQR BUS A/BRAKE LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#80983) — 25 parça

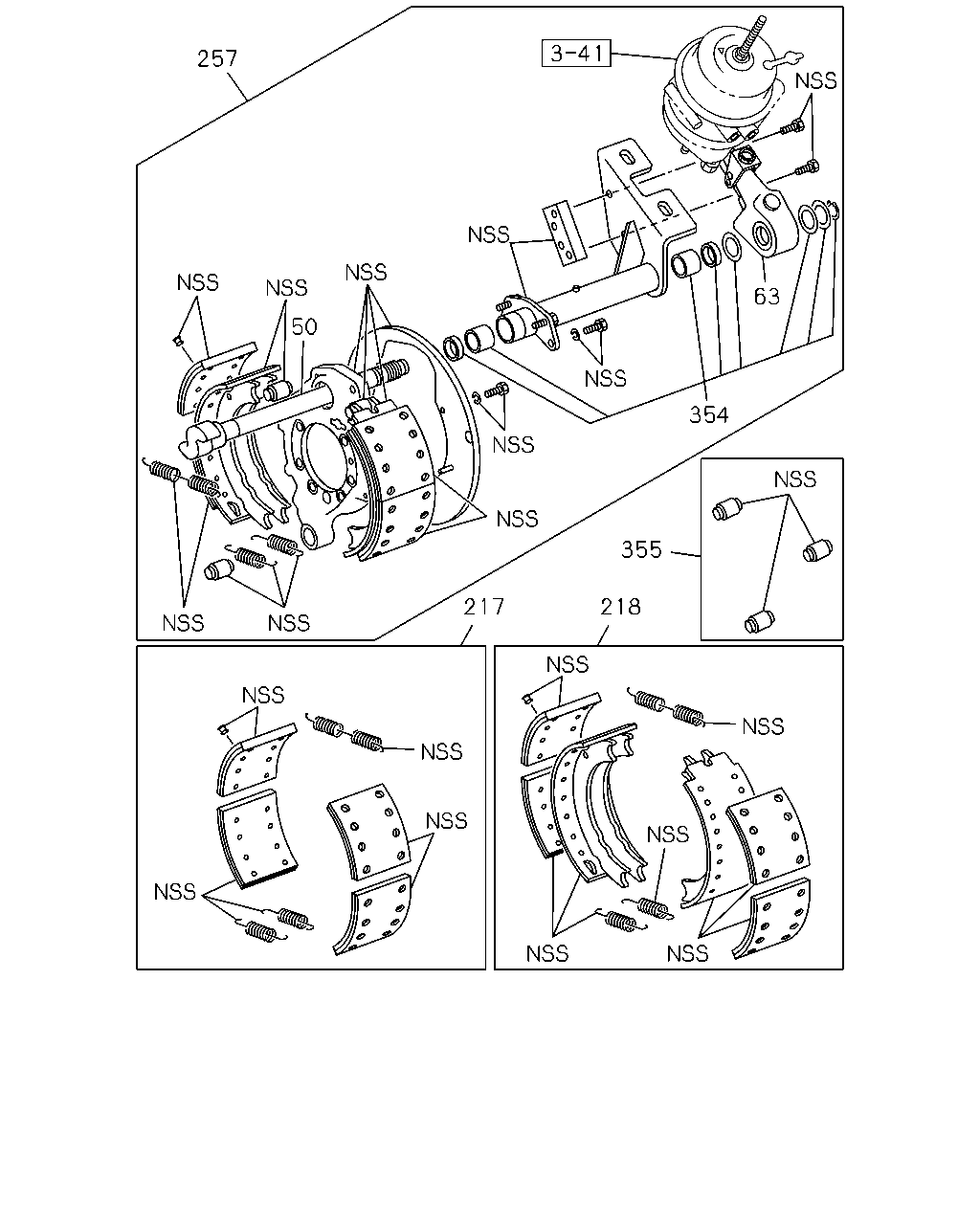

çizim 115270
257 50 217 218 355 354 63
BalonParca AdiParca NoAdetTipApplied Date
50 05.130 CAMSHAFT; BRK,RR BRK 8-98205-501-0 01 1 1111-
50 05.130 CAMSHAFT; BRK,RR BRK 8-98205-502-0 01 1 1111-
63 05.125 ADJUSTER ASM; SLACK,RR BRK
04.666 		8-98229-020-0 02 1 1111-
217 05.018 LINING KIT; RR BRK 8-98205-454-0 01 1 1111-1301
217 05.018 LINING KIT; RR BRK 8-98239-347-0 01 1 1302-1302
217 05.018 LINING KIT; RR BRK 8-98241-912-0 01 1 1303-
218 05.017 SHOE KIT; BRK,RR
05.125 		8-98205-457-0 02 1 1111-1301
218 05.017 SHOE KIT; BRK,RR 8-98239-349-0 02 1 1302-1302
218 05.017 SHOE KIT; BRK,RR 8-98241-913-0 02 1 1303-1507
218 05.017 SHOE KIT; BRK,RR 8-98241-913-1 04 1 1508-
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98172-535-5 01 1 1111-1301
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98239-374-0 01 1 1302-1302
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98241-671-1 01 1 1303-
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98172-537-5 01 1 1111-1301
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98239-376-0 01 1 1302-1302
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98241-675-1 01 1 1303-
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98172-534-5 01 1 1111-1301
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98239-373-0 01 1 1302-1302
257 05.017 BRAKE ASM; REAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98241-670-1 01 1 1303-
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98172-536-5 01 1 1111-1301
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98239-375-0 01 1 1302-1302
257 05.017 BRAKE ASM; REAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98241-673-1 01 1 1303-
354 04.667 REPAIR KIT; S CAM BRACKET 8-98205-455-0 02 1 1111-1301
354 04.667 REPAIR KIT; S CAM BRACKET 8-98239-348-0 02 1 1302-
355 04.667 REPAIR KIT; ROLLER AND ANCHOR PI 8-98205-456-0 02 1 1111-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
