0-65 — STARTER (#8098) — 85 parça

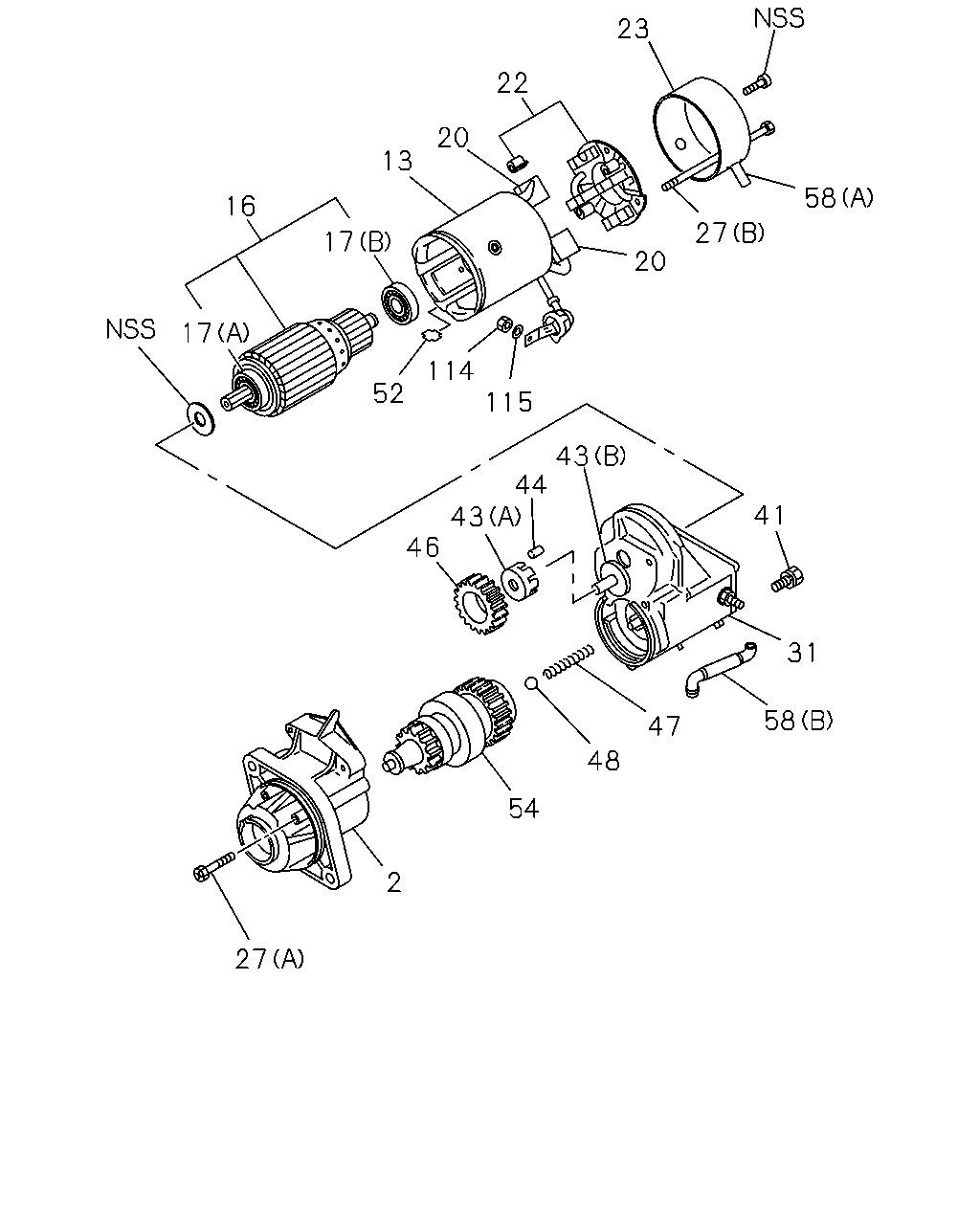

23 22 20 13 58 16 27 17 20 17 114 52 115 43 44 41 43 46 31 58 47 48 54 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81123-049-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: B = 8-97602-167-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-705-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: B = 8-97602-167-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81121-062-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) DENSO ASM PART: B = 8-97602-167-1	1-81129-626-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) DENSO ASM PART: B = 8-97602-167-1	5-09800-081-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: B = 8-97602-167-1	8-94171-853-0	02	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: B = 8-97602-167-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: B = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: B = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: B = 8-97602-167-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-323-0	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-323-0	1-81129-708-0	02	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: B = 8-97602-167-1	1-81151-125-0	01	1	-
41	SCREW; RR COVER,STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-130-0	02	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-323-0	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-323-0	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: B = 8-97602-167-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: B = 8-97602-167-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: B = 8-97602-167-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-712-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: A = 1-81100-323-0	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: B = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: B = 8-97602-167-1	8-97184-641-0	01	1	-
114	NUT; TERMINAL DENSO ASM PART: B = 8-97602-167-1	5-81129-126-0	01	1	-
115	WASHER; TERMINAL DENSO ASM PART: B = 8-97602-167-1	5-81129-134-0	01	1	-

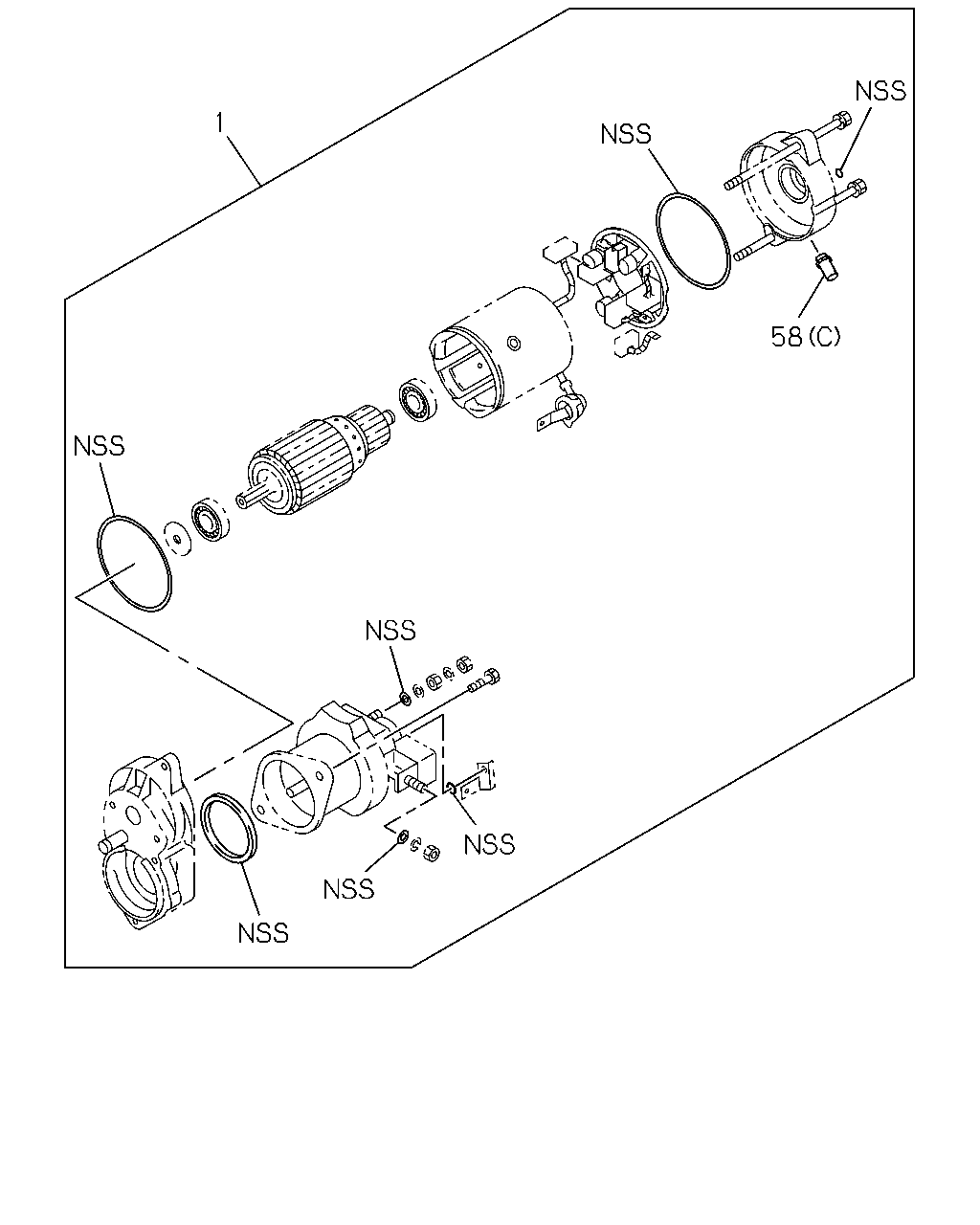

1 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-716-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: A = 1-81100-323-0	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: B = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: B = 8-97602-167-1	8-97184-641-0	01	1	-

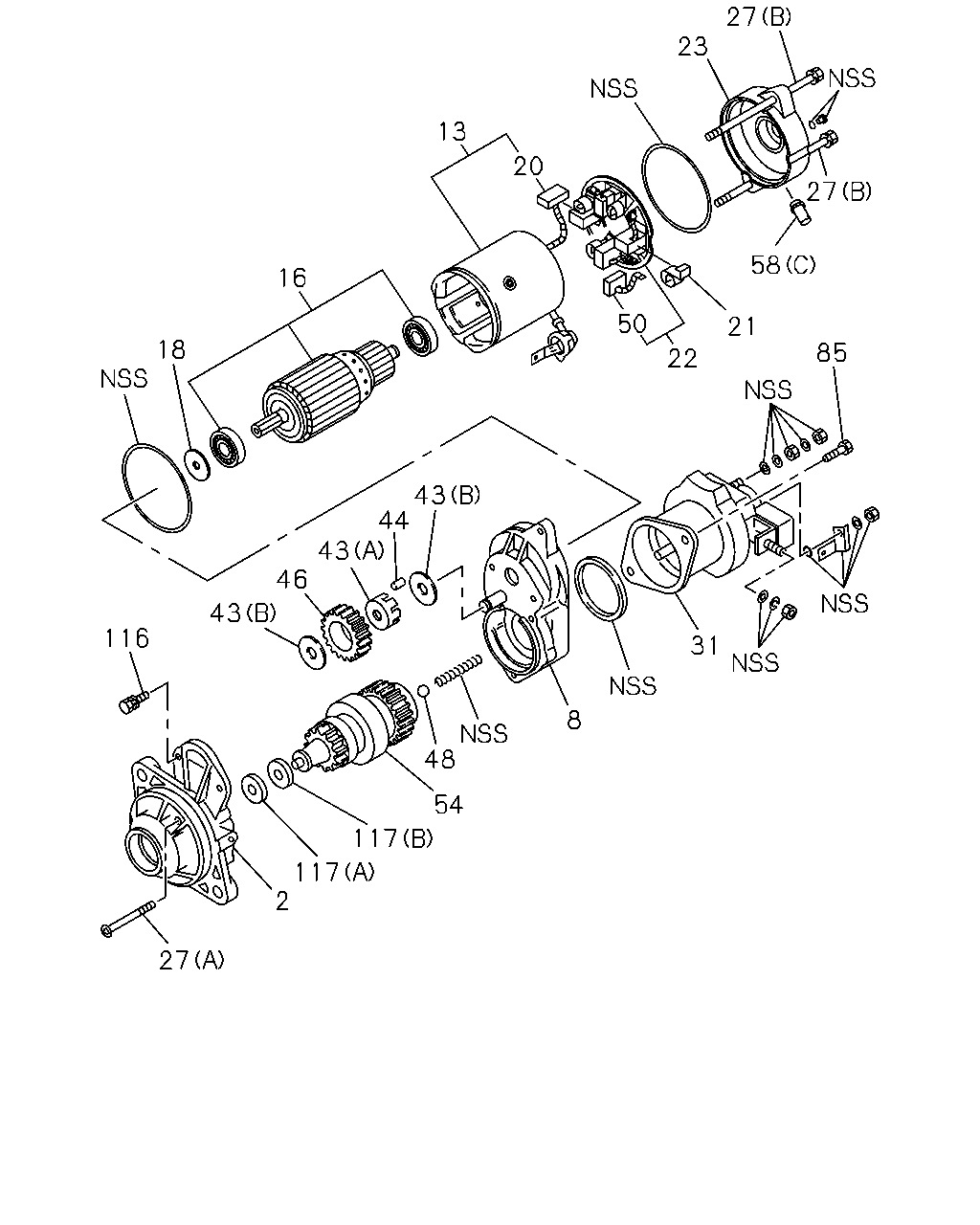

27 23 13 20 27 58 16 50 21 18 85 22 43 44 43 46 43 116 31 8 48 54 117 117 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	1-81114-036-2	01	1	-
2	CASE; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81123-049-0	01	1	-
8	BRACKET; CENTER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81118-059-0	01	1	-
13	YOKE; STARTER DENSO ASM PART: B = 8-97602-167-1	1-81129-696-0	01	1	-
13	YOKE; STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-705-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: B = 8-97602-167-1	1-81121-055-0	01	1	-
16	ARMATURE; STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER NIKKO ASM PART: A = 1-81100-323-0	5-81129-156-0	01	1	-
20	BRUSH; (+),STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81116-060-0	02	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: B = 8-97602-167-1	8-94171-853-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER NIKKO ASM PART: A = 1-81100-323-0	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81118-061-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: B = 8-97602-167-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81115-221-0	01	1	-
23	COVER; RR COVER STARTER DENSO ASM PART: B = 8-97602-167-1	1-81129-701-0	01	1	-
27	BOLT; THROUGH,STARTER (A) DENSO ASM PART: B = 8-97602-167-1	1-81129-625-0	03	1	-
27	BOLT; THROUGH,STARTER (B) DENSO ASM PART: B = 8-97602-167-1	1-81129-698-0	02	1	-
27	BOLT; THROUGH,STARTER (A) NIKKO ASM PART: A = 1-81100-323-0	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) NIKKO ASM PART: A = 1-81100-323-0	1-81129-708-0	02	1	-
31	SWITCH; ENGAGE STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81151-102-1	01	1	-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: B = 8-97602-167-1	1-81151-125-0	01	1	-
43	RETAINER; PINION STARTER (A) NIKKO ASM PART: A = 1-81100-323-0	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) NIKKO ASM PART: A = 1-81100-323-0	1-81129-709-0	02	1	-
43	RETAINER; PINION STARTER (A) DENSO ASM PART: B = 8-97602-167-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) DENSO ASM PART: B = 8-97602-167-1	5-81129-127-0	01	1	-
44	ROLLER; PINION STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-715-0	05	1	-
44	ROLLER; PINION STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-120-0	05	1	-
46	GEAR; CLU STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-714-0	01	1	-
46	GEAR; CLU STARTER DENSO ASM PART: B = 8-97602-167-1	5-81123-018-0	01	1	-
48	BALL; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-713-0	01	1	-
48	BALL; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	5-81129-092-0	01	1	-
50	BRUSH; (-),STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81116-061-0	02	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: B = 8-97602-167-1	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-712-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) NIKKO ASM PART: A = 1-81100-323-0	1-81129-757-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) DENSO ASM PART: B = 8-97602-167-1	8-97184-640-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) DENSO ASM PART: B = 8-97602-167-1	8-97184-641-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER NIKKO ASM PART: A = 1-81100-323-0	1-81129-722-0	02	1	-
116	BOLT; BRKT NIKKO ASM PART: A = 1-81100-323-0	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) NIKKO ASM PART: A = 1-81100-323-0	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) NIKKO ASM PART: A = 1-81100-323-0	1-81129-711-0	01	1	-
