Isuzu WW
▶
TRUCKS
▶
NQR
▶
51392 - NQR BUS A/BRAKE LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

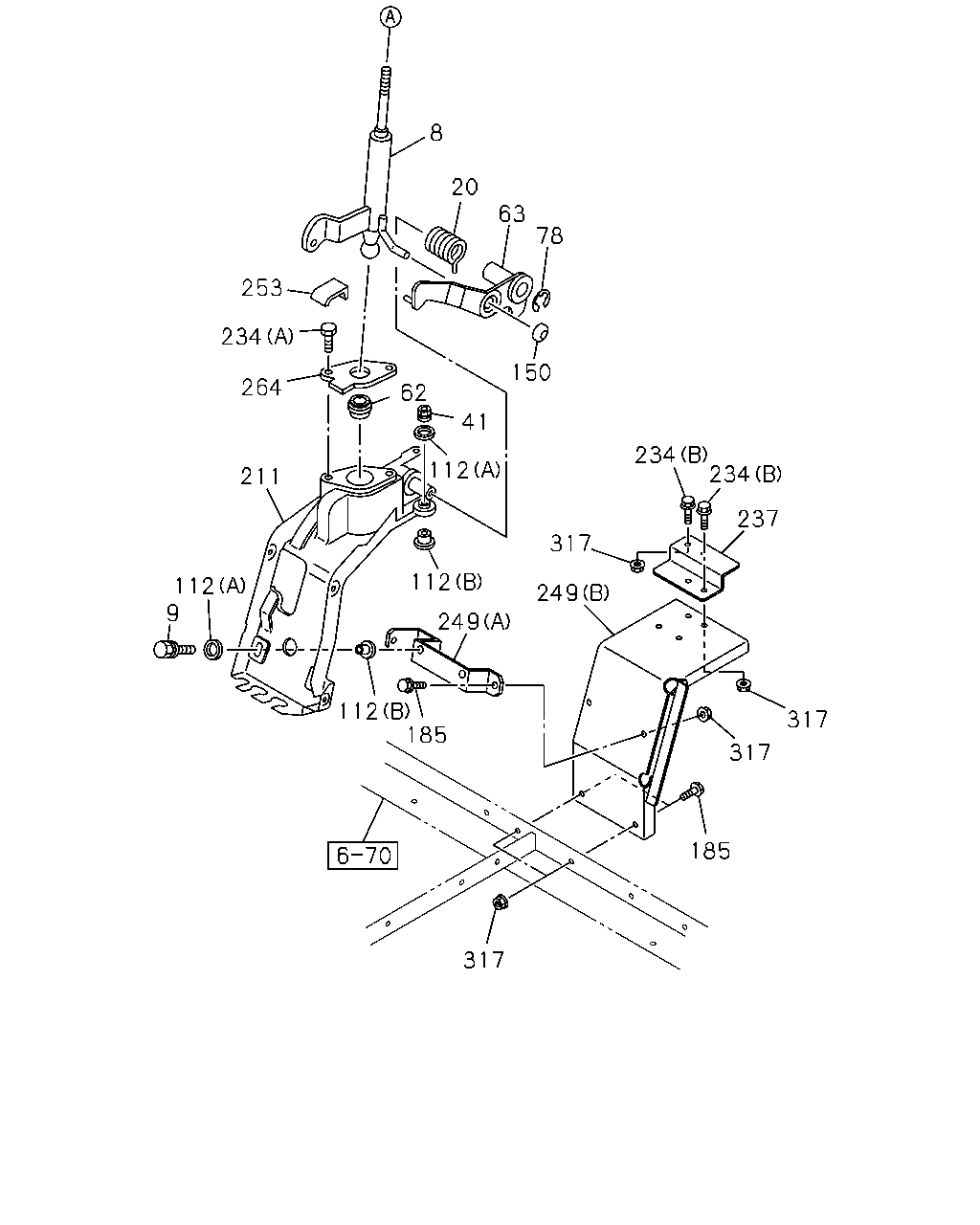

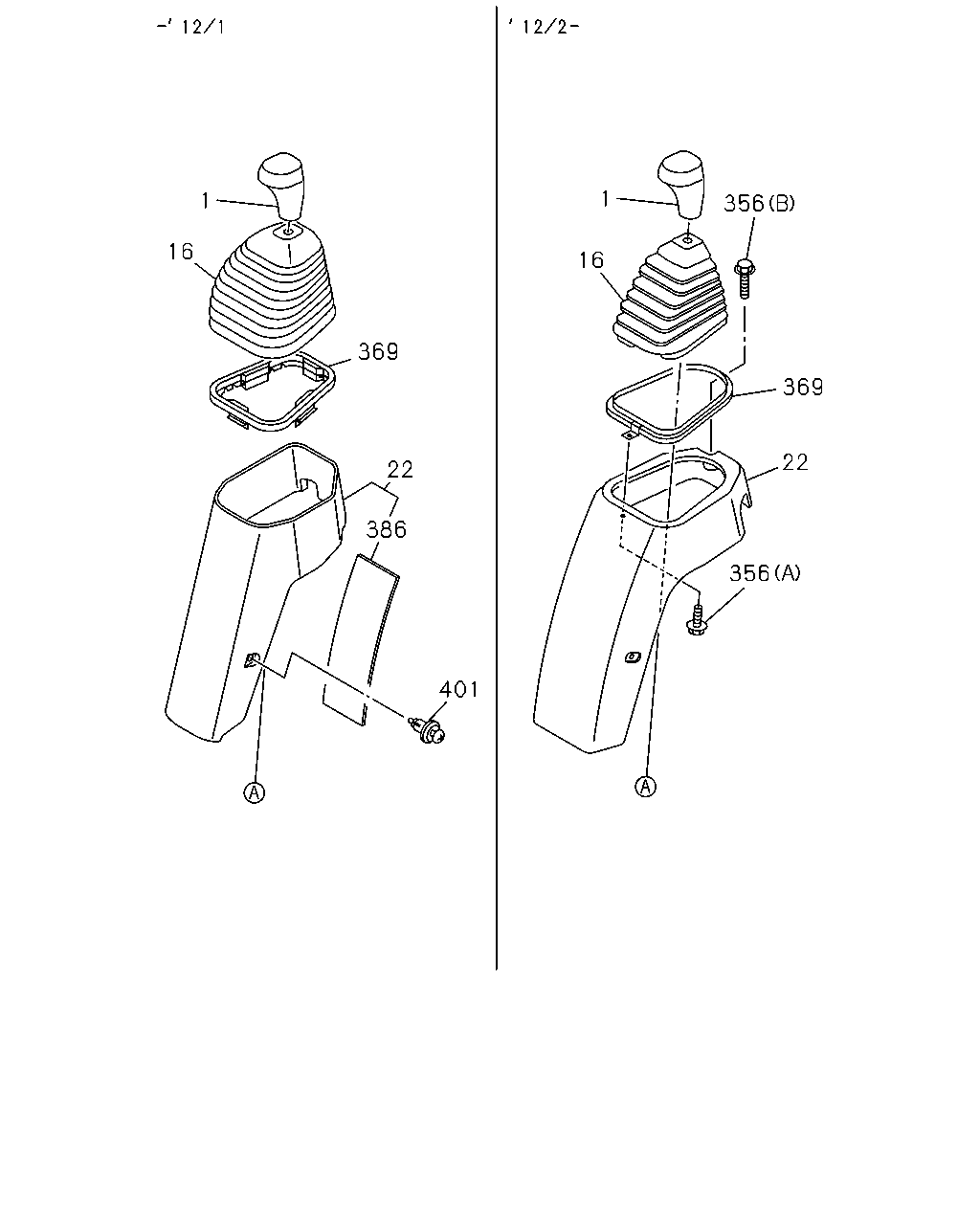

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#80979) — 33 parça
Tümü
A - M/T MZZ6U
B - M/T MYY6S
◀
[235A] NO.2 (22 parça)
[235A] NO.1 (11 parça)
▶
8
20
63
78
253
234
150
264
62
41
234
234
112
211
237
317
112
112
9
249
249
112
185
317
317
185
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
04.006 LEVER; CHANGE
8-97204-506-0
01
1
1111-
●
●
9
04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER
8-94438-324-1
02
1
1111-
●
●
20
04.012 SPRING; CHANGE LEVER
8-97204-514-1
01
1
1111-
●
●
41
04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER
8-97329-625-0
02
1
1111-
●
●
62
04.012 SEAT; BALL,CHANGE LEVER
8-97011-895-1
01
1
1111-
●
●
63
04.006 LEVER; RELAY,SELECT
8-97163-768-0
01
1
1111-
●
●
78
04.008 RING; SNAP,CHANGE LEVER
ID=10
0-91805-510-0
01
1
1111-
●
●
112
04.012 RUBBER; CUSHION
(A)
8-97091-426-0
04
1
1111-
●
●
112
04.012 RUBBER; CUSHION
(B)
8-97091-427-0
04
1
1111-
●
●
150
04.008 BALL; DETENT,CONT LEVER
8-97049-147-0
01
1
1111-
●
●
185
04.012 BOLT; BRKT,COVER
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1111-
●
●
185
04.012 BOLT; BRKT,COVER
06.216 M8X25 FLANGE
0-28650-825-0
02
1
1111-
●
●
211
04.010 BRACKET; CHANGE LEVER
8-97204-505-1
01
1
1111-
●
●
234
04.010 BOLT; BRKT
(A) M6X12 FLANGE
1-33739-842-0
02
1
1111-
●
●
234
04.010 BOLT; BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
1111-
●
●
237
04.010 BRACKET; SHIFT LEVER
8-98156-247-2
01
1
1111-
●
●
249
04.012 BRACKET; COVER
(A)
8-97387-767-0
01
1
1111-
●
●
249
04.012 BRACKET; COVER
(B)
8-98157-874-3
01
1
1111-
●
●
253
04.012 STOPPER; CHANGE LEVER
8-97204-510-0
01
1
1111-
●
●
264
04.015 PLATE; COVER
8-97204-511-0
01
1
1111-
●
●
317
04.017 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
1111-
●
●
317
04.017 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
06
1
1111-
●
●
1
1
356
16
16
369
369
22
22
386
356
401
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.006 KNOB; CHANGE LEVER
BLACK
8-97196-287-1
01
1
1111-
●
●
16
04.015 BOOT; CHANGE LEVER
8-98035-063-0
01
1
1111-1201
●
●
16
04.015 BOOT; CHANGE LEVER
8-97066-287-2
01
1
1202-
●
●
22
04.015 COVER; DUST,CHANGE LEVER
GRAY
8-97406-176-1
01
1
1111-1201
●
●
22
04.015 COVER; DUST,CHANGE LEVER
GRAY
8-97582-399-1
01
1
1202-
●
●
356
04.012 SCREW; COVER
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
01
1
1202-
●
●
356
04.012 SCREW; COVER
16.800 (A) M5X14 TAPPING W/PL WASHER
0-74160-514-0
01
1
1202-
●
●
369
04.012 RETAINER; REINF
8-98032-213-1
01
1
1111-1201
●
●
369
04.012 RETAINER; REINF
8-97066-288-1
01
1
1202-
●
●
386
04.015 INSULATION; CHANGE LEVER
8-97867-282-1
01
1
1111-1201
●
●
401
04.012 CLIP; COVER
GRAY
8-97406-179-0
03
1
1111-1201
●
●
