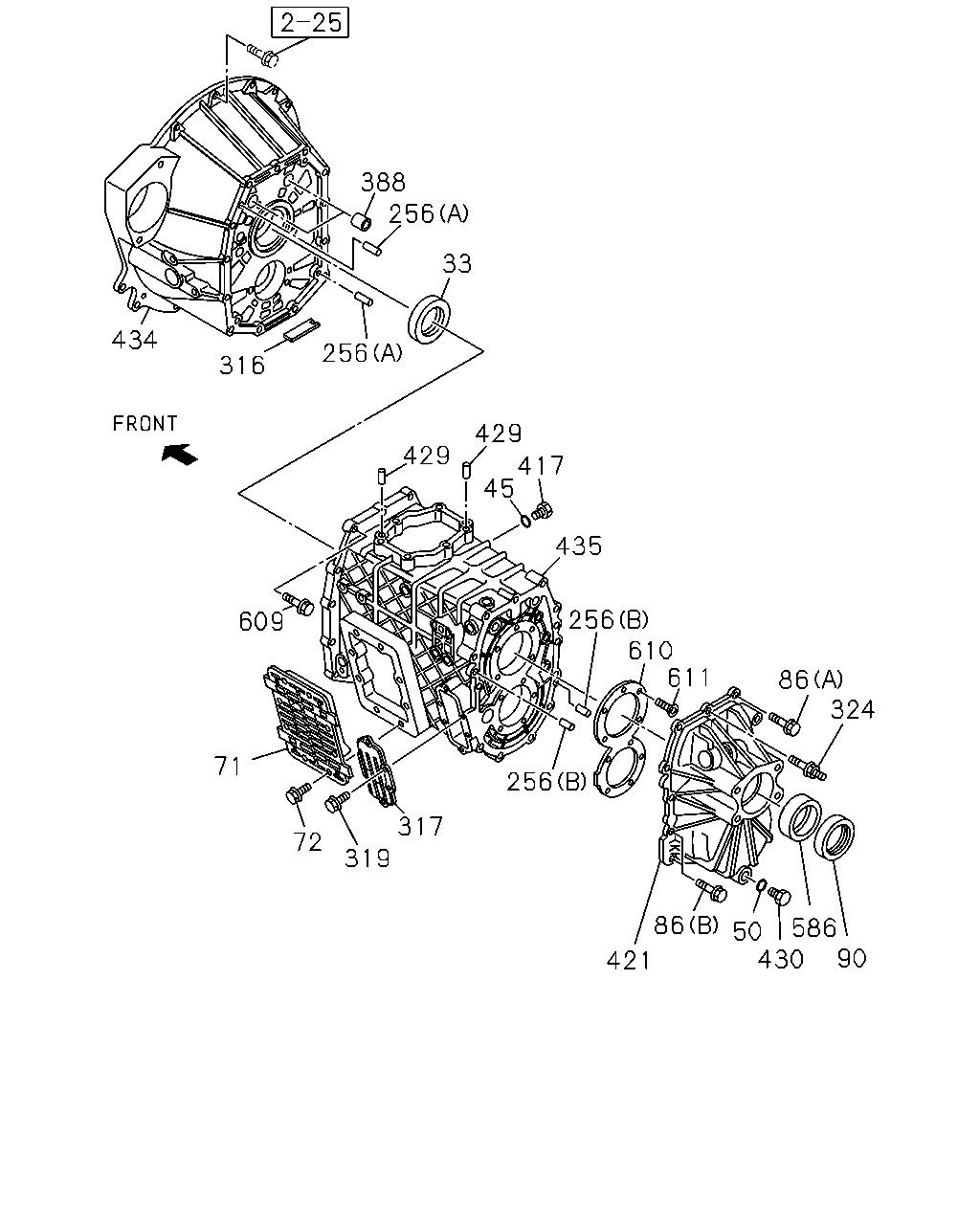

2-20 — MANUAL TRANSMISSION ASM AND CASE (#80975) — 84 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

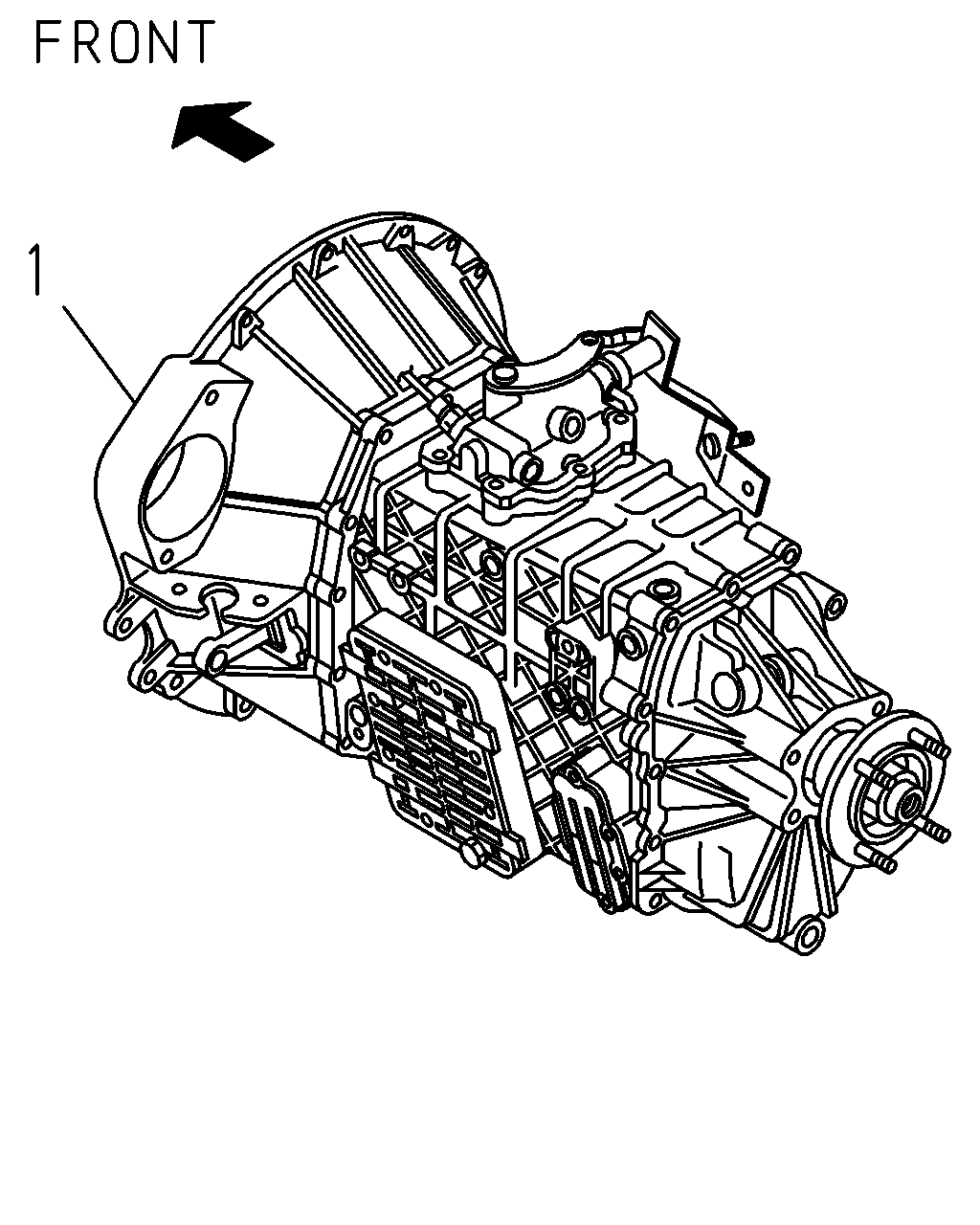

	1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ)	8-98181-496-0	01	1	1111-	●
	1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS)	8-98181-494-0	01	1	1111-		●

388 256 33 434 256 316 429 429 417 45 435 256 610 611 609 86 324 256 71 317 72 319 86 50 586 421 430 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1111-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) ID=17	8-97115-712-0	02	1	1111-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) ID=17	8-97115-712-0	01	1	1111-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ)	8-97252-625-0	01	1	1111-	●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCS ENG(RJS)	8-97252-624-2	01	1	1111-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1111-	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1111-		●
86	04.317 BOLT; RR COVER 4HK1-TCS ENG(RJS) 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1111-1405	●	●
86	04.317 BOLT; RR COVER 4HK1-TCN ENG(RDQ) 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1111-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) NOK	8-97253-552-1	01	1	1111-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) NOK	8-97253-551-1	01	1	1111-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1111-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1111-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1111-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1111-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1111-	●	●
324	04.319 STUD; RR COVER 4HK1-TCS ENG(RJS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1111-1405	●	●
324	04.319 STUD; RR COVER 4HK1-TCN ENG(RDQ) 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1111-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1111-	●	●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	1111-	●
421	04.317 COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-97238-934-5	01	1	1111-		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1111-	●	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ)	8-97365-374-0	02	1	1111-	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCS ENG(RJS)	8-97365-374-0	01	1	1111-		●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ)	8-97237-099-5	01	1	1111-	●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS)	8-97238-930-4	01	1	1111-		●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	1111-	●
435	04.103 CASE; TRANS 4HK1-TCS ENG(RJS)	8-97382-868-1	01	1	1111-		●
586	00.683 BEARING; NEEDLE 4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	1111-	●
586	00.683 BEARING; NEEDLE 4HK1-TCS ENG(RJS)	8-97253-108-0	01	1	1111-		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1111-	●	●
610	04.412 RETAINER; BRG 4HK1-TCN ENG(RDQ)	8-97241-315-1	01	1	1111-	●
610	04.412 RETAINER; BRG 4HK1-TCS ENG(RJS)	8-97241-314-2	01	1	1111-		●
611	04.104 SCREW 4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	1111-	●
611	04.104 SCREW 4HK1-TCS ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	1111-		●

434 13 388 256 33 256 316 24 429 417 45 429 435 430 50 256 609 256 611 71 86 324 610 319 317 72 586 50 430 86 90 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

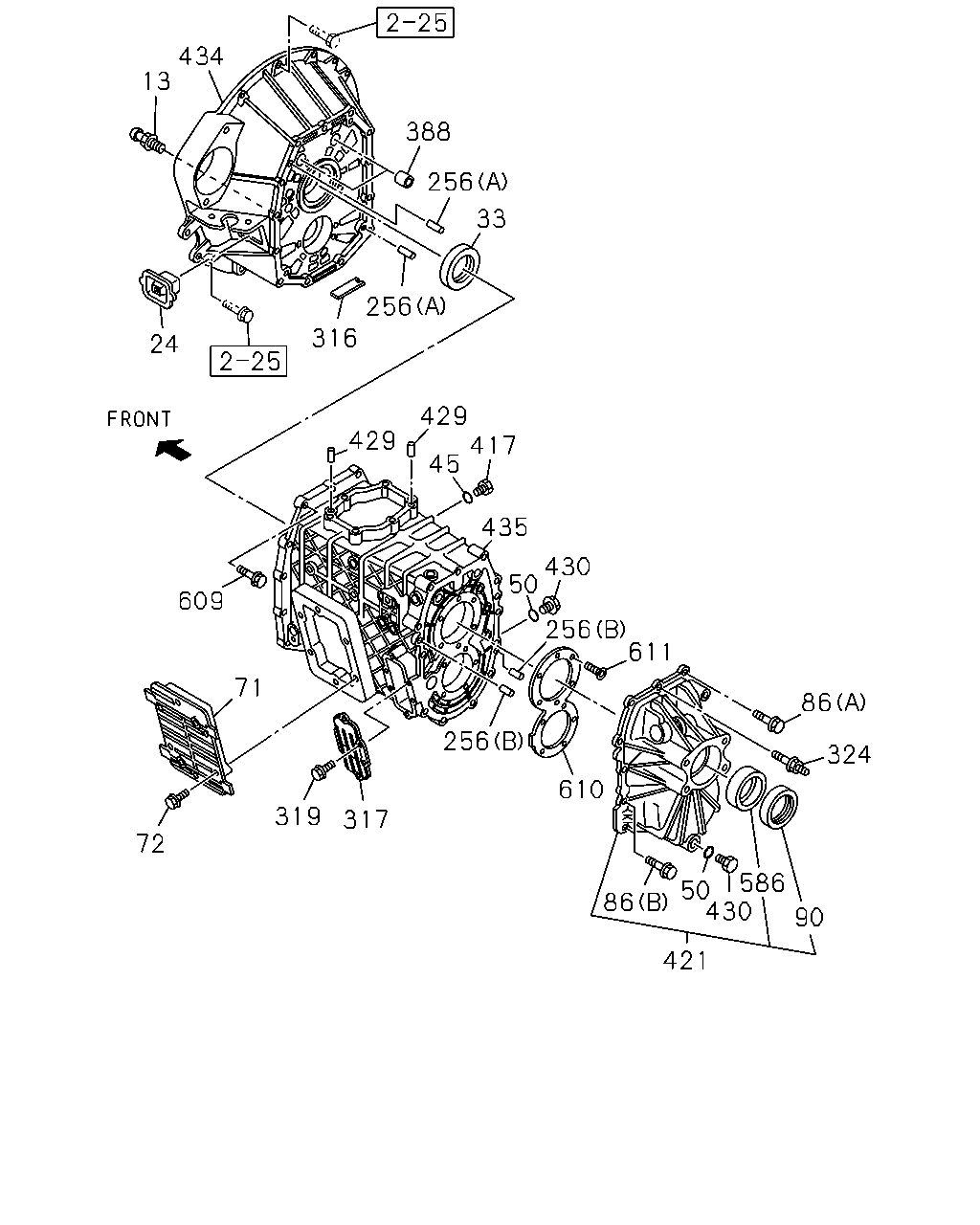

13	04.302 SUPPORT; SHIFT FORK 4HK1-TCN ENG(RDQ)	8-97255-385-1	01	1	1111-	●
24	00.797 COVER; CHECK HOLE,DUST 4HK1-TCN ENG(RDQ)	8-97255-201-0	01	1	1111-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1111-	●	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1111-	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) ID=17	8-97115-712-0	02	1	1111-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) ID=17	8-97115-712-0	01	1	1111-		●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCN ENG(RDQ)	8-97252-625-0	01	1	1111-	●
71	04.439 COVER; SIDE,TRANS CASE 4HK1-TCS ENG(RJS)	8-97252-624-2	01	1	1111-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1111-	●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1111-		●
86	04.317 BOLT; RR COVER 4HK1-TCS ENG(RJS) 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1111-1405	●	●
86	04.317 BOLT; RR COVER 4HK1-TCN ENG(RDQ) 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1111-	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCN ENG(RDQ) NOK	8-97253-552-1	01	1	1111-	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) NOK	8-97253-551-1	01	1	1111-		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1111-	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1111-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1111-	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1111-	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1111-	●	●
324	04.319 STUD; RR COVER 4HK1-TCS ENG(RJS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-		●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1111-1405	●	●
324	04.319 STUD; RR COVER 4HK1-TCN ENG(RDQ) 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1111-	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1111-	●	●
421	04.317 COVER; RR,TRANS 4HK1-TCN ENG(RDQ)	8-98020-028-0	01	1	1111-	●
421	04.317 COVER; RR,TRANS 4HK1-TCS ENG(RJS)	8-97238-934-5	01	1	1111-		●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1111-	●	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCN ENG(RDQ)	8-97365-374-0	02	1	1111-	●
430	04.105 PLUG; OIL DRAIN 4HK1-TCS ENG(RJS)	8-97365-374-0	01	1	1111-		●
434	00.683 HOUSING; CLU 4HK1-TCN ENG(RDQ)	8-97237-099-5	01	1	1111-	●
434	00.683 HOUSING; CLU 4HK1-TCS ENG(RJS)	8-97238-930-4	01	1	1111-		●
435	04.103 CASE; TRANS 4HK1-TCN ENG(RDQ)	8-97379-374-0	01	1	1111-	●
435	04.103 CASE; TRANS 4HK1-TCS ENG(RJS)	8-97382-868-1	01	1	1111-		●
586	00.683 BEARING; NEEDLE 4HK1-TCN ENG(RDQ)	8-97253-109-0	01	1	1111-	●
586	00.683 BEARING; NEEDLE 4HK1-TCS ENG(RJS)	8-97253-108-0	01	1	1111-		●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1111-	●	●
610	04.412 RETAINER; BRG 4HK1-TCN ENG(RDQ)	8-97241-315-1	01	1	1111-	●
610	04.412 RETAINER; BRG 4HK1-TCS ENG(RJS)	8-97241-314-2	01	1	1111-		●
611	04.104 SCREW 4HK1-TCN ENG(RDQ) M10X27 TORQUES	8-97365-354-0	11	1	1111-	●
611	04.104 SCREW 4HK1-TCS ENG(RJS) M10X27 TORQUES	8-97365-354-0	10	1	1111-		●
