Isuzu WW
▶
TRUCKS
▶
NQR
▶
51392 - NQR BUS A/BRAKE LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-08 - CLUTCH MASTER CYLINDER
▶
2-08 — CLUTCH MASTER CYLINDER
(#80973) — 24 parça
Tümü

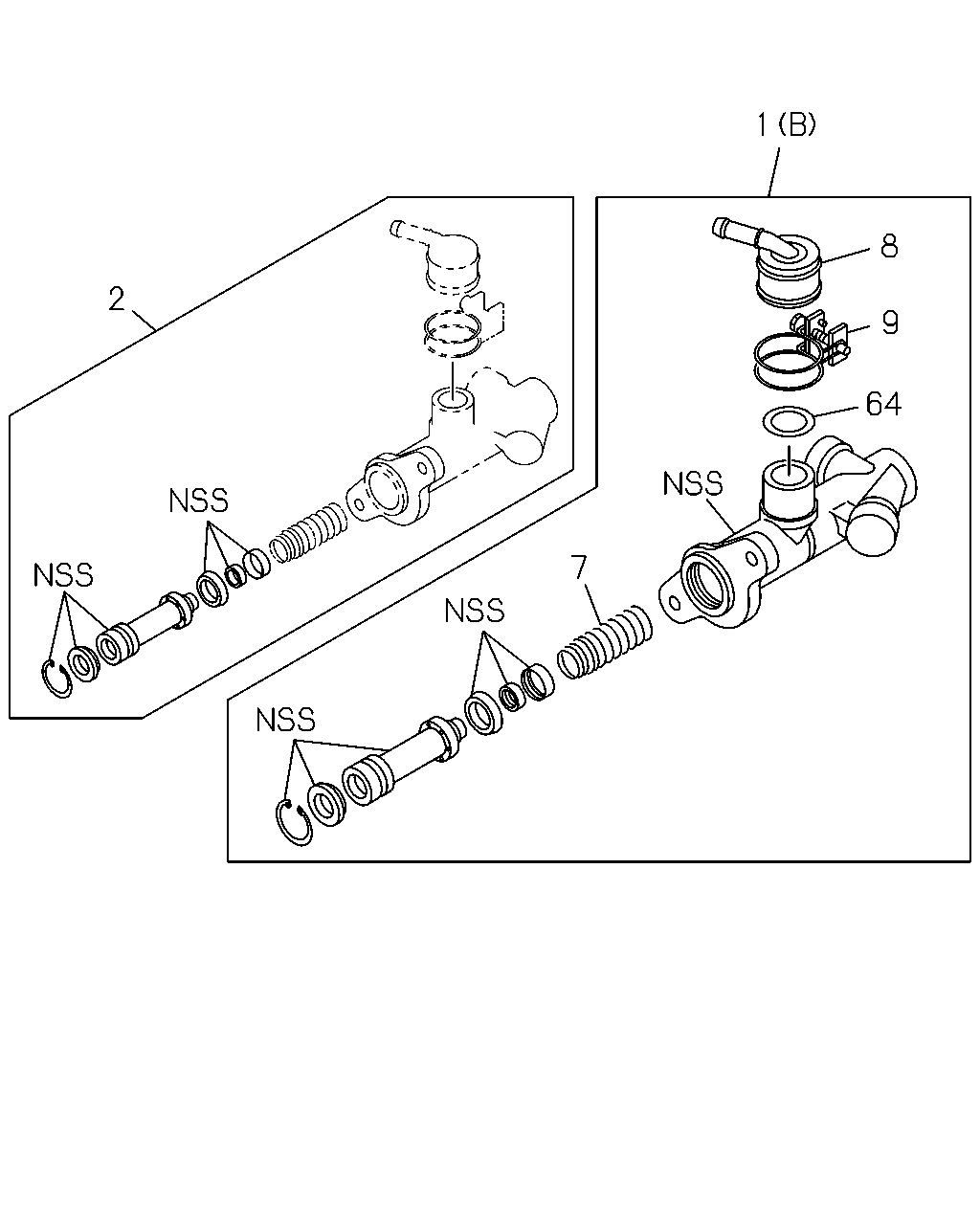

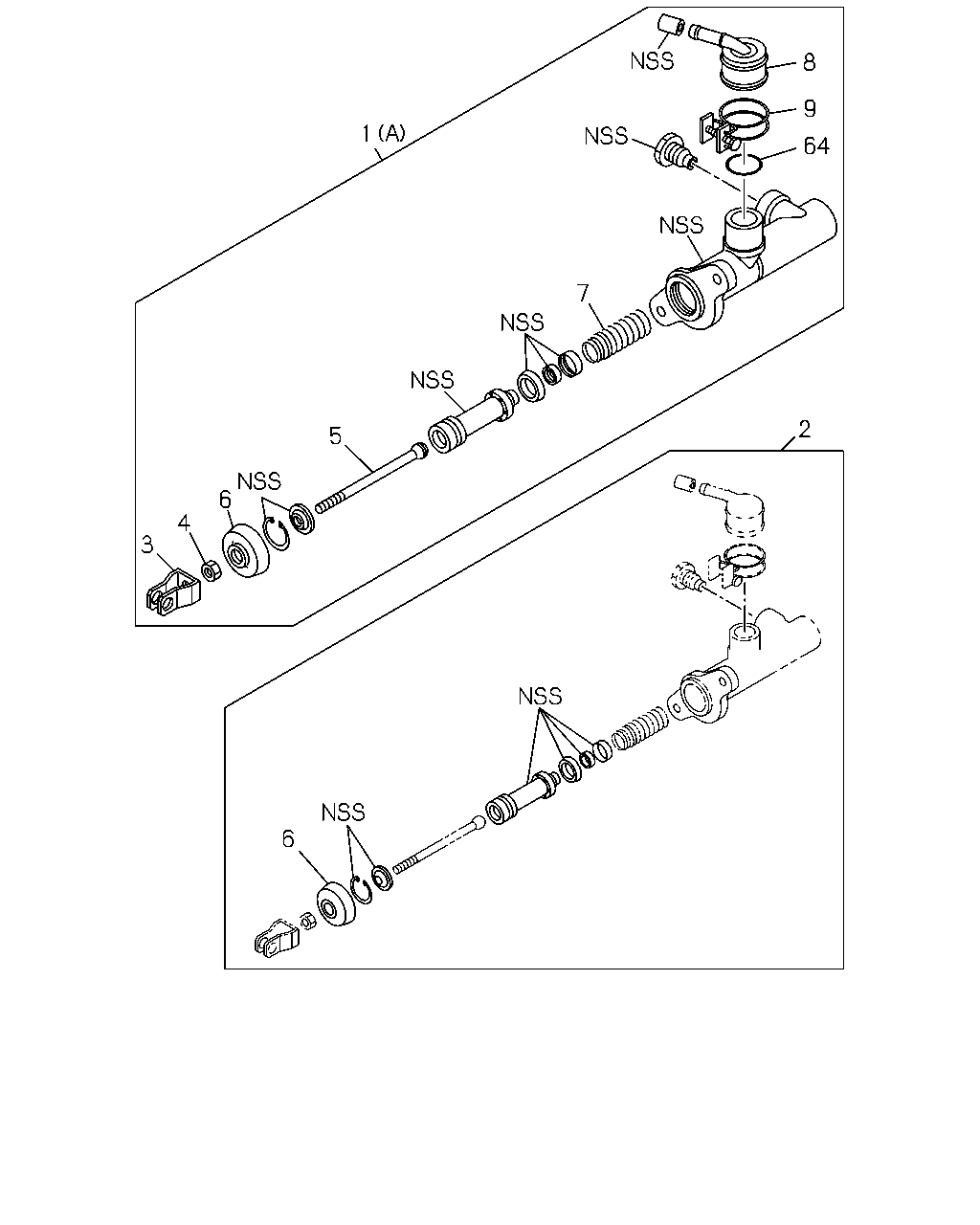

A - M/T MZZ6U
B - M/T MYY6S
◀
[208A] POWER ASSIST CLUTCH (10 parça)
[208A] EXC.POWER ASSIST CLUTCH (14 parça)
▶
1
8
2
9
64
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (B)
8-98025-308-0
01
1
1111-
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A)
8-98117-642-0
01
1
1111-
●
●
2
00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T)
5-87832-221-0
01
1
1111-
●
●
2
00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
5-87832-226-0
01
1
1111-
●
●
7
00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T)
8-98077-784-0
01
1
1111-
●
●
7
00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-780-0
01
1
1111-
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T)
8-97163-191-0
01
1
1111-
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-766-0
01
1
1111-
●
●
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
8-97167-773-0
01
1
1111-
●
●
64
00.777 GASKET; CONNECTOR
8-97167-767-0
01
1
1111-
●
●
8
9
1
64
7
2
5
6
4
3
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) (B)
8-98025-308-0
01
1
1111-
●
●
1
00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A)
8-98117-642-0
01
1
1111-
●
●
2
00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T)
5-87832-221-0
01
1
1111-
●
●
2
00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
5-87832-226-0
01
1
1111-
●
●
3
00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-770-0
01
1
1111-
●
●
4
00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8
0-91111-508-0
01
1
1111-
●
●
5
00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-768-0
01
1
1111-
●
●
6
00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-94412-200-0
01
1
1111-
●
●
7
00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T)
8-98077-784-0
01
1
1111-
●
●
7
00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-780-0
01
1
1111-
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T)
8-97163-191-0
01
1
1111-
●
●
8
00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T)
8-97167-766-0
01
1
1111-
●
●
9
00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
8-97167-773-0
01
1
1111-
●
●
64
00.777 GASKET; CONNECTOR
8-97167-767-0
01
1
1111-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
