2-01 — CLUTCH (#80968) — 45 parça

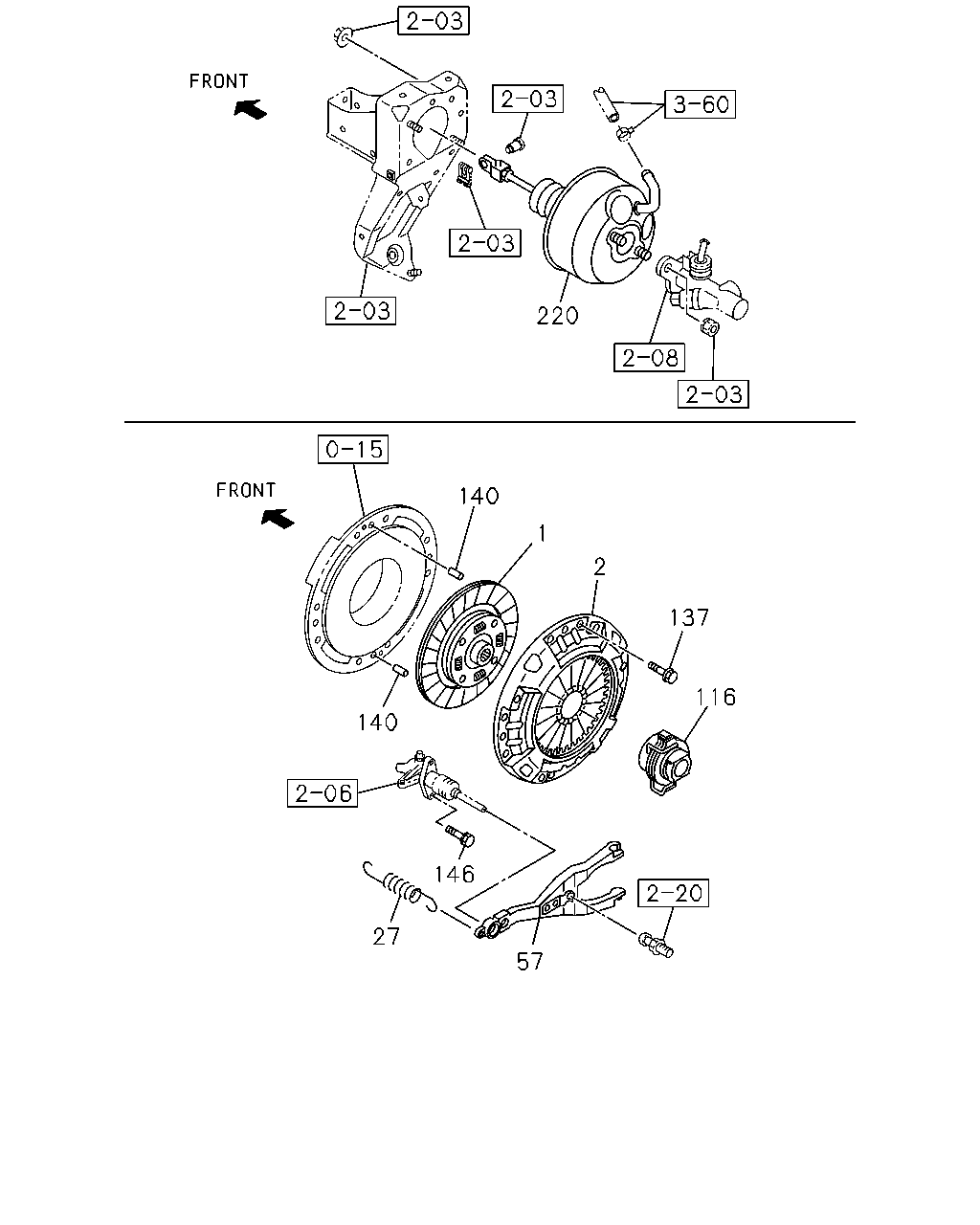

220 140 1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ)	8-97362-235-1	01	1	1111-1402	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ)	8-98255-140-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS)	8-98164-917-1	01	1	1111-		●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) BEST VALUE PARTS	5-87610-080-1	01	1	1111-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	5-87610-092-0	01	1	1502-		●
2	00.859 PLATE ASM; PRESSURE,CLU 08.859	8-97351-794-0	01	1	1111-1405	●	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	1406-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-081-0	01	1	1111-1405	●	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	1406-	●	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-98025-314-0	01	1	1111-		●
27	00.837 SPRING; RETURN,SHIFT FORK	8-98025-313-0	01	1	1111-	●
57	00.795 FORK; SHIFT,CLU 4HK1-TCN ENG(RDQ)	8-97255-303-0	01	1	1111-	●
57	00.795 FORK; SHIFT,CLU 4HK1-TCS ENG(RJS)	8-97310-456-1	01	1	1111-		●
116	00.799 BLOCK; SHIFT,CLU 4HK1-TCN ENG(RDQ)	8-97255-313-0	01	1	1111-	●
116	00.799 BLOCK; SHIFT,CLU 4HK1-TCN ENG(RDQ) BEST VALUE PARTS	5-87610-110-0	01	1	1111-	●
137	00.862 BOLT; CLU COVER 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1111-	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	1111-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1111-	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98033-837-0	01	1	1111-	●	●

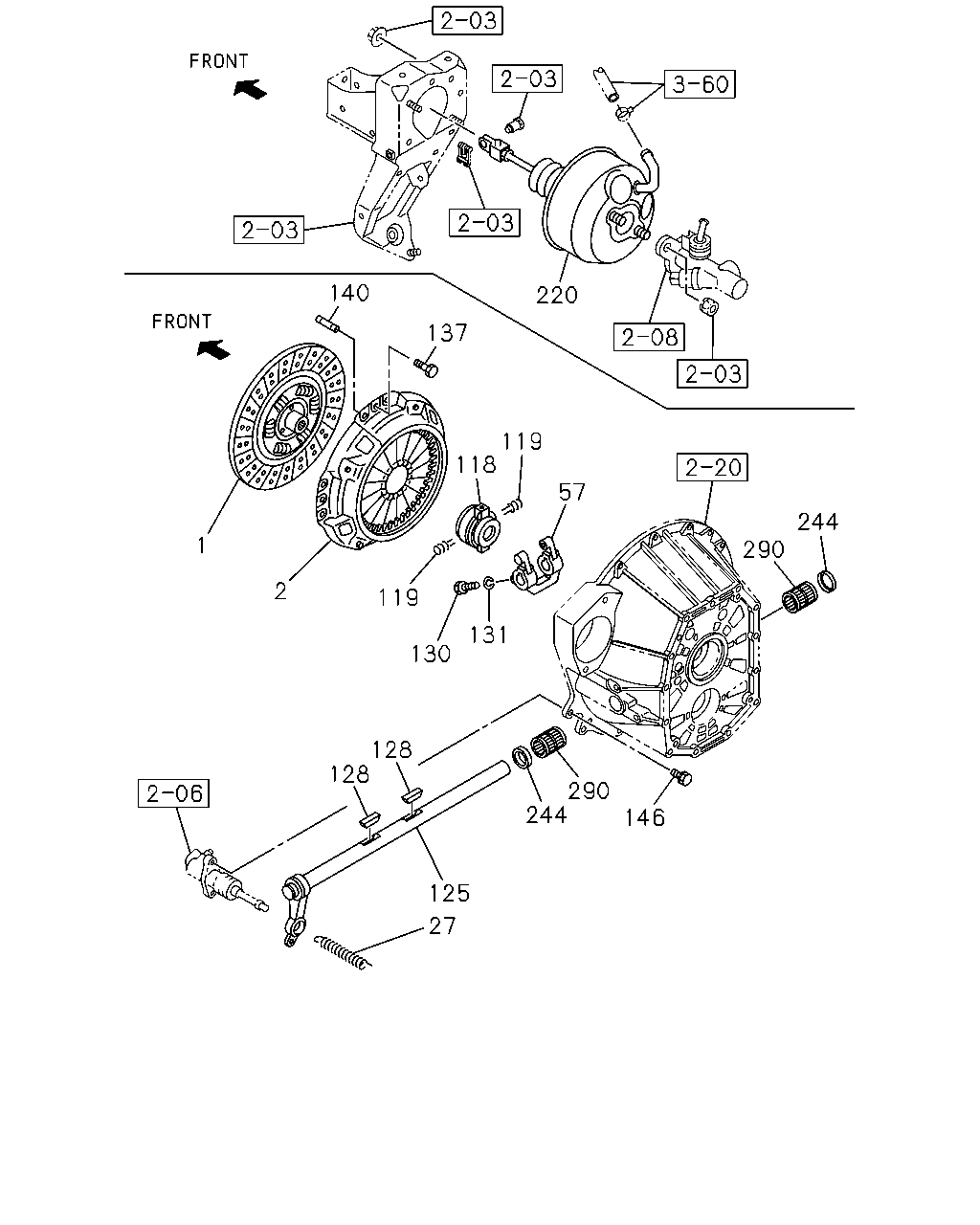

140 220 137 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ)	8-97362-235-1	01	1	1111-1402	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ)	8-98255-140-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS)	8-98164-917-1	01	1	1111-		●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) BEST VALUE PARTS	5-87610-080-1	01	1	1111-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	5-87610-092-0	01	1	1502-		●
2	00.859 PLATE ASM; PRESSURE,CLU 08.859	8-97351-794-0	01	1	1111-1405	●	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	1406-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-081-0	01	1	1111-1405	●	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	1406-	●	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-98025-314-0	01	1	1111-		●
27	00.837 SPRING; RETURN,SHIFT FORK	8-98025-313-0	01	1	1111-	●
57	00.795 FORK; SHIFT,CLU 4HK1-TCN ENG(RDQ)	8-97255-303-0	01	1	1111-	●
57	00.795 FORK; SHIFT,CLU 4HK1-TCS ENG(RJS)	8-97310-456-1	01	1	1111-		●
118	00.799 BEARING; CLU RELEASE 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-110-0	01	1	1111-		●
118	00.799 BEARING; CLU RELEASE 4HK1-TCS ENG(RJS)	1-31310-012-0	01	1	1111-		●
119	00.797 SPRING; SHIFT FORK 4HK1-TCS ENG(RJS)	1-31329-024-0	02	1	1111-		●
125	00.805 SHAFT; CLU 4HK1-TCS ENG(RJS)	8-97310-435-0	01	1	1111-		●
128	00.833 KEY; FEATHER,CLU SHAFT 4HK1-TCS ENG(RJS)	9-09867-008-0	02	1	1111-		●
130	00.833 SCREW; SHIFT FORK 4HK1-TCS ENG(RJS) M8X14	0-61200-814-0	01	1	1111-		●
131	00.833 WASHER; LK,SHIFT FORK 4HK1-TCS ENG(RJS) 04.439 ID=8.2	0-91510-508-0	01	1	1111-		●
137	00.862 BOLT; CLU COVER 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1111-	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	1111-	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1111-	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-98033-837-0	01	1	1111-	●	●
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 4HK1-TCS ENG(RJS) 00.797	1-09625-002-0	02	1	1111-		●
290	00.862 BEARING; NEEDLE 4HK1-TCS ENG(RJS) 00.683 NTN	1-09811-002-1	02	1	1111-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
