Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#80965) — 299 parça

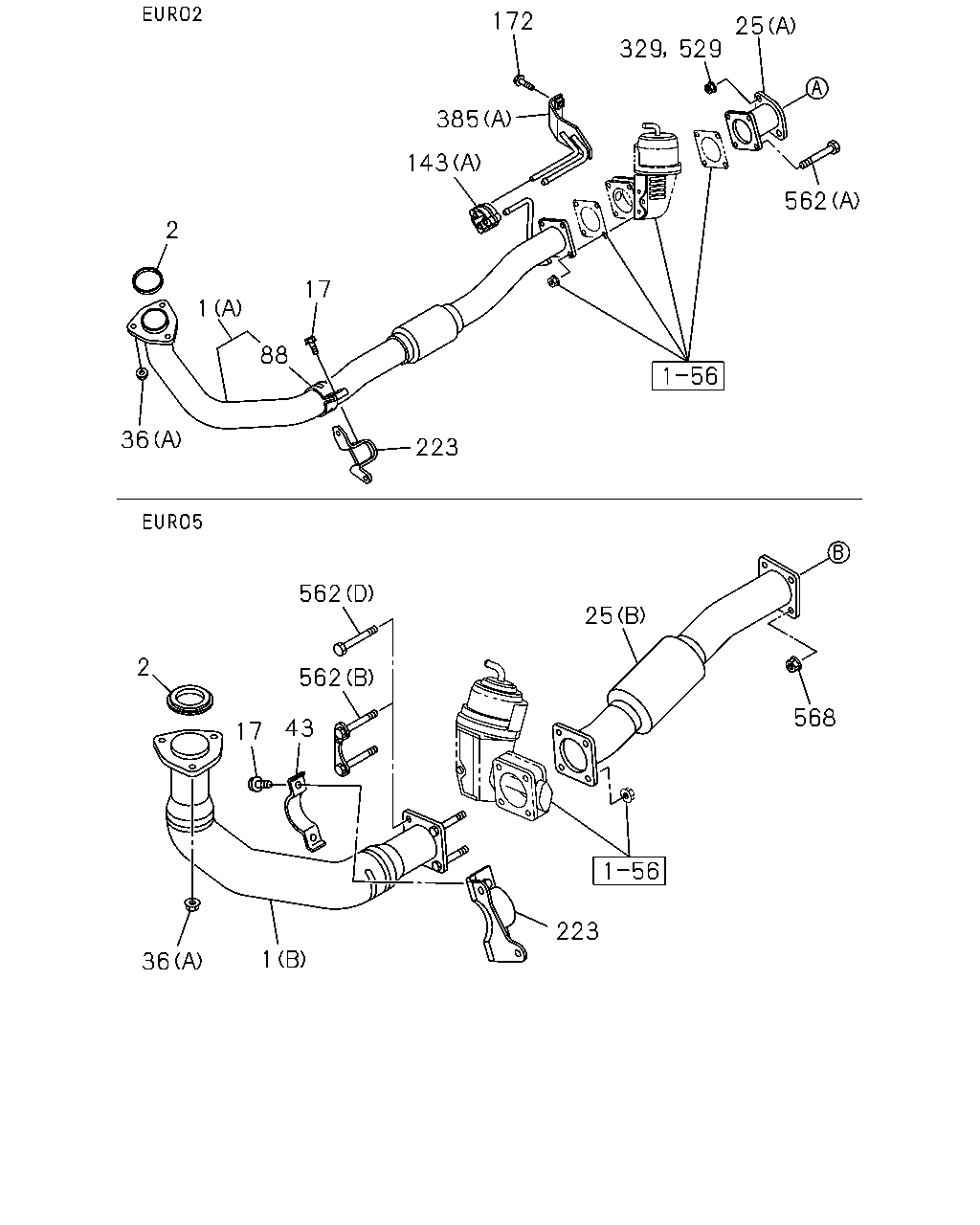

172 25 329 529 385 143 562 2 17 1 88 36 223 562 25 2 562 568 43 17 223 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EURO2 SPECIFICATION(NT2) (A)	8-98074-108-1	01	1	1111-
1	03.609 PIPE; EXH EURO5 SPECIFICATION(NT5) (B)	8-98006-765-2	01	1	1111-1507
1	03.609 PIPE; EXH EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98006-765-2	01	1	1508-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1111-
17	03.613 BOLT; EXH PIPE EURO2 SPECIFICATION(NT2) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1111-
17	03.613 BOLT; EXH PIPE EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO2 SPECIFICATION(NT2) (A)	8-98074-109-0	01	1	1111-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO5 SPECIFICATION(NT5) (B)	8-98006-766-0	01	1	1111-1507
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98006-766-0	01	1	1508-
36	03.613 NUT; EXH PIPE EURO5 SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1111-1507
36	03.613 NUT; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1508-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1111-
43	03.611 CLAMP; EXH PIPE EURO5 SPECIFICATION(NT5)	8-97351-200-1	01	1	1111-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1111-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (B)	8-97379-882-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (C)	8-97379-927-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (D)	8-94457-277-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-94457-277-1	04	1	1508-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (E)	8-94457-278-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-94457-278-1	04	1	1508-
172	03.708 BOLT EURO2 SPECIFICATION(NT2) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1111-
223	03.706 BRACKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.613	8-97365-228-0	01	1	1111-
223	03.706 BRACKET; EXH PIPE EURO5 SPECIFICATION(NT5) 03.613	8-98020-555-0	01	1	1111-
329	03.613 NUT; EXH PIPE TO PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98203-437-0	01	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-98195-130-0	02	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) (C)	8-98006-776-1	01	1	1111-1507
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98006-776-1	01	1	1508-
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-
529	03.704 NUT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-1507
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1508-
562	03.690 PLATE; STUD,BOLT EURO2 SPECIFICATION(NT2) 03.632 (A) M8X70	0-10855-870-0	04	1	1111-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) 03.685 (C) M12X35	1-22131-963-0	02	1	1111-1203
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) 03.613 (C)	1-22131-962-0	02	1	1204-1205
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1206-1507
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1508-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) (B)	8-98030-175-0	01	1	1111-1205
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-
568	03.704 NUT; DPD EURO5 SPECIFICATION(NT5) 02.042 M12 FLANGE	0-91180-112-0	04	1	1111-1507
568	03.704 NUT; DPD EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-

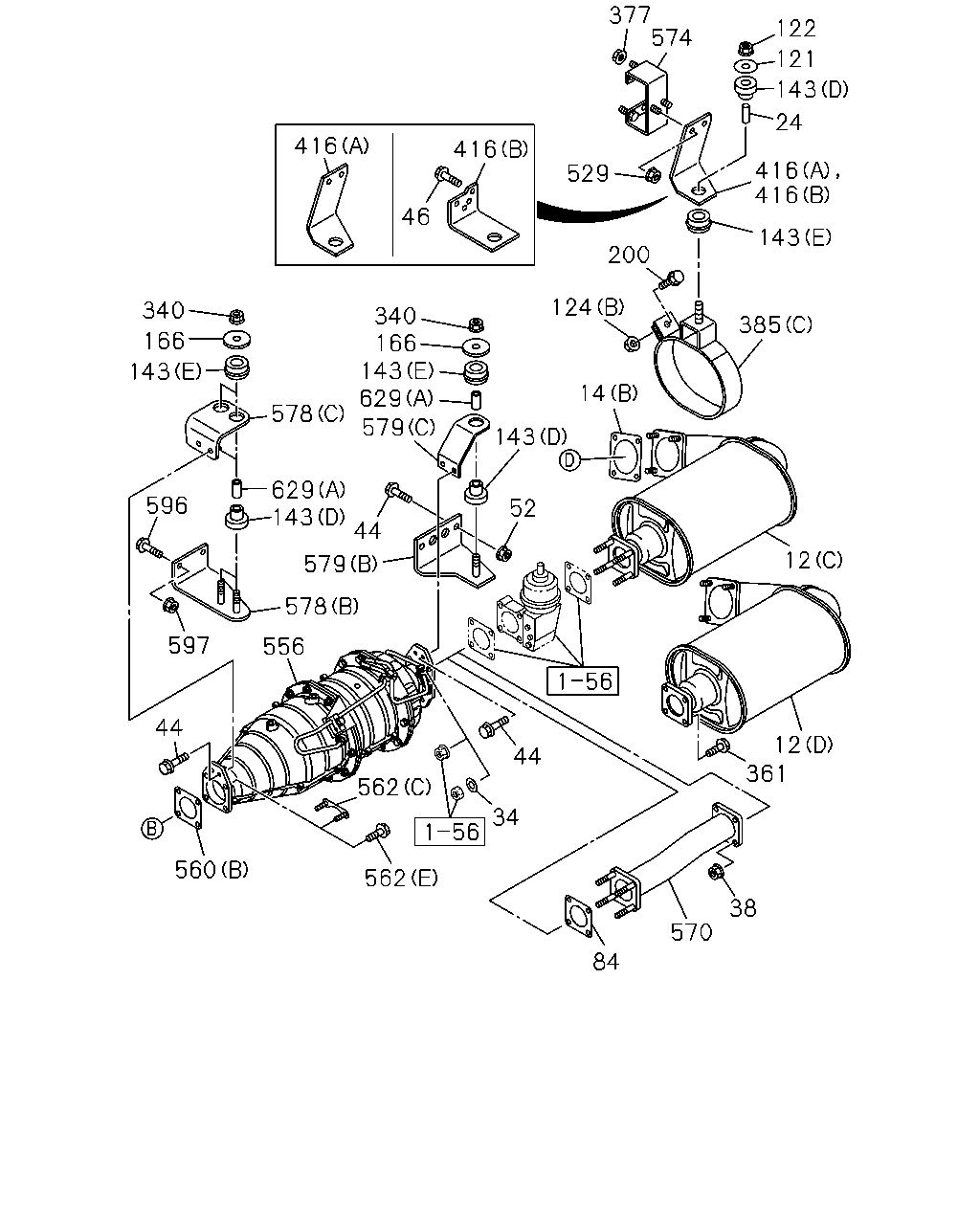

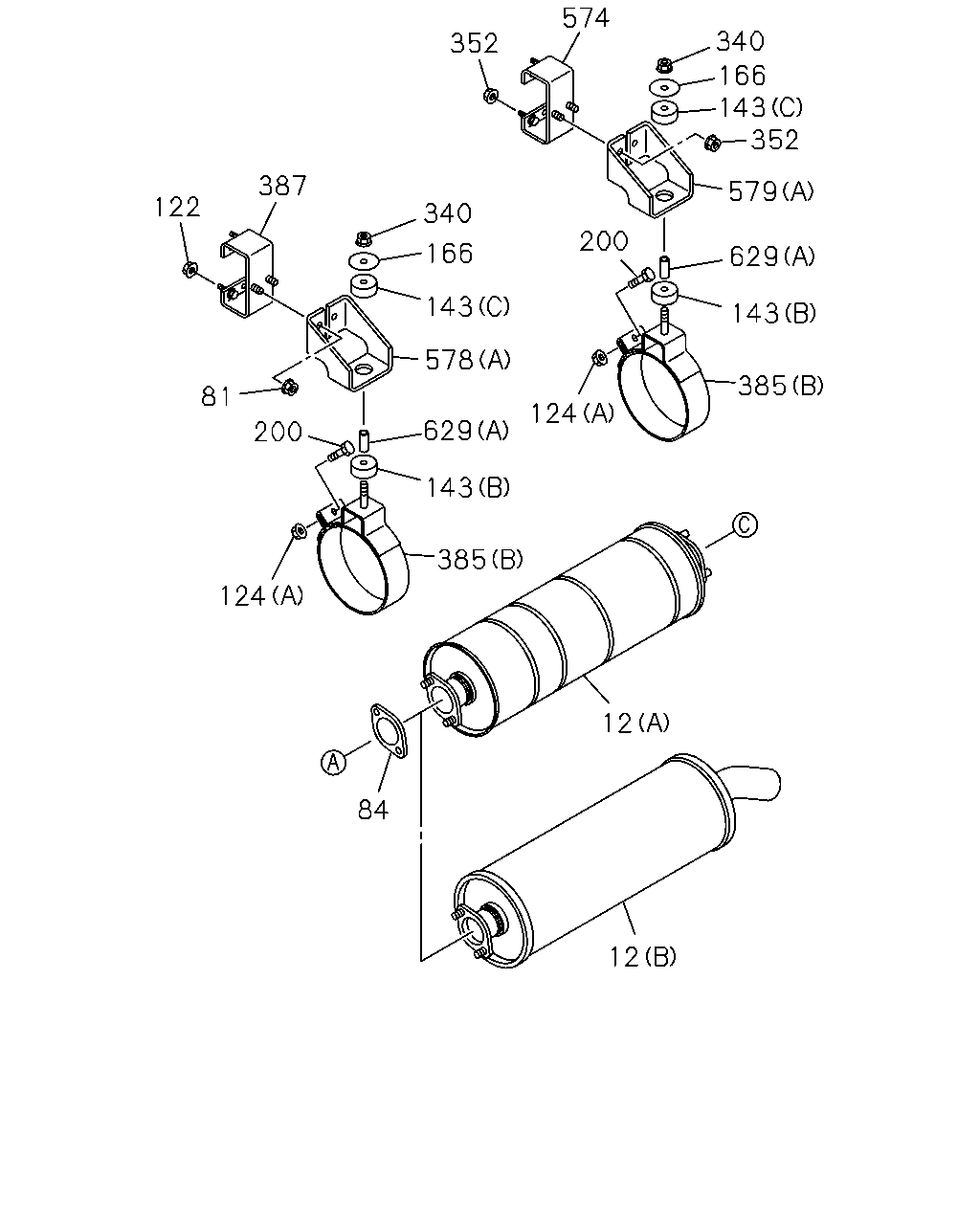

574 340 352 166 143 352 387 579 122 340 200 166 629 143 143 578 385 81 124 629 200 143 385 124 12 84 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-628-0	01	1	1204-1507
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98214-628-0	01	1	1508-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98181-933-0	01	1	1111-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98090-839-0	01	1	1111-
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (C)	8-98181-935-0	01	1	1111-1203
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98181-935-0	01	1	1204-1507
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98181-935-0	01	1	1508-
81	03.704 NUT; BRKT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 ID=64.7	8-94328-352-0	01	1	1111-
84	03.611 GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) 03.704 ID=85.8	1-22116-043-0	01	1	1111-1507
84	03.611 GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 ID=85.8	1-22116-043-0	01	1	1508-
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
122	03.275 NUT; HANGER BRKT EURO5 SPECIFICATION(NT5) 07.874 M10 FLANGE	5-09440-006-0	01	1	1111-1507
122	03.275 NUT; HANGER BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	01	1	1508-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	1111-
124	03.704 NUT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-1507
124	03.704 NUT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (B)	8-97379-882-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (C)	8-97379-927-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (D)	8-94457-277-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-94457-277-1	04	1	1508-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (E)	8-94457-278-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-94457-278-1	04	1	1508-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO2 SPECIFICATION(NT2) 03.704 OD=55	9-09852-169-0	02	1	1111-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO5 SPECIFICATION(NT5) 03.704 OD=55	9-09852-169-0	03	1	1111-1507
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 OD=55	9-09852-169-0	03	1	1508-
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M8X45 W/LK WASHER	0-50540-845-0	02	1	1111-
200	03.704 BOLT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1111-1507
200	03.704 BOLT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1508-
340	03.706 NUT; RUBBER,SUPPORT EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	1111-
340	03.706 NUT; RUBBER,SUPPORT EURO5 SPECIFICATION(NT5) 07.874 M10 FLANGE	5-09440-006-0	03	1	1111-1507
340	03.706 NUT; RUBBER,SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	03	1	1508-
352	03.613 NUT; BRKT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98203-437-0	01	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-98195-130-0	02	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) (C)	8-98006-776-1	01	1	1111-1507
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98006-776-1	01	1	1508-
387	03.704 SPACER; BRKT EURO2 SPECIFICATION(NT2) 03.706	8-98078-962-1	01	1	1111-
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5)	8-98044-774-0	01	1	1111-1507
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2)	8-98044-774-0	01	1	1111-1507
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98044-774-0	01	1	1508-
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2)	8-98044-774-0	01	1	1508-
578	03.706 BRACKET; DPD FRT EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	1111-
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) (B)	8-98006-770-0	01	1	1111-1507
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98006-770-0	01	1	1508-
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) (C)	8-98048-296-0	01	1	1111-1507
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-296-0	01	1	1508-
579	03.704 BRACKET; DPD RR EURO2 SPECIFICATION(NT2) 03.706 (A)	8-98074-124-1	01	1	1111-
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) 03.706 (B)	8-98048-292-1	01	1	1111-1507
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.706 (B)	8-98048-292-1	01	1	1508-
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) (C)	8-98048-300-1	01	1	1111-1507
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-300-1	01	1	1508-
629	03.706 SPACER; HANGER EURO2 SPECIFICATION(NT2) (A) L=37.5	9-22151-217-0	02	1	1111-
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) (A) L=37.5	9-22151-217-0	03	1	1111-1507
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1508-
629	03.706 SPACER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=23	8-98006-011-0	01	1	1111-

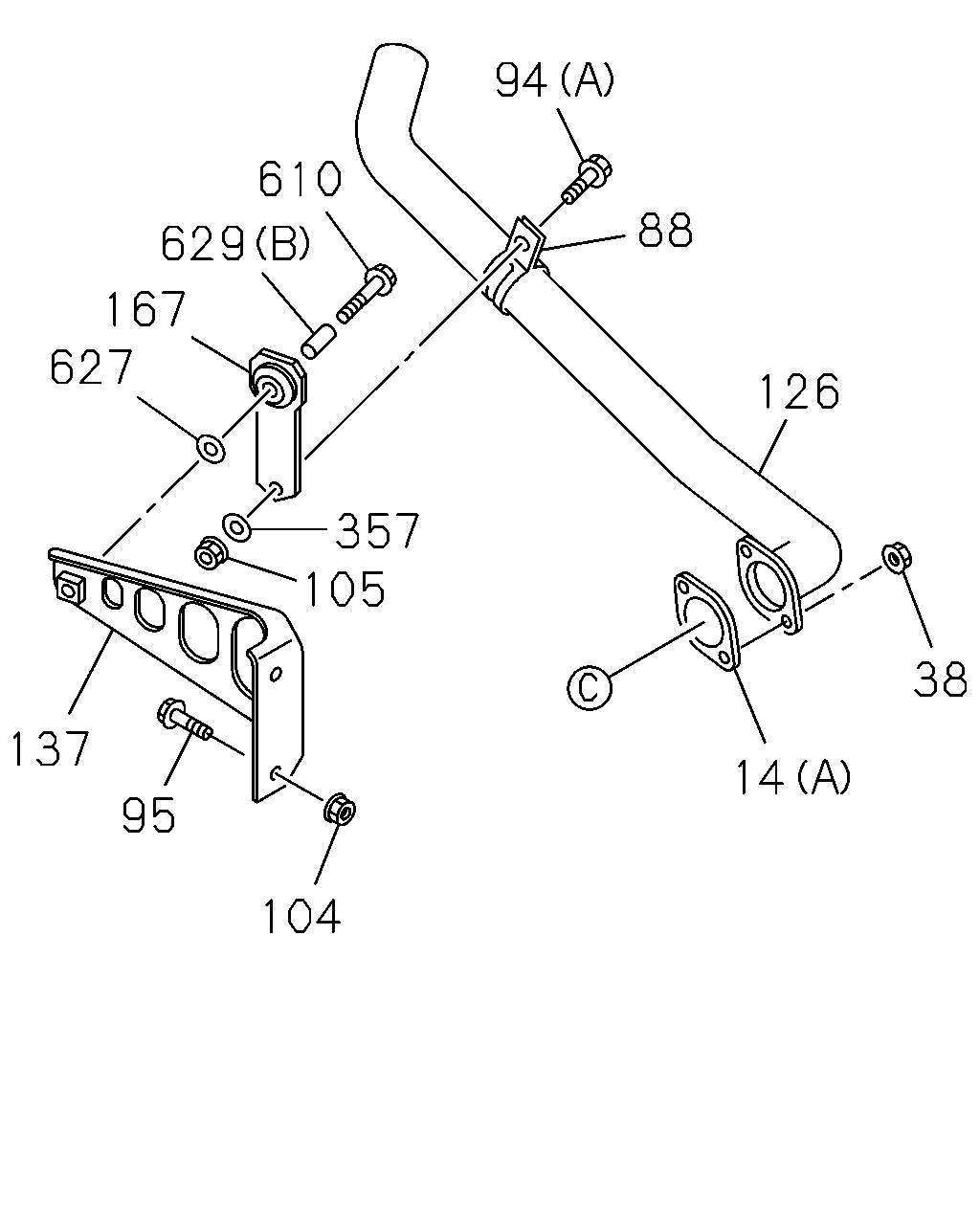

94 610 88 629 167 627 126 357 105 38 137 14 95 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=64.7	8-94328-352-0	01	1	1111-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO5 SPECIFICATION(NT5) (B) ID=85.8	1-22116-043-0	01	1	1111-
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
38	00.002 NUT; SILENCER EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	04	1	1111-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2)	8-97373-158-0	01	1	1111-
88	03.708 CLAMP; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-97373-158-0	01	1	1111-
94	03.704 BOLT; CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1111-
94	03.704 BOLT; CLAMP EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1111-1507
94	03.704 BOLT; CLAMP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-
104	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
105	03.704 NUT; CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1111-
105	03.704 NUT; CLAMP EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-1507
105	03.704 NUT; CLAMP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98192-187-0	01	1	1111-
126	03.705 PIPE; EXH,RR EURO5 SPECIFICATION(NT5)	8-98181-928-0	01	1	1111-1507
126	03.705 PIPE; EXH,RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98181-928-0	01	1	1508-
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98203-438-0	01	1	1111-1111
137	03.706 BRACKET; TAIL PIPE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98203-438-0	01	1	1111-
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98032-150-0	01	1	1111-1507
167	03.706 HANGER; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98032-150-0	01	1	1111-1507
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98032-150-0	01	1	1508-
167	03.706 HANGER; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-150-0	01	1	1508-
357	03.708 WASHER; PL,CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1111-
610	03.704 BOLT; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1111-
627	03.706 WASHER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
629	03.706 SPACER; HANGER EURO2 SPECIFICATION(NT2) (A) L=37.5	9-22151-217-0	02	1	1111-
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) (A) L=37.5	9-22151-217-0	03	1	1111-1507
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1508-
629	03.706 SPACER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=23	8-98006-011-0	01	1	1111-

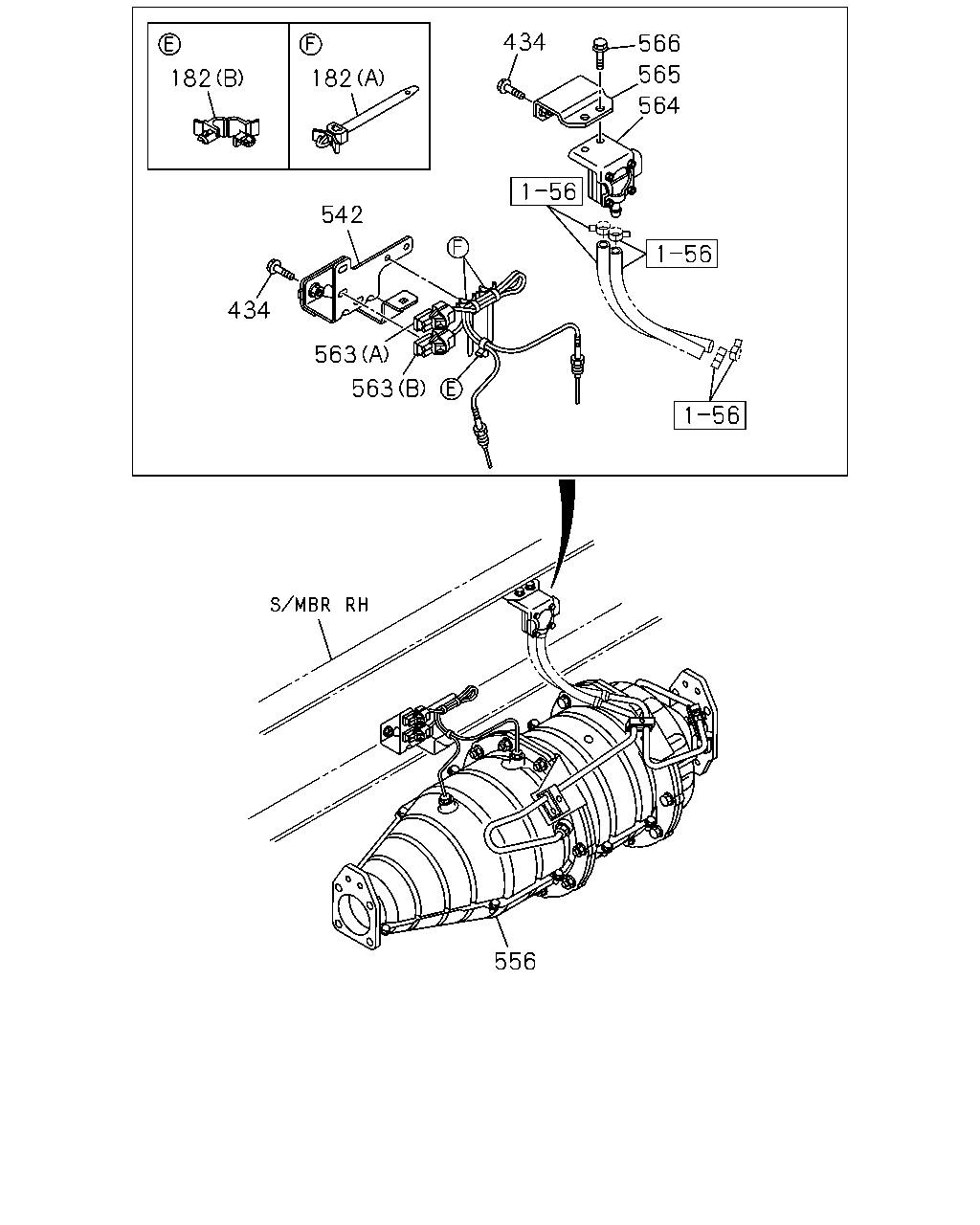

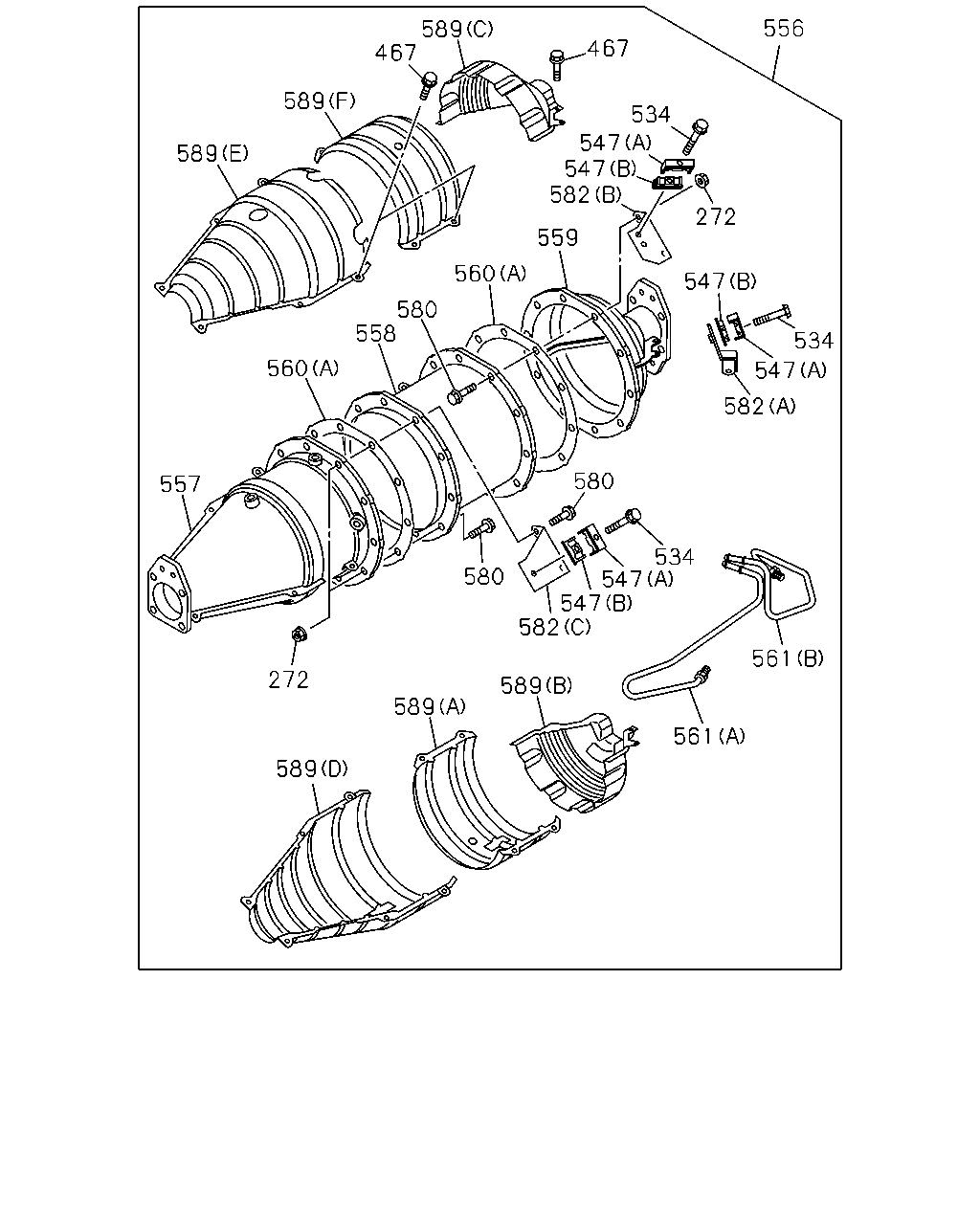

556 589 467 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	20	1	1111-
467	03.685 BOLT; PROTECTOR CATALYSIS CONTROL WITH DPD(8JM) M6X16	8-98019-179-0	14	1	1111-
534	03.704 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	1111-
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97381-635-0	03	1	1111-
547	03.682 CLIP; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97381-636-0	03	1	1111-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1111-
557	03.701 CATALYST ASM CATALYSIS CONTROL WITH DPD(8JM)	8-97608-055-8	01	1	1111-
558	03.634 FILTER ASM CATALYSIS CONTROL WITH DPD(8JM)	8-97608-057-3	01	1	1111-
559	03.602 COVER; RR CATALYSIS CONTROL WITH DPD(8JM)	8-97622-887-0	01	1	1111-
560	03.611 GASKET; DPD EURO5 SPECIFICATION(NT5) (B)	1-22116-040-0	01	1	1111-1507
560	03.611 GASKET; DPD EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	1-22116-040-0	01	1	1508-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-080-0	02	1	1111-
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98084-603-0	01	1	1111-
561	03.609 PIPE; DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98084-604-0	01	1	1111-
580	03.704 BOLT; FLANGE CATALYSIS CONTROL WITH DPD(8JM) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	1111-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-083-0	01	1	1111-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97611-084-0	01	1	1111-
582	03.706 BRACKET; PIPE CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-085-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (F)	8-97605-172-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (E)	8-97611-086-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (D)	8-97611-087-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (C)	8-97611-088-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-97611-089-0	01	1	1111-
589	03.609 PROTECTOR; HEAT,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97613-390-0	01	1	1111-

94 126 610 627 167 629 36 357 105 137 95 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	03.613 NUT; EXH PIPE EURO5 SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1111-1507
36	03.613 NUT; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1508-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1111-
94	03.704 BOLT; CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	1111-
94	03.704 BOLT; CLAMP EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1111-1507
94	03.704 BOLT; CLAMP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1508-
95	03.708 BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-
104	03.704 NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
105	03.704 NUT; CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.833 M10	0-91110-510-0	01	1	1111-
105	03.704 NUT; CLAMP EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	01	1	1111-1507
105	03.704 NUT; CLAMP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	01	1	1508-
126	03.705 PIPE; EXH,RR EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98192-187-0	01	1	1111-
126	03.705 PIPE; EXH,RR EURO5 SPECIFICATION(NT5)	8-98181-928-0	01	1	1111-1507
126	03.705 PIPE; EXH,RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98181-928-0	01	1	1508-
137	03.706 BRACKET; TAIL PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98203-438-0	01	1	1111-1111
137	03.706 BRACKET; TAIL PIPE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98203-438-0	01	1	1111-
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98032-150-0	01	1	1111-1507
167	03.706 HANGER; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98032-150-0	01	1	1111-1507
167	03.706 HANGER; EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ>	8-98032-150-0	01	1	1508-
167	03.706 HANGER; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98032-150-0	01	1	1508-
357	03.708 WASHER; PL,CLAMP EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1111-
610	03.704 BOLT; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1111-
627	03.706 WASHER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1111-
629	03.706 SPACER; HANGER EURO2 SPECIFICATION(NT2) (A) L=37.5	9-22151-217-0	02	1	1111-
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) (A) L=37.5	9-22151-217-0	03	1	1111-1507
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1508-
629	03.706 SPACER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=23	8-98006-011-0	01	1	1111-

434 566 565 182 182 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) 02.587 (A) L=112	8-94232-618-0	02	1	1111-1507
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1508-
182	03.682 CLIP; HARNESS CATALYSIS CONTROL WITH DPD(8JM) (B) ID=7 L=7.5	8-97369-561-0	01	1	1111-
434	03.613 BOLT; BRKT CATALYSIS CONTROL WITH DPD(8JM) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1111-
542	03.704 BRACKET CATALYSIS CONTROL WITH DPD(8JM)	8-98039-602-0	01	1	1111-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1111-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98004-329-0	01	1	1111-
563	01.150 SENSOR; TEMPERATURE,DPD CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98004-330-0	01	1	1111-
564	01.150 SENSOR; PRESSURE,DPD CATALYSIS CONTROL WITH DPD(8JM)	8-97359-985-2	01	1	1111-
565	03.706 BRACKET; SENSOR,PRESSURE CATALYSIS CONTROL WITH DPD(8JM)	8-98029-348-0	01	1	1111-
566	03.706 BOLT; SENSOR CATALYSIS CONTROL WITH DPD(8JM) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1111-

84 38 570 361 12 12 44 34 562 562 560 44 597 556 579 143 44 629 578 143 166 340 340 143 166 629 578 579 143 52 14 124 200 529 416 416 46 377 122 143 121 24 416 143 416 574 385 596

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-628-0	01	1	1204-1507
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98214-628-0	01	1	1508-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98181-933-0	01	1	1111-
12	03.701 SILENCER ASM; EXH EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98090-839-0	01	1	1111-
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) (C)	8-98181-935-0	01	1	1111-1203
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98181-935-0	01	1	1204-1507
12	03.701 SILENCER ASM; EXH EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> (C)	8-98181-935-0	01	1	1508-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=64.7	8-94328-352-0	01	1	1111-
14	03.704 GASKET; SILENCER TO EXH PIPE EURO5 SPECIFICATION(NT5) (B) ID=85.8	1-22116-043-0	01	1	1111-
24	03.613 COLLAR; DIST,CLAMP EURO5 SPECIFICATION(NT5) 03.706 L=37.5	9-22151-217-0	01	1	1111-1507
24	03.613 COLLAR; DIST,CLAMP EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.706 L=37.5	9-22151-217-0	01	1	1508-
34	03.613 WASHER; EXH PIPE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1204-1507
34	03.613 WASHER; EXH PIPE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 03.632 T=1.9	5-09500-012-0	04	1	1508-
38	00.002 NUT; SILENCER EURO2 SPECIFICATION(NT2) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
38	00.002 NUT; SILENCER EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	04	1	1111-
44	03.613 BOLT; BRKT EURO5 SPECIFICATION(NT5) 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1111-
44	03.613 BOLT; BRKT EURO5 SPECIFICATION(NT5) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1111-1507
44	03.613 BOLT; BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1508-
46	03.704 BOLT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-1507
46	03.704 BOLT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1508-
52	03.613 NUT; BRKT EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
84	03.611 GASKET; EXH PIPE EURO2 SPECIFICATION(NT2) 03.704 ID=64.7	8-94328-352-0	01	1	1111-
84	03.611 GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) 03.704 ID=85.8	1-22116-043-0	01	1	1111-1507
84	03.611 GASKET; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 ID=85.8	1-22116-043-0	01	1	1508-
121	03.704 WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) OD=55	9-09852-169-0	01	1	1111-1507
121	03.704 WASHER; PL,BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) OD=55	9-09852-169-0	01	1	1508-
122	03.275 NUT; HANGER BRKT EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
122	03.275 NUT; HANGER BRKT EURO5 SPECIFICATION(NT5) 07.874 M10 FLANGE	5-09440-006-0	01	1	1111-1507
122	03.275 NUT; HANGER BRKT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	01	1	1508-
124	03.704 NUT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) 02.334 (A) M8	0-91110-508-0	02	1	1111-
124	03.704 NUT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1111-1507
124	03.704 NUT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1508-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (A)	8-97080-694-0	01	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (B)	8-97379-882-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO2 SPECIFICATION(NT2) (C)	8-97379-927-0	02	1	1111-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (D)	8-94457-277-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-94457-277-1	04	1	1508-
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) (E)	8-94457-278-1	04	1	1111-1507
143	03.704 RUBBER; SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (E)	8-94457-278-1	04	1	1508-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO2 SPECIFICATION(NT2) 03.704 OD=55	9-09852-169-0	02	1	1111-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO5 SPECIFICATION(NT5) 03.704 OD=55	9-09852-169-0	03	1	1111-1507
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 OD=55	9-09852-169-0	03	1	1508-
200	03.704 BOLT; SUPPORT RUBBER EURO2 SPECIFICATION(NT2) M8X45 W/LK WASHER	0-50540-845-0	02	1	1111-
200	03.704 BOLT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1111-1507
200	03.704 BOLT; SUPPORT RUBBER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	1508-
340	03.706 NUT; RUBBER,SUPPORT EURO2 SPECIFICATION(NT2) 07.874 M10 FLANGE	5-09440-006-0	02	1	1111-
340	03.706 NUT; RUBBER,SUPPORT EURO5 SPECIFICATION(NT5) 07.874 M10 FLANGE	5-09440-006-0	03	1	1111-1507
340	03.706 NUT; RUBBER,SUPPORT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 07.874 M10 FLANGE	5-09440-006-0	03	1	1508-
361	03.704 BOLT; EXH PIPE TO PIPE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1204-1507
361	03.704 BOLT; EXH PIPE TO PIPE EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) M8X60 FLANGE	8-98213-301-0	04	1	1508-
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1507
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (A)	8-98203-437-0	01	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO2 SPECIFICATION(NT2) (B)	8-98195-130-0	02	1	1111-
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) (C)	8-98006-776-1	01	1	1111-1507
385	03.704 BRACKET; SILENCER MTG EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98006-776-1	01	1	1508-
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) 03.704 (A)	8-98073-376-0	01	1	1111-1507
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (A)	8-98073-376-0	01	1	1508-
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) 03.704 (B)	8-98073-377-0	01	1	1111-1507
416	03.706 BRACKET; RR EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.704 (B)	8-98073-377-0	01	1	1508-
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-
529	03.704 NUT; BRKT,EXH PIPE EURO2 SPECIFICATION(NT2) 03.162 M10 FLANGE	0-91180-110-0	02	1	1508-
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-1507
529	03.704 NUT; BRKT,EXH PIPE WHEEL BASE 4400MM(44W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-
556	03.701 DPD ASM CATALYSIS CONTROL WITH DPD(8JM)	8-98084-602-4	01	1	1111-
560	03.611 GASKET; DPD EURO5 SPECIFICATION(NT5) (B)	1-22116-040-0	01	1	1111-1507
560	03.611 GASKET; DPD EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	1-22116-040-0	01	1	1508-
560	03.611 GASKET; DPD CATALYSIS CONTROL WITH DPD(8JM) (A)	8-97611-080-0	02	1	1111-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1206-1507
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) IDENTIFICATION LABEL FOR KD<6UT> CATALYSIS CONTROL WITH DPD(8JM) 00.685 (E) M12X35 FLANGE	0-28051-235-0	04	1	1508-
562	03.690 PLATE; STUD,BOLT EURO2 SPECIFICATION(NT2) 03.632 (A) M8X70	0-10855-870-0	04	1	1111-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) 03.685 (C) M12X35	1-22131-963-0	02	1	1111-1203
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) 03.613 (C)	1-22131-962-0	02	1	1204-1205
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1206-1507
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (C)	1-22131-962-0	02	1	1508-
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) (B)	8-98030-175-0	01	1	1111-1205
562	03.690 PLATE; STUD,BOLT EURO5 SPECIFICATION(NT5) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1206-
570	03.704 ADAPTER; EXH PIPE EURO5 SPECIFICATION(NT5)	8-98073-373-0	01	1	1111-1507
570	03.704 ADAPTER; EXH PIPE EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98073-373-0	01	1	1508-
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5)	8-98044-774-0	01	1	1111-1507
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2)	8-98044-774-0	01	1	1111-1507
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM)	8-98044-774-0	01	1	1508-
574	03.706 SPACER; DPD EURO2 SPECIFICATION(NT2)	8-98044-774-0	01	1	1508-
578	03.706 BRACKET; DPD FRT EURO2 SPECIFICATION(NT2) (A)	8-98074-124-1	01	1	1111-
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) (B)	8-98006-770-0	01	1	1111-1507
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98006-770-0	01	1	1508-
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) (C)	8-98048-296-0	01	1	1111-1507
578	03.706 BRACKET; DPD FRT EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-296-0	01	1	1508-
579	03.704 BRACKET; DPD RR EURO2 SPECIFICATION(NT2) 03.706 (A)	8-98074-124-1	01	1	1111-
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) 03.706 (B)	8-98048-292-1	01	1	1111-1507
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.706 (B)	8-98048-292-1	01	1	1508-
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) (C)	8-98048-300-1	01	1	1111-1507
579	03.704 BRACKET; DPD RR EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98048-300-1	01	1	1508-
596	03.704 BOLT; BRKT,DPD EURO5 SPECIFICATION(NT5) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1111-
597	03.704 NUT; BRKT,DPD EURO5 SPECIFICATION(NT5) 03.162 M10 FLANGE	0-91180-110-0	02	1	1111-
629	03.706 SPACER; HANGER EURO2 SPECIFICATION(NT2) (A) L=37.5	9-22151-217-0	02	1	1111-
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) (A) L=37.5	9-22151-217-0	03	1	1111-1507
629	03.706 SPACER; HANGER EURO5 SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A) L=37.5	9-22151-217-0	03	1	1508-
629	03.706 SPACER; HANGER EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=23	8-98006-011-0	01	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
