Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#80963) — 152 parça

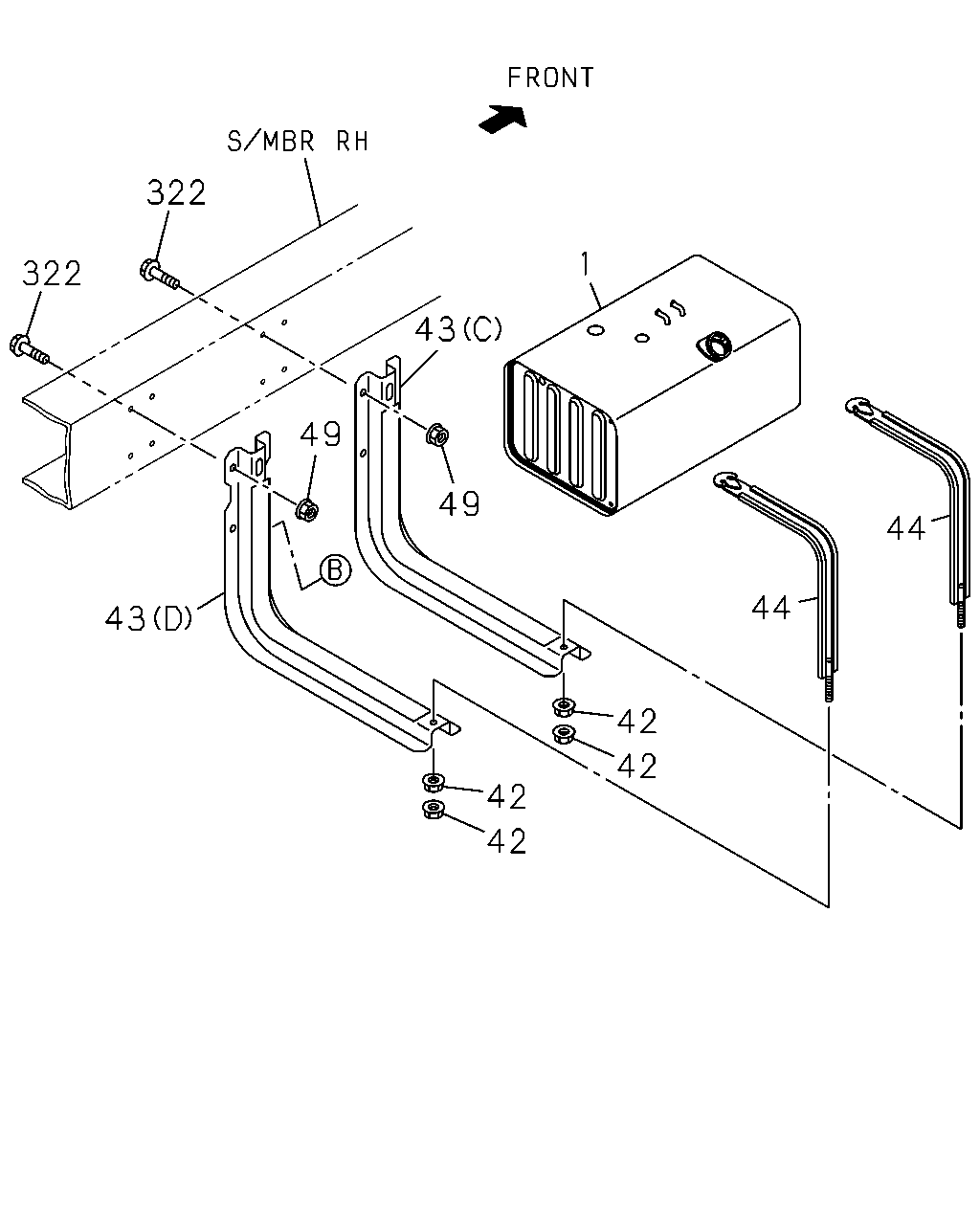

322 1 322 43 49 49 44 44 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1111-1507
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1508-
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-2	01	1	1111-1202
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-3	01	1	1203-
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1111-
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1111-
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1111-
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1111-
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1111-
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1111-1309
322	03.895 BOLT; BRKT FIX M10X40 FLANGE	8-98124-451-2	08	1	1310-

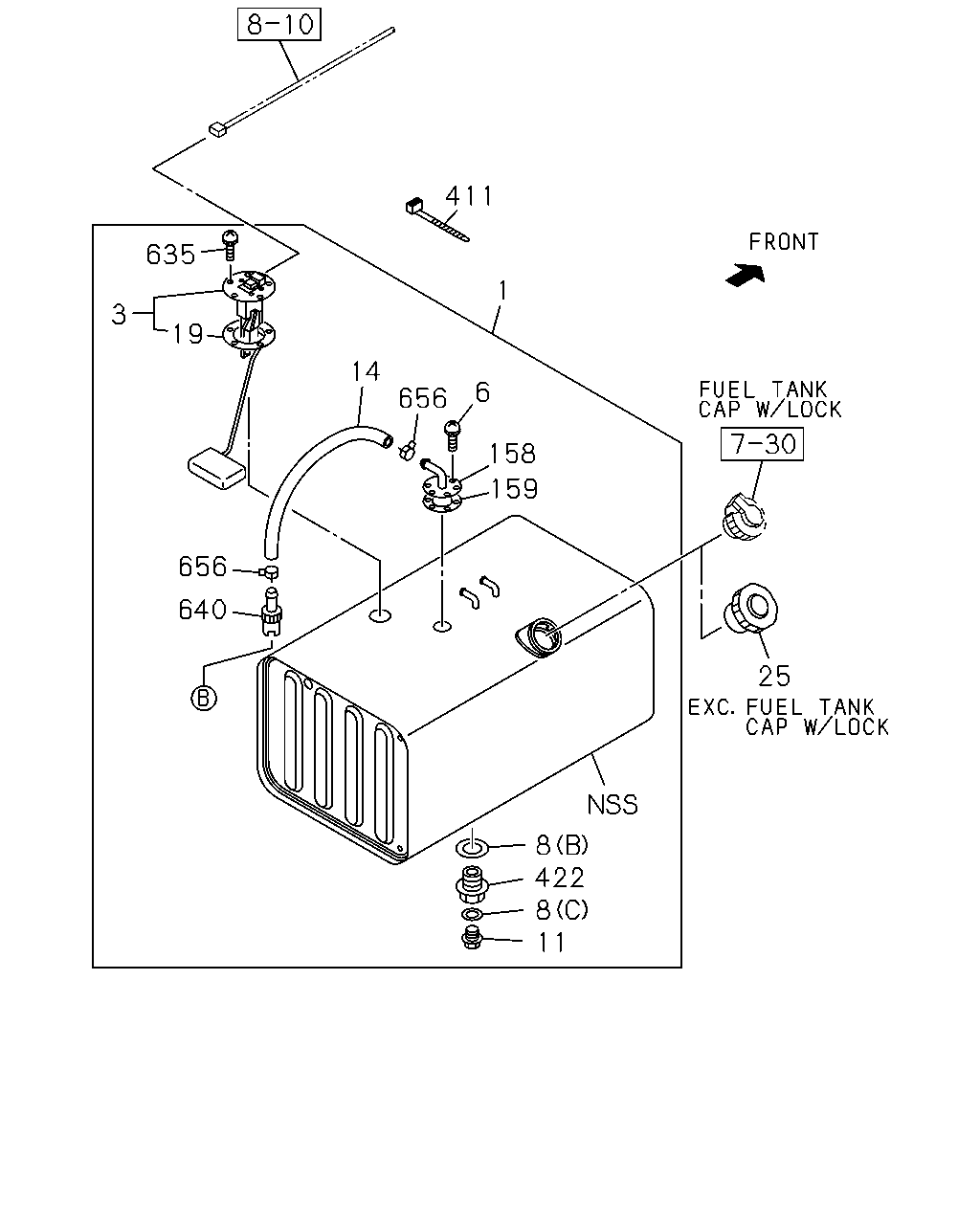

25 8 422 8 11 159 158 656 14 6 1 411 635 19 3 656 640

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1111-1507
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1508-
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-2	01	1	1111-1202
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-3	01	1	1203-
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1111-
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1111-1202
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1203-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1203-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1504-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1111-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1111-1202
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1203-
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1111-
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1111-1202
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1203-
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1111-
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1111-1202
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1203-
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1111-
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1111-1202
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1203-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1111-1202
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1203-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1111-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1111-1202
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1203-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 L=140	5-09707-031-1	01	1	1111-
422	03.023 PLUG; FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 03.890 M30	8-98067-038-0	01	1	1504-
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1111-1202
635	03.001 SCREW; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1203-
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1111-1202
640	03.164 VENTILATOR; HOSE,BREATHER EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1203-
656	03.023 CLAMP; FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98304-416-0	02	1	1504-

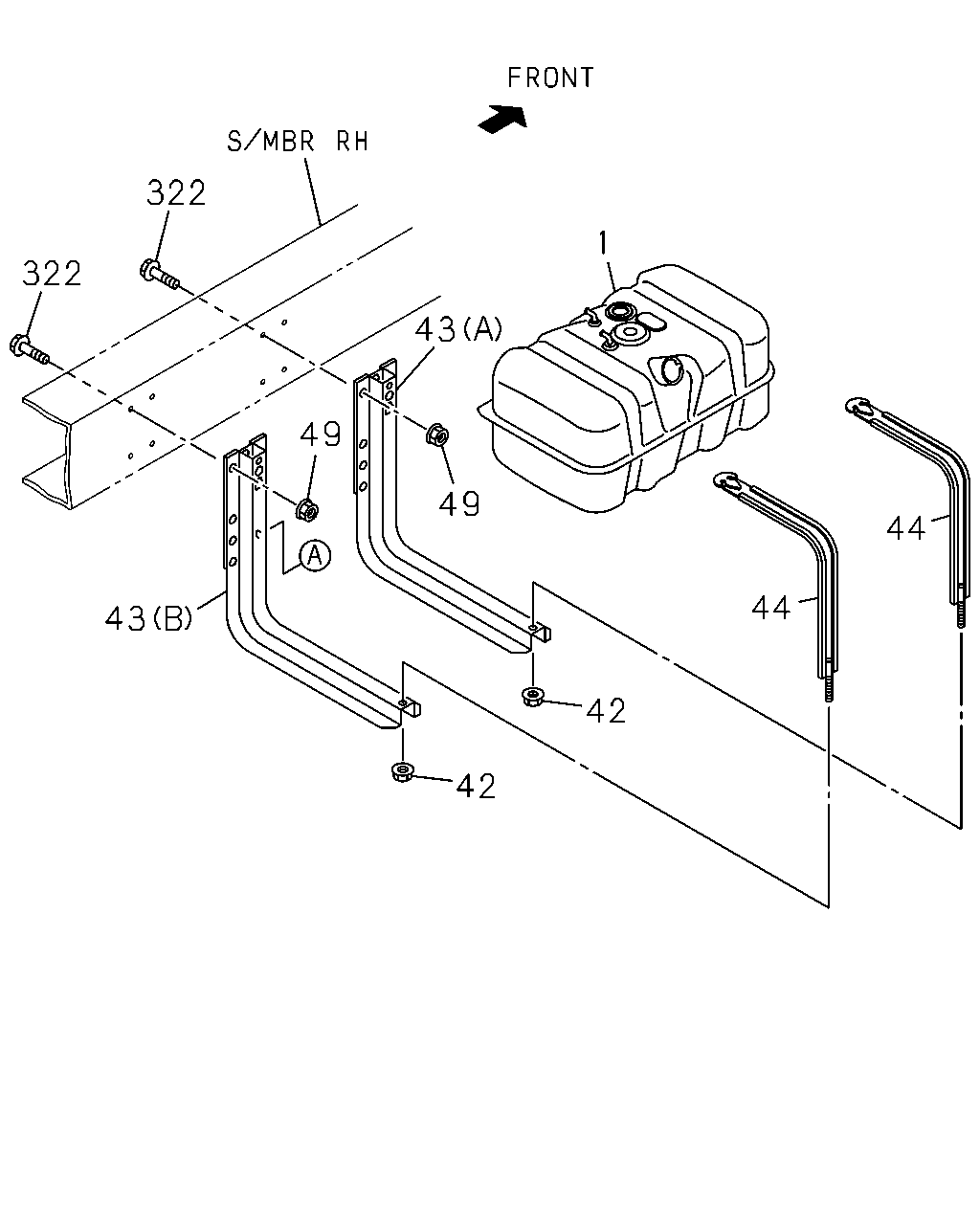

44 44 42 42 42 42 43 322 322 43 49 49 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1111-1507
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1508-
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-2	01	1	1111-1202
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-3	01	1	1203-
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	1111-
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (C)	8-98049-768-1	01	1	1111-
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (D)	8-98127-229-0	01	1	1111-
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	1111-
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	1111-
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	1111-
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	1111-1309
322	03.895 BOLT; BRKT FIX M10X40 FLANGE	8-98124-451-2	08	1	1310-

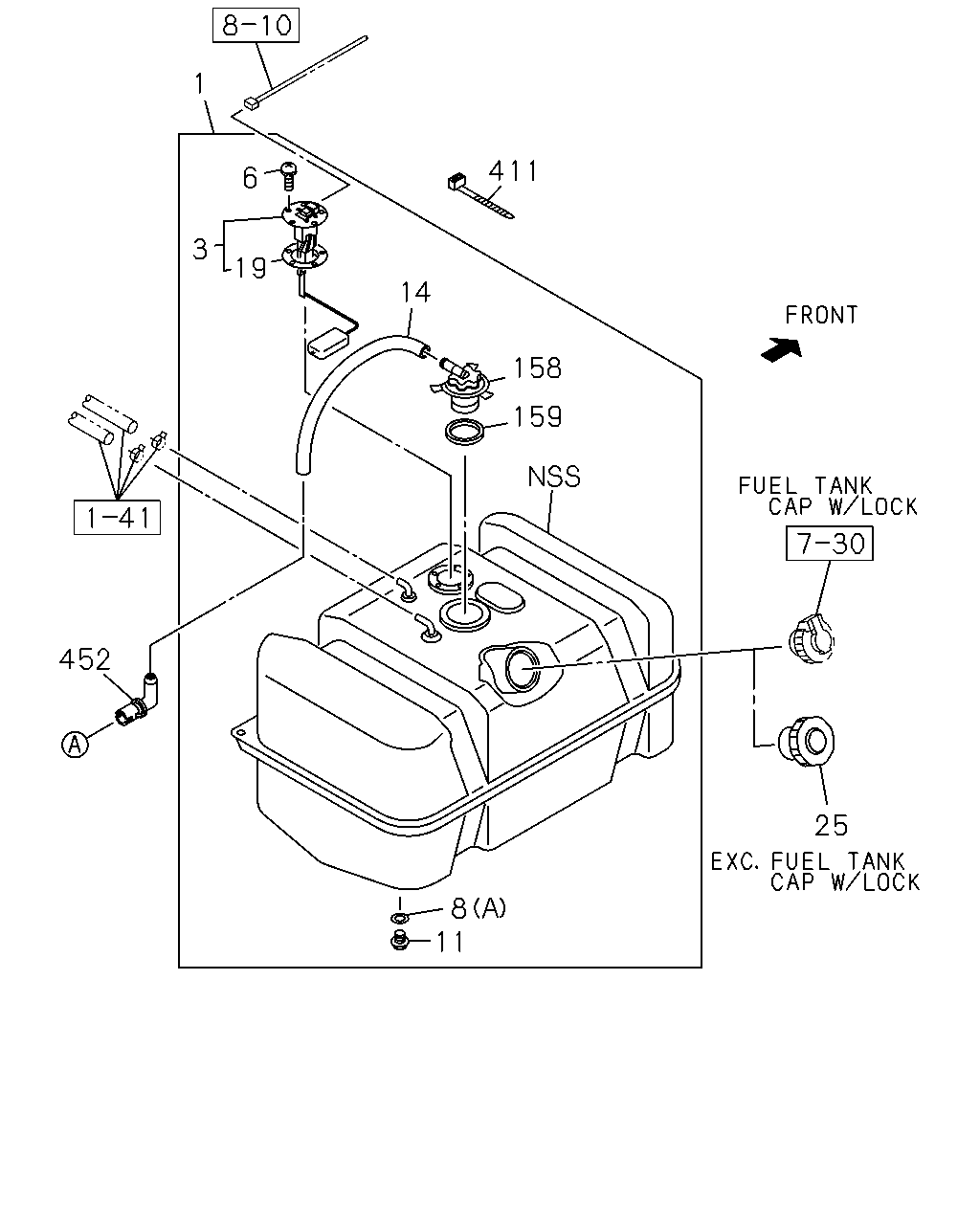

11 8 25 159 158 14 411 19 3 6 1 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1111-1507
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1508-
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-2	01	1	1111-1202
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-3	01	1	1203-
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1111-
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1111-1202
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1203-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1203-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1504-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1111-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1111-1202
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1203-
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1111-
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1111-1202
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1203-
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1111-
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1111-1202
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1203-
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1111-
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1111-1202
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1203-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1111-1202
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1203-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1111-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1111-1202
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1203-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 L=140	5-09707-031-1	01	1	1111-
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	1111-

411 1 25 11 7 8 159 158 6 14 3 635 19 640

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.001 TANK; FUEL EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98153-048-2	01	1	1508-
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1111-1507
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2) FUEL TANK 100 LITTER<N02> 756X482X376 100L	8-98062-738-4	01	1	1508-
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-2	01	1	1111-1202
1	03.001 TANK; FUEL EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 820X500X400 140L	8-98181-864-3	01	1	1203-
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	1111-
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1111-1202
3	03.107 UNIT; FUEL TANK,SUB EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	1203-
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> M5X12 W/LK WASHER	0-36220-512-0	05	1	1111-1202
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	1203-
7	03.112 GASKET; TANK UNIT,SUB TANK FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1111-1202
7	03.112 GASKET; TANK UNIT,SUB TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	1203-1503
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0	9-09571-418-0	01	1	1504-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0	9-09572-014-0	01	1	1111-
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1111-1202
8	03.890 GASKET; DRAIN PLUG,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> (B) ID=30	8-98067-041-0	01	1	1203-
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	1111-
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1111-1202
11	03.890 PLUG; DRAIN,FUEL TANK EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	1203-
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1111-
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1111-1202
14	03.163 HOSE; BREATHER,OUTLET EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> L=430	8-98131-037-0	01	1	1203-
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	1111-
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1111-1202
19	03.112 GASKET; FUEL TANK UNIT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	1203-
25	03.028 CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP W/LOCK<N05>	8-97387-179-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	1111-
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1111-1202
158	03.164 VALVE; ROLL OVER & FLOAT EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	1203-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	1111-
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1111-1202
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> ID=45 OD=67	1-83149-003-0	01	1	1203-
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 L=140	5-09707-031-1	01	1	1111-
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1111-1202
635	03.001 SCREW; ROLL OVER & FLOAT VALVE EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	1203-
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1111-1202
640	03.164 VENTILATOR; HOSE,BREATHER EURO2 SPECIFICATION(NT2),EURO5 SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	1203-

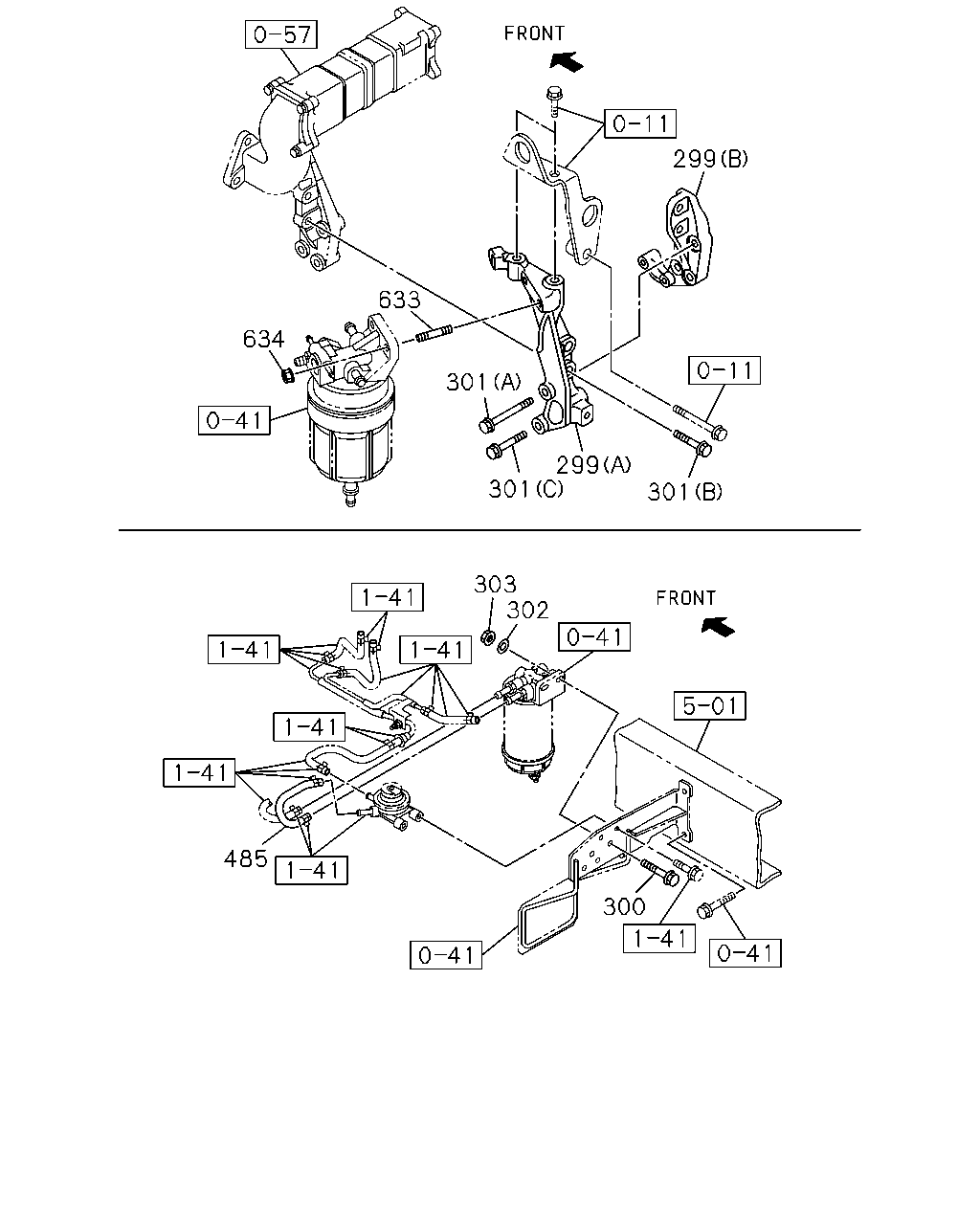

299 301 301 633 634 301 299 303 302 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
299	03.162 BRACKET; FUEL FILTER EURO2 SPECIFICATION(NT2) (B)	8-98074-132-1	01	1	1111-
299	03.162 BRACKET; FUEL FILTER (A)	8-98172-650-0	01	1	1111-
300	03.162 BOLT; BRKT TO BODY POOR QUALITY DIESEL FUEL(KF0) 03.613 M10X40 FLANGE	0-28651-040-0	02	1	1111-
301	03.162 BOLT; BRKT TO SEDIMENTER 02.510 (A) M12X100 FLANGE	0-28151-200-0	01	1	1111-
301	03.162 BOLT; BRKT TO SEDIMENTER 00.685 (B) M12X50 FLANGE	0-28151-250-0	01	1	1111-
301	03.162 BOLT; BRKT TO SEDIMENTER 09.181 (C) M12X80	0-28151-280-0	01	1	1111-
302	03.162 WASHER; PL,SEDIMENTER POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	1111-
303	03.162 NUT; SEDIMENTER BRKT POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	1111-
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0)	8-98105-710-0	01	1	1111-
633	03.162 STUD; BRKT TO SEDIMENTER 03.275 M8X25 L=37	0-41010-825-0	02	1	1111-
634	03.162 NUT; BRKT TO SEDIMENTER 01.062 M8 FLANGE	0-91180-108-0	02	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
