Sayfa 0-61 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51392 - NQR BUS A/BRAKE LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#80952) — 81 parça

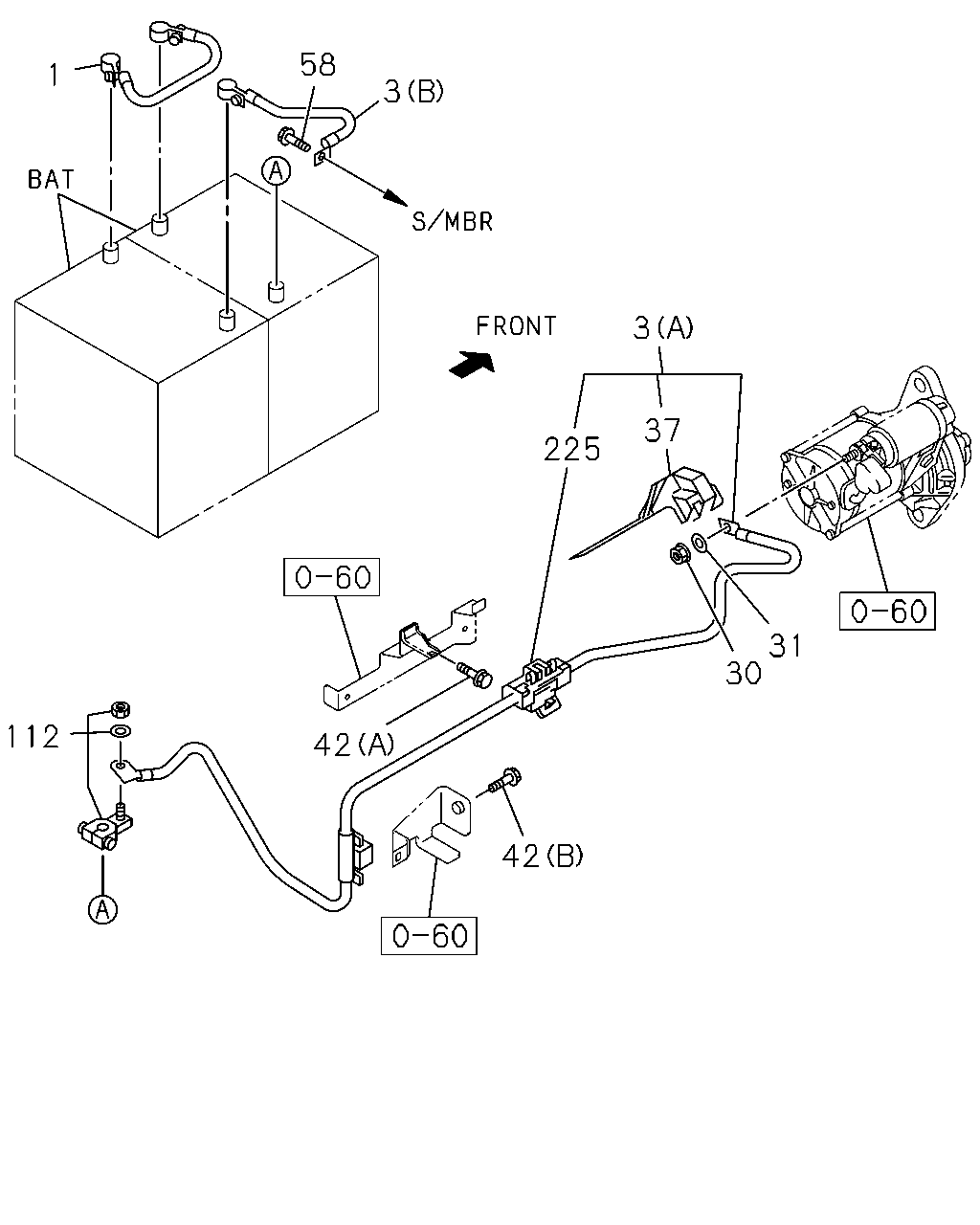

58 1 3 3 37 225 31 30 112 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98182-012-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98294-765-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-014-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-766-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98179-217-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-757-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-016-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-767-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98200-999-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-768-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98179-216-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98294-756-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF),M/T MYY6S(RST) BATTERY 115E41L<8MA> (D)	8-98201-106-0	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF),M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (B) L=250	8-98056-338-1	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98181-995-0	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98208-149-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98294-771-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98181-999-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-761-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98181-991-1	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98208-147-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-769-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-006-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-763-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98182-003-1	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98208-148-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-770-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98181-987-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98294-758-0	01	1	1410-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1111-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1111-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1111-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1111-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1111-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1111-	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1111-	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1111-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●

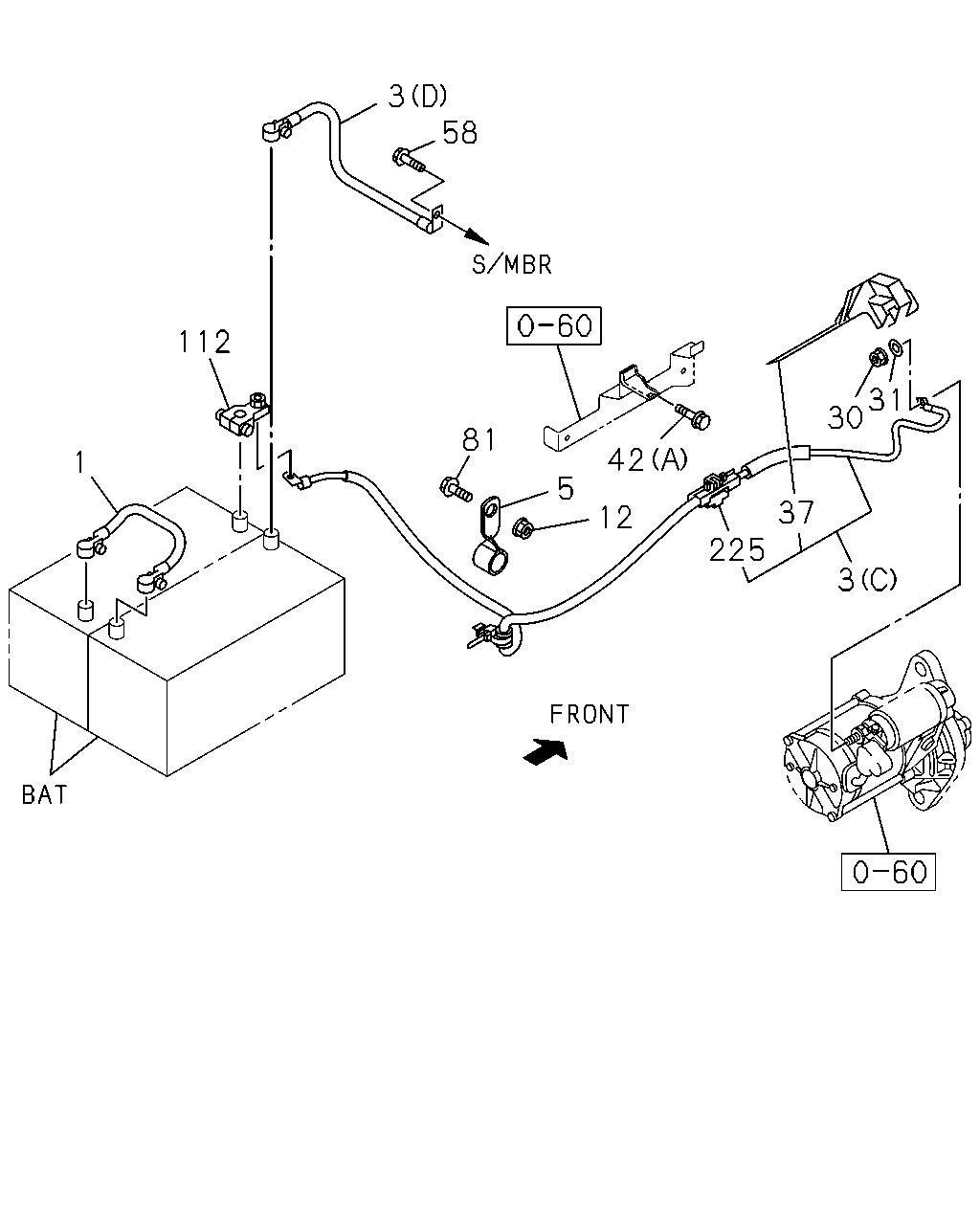

3 58 112 31 30 81 42 1 5 37 225 12 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.341 CABLE; BATTERY L=280	8-98025-412-3	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98182-012-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98294-765-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-014-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-766-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98179-217-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-757-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-016-2	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-767-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98200-999-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-768-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98179-216-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98294-756-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF),M/T MYY6S(RST) BATTERY 115E41L<8MA> (D)	8-98201-106-0	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MZZ6U(RSF),M/T MYY6S(RST) EXC. BATTERY 115E41L<8MA> (B) L=250	8-98056-338-1	01	1	1111-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98181-995-0	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98208-149-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> EXC. BATTERY 115E41L<8MA> (A)	8-98294-771-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98181-999-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-761-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98181-991-1	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98208-147-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-769-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98182-006-1	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) FUEL TANK 140 LITTER<N19> BATTERY 115E41L<8MA> (C)	8-98294-763-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98182-003-1	01	1	1111-1111	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98208-148-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) WHEEL BASE 4400MM(44W) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> (C)	8-98294-770-0	01	1	1410-	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98181-987-0	01	1	1111-1409	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> (A)	8-98294-758-0	01	1	1410-	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY BATTERY 115E41L<8MA> ID=19 L=58	1-09700-733-1	01	1	1111-	●	●
12	02.343 NUT; BATTERY CABLE CLIP BATTERY 115E41L<8MA> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	1111-	●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 02.559 ID=8.2	0-91510-808-0	01	1	1111-	●	●
37	02.343 CAP; TERMINAL,BATTERY CABLE	8-98042-507-0	01	1	1111-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE 02.500 (A) M6X16 FLANGE	8-97329-599-0	01	1	1111-	●	●
42	02.343 BOLT; BRKT,BATTERY CABLE EXC. BATTERY 115E41L<8MA> 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	1111-	●	●
58	02.343 BOLT; CABLE,BATTERY M8X24 W/PL WASHER	8-98141-256-1	01	1	1111-	●	●
81	02.559 BOLT; BATTERY CABLE BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1111-	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1111-	●	●
225	02.343 BLOCK; TERMINAL	8-98029-689-0	01	1	1111-1409	●	●
225	02.343 BLOCK; TERMINAL	8-98294-524-0	01	1	1410-	●	●
