0-60 — ENGINE ELECTRICAL CONTROL PARTS (#80951) — 72 parça

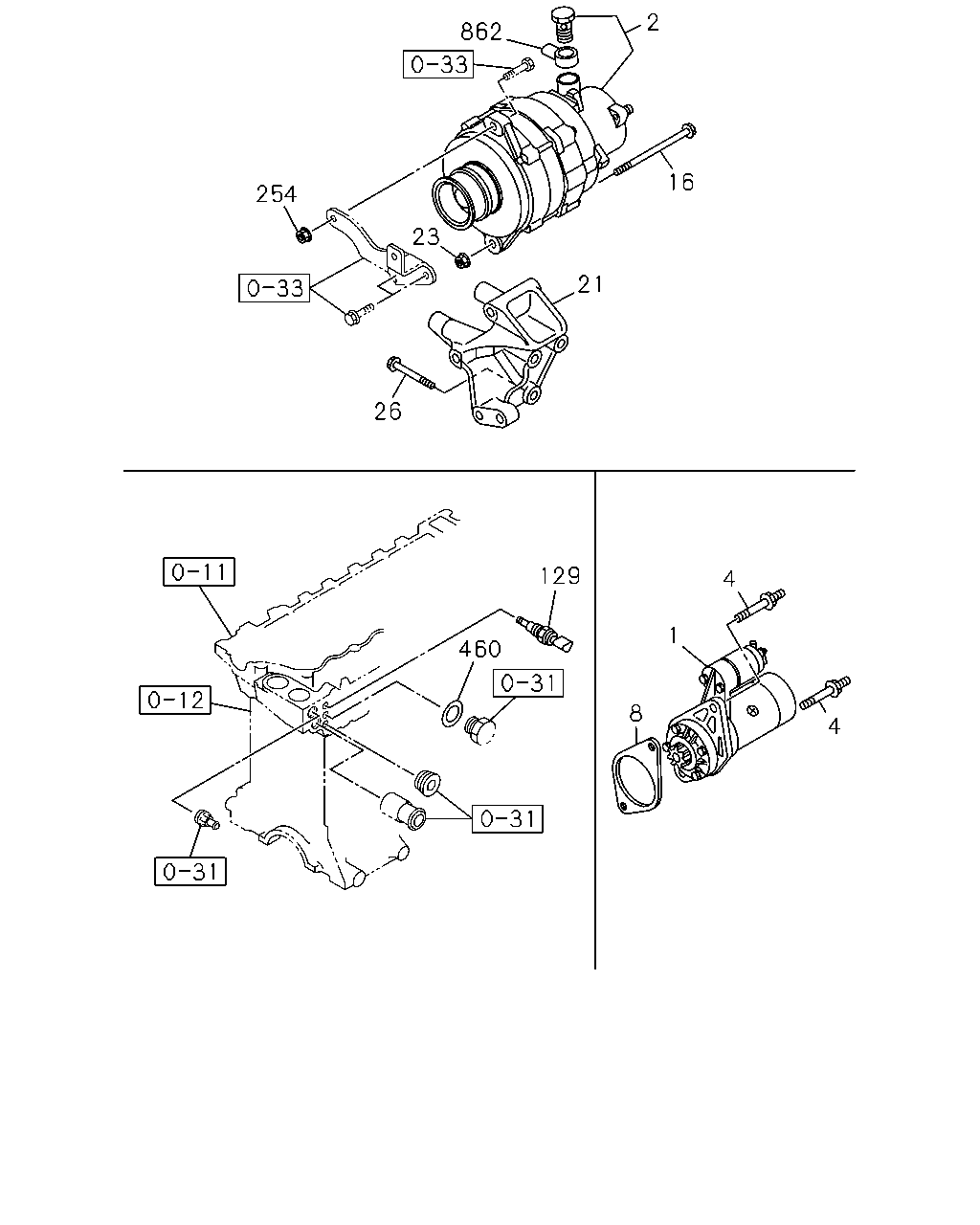

çizim 72666
2 862 16 254 23 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1111-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-98180-874-0 01 1 1111- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) 24V 80A 		8-98180-875-0 01 1 1111- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1111- ● ●
8 02.042 SPACER; STARTER
M/T MYY6S(RST) 		8-97350-947-0 01 1 1111- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1111- ● ●
21 02.277 BRACKET; GEN 8-98176-241-1 01 1 1111- ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 1111- ● ●
26 02.277 BOLT; GEN BRKT
01.062 M10X90 FLANGE 		0-28151-090-0 03 1 1111- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1111-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
254 02.277 NUT; GEN BRKT
01.540 M8 FLANGE 		0-91180-208-0 01 1 1111- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1111- ● ●
862 02.313 CONNECTOR; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V80A(7YN) 		8-97351-626-0 01 1 1111- ● ●

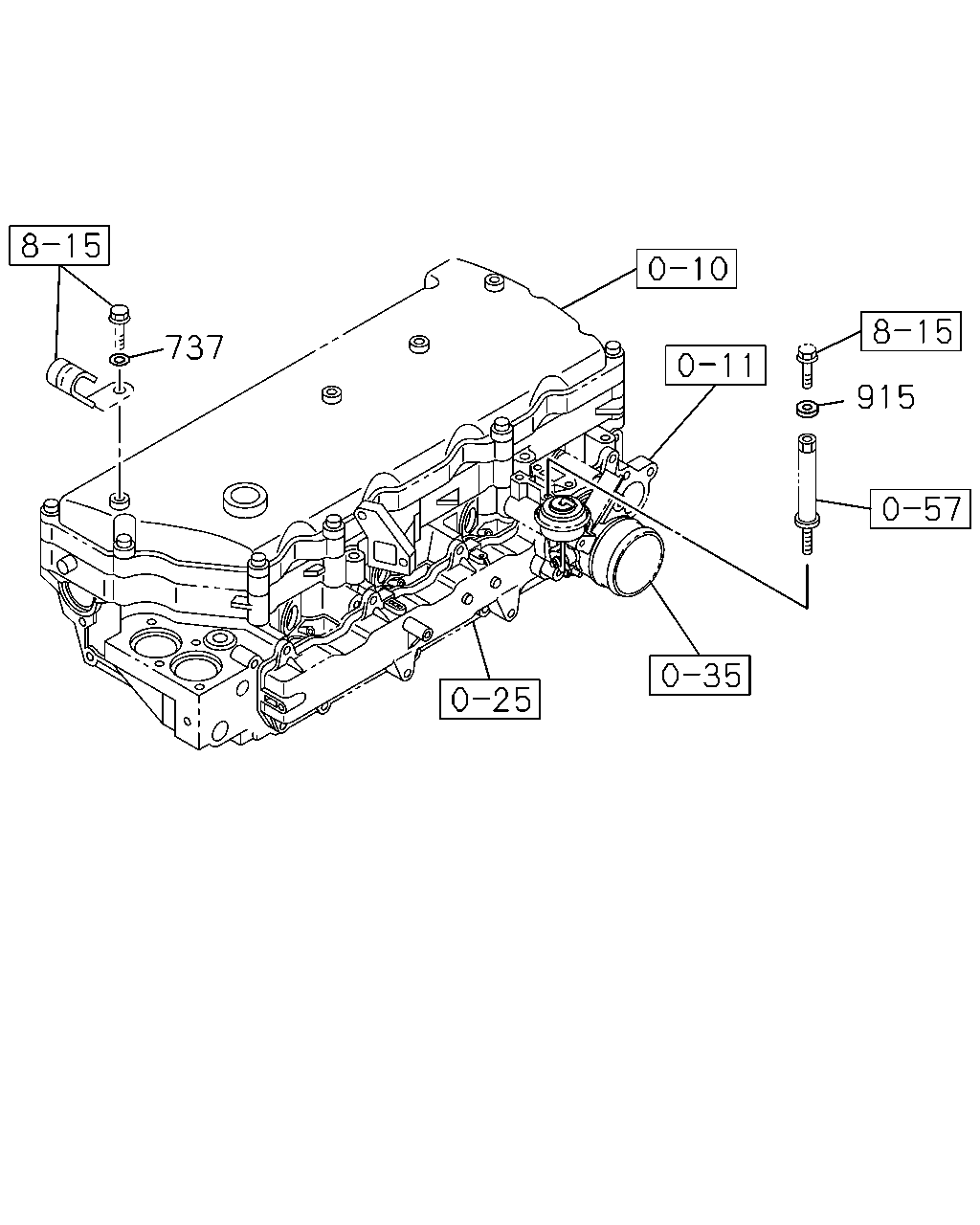

çizim 72946
737 915
BalonParca AdiParca NoAdetTipApplied Date A B
737 03.901 WASHER; PL
EURO2 SPECIFICATION(NT2) 00.413 ID=6.4 		0-91610-606-0 01 1 1111- ● ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 00.662 ID=8.4 OD=19 		5-11779-001-0 01 1 1111-1301 ● ●
915 02.500 SPACER; HARNESS
EURO2 SPECIFICATION(NT2) 03.275 ID=9 OD=18 T=5 		9-14149-173-0 01 1 1302- ● ●
çizim 73255
10 46
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1111- ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1111-1501 ● ●
46 02.510 RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A 		8-97173-947-0 01 1 1502- ● ●

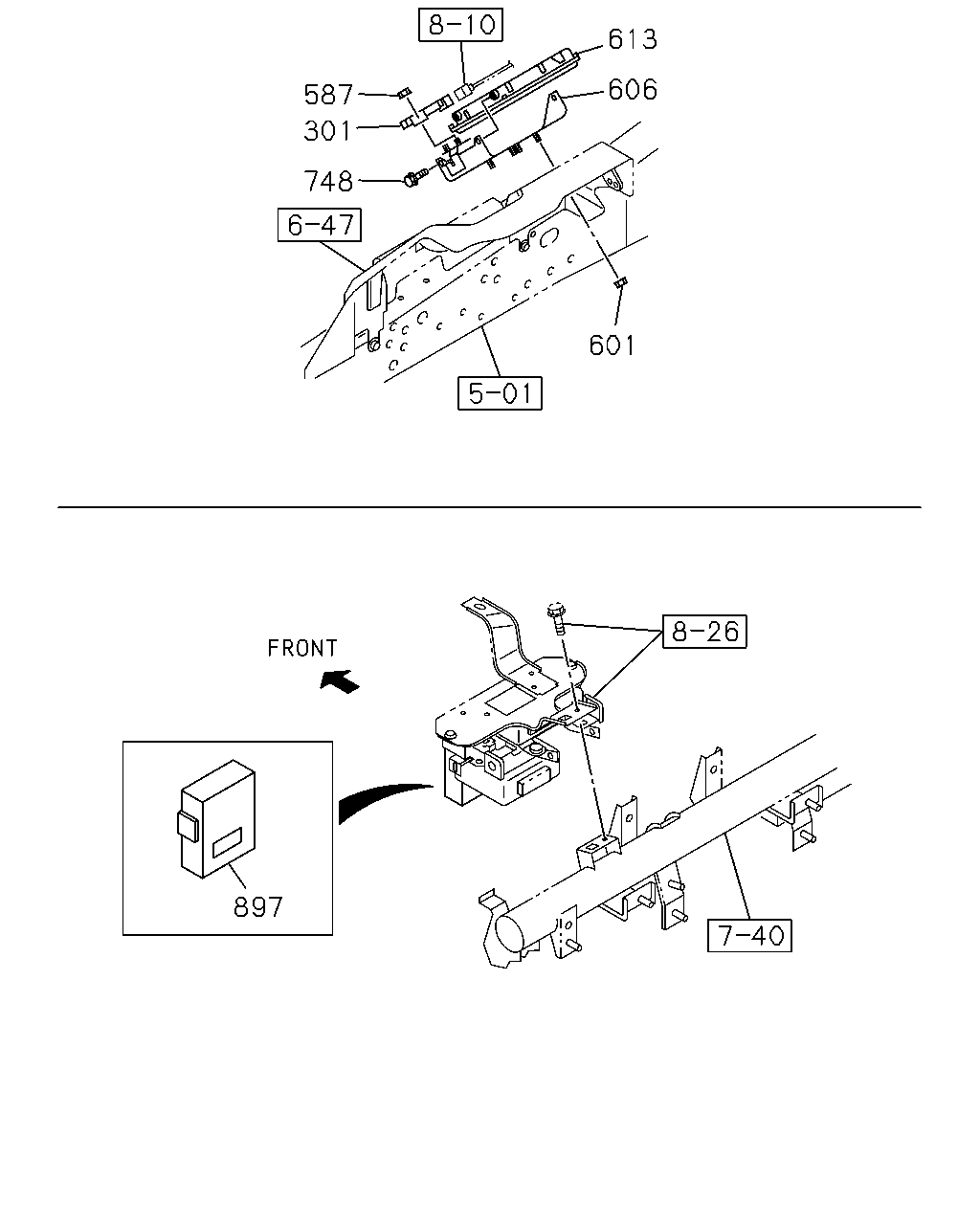

çizim 73415
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B
301 02.510 RESISTOR; DROPPING
EURO5 SPECIFICATION(NT5) 		8-97357-613-0 01 1 1111-1507 ● ●
301 02.510 RESISTOR; DROPPING
EURO5 SPECIFICATION(NT5) 		8-97357-613-0 01 1 1508- ● ●
587 03.671 NUT; RESISTOR & RELAY
EURO5 SPECIFICATION(NT5) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1111- ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1111- ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2) 		8-98004-751-1 01 1 1111-1402 ● ●
606 03.680 BRACKET; CONT UNIT
EURO2 SPECIFICATION(NT2) 		8-98114-583-2 01 1 1403- ● ●
606 03.680 BRACKET; CONT UNIT
EURO5 SPECIFICATION(NT5) 		8-98145-011-2 01 1 1111- ● ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		8-98299-047-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> 		8-98299-052-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> 		8-98299-051-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) GLOW SYSTEM DELETE<7RK> EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		8-98299-050-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION(NT2) 		8-98244-327-0 01 1 1309-1501 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) EURO2 SPECIFICATION(NT2) EXC. GLOW SYSTEM DELETE<7RK> 		8-98244-327-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION(NT2) 		8-98244-326-0 01 1 1309-1501 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 100KM(NMU) EURO2 SPECIFICATION(NT2) EXC. GLOW SYSTEM DELETE<7RK> 		8-98244-326-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) 		8-98081-076-6 01 1 1111-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) 		8-98229-602-0 01 1 1210-1305 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ) 		8-98229-602-0 01 1 1306-1308 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		8-98229-602-0 01 1 1309-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU),GLOW SYSTEM DELETE<7RK> 		8-98229-602-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) 		8-98121-282-6 01 1 1111-1305 ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-282-6 01 1 1306-1505 ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-754-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) 		8-98115-461-3 01 1 1111-1209 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) 		8-98229-605-0 01 1 1210-1308 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU) 		8-98229-605-0 01 1 1309-1501 ●
613 03.670 CONTROL UNIT; ENG
EURO2 SPECIFICATION(NT2) EXC. SPEED LIMITER 90KM(NMJ),SPEED LIMITER 100KM(NMU),GLOW SYSTEM DELETE<7RK> 		8-98229-605-0 01 1 1502- ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) 		8-98121-291-6 01 1 1111-1305 ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-291-6 01 1 1306-1505 ●
613 03.670 CONTROL UNIT; ENG
EURO5 SPECIFICATION(NT5) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-721-0 01 1 1506- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1111- ● ●
897 02.510 DRM 8-98082-814-7 01 1 1111- ● ●

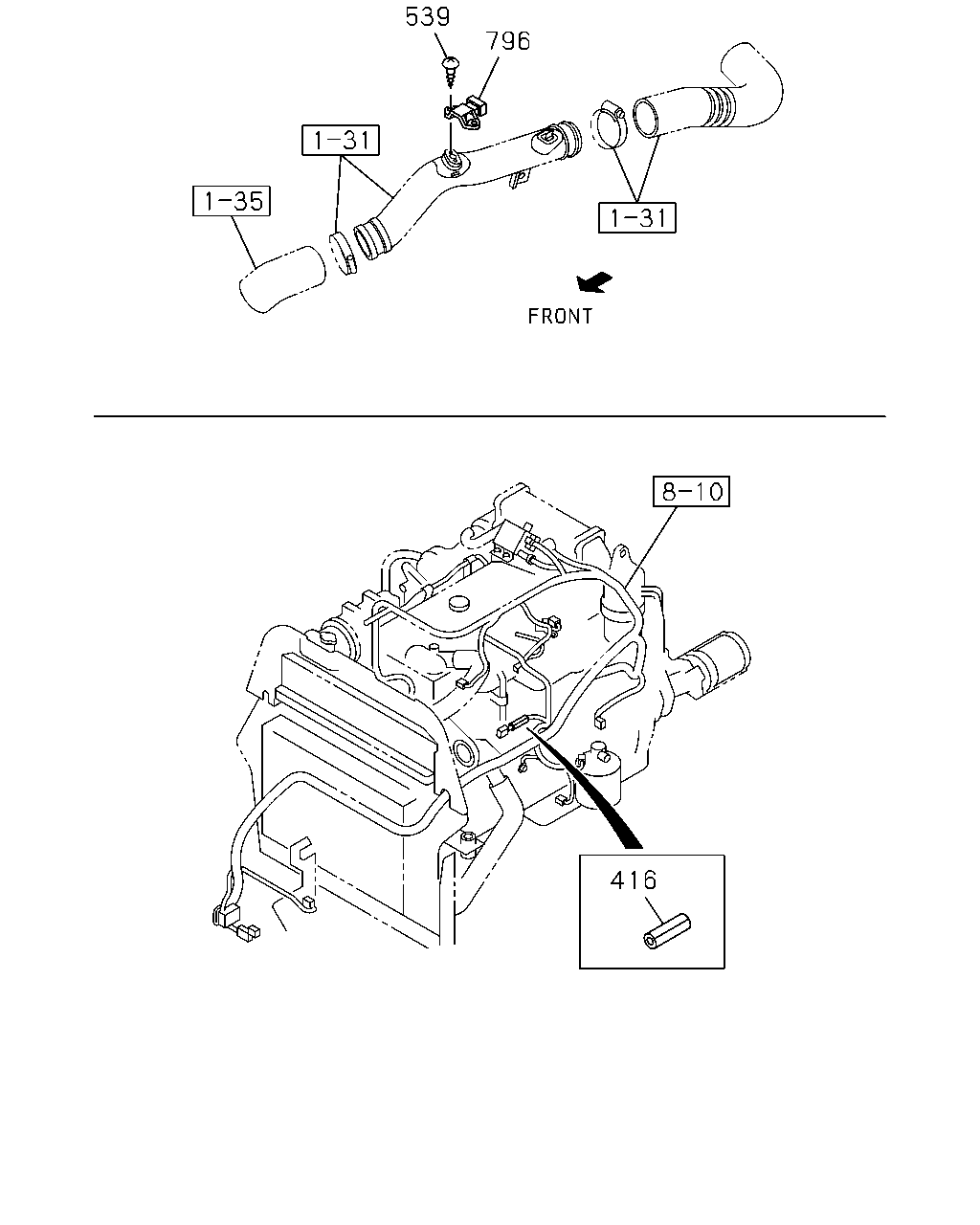

çizim 183386
539 796 416
BalonParca AdiParca NoAdetTipApplied Date A B
416 02.530 SLEEVE; RUBBER
EURO5 SPECIFICATION(NT5) 04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 1111- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1111- ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1111- ● ●
çizim 183388
1 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1111-1207 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> 02.483 (B) 		8-98018-251-1 03 1 1111-1111 ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> 02.483 (B) 		8-98018-251-1 03 1 1111-1111 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> 02.483 (B) 		8-98018-251-1 04 1 1111- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98041-946-1 01 1 1111- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> 02.483 (B) 		8-98018-251-1 04 1 1111-1111 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> 02.483 (B) 		8-98018-251-1 04 1 1111-1111 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6U(RSF),M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19> 02.483 (B) 		8-98018-251-1 03 1 1111- ● ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (C) 		8-98123-872-0 01 1 1111- ● ●
395 02.343 NUT; BRKT FIX
M/T MZZ6U(RSF) FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1111-1111 ● ●
395 02.343 NUT; BRKT FIX
EXC. FUEL TANK 140 LITTER<N19>,BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1111-1111 ● ●
395 02.343 NUT; BRKT FIX
M/T MZZ6U(RSF),M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE 		0-91180-108-0 04 1 1111- ● ●
395 02.343 NUT; BRKT FIX
M/T MYY6S(RST) FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE 		0-91180-108-0 04 1 1111-1111 ● ●
395 02.343 NUT; BRKT FIX
M/T MZZ6U(RSF),M/T MYY6S(RST) BATTERY 115E41L<8MA> EXC. FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE 		0-91180-108-0 04 1 1111-1111 ● ●
395 02.343 NUT; BRKT FIX
M/T MZZ6U(RSF),M/T MYY6S(RST) EXC. FUEL TANK 140 LITTER<N19> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1111- ● ●
