0-52 — OIL AND VACUUM PIPING; ENGINE (#8095) — 106 parça

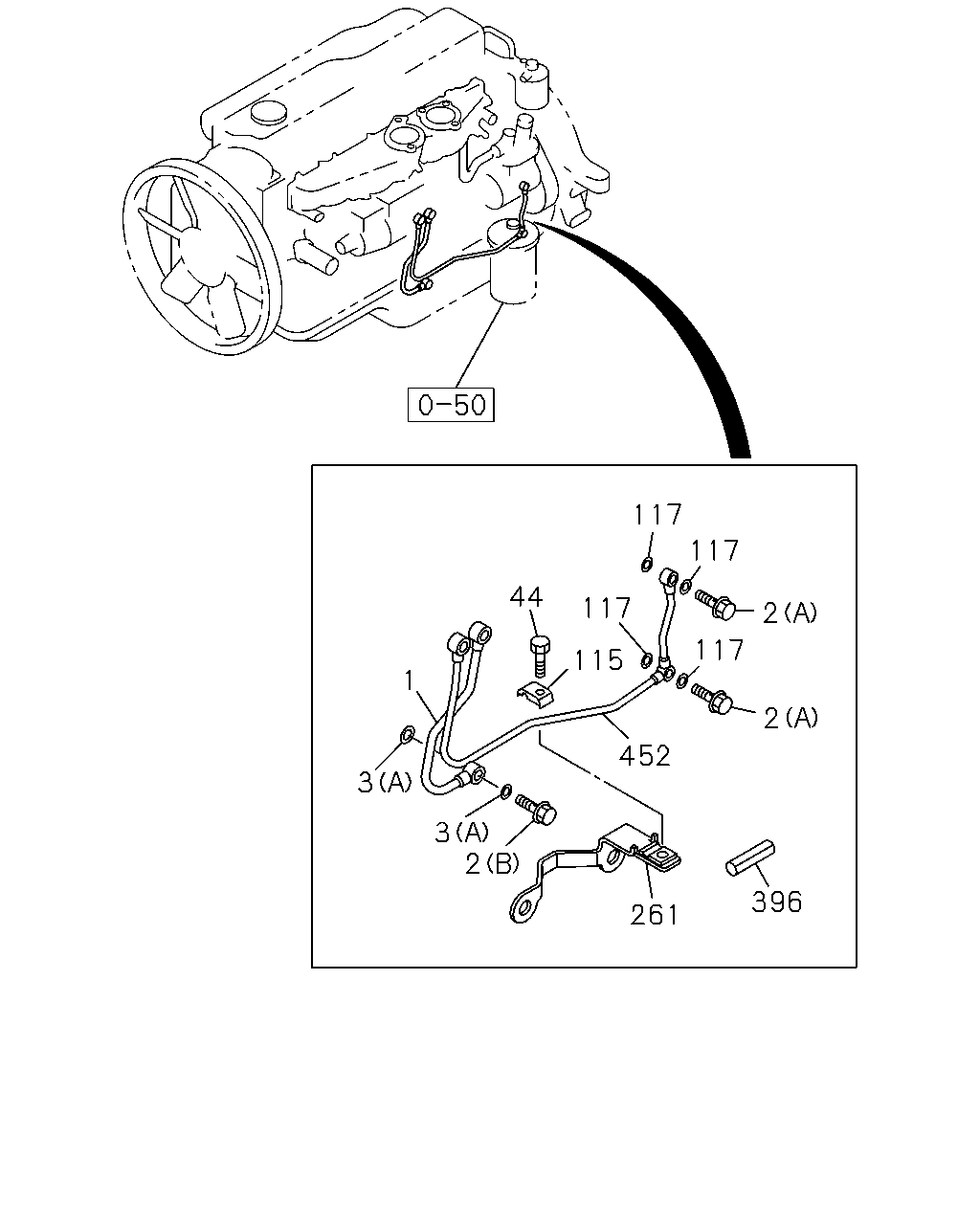

117 117 44 117 2 117 115 1 2 452 3 3 2 396 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0601-		●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-		●	●
261	BRACKET; CLIP,OIL PIPE	8-94396-695-0	01	1	0005-0210	●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0005-0210	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0005-0210	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0211-		●	●

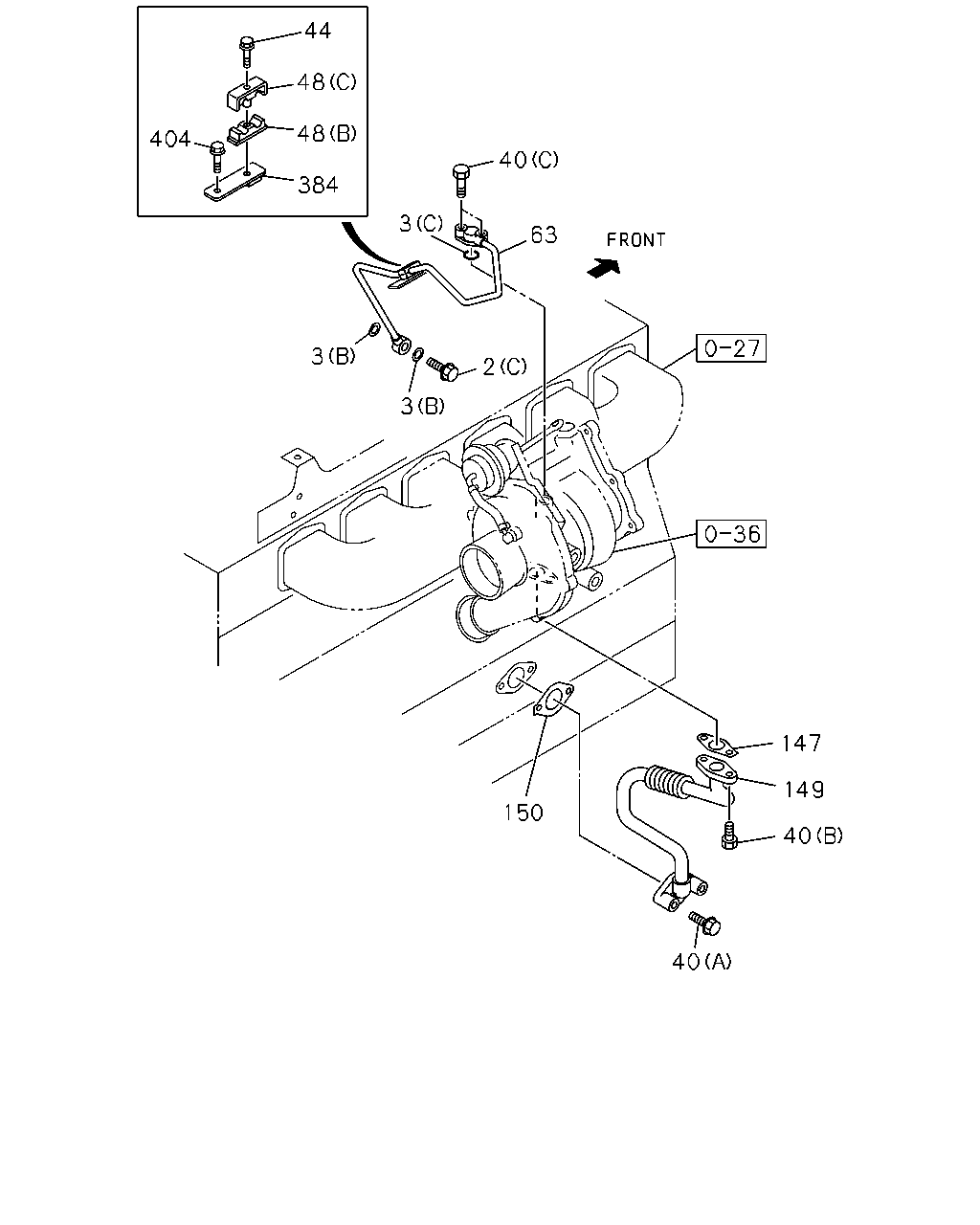

44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28080-830-0	02	1	0211-0512		●	●
40	BOLT; OIL PIPE (C) M8X30 FLANGE	0-28050-830-0	02	1	0601-		●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0211-0512		●	●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-		●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
44	BOLT; CLIP,OIL PIPE M6X22 FLANGE	0-28080-622-0	01	1	0005-0210	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	0211-0512		●	●
44	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0601-		●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-		●	●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-		●	●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97602-629-0	01	1	0211-		●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0211-		●	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0211-		●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0211-		●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0211-		●	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0211-		●	●

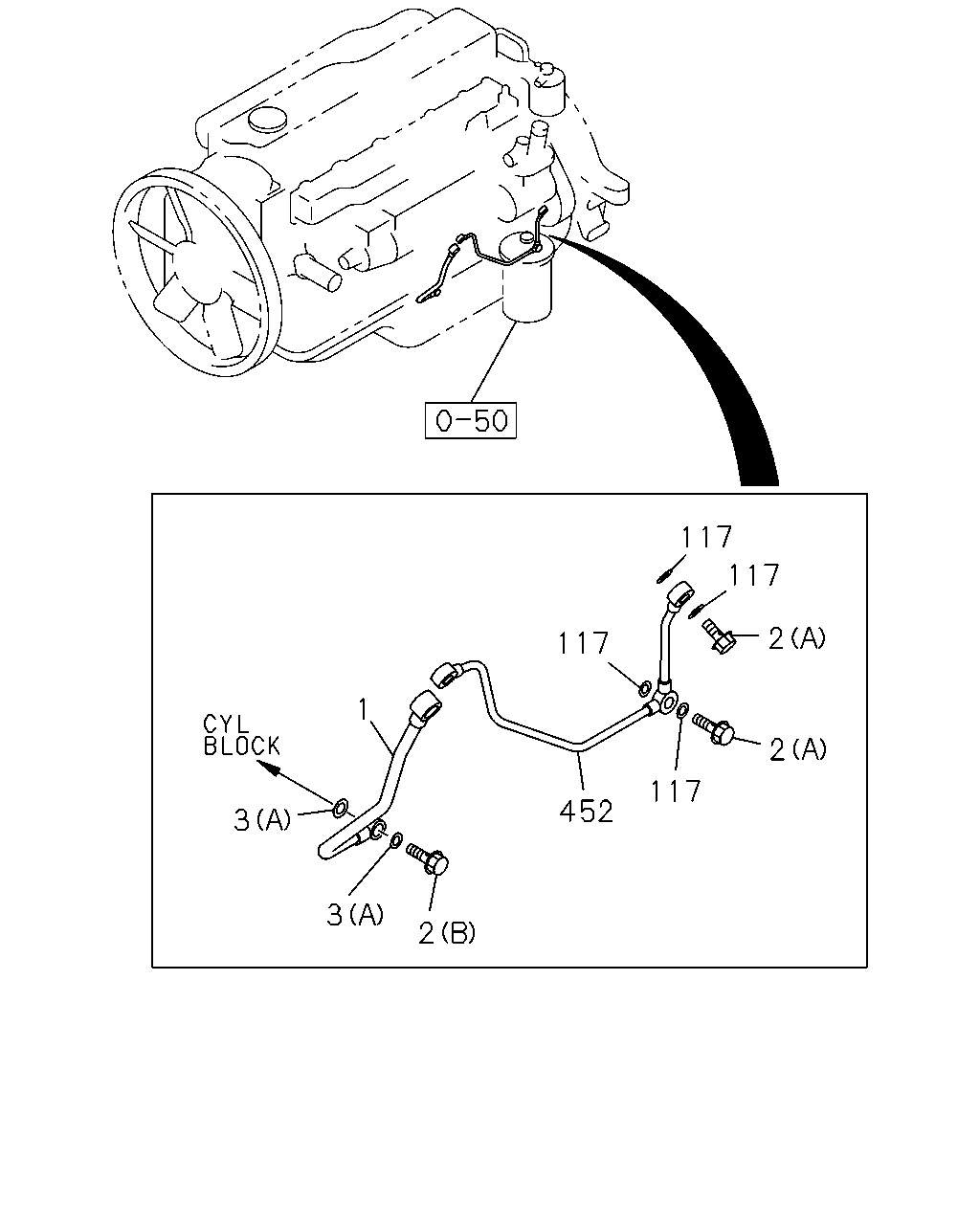

117 117 2 117 1 2 117 452 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-0210	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0005-0210	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.8	1-09623-274-0	01	1	0211-		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312		●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0210	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0211-		●	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-569-0	01	1	0005-0210	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0211-		●	●

2 156 156 482 153 48 146 156 156 100 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	02	1	0211-0805		●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0005-0210	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0211-		●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0005-0210	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (A)	1-09701-091-0	01	1	0211-		●	●
48	CLIP; OIL PIPE (C)	1-09701-228-3	01	1	0211-		●	●
48	CLIP; OIL PIPE (B)	1-09701-229-2	01	1	0211-		●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X22 FLANGE	0-28280-622-0	01	1	0005-0210	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X20 FLANGE	0-28680-620-0	01	1	0211-0512		●	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X20 FLANGE	0-28650-620-0	01	1	0601-		●	●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X25 FLANGE	0-28080-825-0	01	1	0005-0210	●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28680-830-0	01	1	0211-0512		●	●
146	BOLT; BRKT ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	0601-		●	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-94395-330-0	01	1	0005-0210	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	8-94392-527-3	01	1	0211-		●	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=16.0	9-09571-410-0	04	1	0005-0210	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) ID=10.2 OD=16.0	9-09571-410-0	04	1	0211-		●	●
482	SPACER; OIL PIPE FTS ALL(FT****) ENGINE REAR PTO(SV1) OD=22 T=7	9-53319-024-0	01	1	0005-0210	●
